TECHNICAL DATA
规格参数
Electrical specifications
| Rated voltage | ≤ 50 V |
|---|---|
| Rated current | ≤ 2 A |

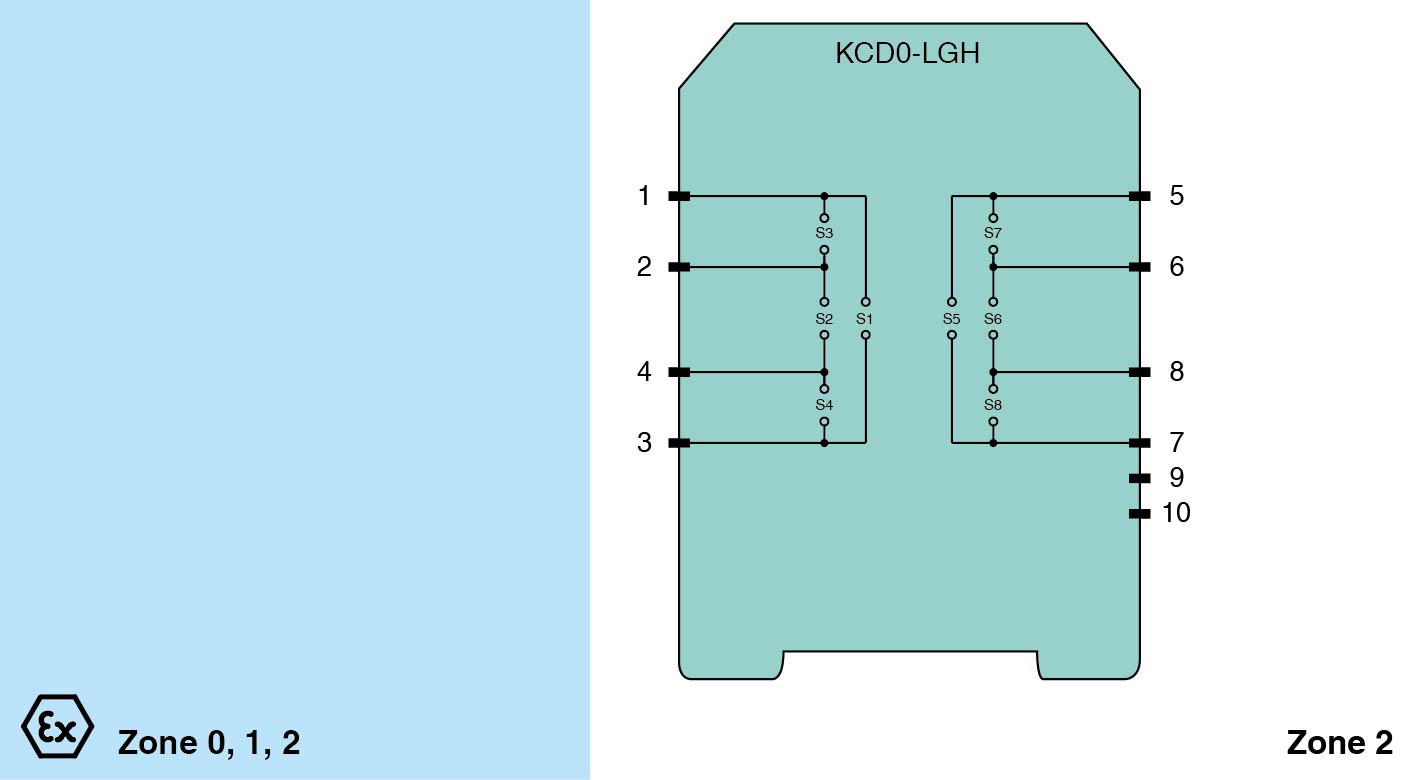

| Configuration | via internal wire jumpers |
| Labeling | space for labeling at the front |
| Degree of protection | IEC 60529 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 80 g |
| Dimensions | 12.5 x 114 x 104 mm (0.5 x 4.5 x 4.1 inch) (W x H x D) , housing type A2 |
| Height104 mmWidth12.5 mmDepth114 mm | Height104 mmWidth12.5 mmDepth114 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 104 mm |
| Width | 12.5 mm |
| Depth | 114 mm |
| Certificate | PF 08 CERT 1214 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010 |
| Marking | II 3G Ex nA IIC T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-15:2010 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
