KCD0-RSH-1.1E.1

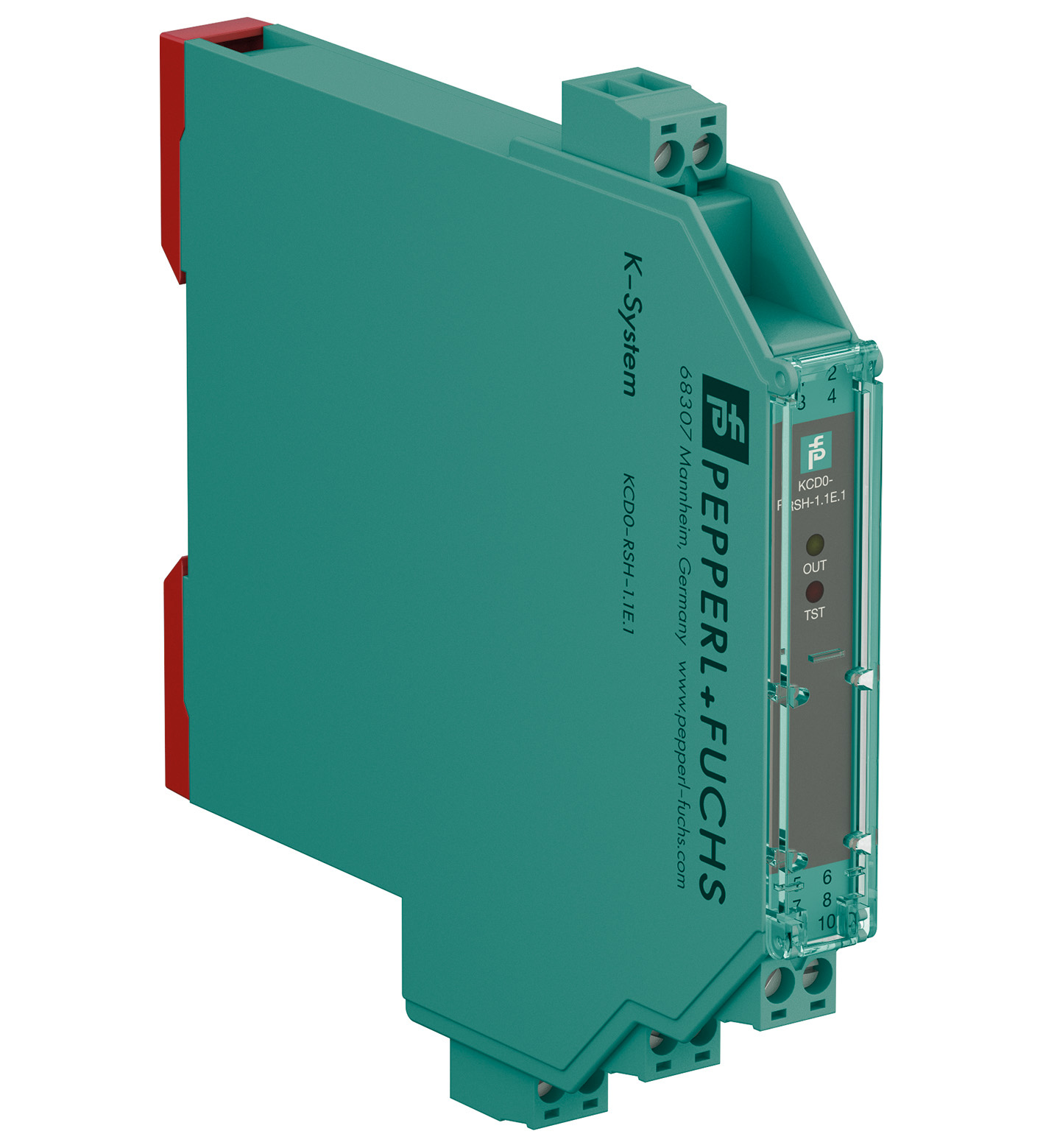

KCD0-RSH-1.1E.1 Relay Module

订货号: 70180765
产品分类: K 系统（DIN 导轨安装，功能强大）

Relay Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3
Connection	loop powered
Rated voltage	19 ... 30 V DC loop powered
Power dissipation	< 1.5 W
Power consumption	< 1.5 W
Connection side	control side

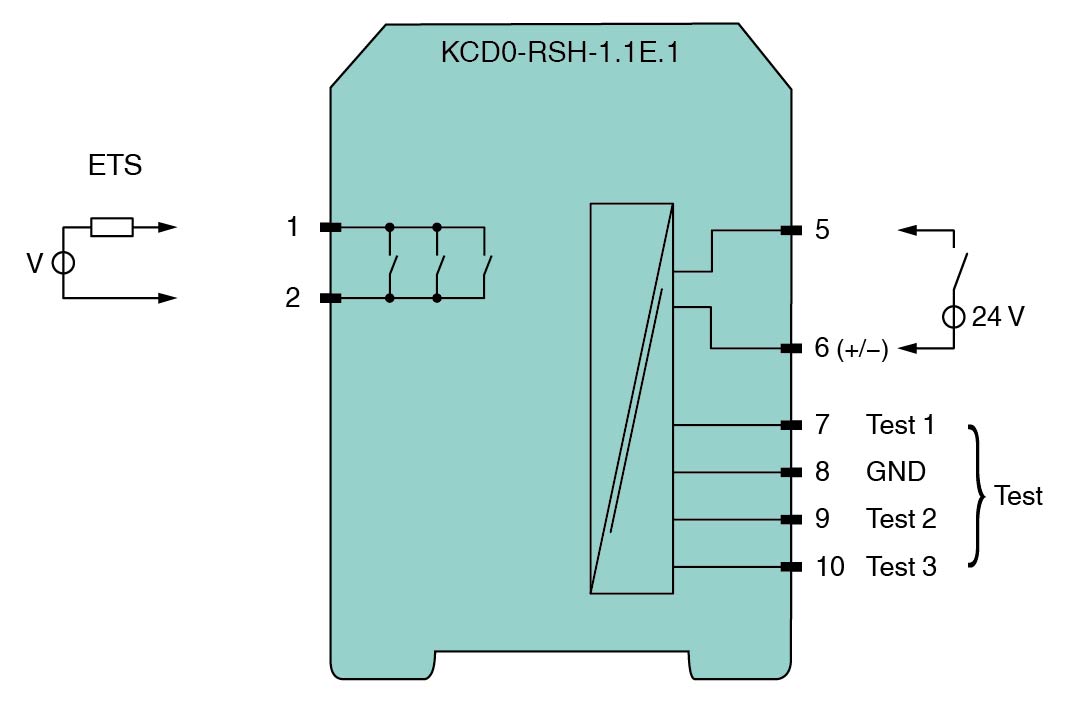

Connection	Input terminals 5, 6 ; test input terminals 7, 8, 9, 10
Pulse/Pause ratio	150 ms / 150 ms
Test pulse length	max. 4 ms from DO card
Test input	see functional safety manual
Signal level	0-signal: -5 ... 5 V 1-signal: 19 ... 26.5 V
Rated current	0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card)
Connection side	field side
Connection	terminals 1, 2
Contact loading	253 V AC/3 A/cos φ 0.7; 30 V DC/3 A resistive load 253 V AC / 1/8 HP
Minimum switch current	10 mA / 24 V DC
Energized/De-energized delay	150 ms / 150 ms
Mechanical life	5 x 106 switching cycles
Switching frequency	< 3 Hz
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019	Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019
Machinery Directive	Machinery Directive
Directive 2006/42/ECEN IEC 62061:2021 , EN/ISO 13849-1:2015	Directive 2006/42/ECEN IEC 62061:2021 , EN/ISO 13849-1:2015
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010+A1:2019+A1:2019/AC:2019
Directive 2006/42/EC	EN IEC 62061:2021 , EN/ISO 13849-1:2015
Electromagnetic compatibility	NE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018
Degree of protection	IEC 60529:2013
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating.
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
