KCD0-SD3-Ex2.1545-Y1.SP

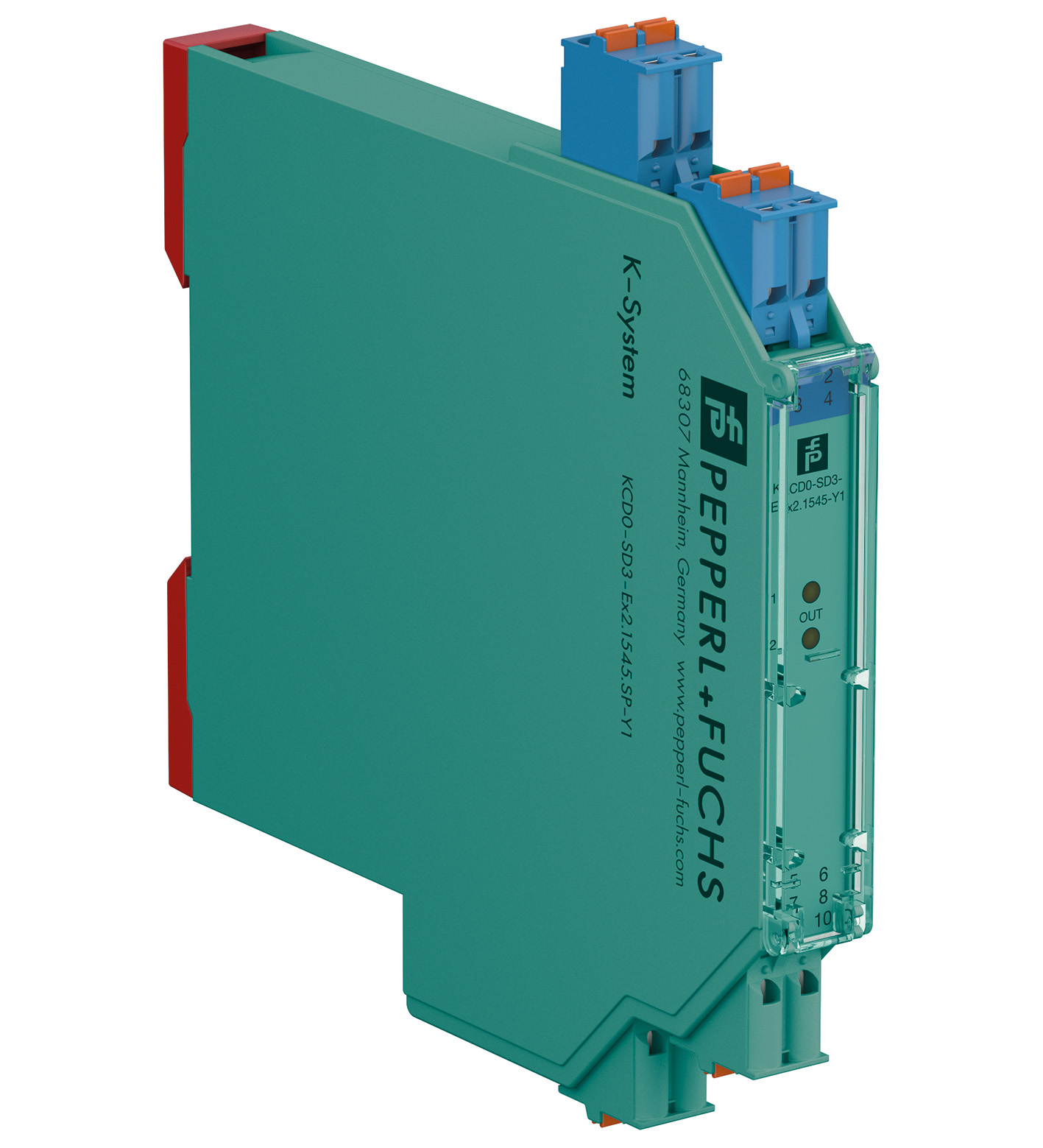

KCD0-SD3-Ex2.1545-Y1.SP Solenoid Driver

订货号: 70177399
产品分类: K 系统（DIN 导轨安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Rated voltage	loop powered
Power dissipation	< 2 W
Power consumption	Power consumption
Connection side	control side

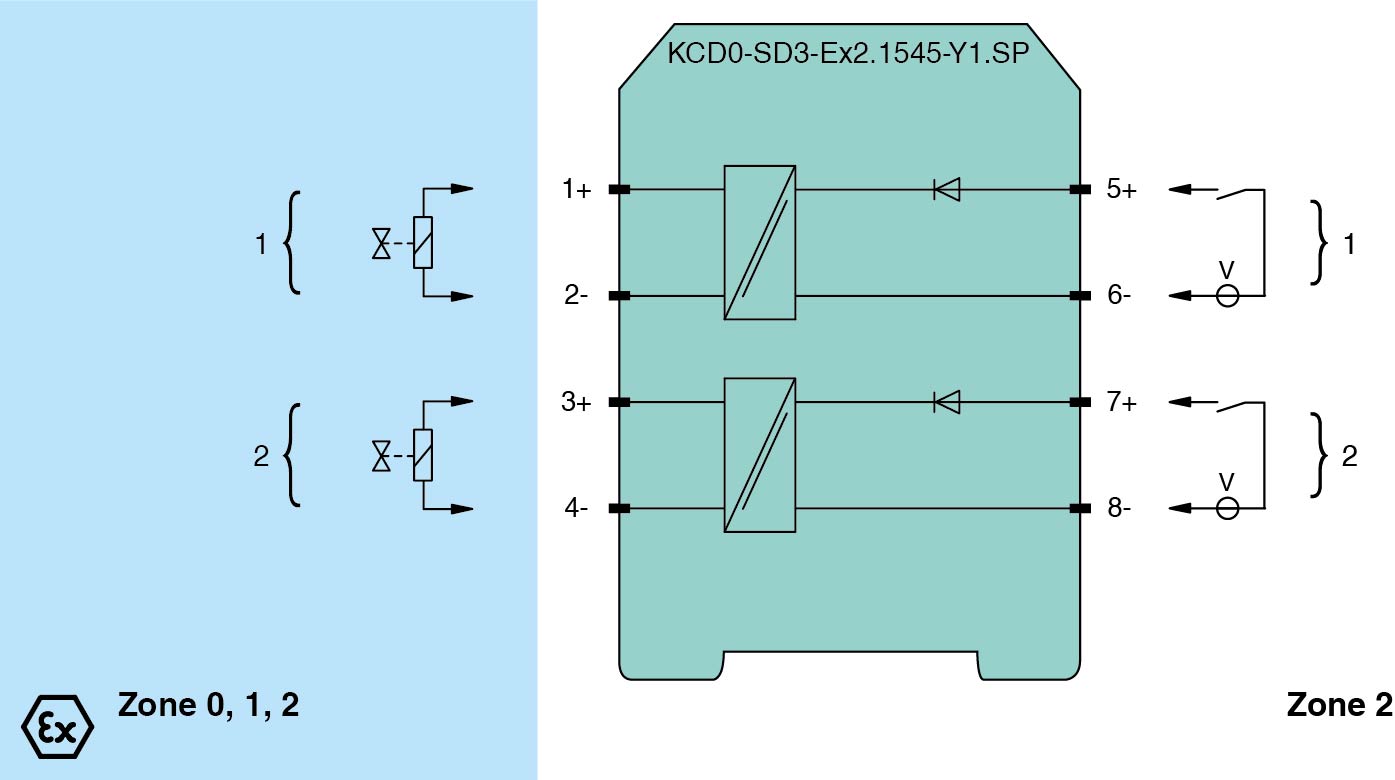

Connection	terminals 5+, 6-; 7+, 8- limited electrical values : max. 30 V , max. 5 A
Test pulse length	max. 2 ms from DO card
Signal level	1-signal: 18 ... 30 V DC 0-signal: 0 ... 5 V DC
Rated voltage	18 ... 30 V DC
Rated current	0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 20 mA (minimum load current DO card)
Inrush current	≤ 200 mA after 100 µs
Connection side	field side
Connection	terminals 1+, 2-; 3+, 4-
Internal resistor	approx. 167 Ω
Current	typ. 45 mA
Voltage	≥ 15 V
Current limit	45 mA
Open loop voltage	typ. 23.8 V
Switching frequency	max. 10 Hz
Energized/De-energized delay	≤ 20 ms / ≤ 20 ms
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 , EN IEC 61326-1:2021 (industrial locations) , EN IEC 61326-3-2:2018 For further information see system description.
Degree of protection	IEC 60529:2013
Protection against electrical shock	UL 61010-1:2019
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Connection	spring terminals
Mass	approx. 95 g
Dimensions	12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2
Height124 mmWidth12.5 mmDepth114 mm	Height124 mmWidth12.5 mmDepth114 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	124 mm
Width	12.5 mm
Depth	114 mm
EU-type examination certificate	UL 23 ATEX 3027 X
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia Refer to certificate for alternative parameters.VoltageUo25.3 VCurrentIo52 mAPowerPo850 mW (angular characteristic curve)Internal resistanceRi167 Ω	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia Refer to certificate for alternative parameters.VoltageUo25.3 VCurrentIo52 mAPowerPo850 mW (angular characteristic curve)Internal resistanceRi167 Ω
Input	Input
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Certificate	UL 23 ATEX 3065 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia Refer to certificate for alternative parameters.
Voltage	25.3 V
Current	52 mA
Power	850 mW (angular characteristic curve)
Internal resistance	167 Ω
Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex ec IIC T4 Gc
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
UL approval	E106378
Control drawing116-0496 (cULus)	Control drawing116-0496 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx ULD 23.0016XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx ULD 23.0016XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0496 (cULus)
IECEx certificate	IECEx ULD 23.0016X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
