KCD2-SCD-1.SP

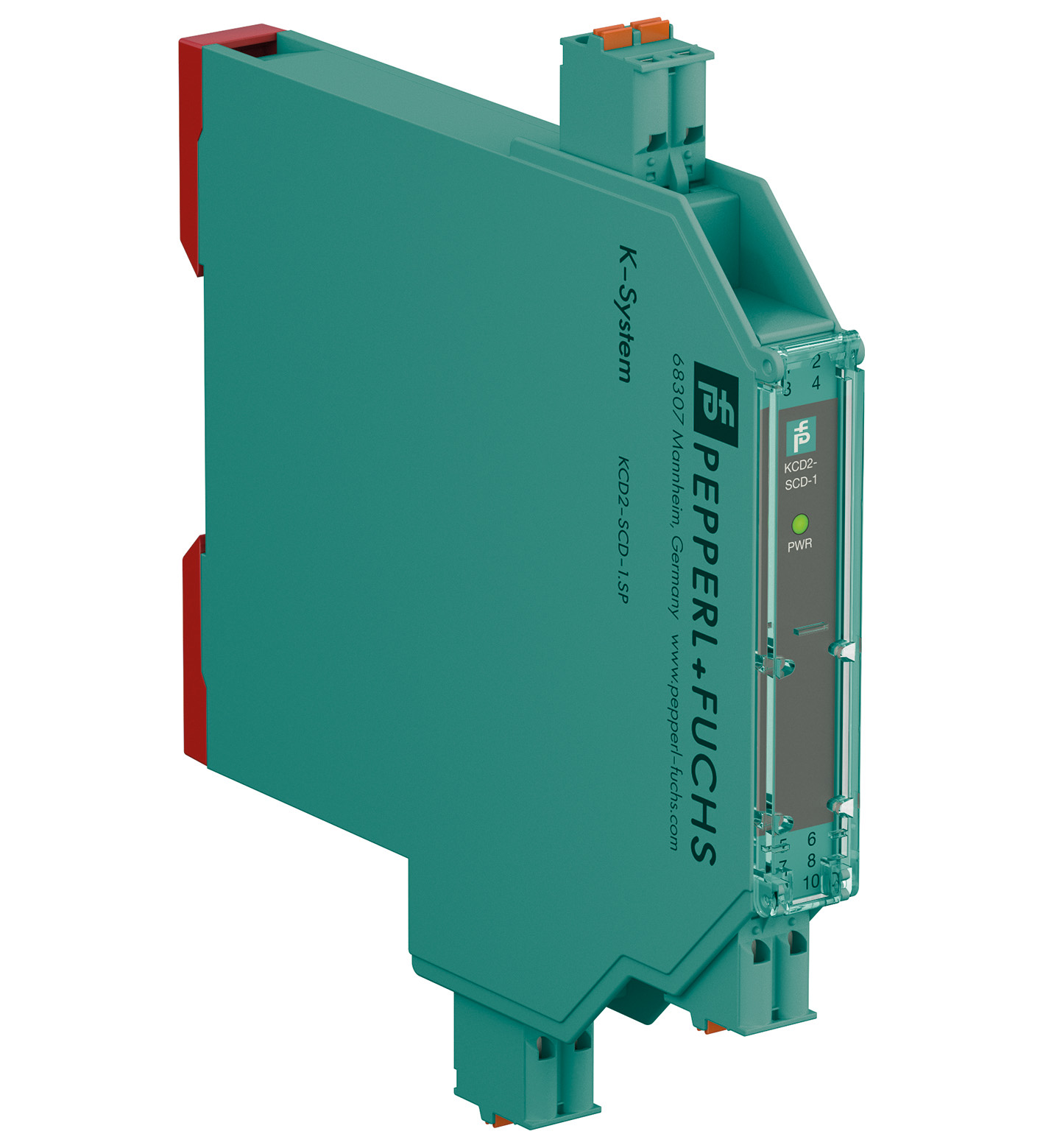

KCD2-SCD-1.SP SMART Current Driver

订货号: 321421
产品分类: K 系统（DIN 导轨安装，功能强大）

SMART Current Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog output
Safety Integrity Level (SIL)	SIL 2

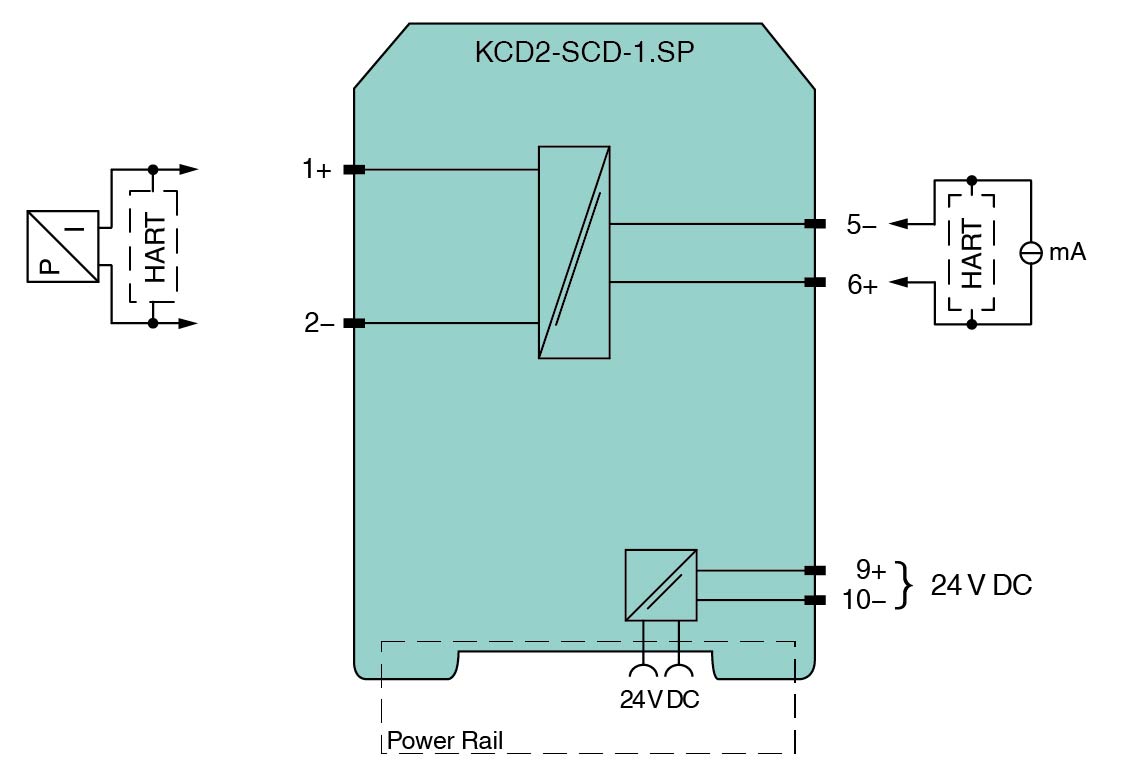

Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	≤ 30 mA at 24 V
Power dissipation	≤ 600 mW at 20 mA and 500 Ω load
Power consumption	≤ 700 mW
Connection side	control side
Connection	terminals 5-, 6+
Input signal	4 ... 20 mA , limited to approx. 26 mA
Input voltage	open loop voltage of the control system < 30 V
Voltage drop	approx. 6 V at 20 mA
Input resistance	> 100 kΩ, with field wiring open
Connection side	field side
Connection	terminals 1+, 2-
Voltage	≥ 18 V at 20 mA
Current	4 ... 20 mA
Load	0 ... 900 Ω
Ripple	20 mV rms
Deviation	at 20 °C (68 °F), 4 ... 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))	Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Frequency range	bandwidth at 0.5 Vss signal 0 ... 3 kHz (-3 dB)
Rise time	10 to 90 % ≤ 10 ms
Influence of ambient temperature	< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Input/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 EN 61326-3-2:2018
Degree of protection	IEC 60529
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Connection	spring terminals
Mass	approx. 100 g
Dimensions	12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
