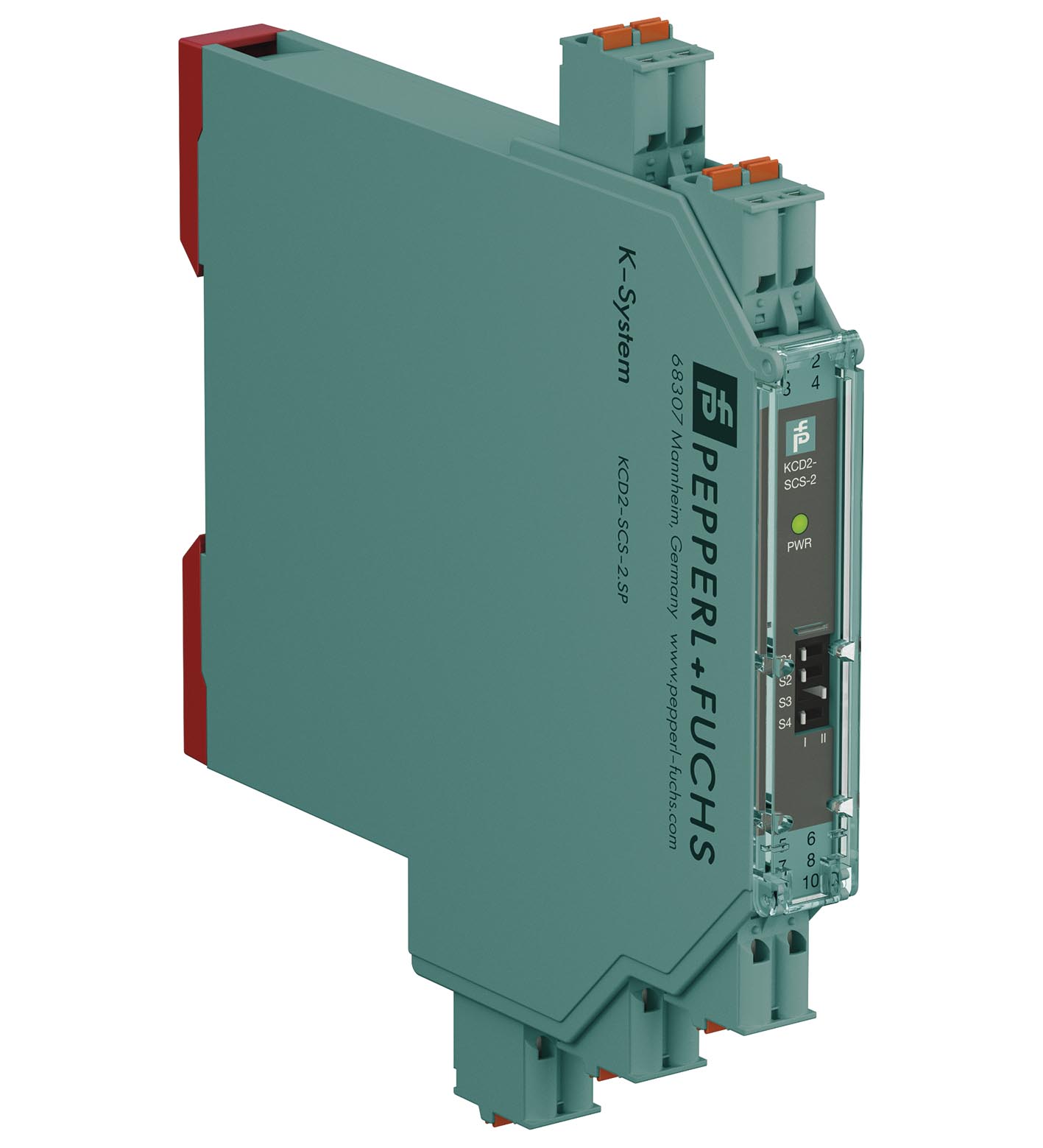

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input/analog output |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |

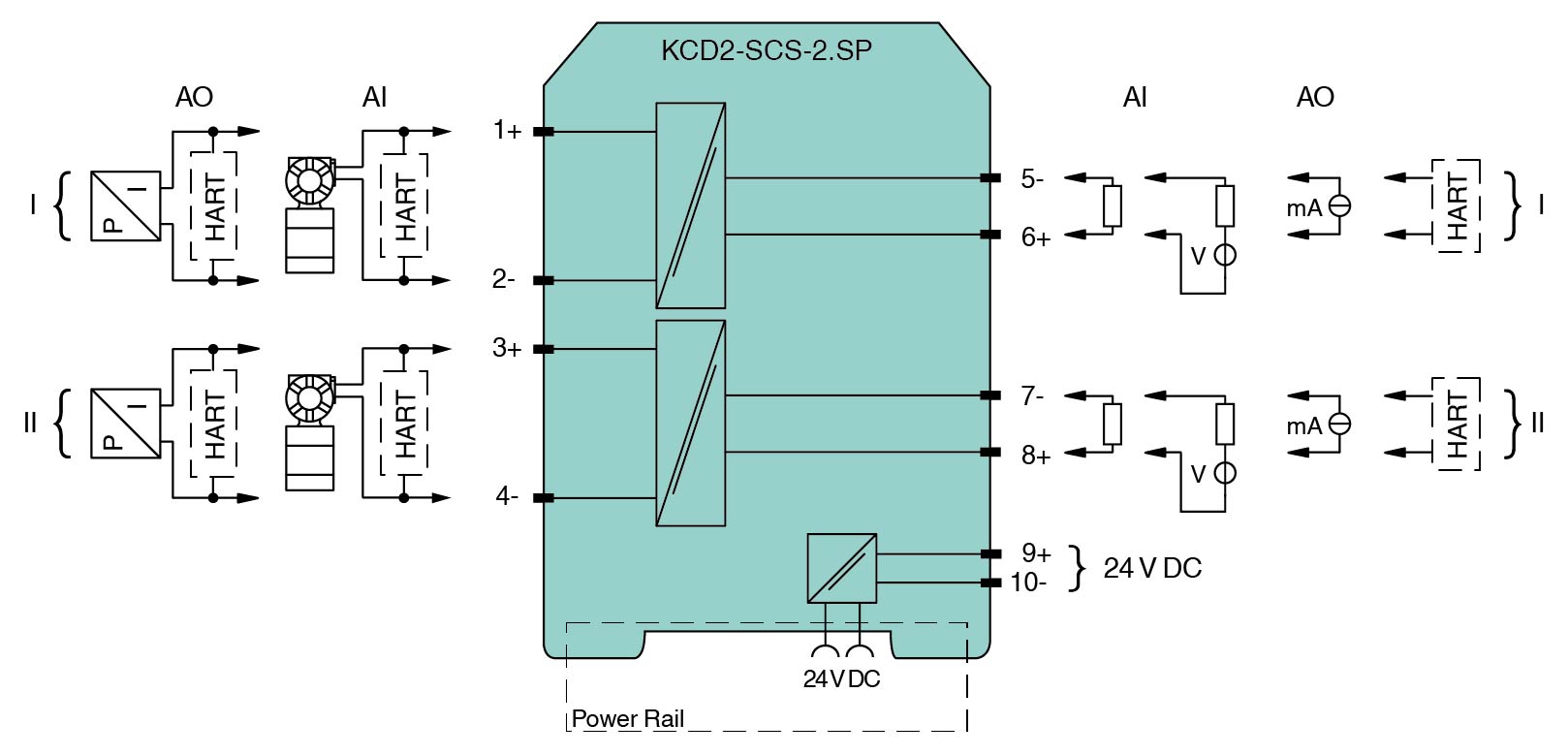

| Connection | Power Rail or terminals 9+, 10- |
| Rated voltage | 19 ... 30 V DC |
| Ripple | max. 10 % |
| Rated current | max. 88 mA at 24 V |
| Power dissipation | max. 1.4 W |
| Power consumption | max. 2.1 W |
| Number of channels | 2 |
| Suitable field devices | 2-wire SMART transmitters |
| Signal | 0/4 ... 20 mA , limited to approx. 30 mA |
| Field circuit | terminals 1+, 2-, 3+, 4- |
| Available voltage | min. 15 V at 20 mA min. 18 V at 4 mA |
| Control circuit | terminals 5-, 6+; 7-, 8+ |
| Input voltage | Voltage across terminals 10 ... 30 V. If the current is supplied from a source > 24 V,series resistance of ≥ (V - 24)/0.02 Ω is needed, where V is the source voltage. The maximum value of the resistance is (V - 10)/0.02 Ω. (sink output) |
| Load | max. 350 Ω (source output) |
| Ripple | 20 mV eff |
| Number of channels | 2 |
| Suitable field devices | SMART I/P converters (positioner), on-site-displays |
| Signal | 0/4 ... 20 mA , limited to approx. 30 mA |
| Field circuit | terminals 1+, 2-, 3+, 4- |
| Load | max. 650 Ω |
| Voltage | min. 13 V at 20 mA |
| Ripple | 20 mV eff , on all signal terminals |
| Control circuit | terminals 5-, 6+; 7-, 8+ |
| Voltage drop | max. 6 V |
| Line fault detection | > 100 kΩ at max. 30 V, with field wiring open |
| Deviation | max. 20 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage |
| Influence of ambient temperature< 2 µA/K (-40 ... 70 °C (-40 ... 158 °F)) | Influence of ambient temperature< 2 µA/K (-40 ... 70 °C (-40 ... 158 °F)) |
| Frequency range | field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) |
| Settling time | max. 200 ms |
| Rise time/fall time | max. 100 ms (10 ... 90 %) |
| Influence of ambient temperature | < 2 µA/K (-40 ... 70 °C (-40 ... 158 °F)) |
| Field circuit/control circuit | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Control circuit/control circuit | functional isolation, rated voltage: 50 V |
| Field circuit/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Control/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Display elements | LED |
| Factory setting | analog input with source output |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2017 EN 61326-3-2:2018 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP20 |
| Connection | spring terminals |
| Mass | approx. 115 g |
| Dimensions | 12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2 |
| Height124 mmWidth12.5 mmDepth114 mm | Height124 mmWidth12.5 mmDepth114 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 124 mm |
| Width | 12.5 mm |
| Depth | 114 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
