KCD2-SLD-Ex1.1245

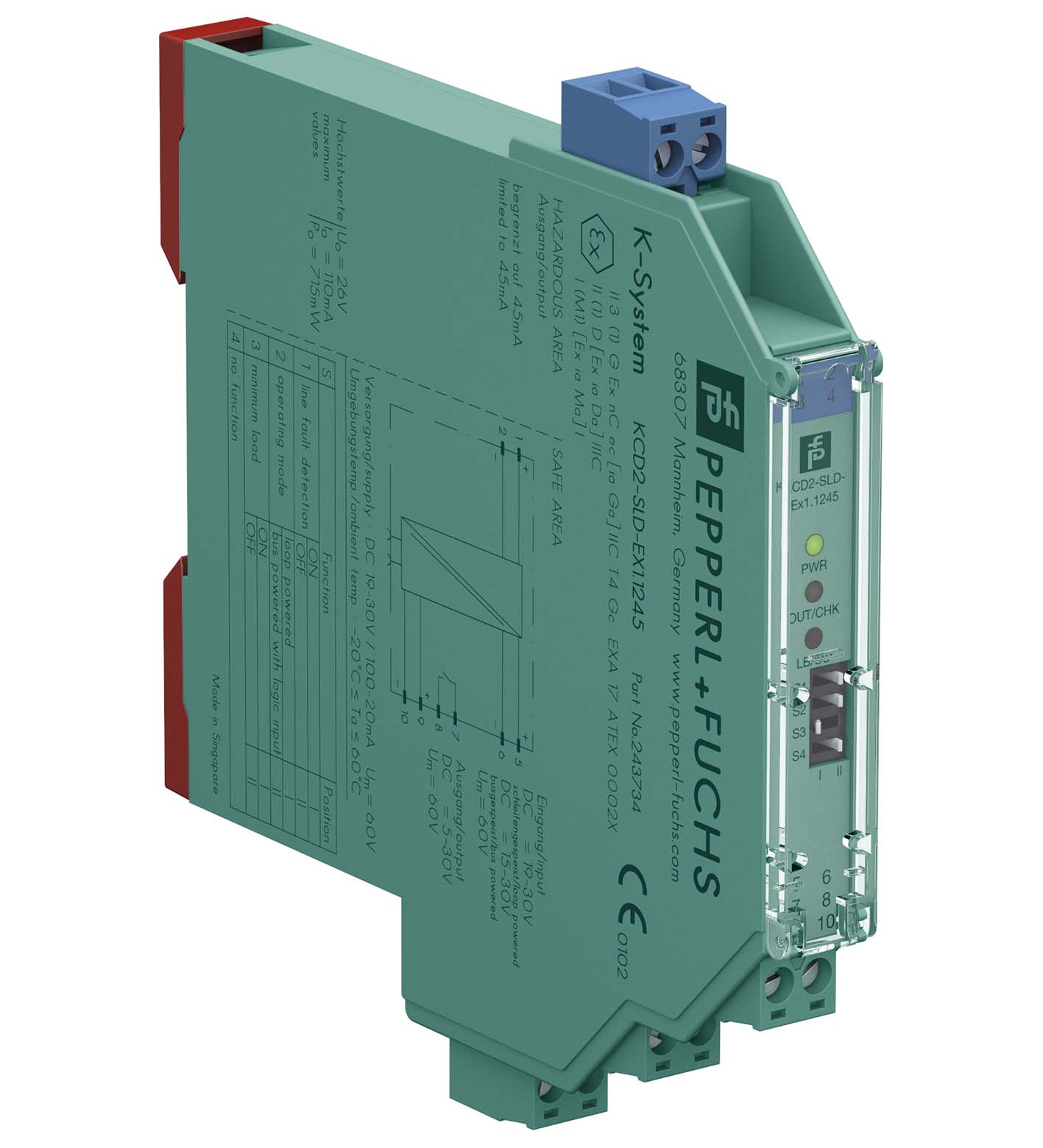

KCD2-SLD-Ex1.1245 Solenoid Driver

订货号: 70104930
产品分类: K 系统（DIN 导轨安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3

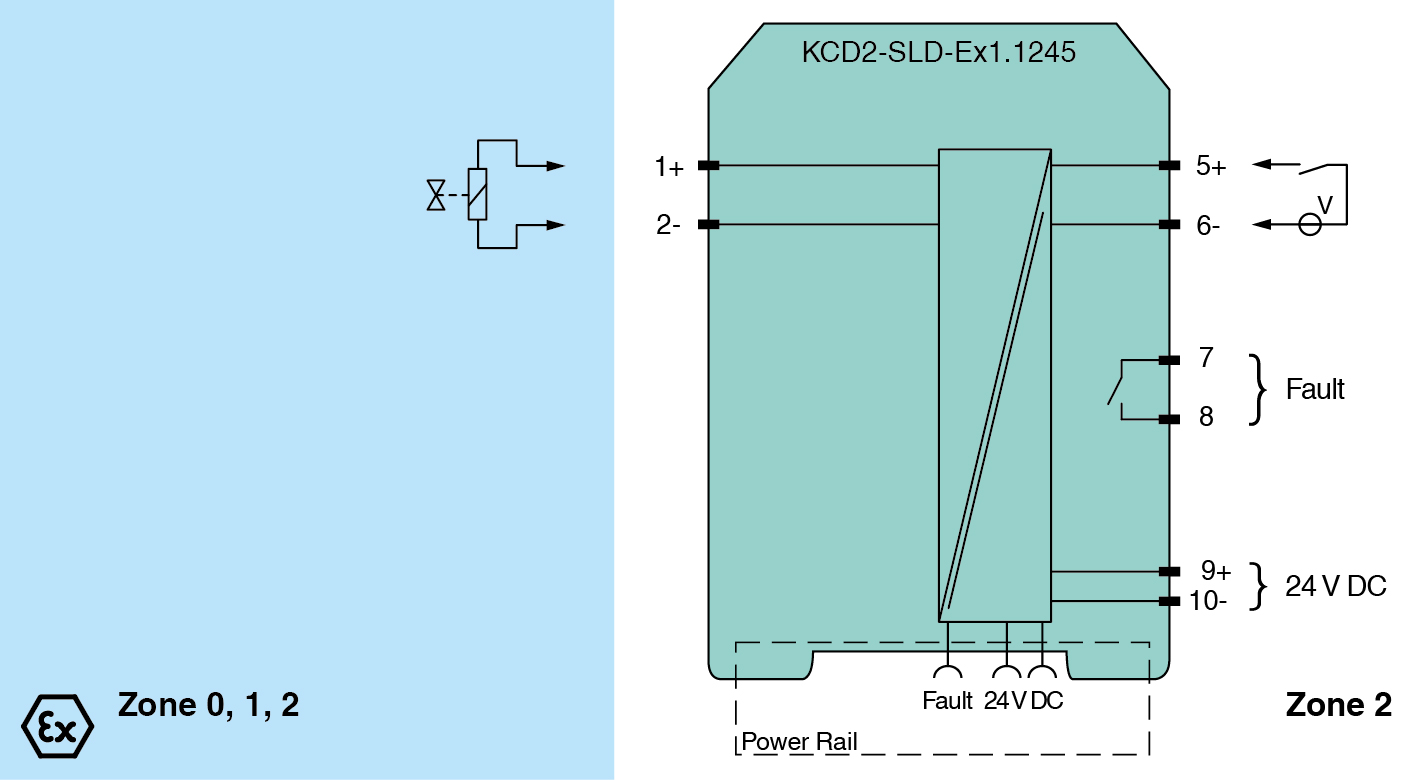

Connection	terminals 5+, 6- loop powered Power Rail or terminals 9+, 10- bus powered
Rated voltage	19 ... 30 V DC loop powered
Input current	75 mA at 24 V , 270 Ω load
Power dissipation	1.3 W at 24 V , 270 Ω load
Connection side	control side
Connection	terminals 5+, 6-
Test pulse length	max. 2 ms from DO card
Signal level	loop powered 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC bus powered 1-signal: 15 ... 30 V DC (current limited to 5 mA)0-signal: 0 ... 5 V DC
Rated current	0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card)
Inrush current	< 200 mA , 10 ms loop powered
Connection side	field side
Connection	terminals 1+, 2-
Internal resistor	240 Ω
Current	typ. 45 mA
Voltage	typ. 12 V
Current limit	50 mA
Open loop voltage	typ. 24.6 V
Load	nominal 0.05 ... 18 kΩ , valid range for line fault detection (LFD)
Output II	fault signal
Connectionterminals 7, 8 , non-intrinsically safeContact loading30 V DC/ 0.5 A resistive loadMechanical life105 switching cyclesEnergized/De-energized delay≤ 20 ms / ≤ 20 ms	Connectionterminals 7, 8 , non-intrinsically safeContact loading30 V DC/ 0.5 A resistive loadMechanical life105 switching cyclesEnergized/De-energized delay≤ 20 ms / ≤ 20 ms
Line fault detection	Line fault detection
Test currentmax. 350 µA , calculated by ILFD = 4.7 V / (15 kΩ + RLoad)	Test currentmax. 350 µA , calculated by ILFD = 4.7 V / (15 kΩ + RLoad)
Connection	terminals 7, 8 , non-intrinsically safe
Contact loading	30 V DC/ 0.5 A resistive load
Mechanical life	105 switching cycles
Energized/De-energized delay	≤ 20 ms / ≤ 20 ms
Test current	max. 350 µA , calculated by ILFD = 4.7 V / (15 kΩ + RLoad)
Output/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output II/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 32 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012 , EN 61326-3-2:2008 For further information see system description.
Degree of protection	IEC 60529:2013
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating.
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	EXA 17 ATEX 0002 X
Marking II 3(1)G Ex nC ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutput IEx iaVoltageUo26 VCurrentIo110 mAPowerPo715 mW	Marking II 3(1)G Ex nC ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutput IEx iaVoltageUo26 VCurrentIo110 mAPowerPo715 mW
Supply	Supply
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Input	Input
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Collective error message	Collective error message
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Galvanic isolation	Galvanic isolation
Output I/other circuitssafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms	Output I/other circuitssafe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II 3(1)G Ex nC ec [ia Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output I	Ex ia
Voltage	26 V
Current	110 mA
Power	715 mW
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Output I/other circuits	safe electrical isolation acc. to IEC/EN 60079-11, rated insulation voltage 300 Vrms
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
FM certificateFM 26 CA 0041 X , FM 26 US 0161 XControl drawing116-0511 (cFMus)	FM certificateFM 26 CA 0041 X , FM 26 US 0161 XControl drawing116-0511 (cFMus)
UL approval	E106378
Control drawing116-0448 (cULus)	Control drawing116-0448 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx EXA 17.0001XIECEx markingEx nC ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I	IECEx certificateIECEx EXA 17.0001XIECEx markingEx nC ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
FM certificate	FM 26 CA 0041 X , FM 26 US 0161 X
Control drawing	116-0511 (cFMus)
Control drawing	116-0448 (cULus)
IECEx certificate	IECEx EXA 17.0001X
IECEx marking	Ex nC ec [ia Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
