KCD2-SR-1.LB

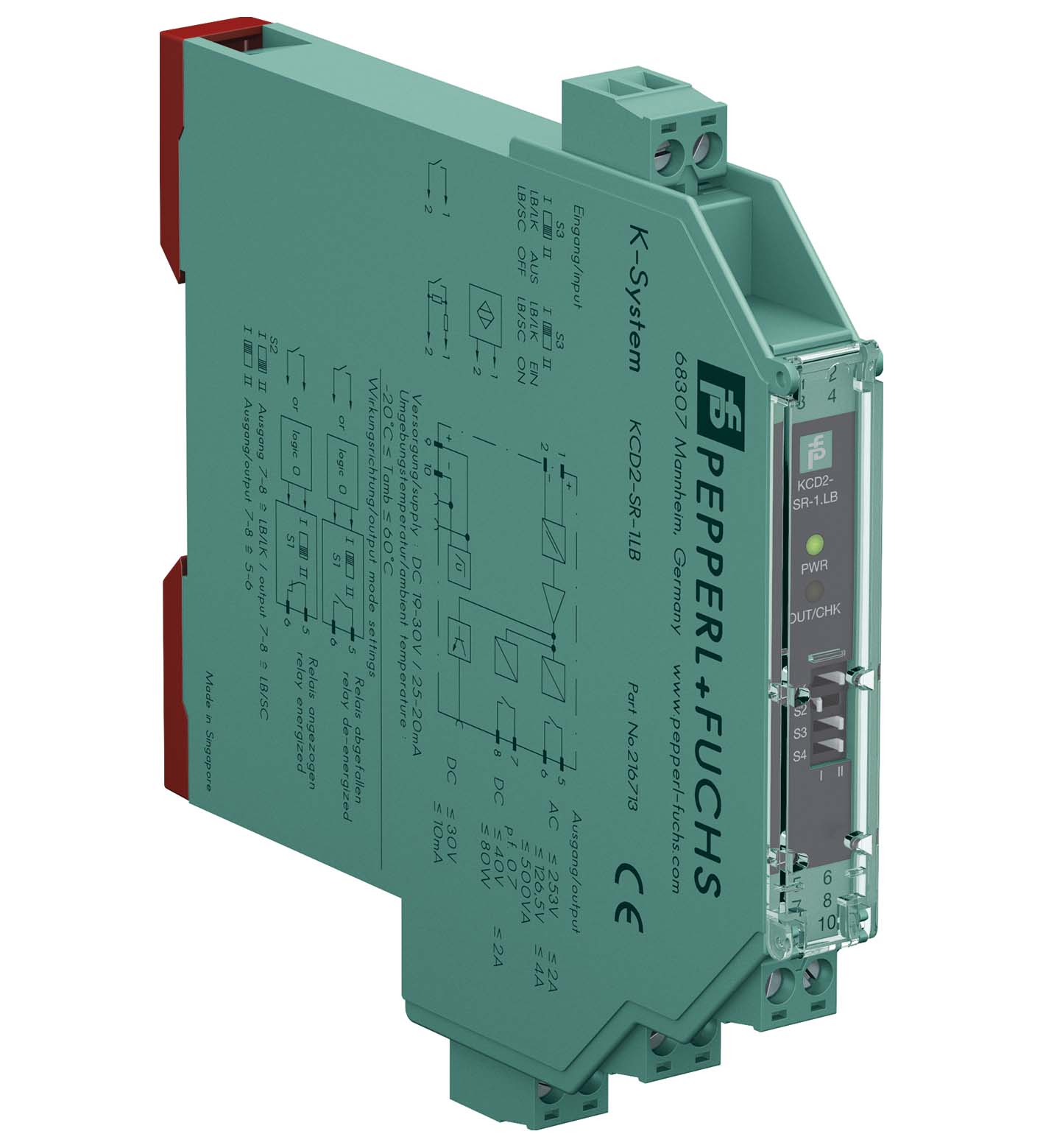

KCD2-SR-1.LB Switch Amplifier

订货号: 70112146
产品分类: K 系统（DIN 导轨安装，功能强大）

Switch Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3

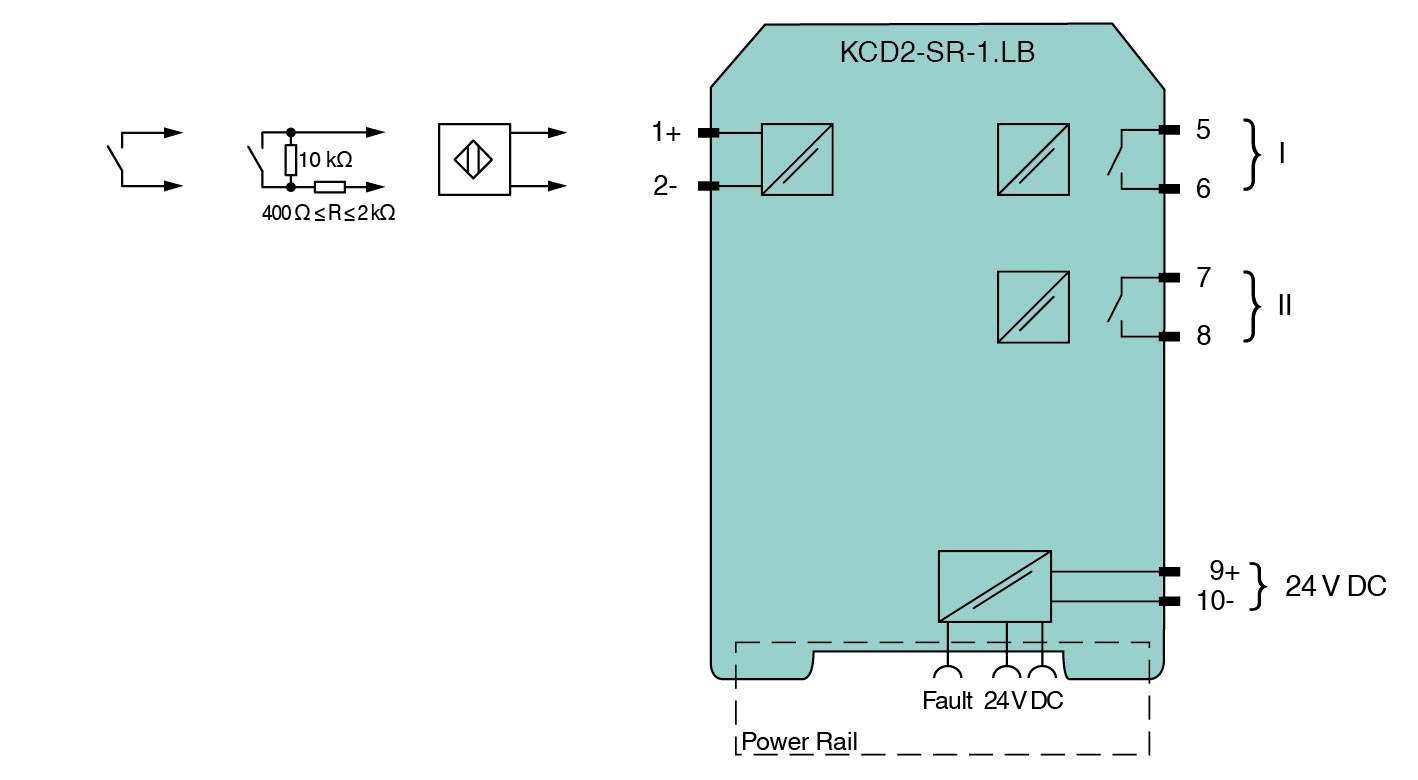

Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	≤ 37 mA
Power dissipation	≤ 750 mW
Power consumption	≤ 750 mW
Connection side	field side
Connection	terminals 1+, 2-
Rated values	acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current	approx. 8 V DC / approx. 8 mA
Switching point/switching hysteresis	1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection	breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio	min. 20 ms / min. 20 ms
Connection side	control side
Connection	output I: terminals 5, 6 ; output II: terminals 7, 8
Output I	signal ; relay
Output II	signal or fault message ; relay
Contact loading	250 V AC/2 A/cos φ > 0.75; 126.5 V AC/4 A/cos φ > 0.75; 30 V DC/2 A resistive load
Minimum switch current	2 mA / 24 V DC
Energized/De-energized delay	≤ 20 ms / ≤ 20 ms
Mechanical life	107 switching cycles
Switching frequency	≤ 10 Hz
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019	Directive 2014/35/EUEN 61010-1:2010+A1:2019+A1:2019/AC:2019
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010+A1:2019+A1:2019/AC:2019
Electromagnetic compatibility	NE 21:2017 , EN 61326-3-1:2017 , EN IEC 61326-3-2:2018
Degree of protection	IEC 60529:1989+A1:1999+A2:2013
Functional safety	IEC/EN 61508:2010
Input	EN 60947-5-6:2000
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2
Height119 mmWidth12.5 mmDepth114 mm	Height119 mmWidth12.5 mmDepth114 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	12.5 mm
Depth	114 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
