KCD2-ST-2.SP

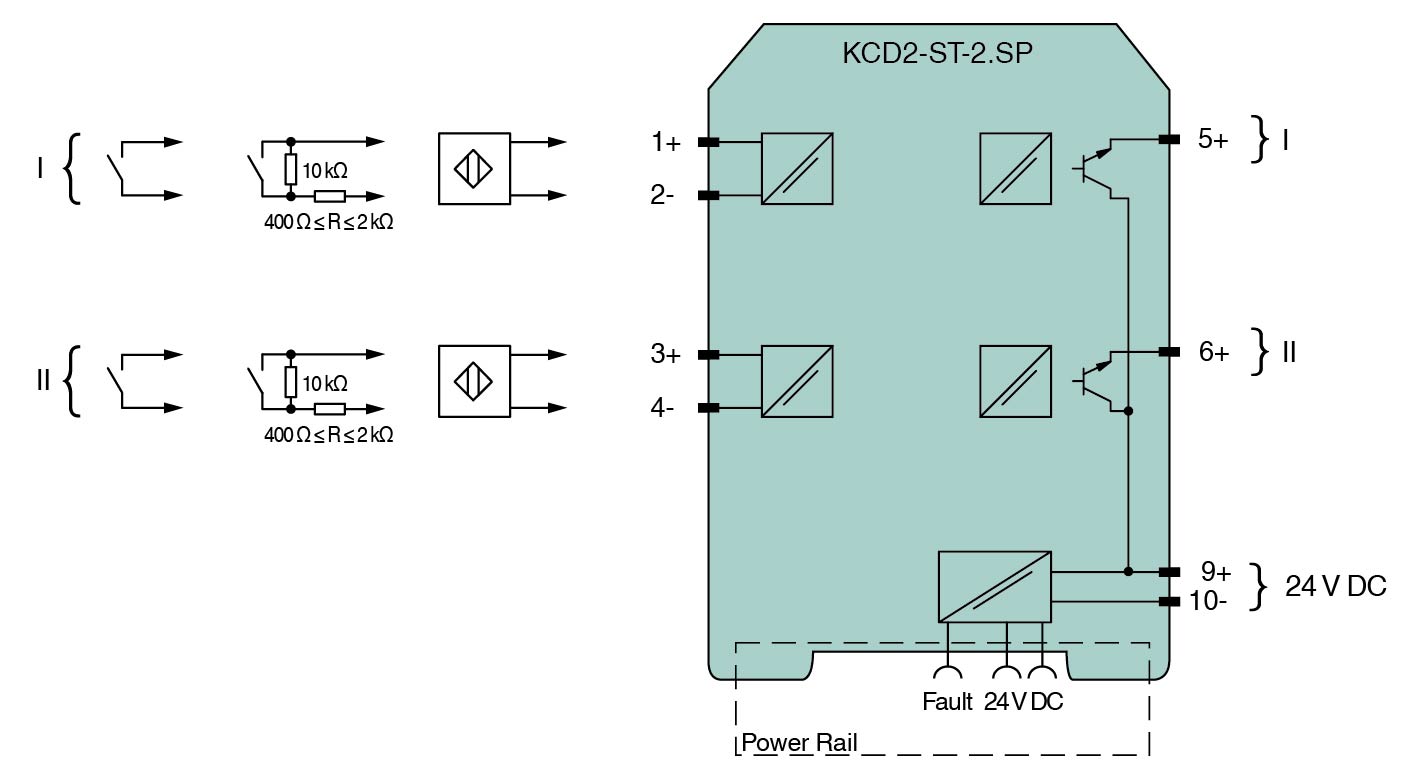

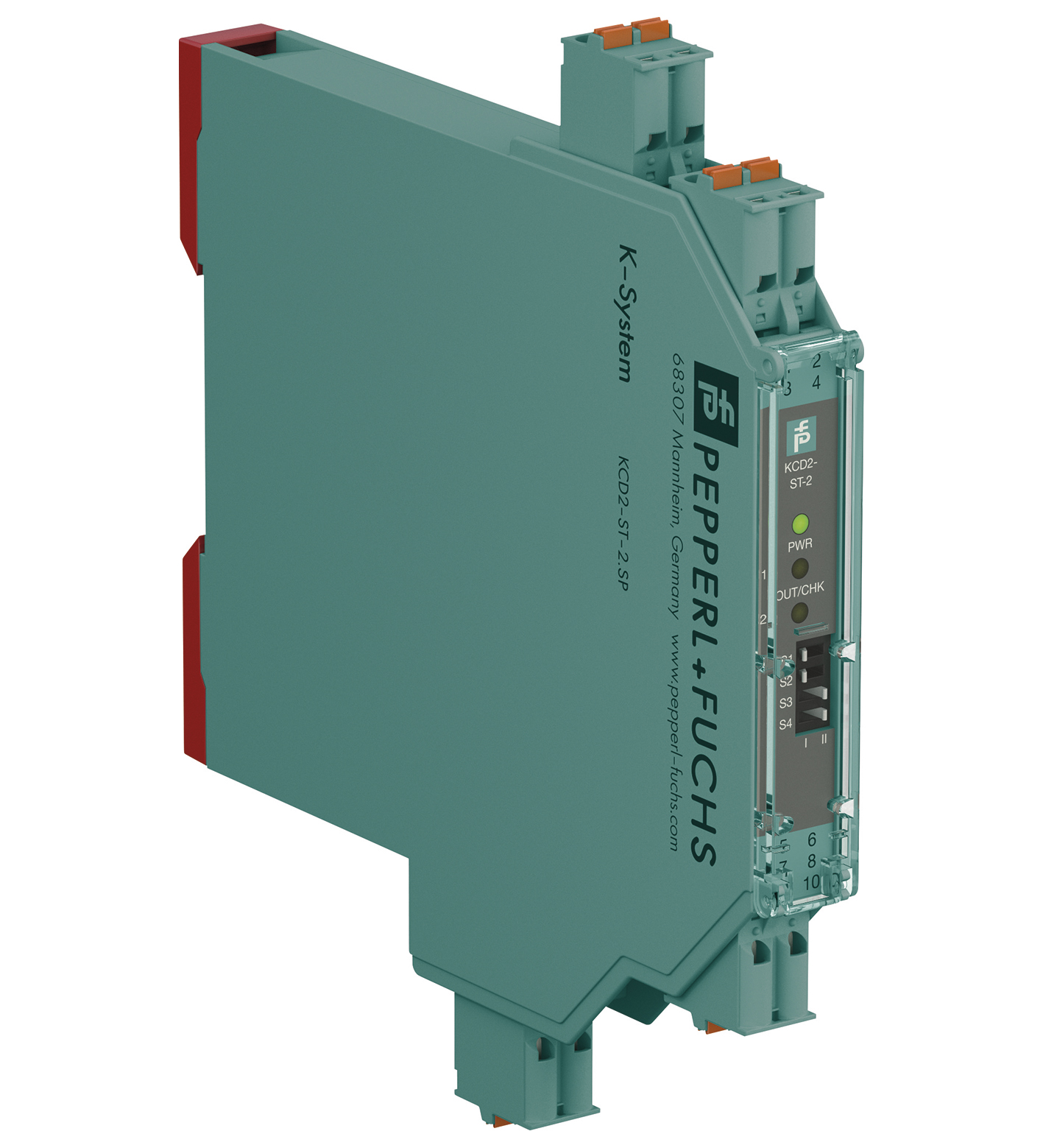

KCD2-ST-2.SP Switch Amplifier

订货号: 242099
产品分类: K 系统（DIN 导轨安装，功能强大）

Switch Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3
Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	30 ... 20 mA + Iout
Power dissipation	≤ 800 mW including maximum power dissipation in the output
Connection side	field side
Connection	terminals 1+, 2-; 3+, 4-
Rated values	acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current	approx. 10 V DC / approx. 8 mA
Switching point/switching hysteresis	1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection	breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio	min. 100 µs / min. 100 µs
Connection side	control side
Connection	terminals 5, 6
Rated voltage	30 V DC
Rated current	50 mA
Response time	≤ 200 µs
Signal level	1-signal: (supply voltage) - 3 V max. for 50 mA 0-signal: blocked output (off-state current ≤ 10 µA)
Output I	signal ; Transistor
Output II	signal ; Transistor
Collective error message	Power Rail
Switching frequency	≤ 5 kHz
Input/Output	reinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation acc. to EN 50178, rated insulation voltage 300 Veff
Output/power supply	not available , common pole terminal 9+
Output/Output	not available , common pole terminal 9+
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2011
Degree of protection	IEC 60529:2001
Protection against electrical shock	IEC 61010-1:2010
Input	EN 60947-5-6:2000
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protection	IP20
Connection	spring terminals
Mass	approx. 100 g
Dimensions	12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) (W x H x D) , housing type A2
Height119 mmWidth12.5 mmDepth114 mm	Height119 mmWidth12.5 mmDepth114 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	12.5 mm
Depth	114 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
