KCD2-STC-1.2O

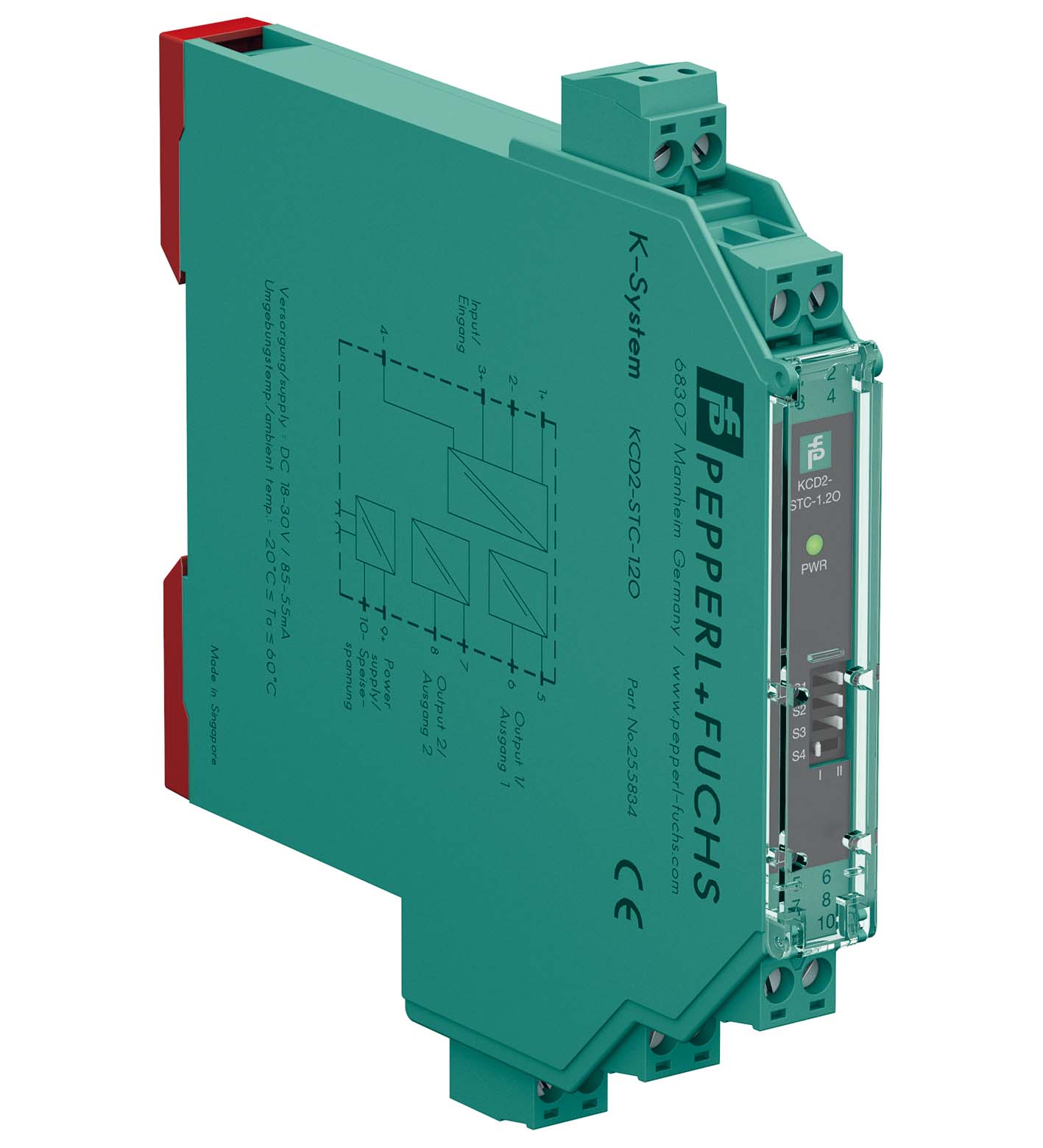

KCD2-STC-1.2O SMART Transmitter Power Supply

订货号: 304228
产品分类: K 系统（DIN 导轨安装，功能强大）

SMART Transmitter Power Supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3

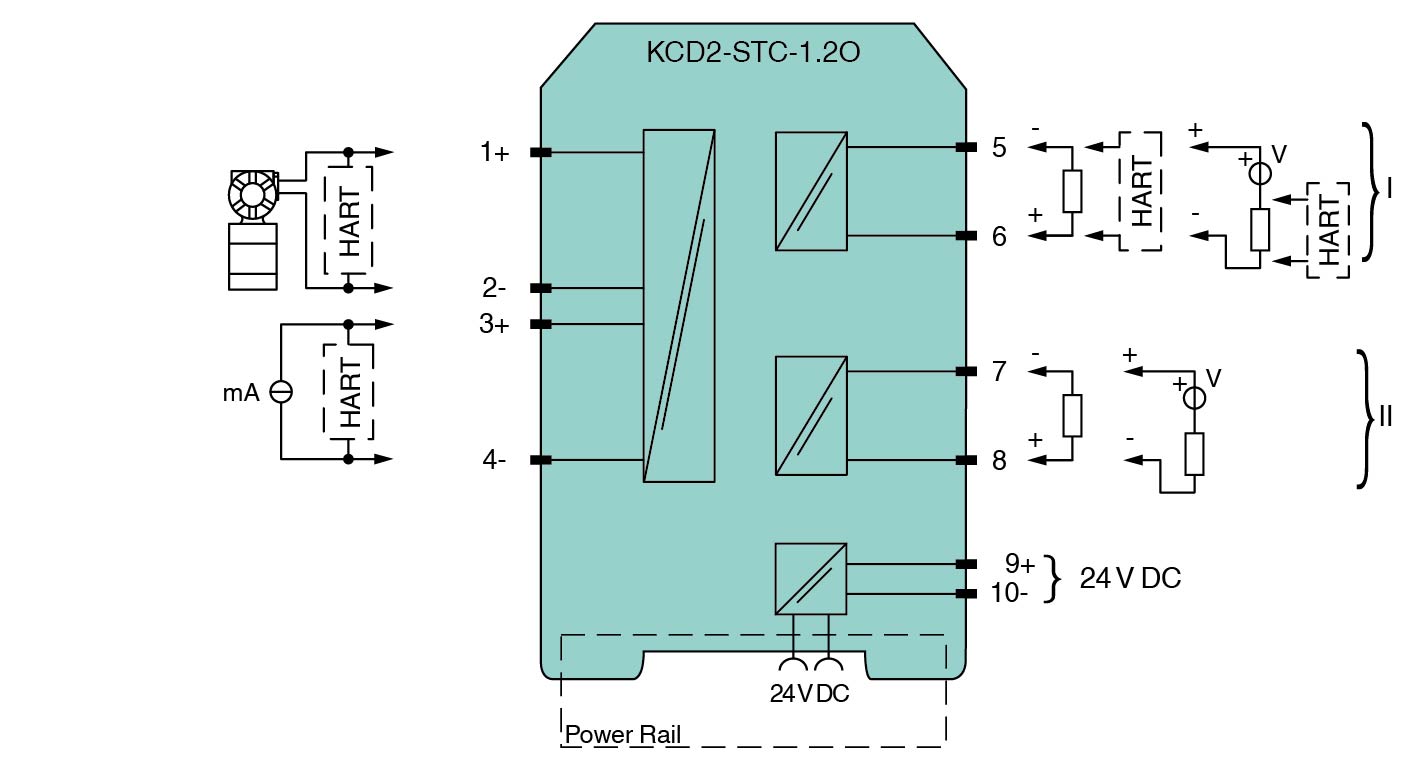

Connection	Power Rail or terminals 9+, 10-
Rated voltage	19 ... 30 V DC
Ripple	within the supply tolerance
Power dissipation	approx. 1.4 W at 20 mA transfer current, 250 Ω in both outputs
Power consumption	2 W
Connection side	field side
Connection	terminals 1+, 2- (sink); 3+, 4- (source)
Input signal	0/4 ... 20 mA
Voltage drop	terminals 3, 4: ≤ 6.1 V at 20 mA
Short-circuit current	terminals 1+, 2-: 25 mA
Input resistance	terminals 1+, 2-: max. 500 Ω (BRAIN) (250 Ω load)
Available voltage	terminals 1+, 2-: ≥ 16 V at 20 mA , ≥ 18.5 V at 4 mA
Connection side	control side
Connection	source: terminals 5-, 6+; 7-, 8+ sink: terminals 5+, 6-, 7+, 8-
Load	channel 1: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)channel 2: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)
Output signal	0/4 ... 20 mA or 0/1 ... 5 V
Ripple	max. 50 µA rms
Deviation	Iout < 20 µA (0.1 %); Vout < 7.5 mV (0.15 %) incl. calibration, linearity, hysteresis and fluctuation of supply voltage, at 20 °C (68 °F), 0/4 ... 20 mA, 0/1 ... 5 V
Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K	Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K
Frequency range	field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB)
Settling time	6 ms
Rise time/fall time	2 ms
Influence of ambient temperature	current output: 0.25 µA/Kvoltage output: 80 µV/K
Input/Output	basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Input/power supply	basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Output/power supply	functional insulation, rated insulation voltage 50 V AC
Output/Output	functional insulation, rated insulation voltage 50 V AC
Display elements	LED
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012 EN 61326-3-2:2008
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1:2012
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2
Height124 mmWidth12.5 mmDepth114 mm	Height124 mmWidth12.5 mmDepth114 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	124 mm
Width	12.5 mm
Depth	114 mm
Note	Both output loads must be connected to ensure complete and correct operation within the technical specification.
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
