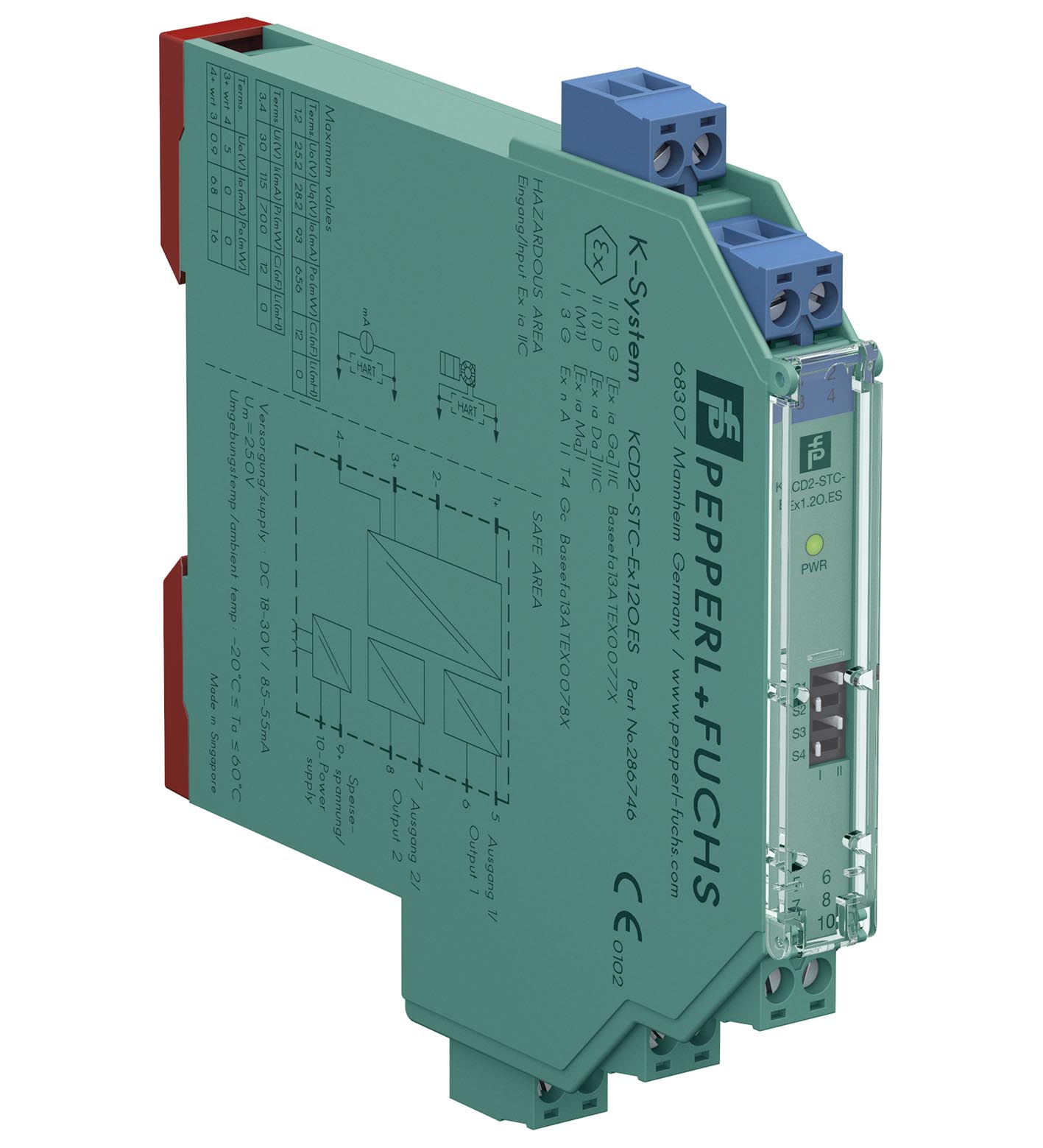

TECHNICAL DATA
| Signal type | Analog input |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
| Connection | Power Rail or terminals 9+, 10- |
| Rated voltage | 19 ... 30 V DC |
| Ripple | within the supply tolerance |
| Power dissipation | approx. 1.4 W at 20 mA transfer current, 250 Ω in both outputs |
| Power consumption | 2 W |
| Connection side | field side |

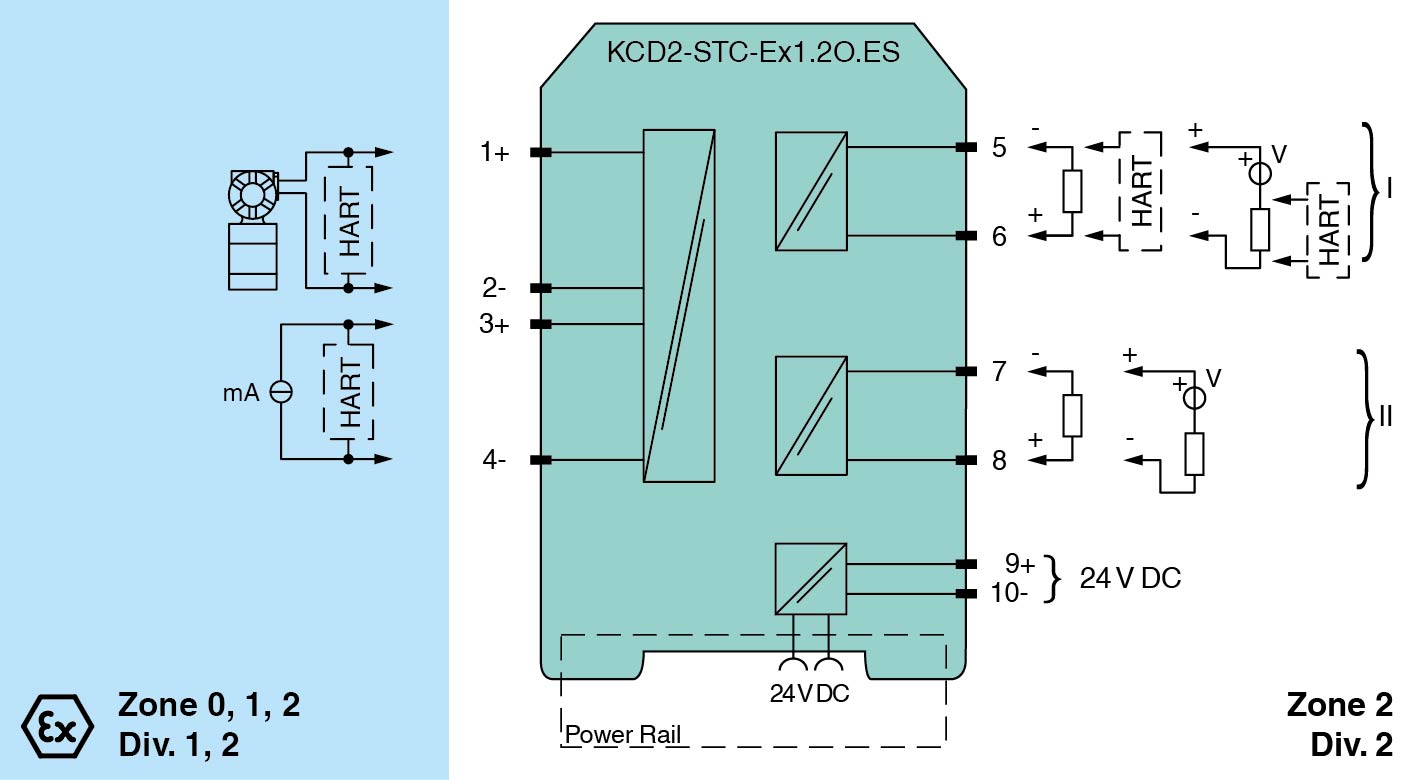

| Connection | terminals 1+, 2- (sink); 3+, 4- (source) |
| Input signal | 0/4 ... 20 mA |
| Voltage drop | terminals 3, 4: ≤ 6.1 V at 20 mA |
| Short-circuit current | terminals 1+, 2-: 25 mA |
| Input resistance | terminals 1+, 2-: max. 500 Ω (BRAIN) (250 Ω load) |
| Available voltage | terminals 1+, 2-: ≥ 16 V at 20 mA , ≥ 18.5 V at 4 mA |
| Connection side | control side |
| Connection | source: terminals 5-, 6+; 7-, 8+ sink: terminals 5+, 6-, 7+, 8- |
| Load | channel 1: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V)channel 2: 0 ... 500 Ω (20 mA)/> 1 MΩ (5 V) |
| Output signal | 0/4 ... 20 mA or 0/1 ... 5 V |
| Ripple | max. 50 µA rms |
| Deviation | Iout < 20 µA (0.1 %); Vout < 10 mV (0.2 %) incl. calibration, linearity, hysteresis and fluctuation of supply voltage, at 20 °C (68 °F), 0/4 ... 20 mA, 0/1 ... 5 V |
| Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K | Influence of ambient temperaturecurrent output: 0.25 µA/Kvoltage output: 80 µV/K |
| Frequency range | field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 6 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 6 kHz (-3 dB) |
| Settling time | 6 ms |
| Rise time/fall time | 2 ms |
| Influence of ambient temperature | current output: 0.25 µA/Kvoltage output: 80 µV/K |
| Output/power supply | functional insulation, rated insulation voltage 50 V AC |
| Output/Output | functional insulation, rated insulation voltage 50 V AC |
| Display elements | LED |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2012 EN 61326-3-2:2008 |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | UL 61010-1:2012 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 12.5 x 124 x 114 mm (0.5 x 4.9 x 4.5 inch) (W x H x D) , housing type A2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | BASEEFA 13 ATEX 0077 X |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
| Supply | Supply |
| Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) |
| Equipment | terminals 1+, 2- |
| VoltageUo25.2 VVoltageUq28.2 VCurrentIo93 mAPowerPo656 mWInternal capacitanceCi10 nFInternal inductanceLi0 mH | VoltageUo25.2 VVoltageUq28.2 VCurrentIo93 mAPowerPo656 mWInternal capacitanceCi10 nFInternal inductanceLi0 mH |
| Equipment | terminals 3+, 4- |
| VoltageUi30 VCurrentIi115 mAPowerPi700 mWVoltageUo5 VCurrentIo6.8 mAPowerPo1.6 mW | VoltageUi30 VCurrentIi115 mAPowerPi700 mWVoltageUo5 VCurrentIo6.8 mAPowerPo1.6 mW |
| Output | Output |
| Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.) |
| Certificate | BASEEFA 13 ATEX 0078 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN 60079-15:2010 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
| Maximum safe voltage | 250 V (Attention! The rated voltage can be lower.) |
| Voltage | 25.2 V |
| Voltage | 28.2 V |
| Current | 93 mA |
| Power | 656 mW |
| Internal capacitance | 10 nF |
| Internal inductance | 0 mH |
| Voltage | 30 V |
| Current | 115 mA |
| Power | 700 mW |
| Voltage | 5 V |
| Current | 6.8 mA |
| Power | 1.6 mW |
| Maximum safe voltage | 250 V (Attention! The rated voltage can be lower.) |
| Marking | II 3G Ex nA IIC T4 Gc |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN 60079-15:2010 |
| UL approval | UL approval |
| Control drawing116-0380 (cULus) | Control drawing116-0380 (cULus) |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BAS 13.0043XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I | IECEx certificateIECEx BAS 13.0043XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I |
| Control drawing | 116-0380 (cULus) |
| IECEx certificate | IECEx BAS 13.0043X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I |
| Note | Both output loads must be connected to ensure complete and correct operation within the technical specification. |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
