TECHNICAL DATA
规格参数
General specifications
| Number of pins | 3 |
|---|---|
| Core cross section | max. 2.5 mm2 |
| Material | Material |
| Colorblue | Colorblue |
| Mass | approx. 5 g |

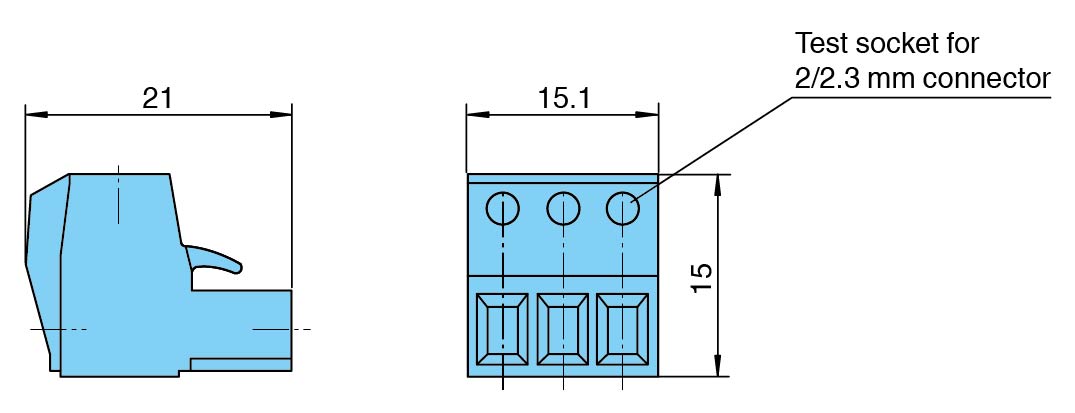

| Dimensions | 15.1 x 15 x 21 mm (0.6 x 0.6 x 0.83 inch) |
| Construction type | screw terminal with integrated test sockets , removable |
| Structure | single-row |
| Color | blue |
| Packing unit | 5 item(s) |
