KFD0-CC-1

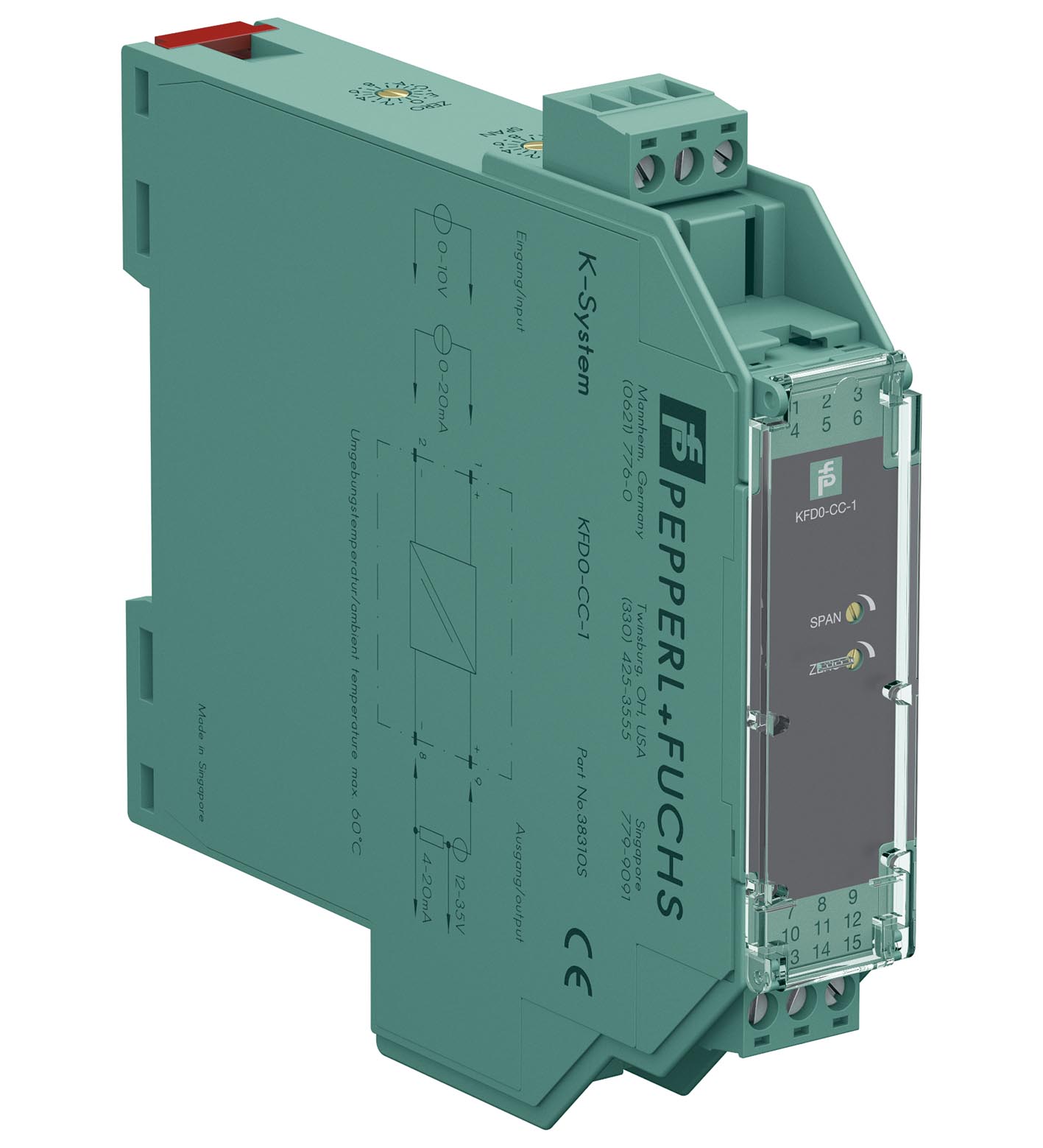

KFD0-CC-1 Current/Voltage Converter

订货号: 038310
产品分类: K 系统（DIN 导轨安装，功能强大）

Current/Voltage Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Rated voltage	12 ... 35 V DC loop powered
Power dissipation	0.4 W

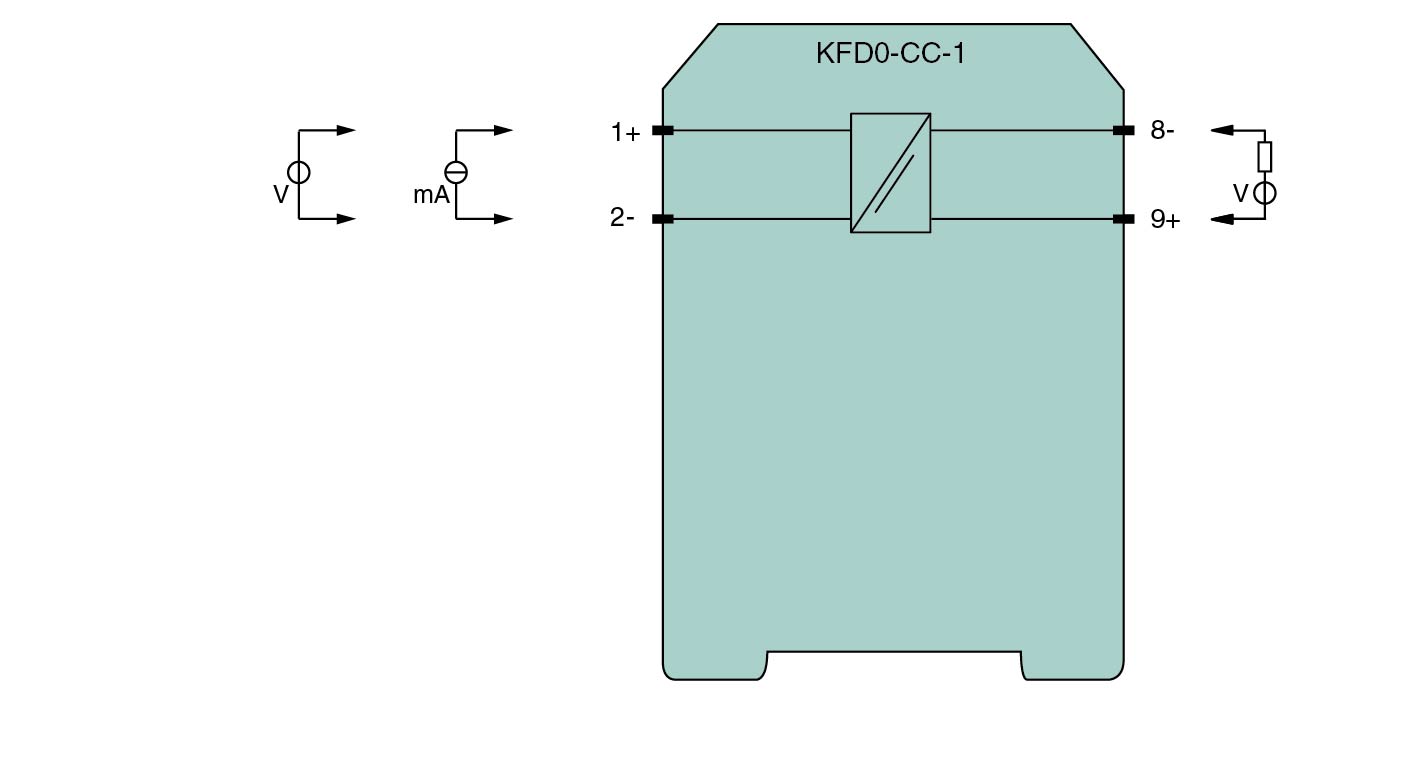

Connection side	field side
Connection	terminals 1+, 2-
Current range	0 ... 20 mA , load ≤ 50 Ω
Voltage range	0 ... 10 V , load ≥ 100 kΩ
Connection side	control side
Connection	terminals 9+, 8-
Load	(U -12 V) / 0.02 A
Current output	4 ... 20 mA , limited to ≤ 35 mA
Fault signal	downscaling ≤ 3 mA
Deviation	Deviation
After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V	After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V
Rise time	250 ms
After calibration	0.1 % of full-scale value
Temperature effect	span: 0.050 % of span /K ; zero point: 0.060 % of span /K
Linearization	≤ 0.04 % of full-scale value
Influence of supply voltage	6.5 ppm/V
Input/Output	safe isolation according to EN 50178, rated insulation voltage 253 Veff
Control elements	DIP switch potentiometer
Configuration	via DIP switches via potentiometer
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Insulation coordination	EN 50178
Galvanic isolation	EN 50178
Degree of protection	IEC 60529
Ambient temperature	-20 ... 70 °C (-4 ... 158 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height107 mmWidth20 mmDepth115 mm	Height107 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	107 mm
Width	20 mm
Depth	115 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
