KFD0-CC-Ex1

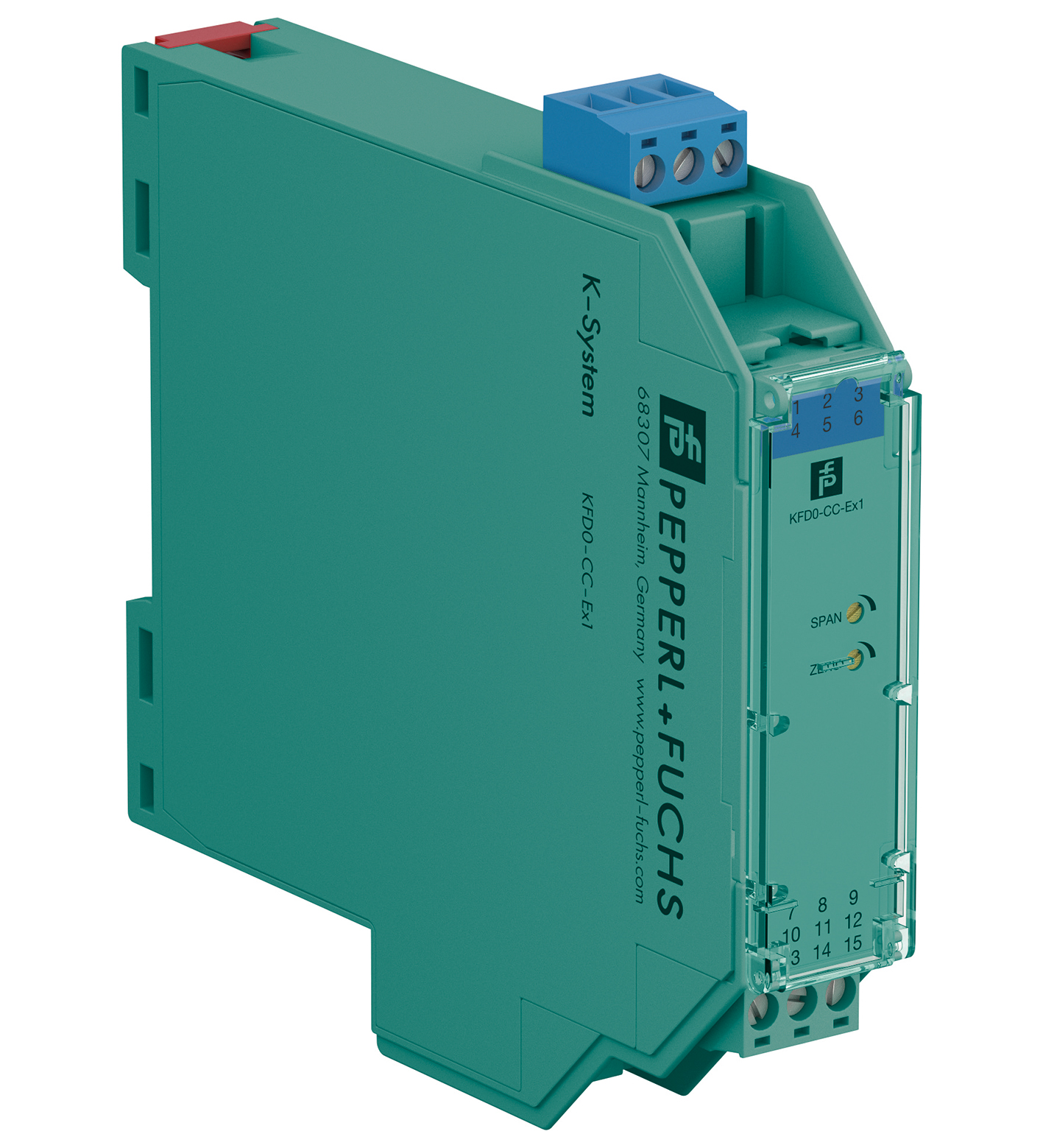

KFD0-CC-Ex1 Current/Voltage Converter

订货号: 043690
产品分类: K 系统（DIN 导轨安装）

Current/Voltage Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Rated voltage	12 ... 35 V DC loop powered
Power dissipation	0.4 W

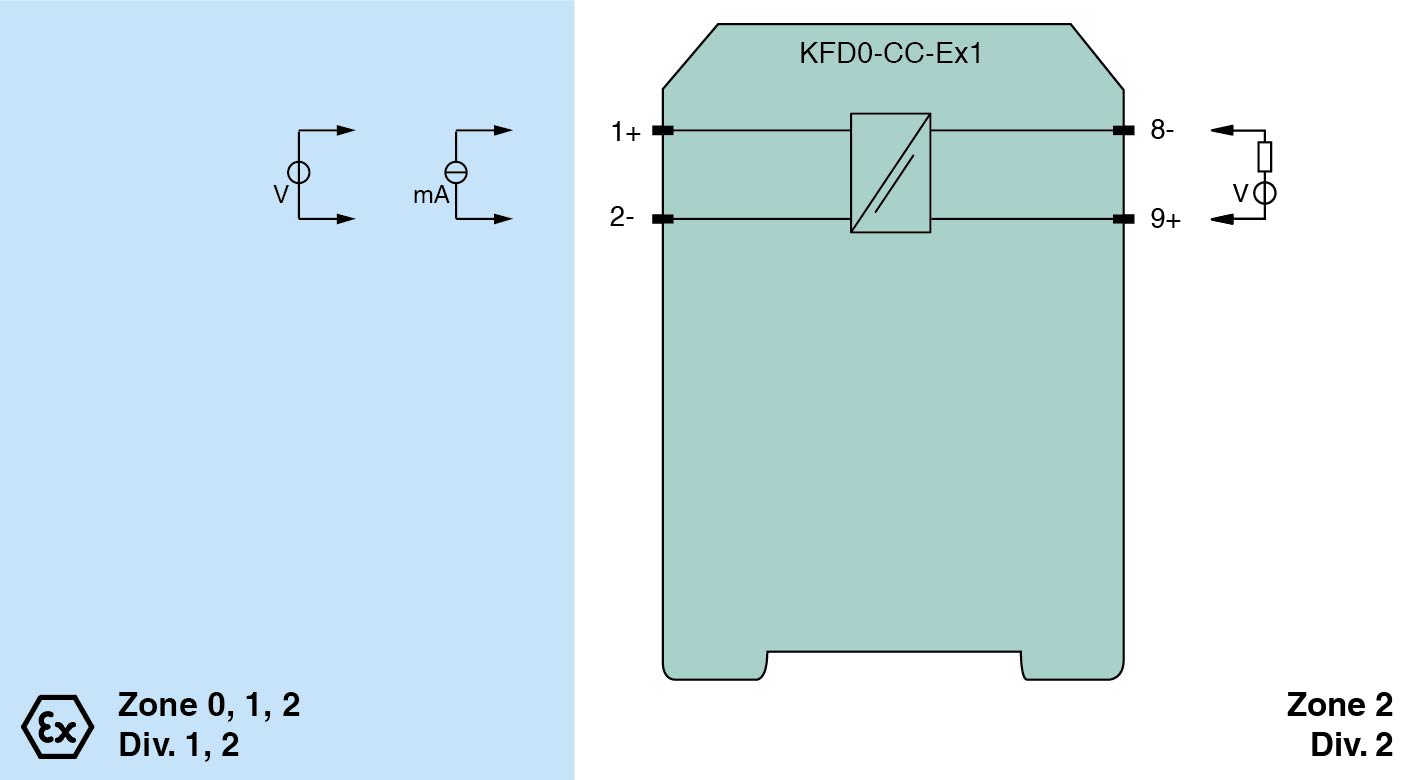

Connection side	field side
Connection	terminals 1+, 2-
Current range	0 ... 20 mA , load ≤ 50 Ω
Voltage range	0 ... 10 V , load ≥ 100 kΩ
Connection side	control side
Connection	terminals 9+, 8-
Load	(U -12 V) / 0.02 A
Current output	4 ... 20 mA , limited to ≤ 35 mA
Fault signal	downscaling ≤ 3 mA
Deviation	Deviation
After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V	After calibration0.1 % of full-scale valueTemperature effect span: 0.050 % of span /K ; zero point: 0.060 % of span /KLinearization≤ 0.04 % of full-scale valueInfluence of supply voltage6.5 ppm/V
Rise time	250 ms
After calibration	0.1 % of full-scale value
Temperature effect	span: 0.050 % of span /K ; zero point: 0.060 % of span /K
Linearization	≤ 0.04 % of full-scale value
Influence of supply voltage	6.5 ppm/V
Input/Output	safe isolation according to EN 50178, rated insulation voltage 253 Veff
Control elements	DIP switch potentiometer
Configuration	via DIP switches via potentiometer
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Galvanic isolation	EN 50178:1997
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	ZELM 00 ATEX 0034
Marking II (1)GD [EEx ia] IICInputEEx ia IICVoltageUo9.6 VCurrentIo0.5 mAPowerPo1.1 mW linear characteristic	Marking II (1)GD [EEx ia] IICInputEEx ia IICVoltageUo9.6 VCurrentIo0.5 mAPowerPo1.1 mW linear characteristic
Output	Output
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Certificate	TÜV 01 ATEX 1777 X
Marking II 3G Ex nA II T4	Marking II 3G Ex nA II T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)GD [EEx ia] IIC
Input	EEx ia IIC
Voltage	9.6 V
Current	0.5 mA
Power	1.1 mW linear characteristic
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA II T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010
CSA approval	CSA approval
Control drawing116-0132	Control drawing116-0132
Control drawing	116-0132
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
