KFD0-CS-Ex1.54

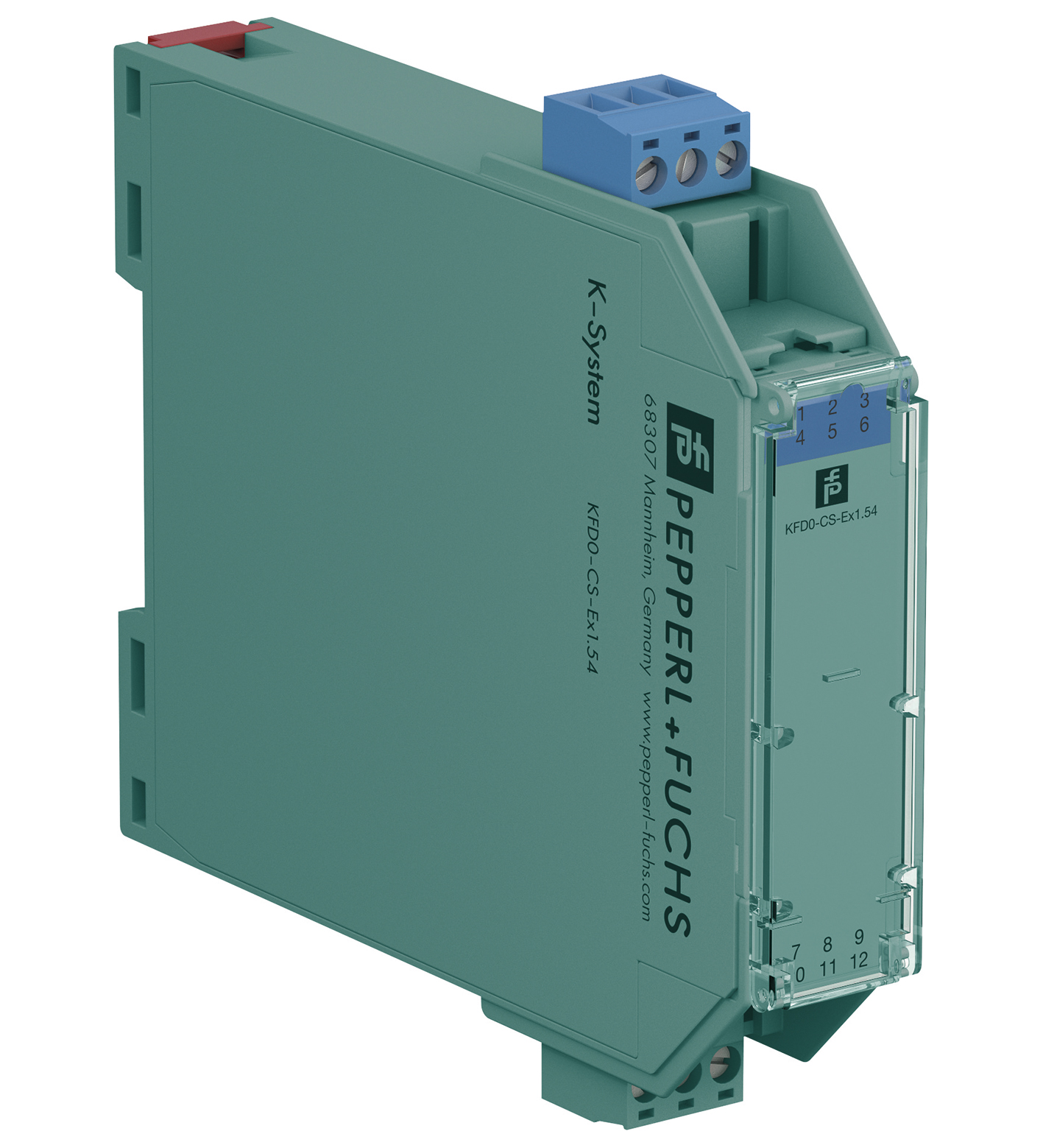

KFD0-CS-Ex1.54 Repeater

订货号: 70185883
产品分类: K 系统（DIN 导轨安装）

Repeater

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Safety Integrity Level (SIL)	SIL 2
Rated voltage	0 ... 24 V DC , loop powered
Power dissipation	< 0.2 W for Uin = 24 V, Iout = 20 mA

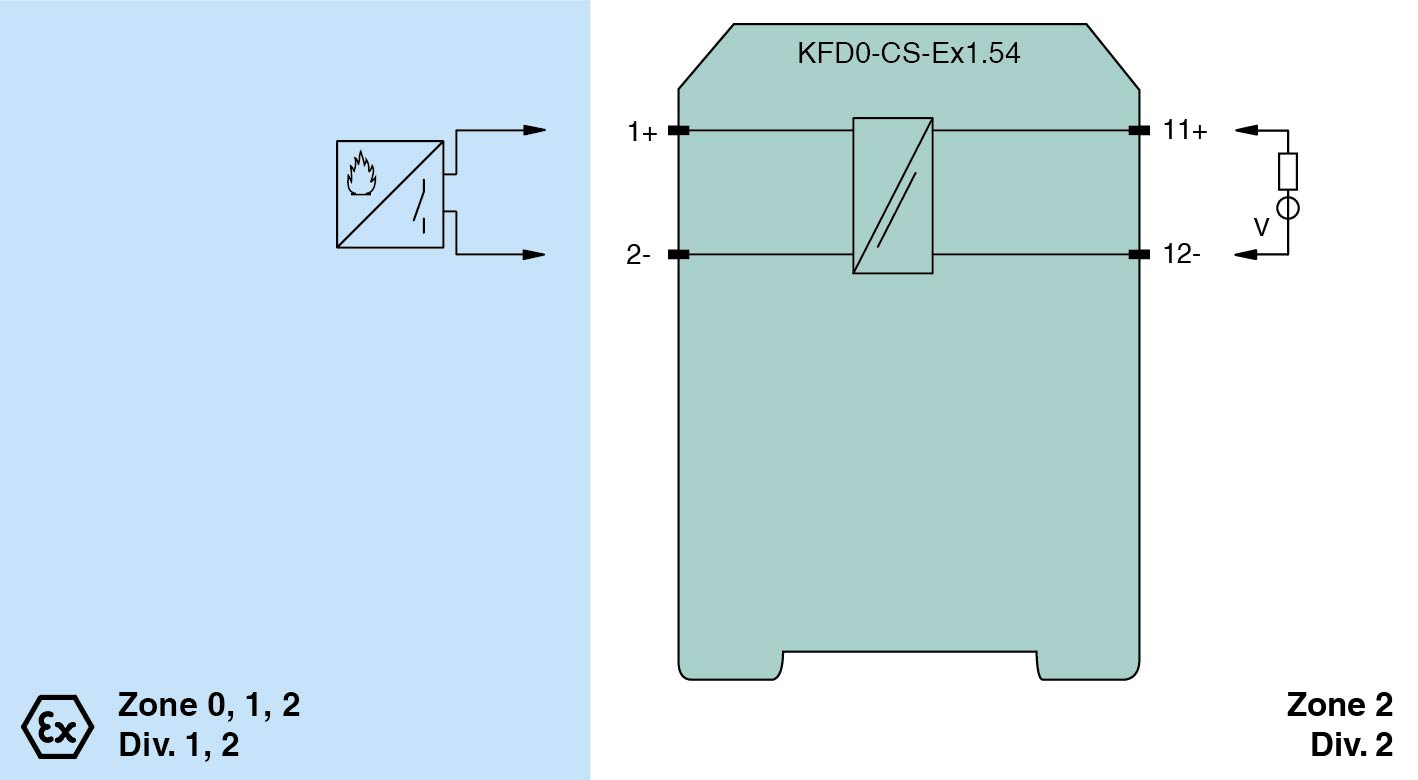

Connection	terminals 11+, 12-
Voltage	0 ... 24 V
Current	0 ... 20 mA
Current limit	max. 35 mA , limited by control sided current source
Connection	terminals 1+, 2-
Voltage	for 4 V ≤ Uin ≤ 24 V: Uout ≥ Uin - (0.41 x Iin in mA) - 0.5
Transmission range	voltage: 4 ... 20 V DC/0 ... 6 Vpp AC current: 1 ... 20 mA
Deviation	Deviation
After calibration≤ 3.5 mA current loss at 20 mA load currentInfluence of ambient temperature± 20 µA / K	After calibration≤ 3.5 mA current loss at 20 mA load currentInfluence of ambient temperature± 20 µA / K
Rise time/fall time	≤ 50 µs (load current ≥ 1 mA)
After calibration	≤ 3.5 mA current loss at 20 mA load current
Influence of ambient temperature	± 20 µA / K
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	BAS 00 ATEX 7087
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo28 VCurrentIo93 mAPowerPo653 mW	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo28 VCurrentIo93 mAPowerPo653 mW
Supply	Supply
Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.)
Certificate	TÜV 99 ATEX 1499 X
Marking II 3G Ex nA II T4	Marking II 3G Ex nA II T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Voltage	28 V
Current	93 mA
Power	653 mW
Maximum safe voltage	253 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA II T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing116-0129 (cFMus)	Control drawing116-0129 (cFMus)
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 08.0079 IECEx BAS 10.0007XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex nA IIC T4 Gc	IECEx certificateIECEx BAS 08.0079 IECEx BAS 10.0007XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex nA IIC T4 Gc
Control drawing	116-0129 (cFMus)
IECEx certificate	IECEx BAS 08.0079 IECEx BAS 10.0007X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex nA IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
