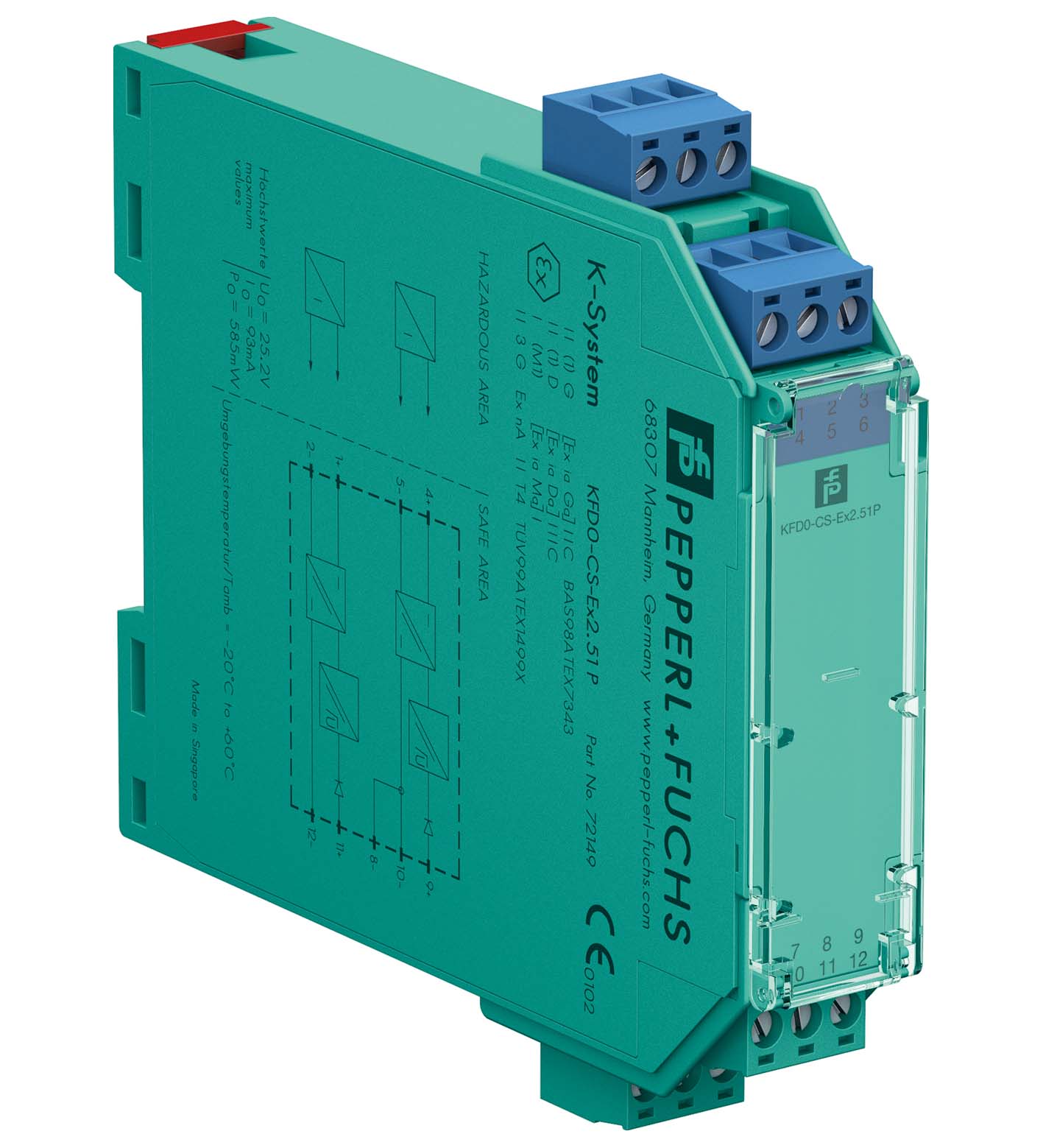

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input/analog output |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |
| Rated voltage | 4 ... 35 V DC , loop powered |

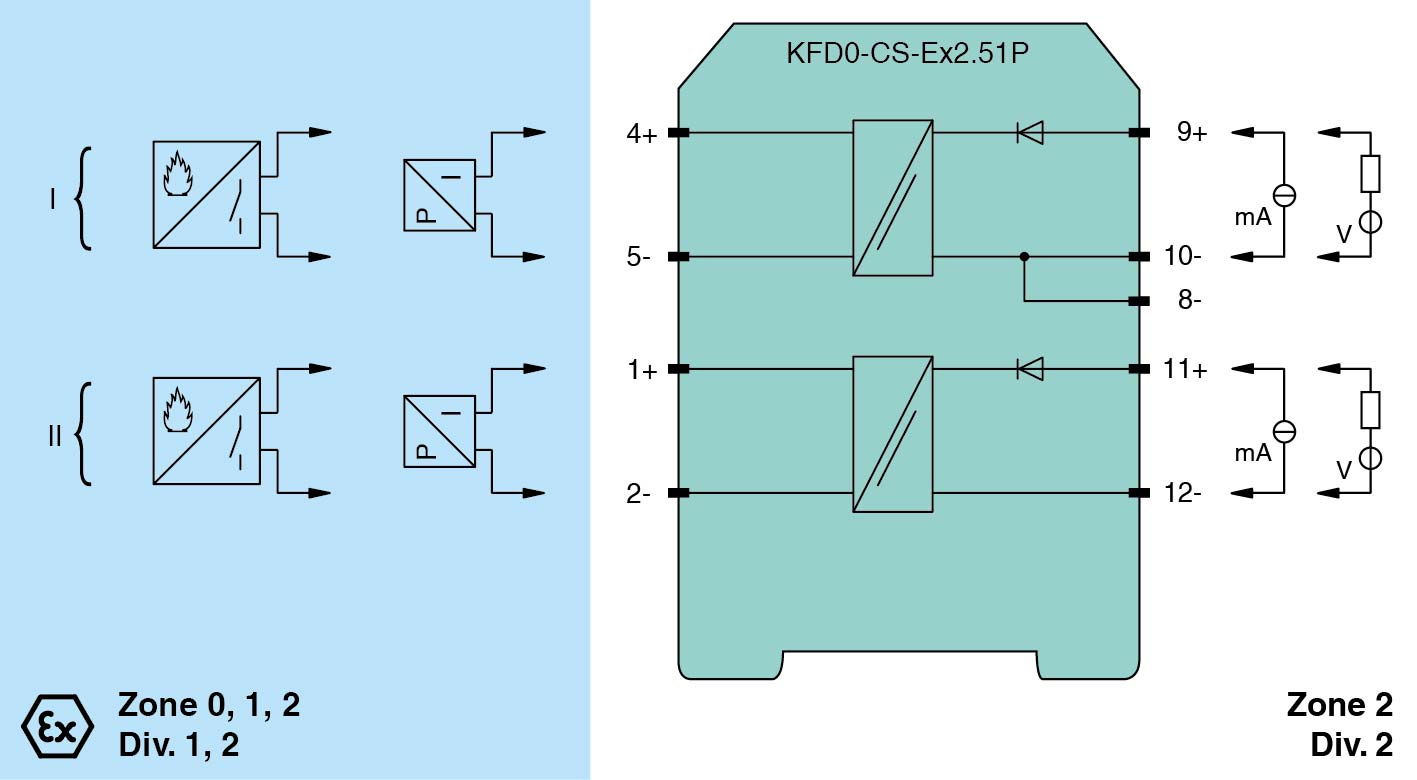

| Connection | terminals 12-, 11+; 8-, 10-, 9+ |
| Voltage | 4 ... 35 V DC |
| Current | 0 ... 40 mA |
| Power dissipation | at 40 mA and Uin < 22 V: 700 mW per channel at 40 mA and Uin > 22 V: 1.2 W per channel |
| Connection | terminals 1+, 2-; 4+, 5- |
| Voltage | for 4 V < Uin < 24 V: ≥ Uin - (0.37 x current in mA) - 1.0 for Uin > 24 V: ≥ 21 V - (0.36 x current in mA) |
| Short-circuit current | at Uin > 24 V: ≤ 65 mA |
| Transfer current | ≤ 40 mA |
| Accuracy | 1 % |
| Deviation | Deviation |
| After calibration≤ ± 200 µA; incl. calibration, linearity, hysteresis and load fluctuations at the field side up to a load of 1 kΩ and current ≤ 20 mA at 20 °C (68 °F)Influence of ambient temperature≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V | After calibration≤ ± 200 µA; incl. calibration, linearity, hysteresis and load fluctuations at the field side up to a load of 1 kΩ and current ≤ 20 mA at 20 °C (68 °F)Influence of ambient temperature≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V |
| Rise time | ≤ 5 ms at bounce from 4 ... 20 mA and Uin < 24 V |
| After calibration | ≤ ± 200 µA; incl. calibration, linearity, hysteresis and load fluctuations at the field side up to a load of 1 kΩ and current ≤ 20 mA at 20 °C (68 °F) |
| Influence of ambient temperature | ≤ ± 2 µA/K at Uin ≤ 20 V; ≤ ± 5 µA/K at Uin > 20 V |
| Field circuit/control circuit | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2012 EN 61326-3-2:2008 |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | UL 61010-1:2012 |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 |
| Height107 mmWidth20 mmDepth115 mm | Height107 mmWidth20 mmDepth115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 107 mm |
| Width | 20 mm |
| Depth | 115 mm |
| EU-type examination certificate | BAS 98 ATEX 7343 X |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo25.2 VCurrentIo93 mAPowerPo585 mW | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo25.2 VCurrentIo93 mAPowerPo585 mW |
| Control circuit | Control circuit |
| Maximum safe voltageUm250 V eff (Attention! The rated voltage can be lower.) | Maximum safe voltageUm250 V eff (Attention! The rated voltage can be lower.) |
| Field circuit | Field circuit |
| Maximum safe voltageUm250 V eff (Attention! The rated voltage can be lower.) | Maximum safe voltageUm250 V eff (Attention! The rated voltage can be lower.) |
| Certificate | FIDI 22 ATEX 0001 X |
| Marking II 3G Ex ec IIC T4 Gc | Marking II 3G Ex ec IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Field circuit/control circuitsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018 | Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Voltage | 25.2 V |
| Current | 93 mA |
| Power | 585 mW |
| Maximum safe voltage | 250 V eff (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 250 V eff (Attention! The rated voltage can be lower.) |
| Marking | II 3G Ex ec IIC T4 Gc |
| Field circuit/control circuit | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018 , EN 60079-11:2012 , EN IEC 60079-7:2015+A1:2018 |
| FM approval | FM approval |
| Control drawing116-0437 | Control drawing116-0437 |
| UL approval | E106378 |
| Control drawing116-0438 (cULus) | Control drawing116-0438 (cULus) |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BAS 05.0004X IECEx CML 19.0040XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc | IECEx certificateIECEx BAS 05.0004X IECEx CML 19.0040XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
| Control drawing | 116-0437 |
| Control drawing | 116-0438 (cULus) |
| IECEx certificate | IECEx BAS 05.0004X IECEx CML 19.0040X |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
