KFD0-LGH-5T

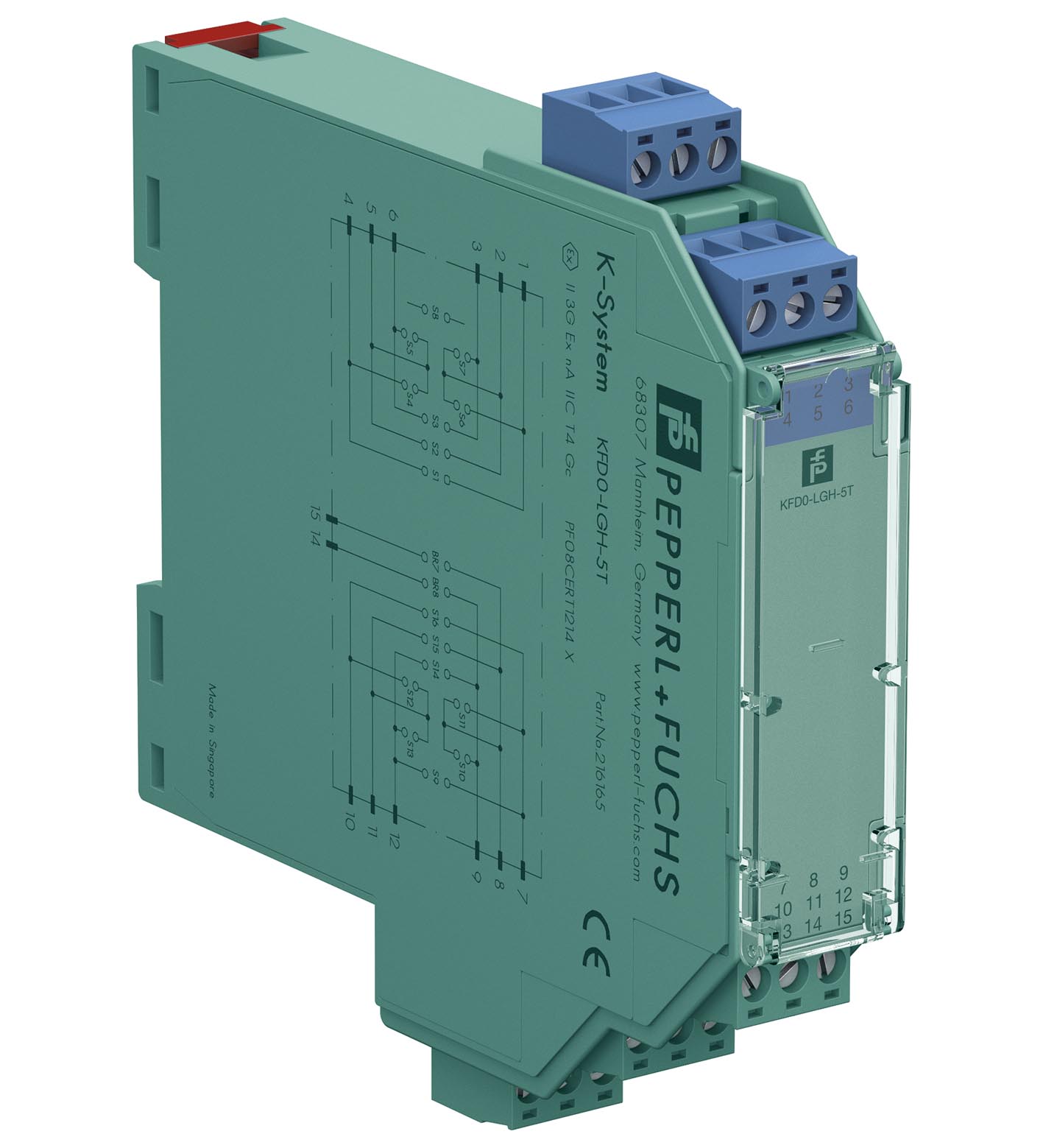

KFD0-LGH-5T Place Holder Barrier

Place holder barrier for KF modules with 2 additional green terminal blocks

TECHNICAL DATA

规格参数

Electrical specifications

Rated voltage	≤ 50 V
Rated current	≤ 2 A

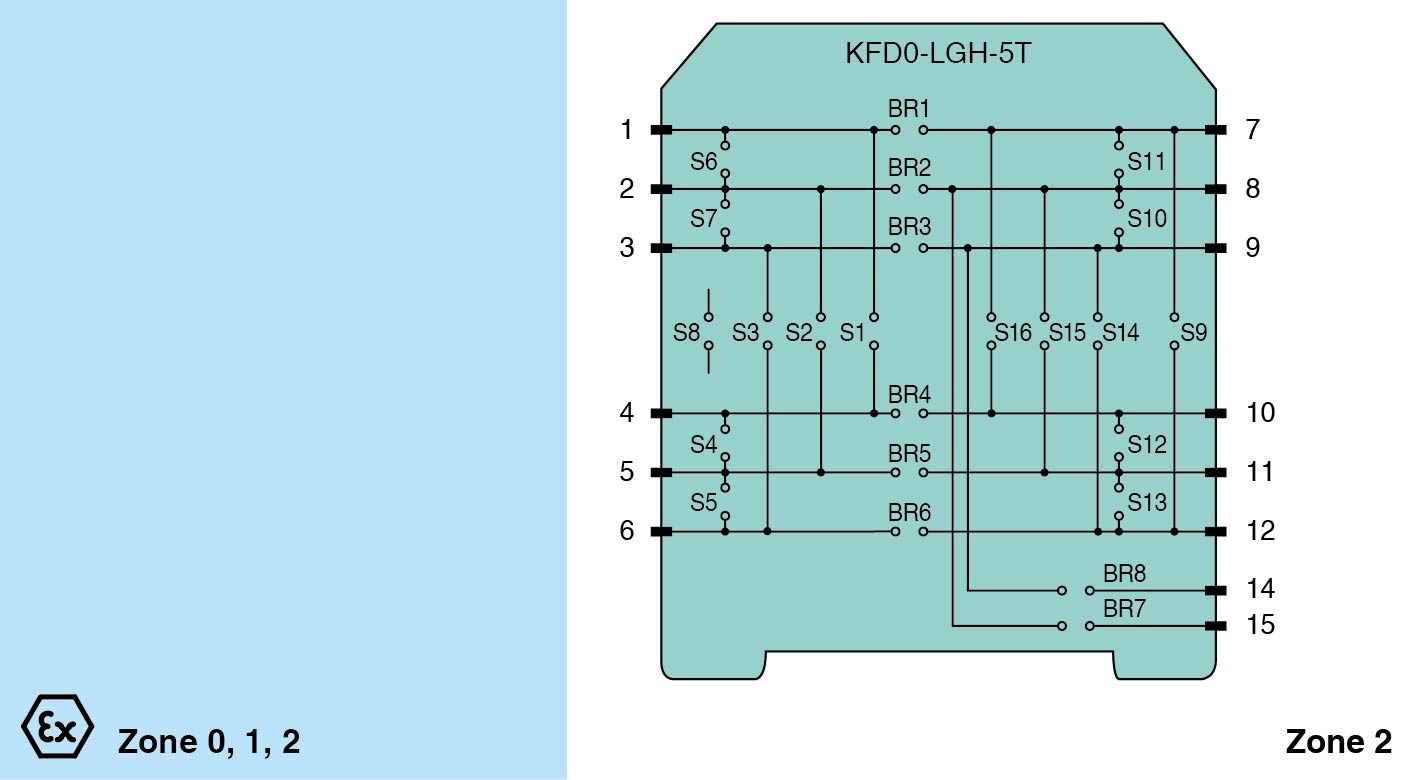

Configuration	via internal wire jumpers
Labeling	space for labeling at the front
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Certificate	PF 08 CERT 1214 X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
