KFD0-RO-Ex2

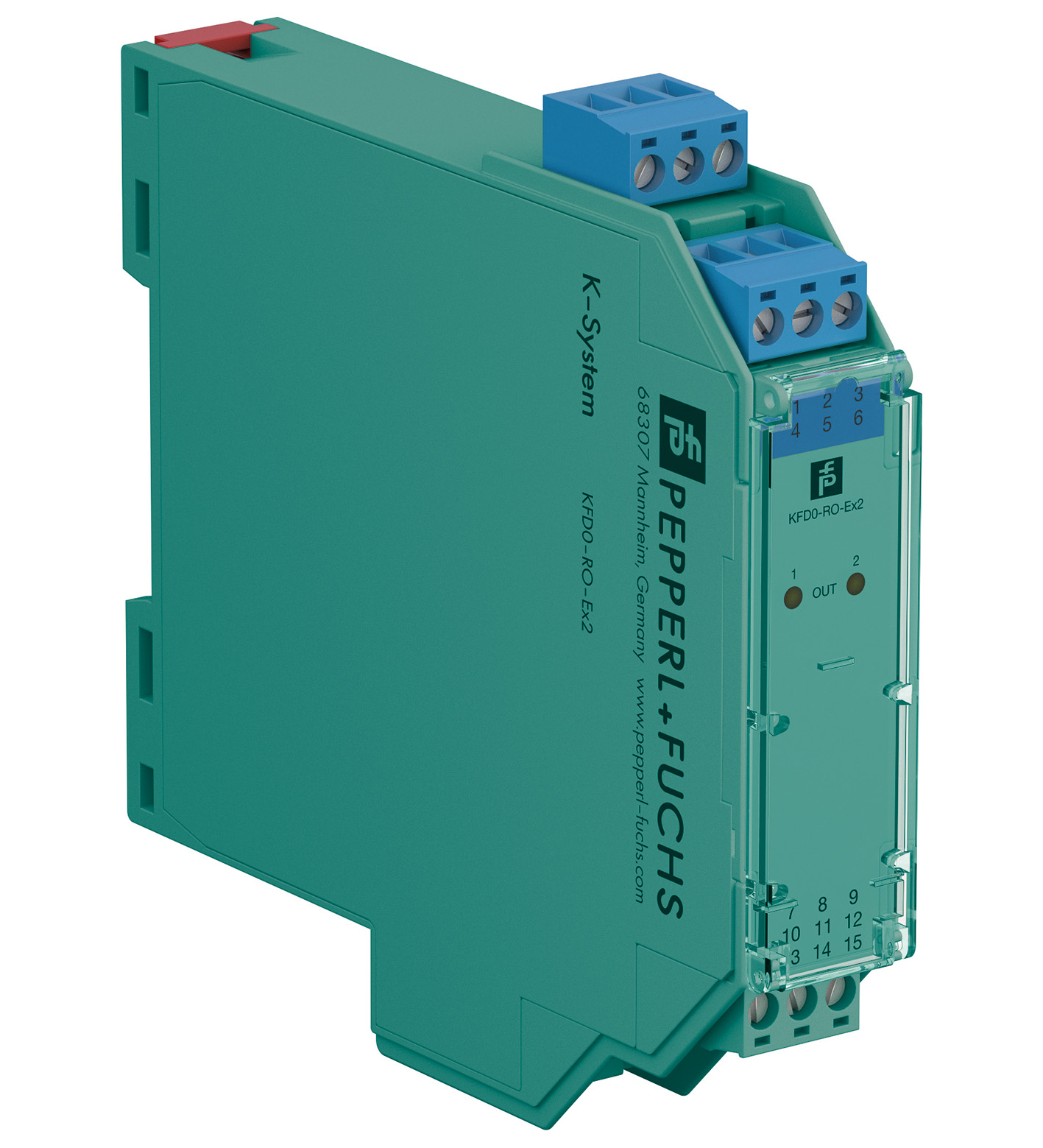

KFD0-RO-Ex2 Relay Module

订货号: 038975
产品分类: K 系统（DIN 导轨安装）

Relay Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Rated voltage	15 ... 30 V DC , loop powered
Power dissipation	0.8 W

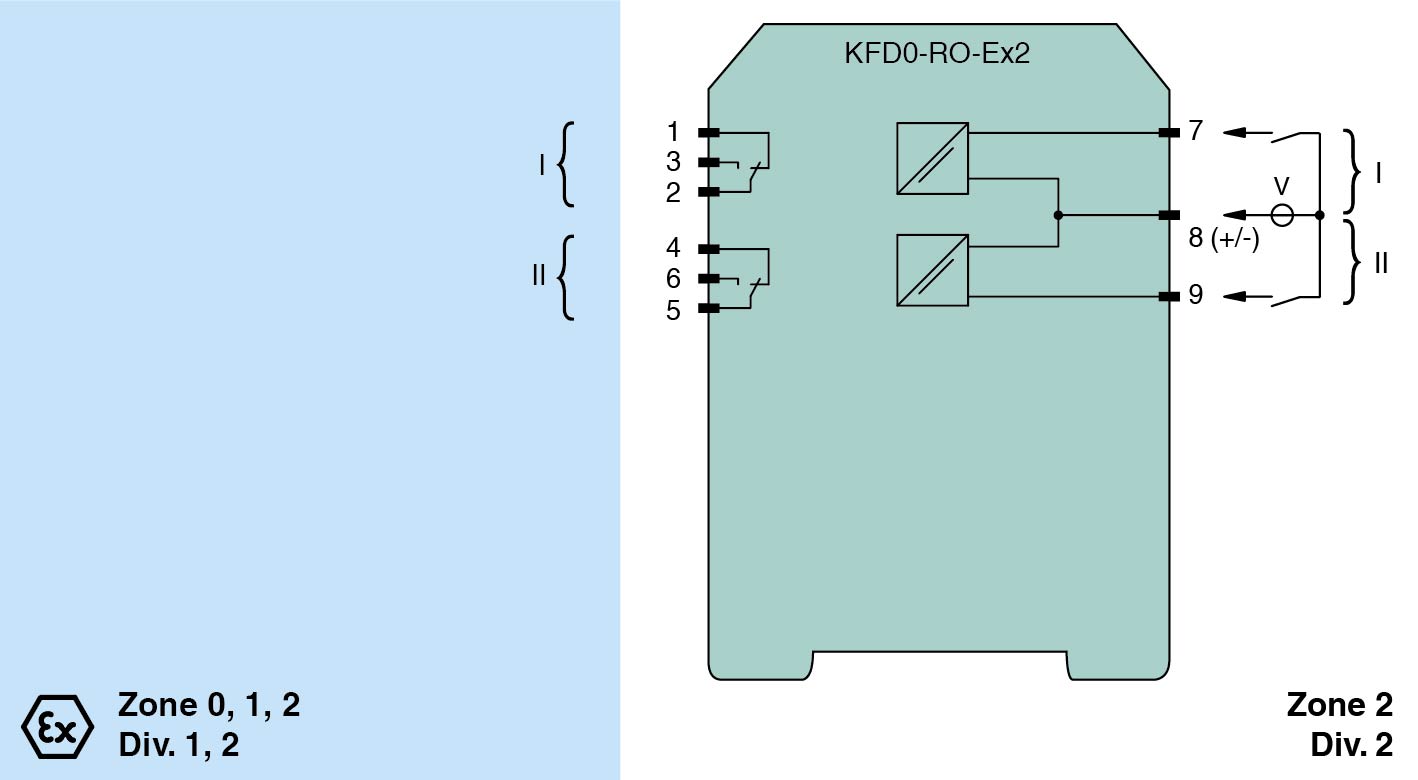

Connection side	control side
Connection	terminals 7, 8, 9
Input voltage	15 ... 30 V DC
Input current	≤ 21 mA per channel
Safety note	Attention! Combination of output Ex i with output not Ex i is not permitted.If load voltage > 50 V, de-energize before removing the terminals.
Connection side	field side
Connection	terminals 1, 2, 3; 4, 5, 6
Contact loading	230 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load
Energized/De-energized delay	approx. 10 ms / approx. 5 ms
Mechanical life	5 x 106 switching cycles
Switching frequency	< 10 Hz
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 65 °C (-4 ... 149 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	DMT 00 ATEX E 016
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUi60 VCurrentIi2 A	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUi60 VCurrentIi2 A
Input	Input
Maximum safe voltageUm40 V DC (Attention! Um is no rated voltage.)	Maximum safe voltageUm40 V DC (Attention! Um is no rated voltage.)
Output	Output
Contact loading50 V AC/2 A ; 40 V DC/2 A (TÜV 00 ATEX 1621 X)	Contact loading50 V AC/2 A ; 40 V DC/2 A (TÜV 00 ATEX 1621 X)
Certificate	TÜV 00 ATEX 1621 X
Marking II 3G Ex nA nC IIC T4	Marking II 3G Ex nA nC IIC T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia
Voltage	60 V
Current	2 A
Maximum safe voltage	40 V DC (Attention! Um is no rated voltage.)
Contact loading	50 V AC/2 A ; 40 V DC/2 A (TÜV 00 ATEX 1621 X)
Marking	II 3G Ex nA nC IIC T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing116-0261	Control drawing116-0261
CSA approval	CSA approval
Control drawing116-0156	Control drawing116-0156
IECEx approval	IECEx approval
IECEx certificateIECEx BVS 10.0025IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I	IECEx certificateIECEx BVS 10.0025IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Control drawing	116-0261
Control drawing	116-0156
IECEx certificate	IECEx BVS 10.0025
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
