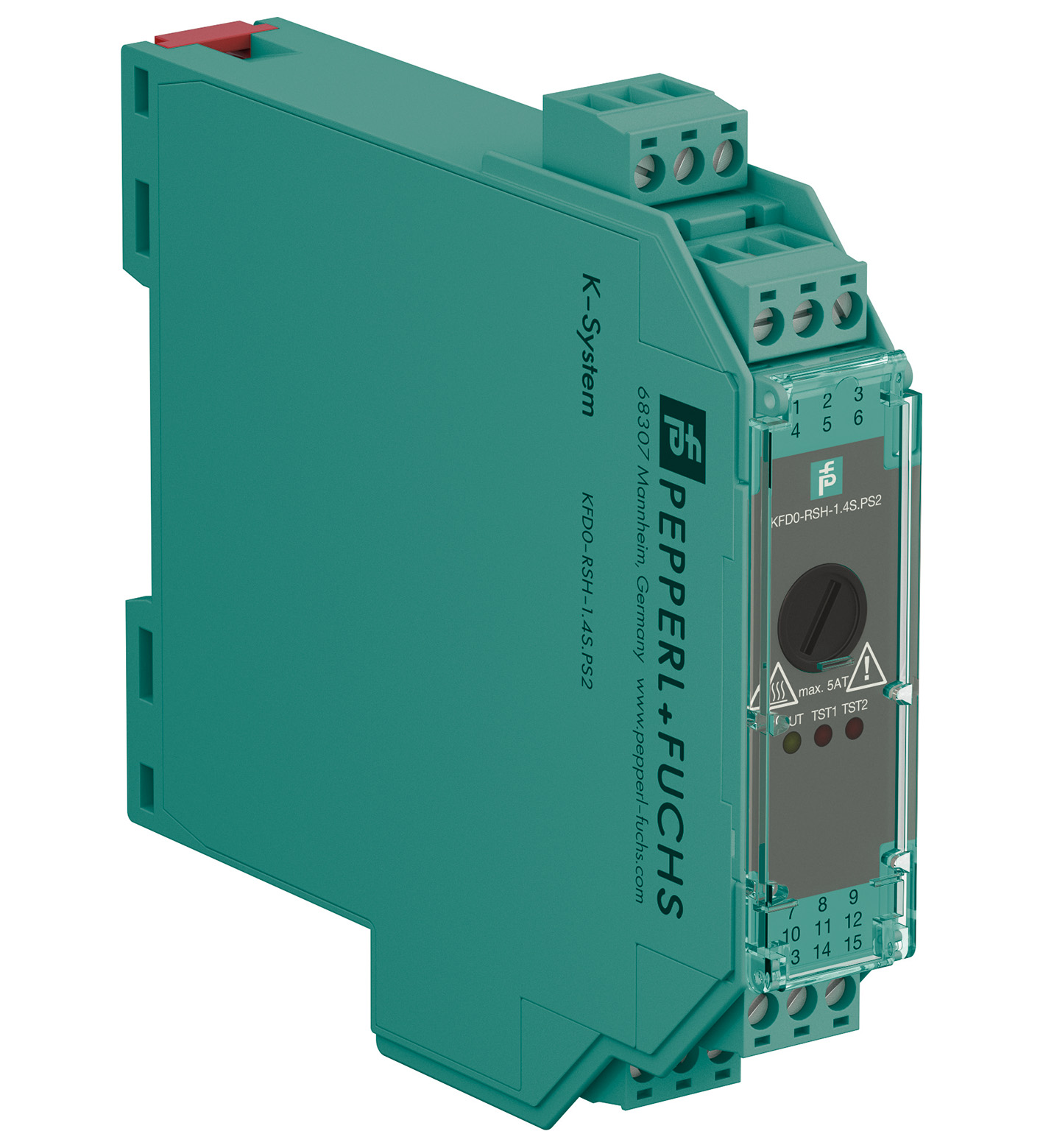

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Output |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Rated voltage | 0-signal: -3 ... 3 V DC , loop powered 1-signal: 20 ... 26.5 V DC , loop powered |
| Power dissipation | < 1.5 W |
| Power consumption | < 1.5 W |
| Connection side | control side |
| Connection | Input terminals 7, 8 ; test input terminals 10, 11, 12 |
| Pulse/Pause ratio | min. 20 ms / min. 20 ms |
| Test input | see functional safety manual |
| Signal level | 0-signal: -3 ... 3 V DC 1-signal: 20 ... 26.5 V |
| Rated current | 45 ... 50 mA |
| Connection side | field side |

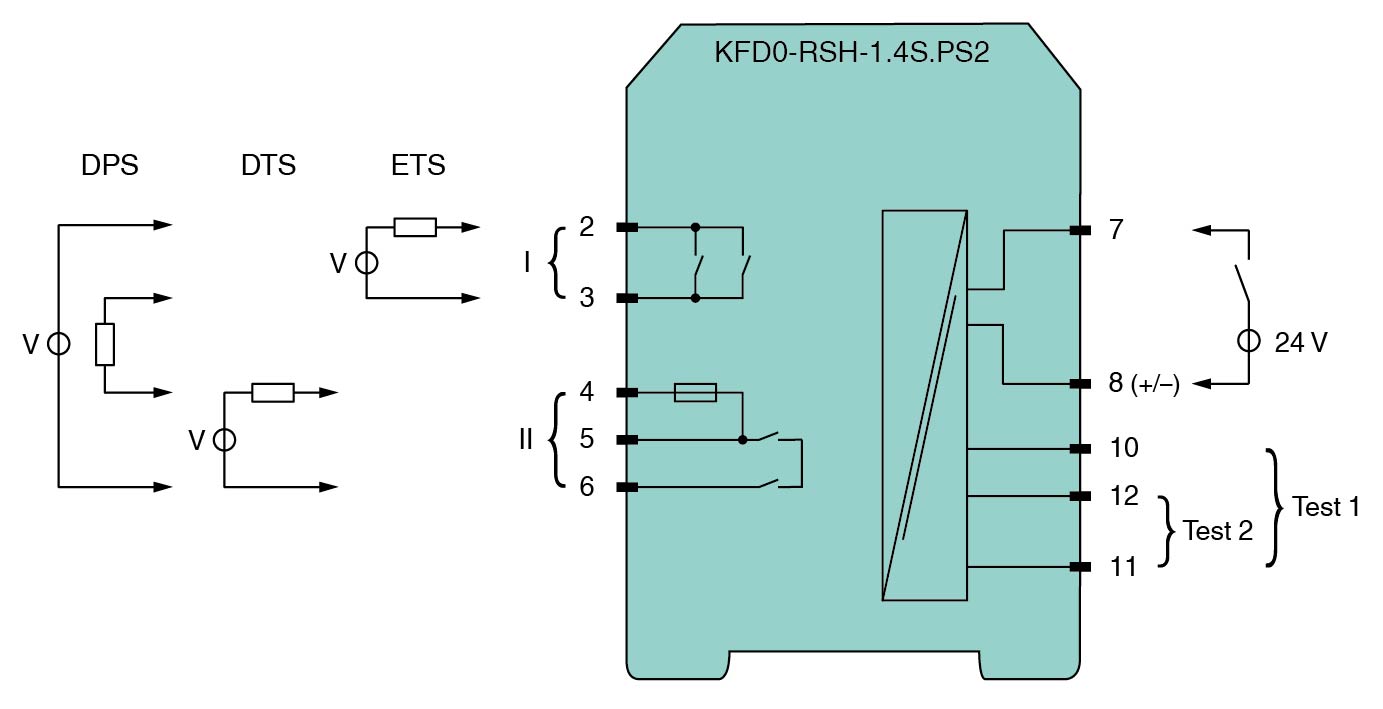

| Connection | output I (ETS): terminals 2, 3 output II (DTS): terminals 4, 5, 6 output I and II (DPS): terminals 2, 3, 4, 5, 6 |
| Contact loading | 253 V AC/5 A/cos φ 0.7; 30 V DC/5 A resistive load |
| Minimum switch current | 2 mA / 24 V DC |
| Energized/De-energized delay | approx. 10 ms / approx. 5 ms |
| Mechanical life | 5 x 106 switching cycles |
| Fuse rating | 2.5 A (max. 5 A)recommended maximum utilization of the fuse: 80 % |
| Switching frequency | < 10 Hz |
| Input/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Display elements | LEDs |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Electromagnetic compatibility | NE 21:2012 |
| Degree of protection | IEC 60529:2013 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating. |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
