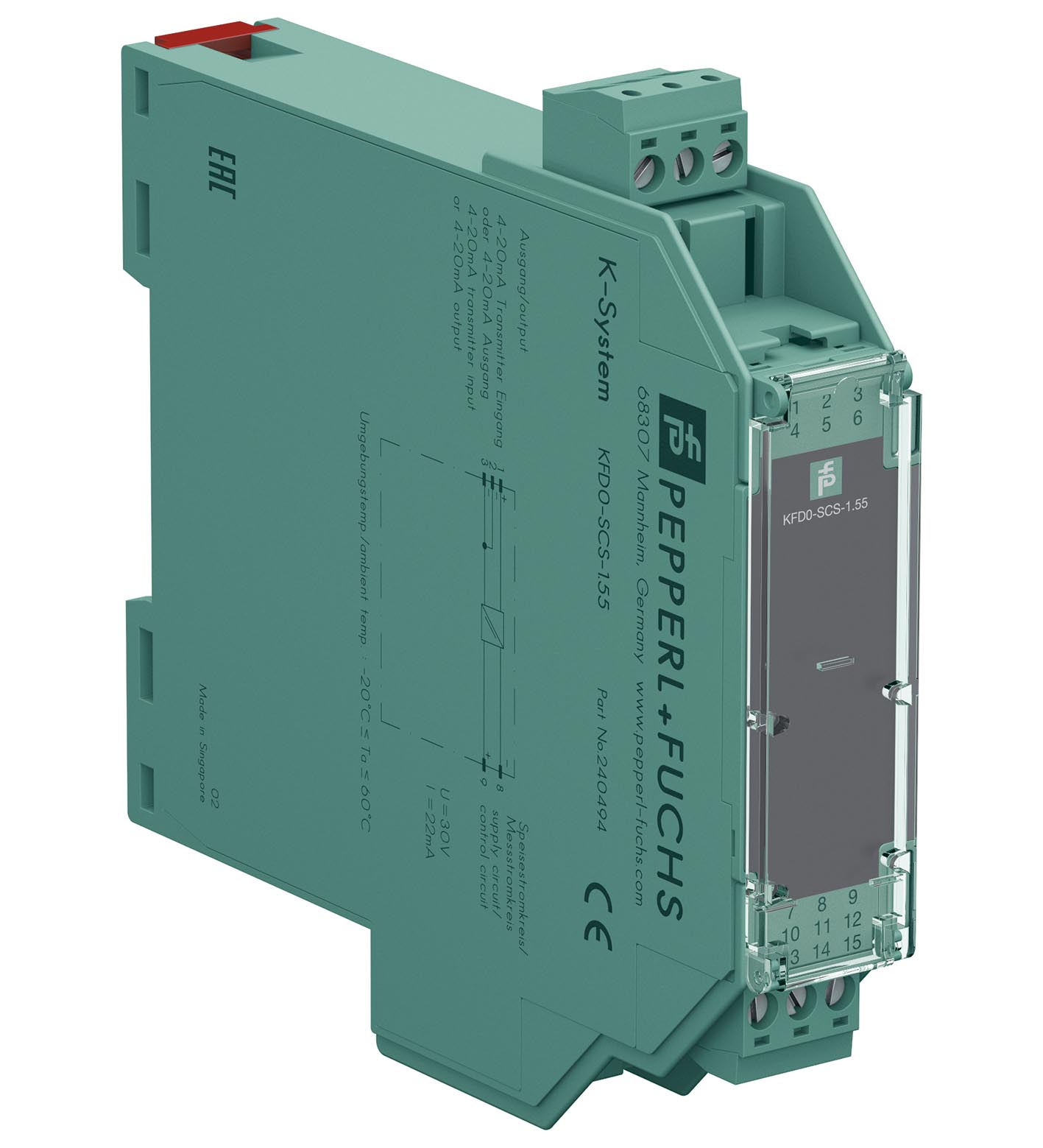

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input/analog output |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Rated voltage | < 30 V DC , loop powered |
| Power dissipation | 0.2 W |

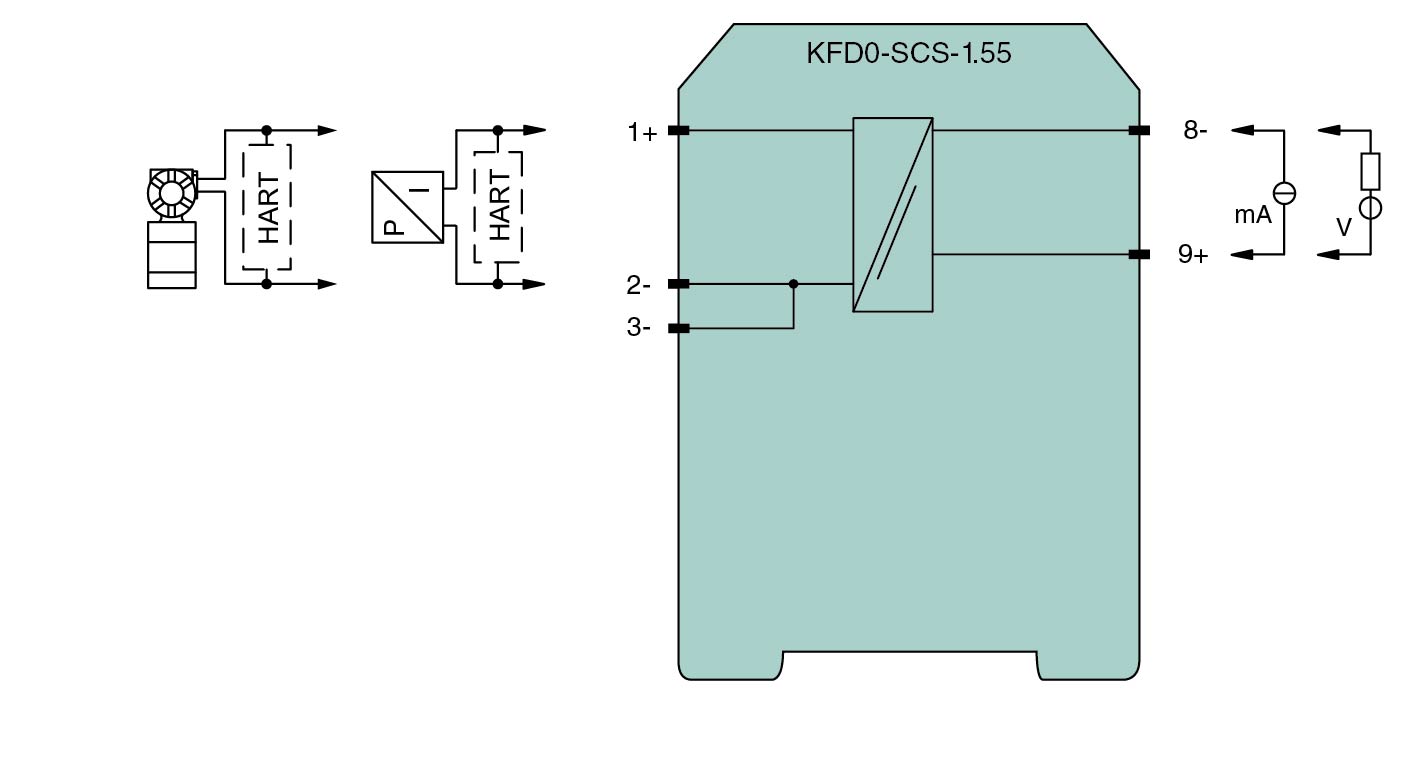

| Connection | terminals 8-, 9+ |
| Voltage | max. 30 V DC |
| Current | 4 ... 20 mA (quiescent current < 0.5 mA) |
| Power dissipation | 150 mW at 20 mA and Uin < 24 V |
| Connection | terminals 1+, 2 / 3- |
| Voltage | ≥ 16 V for supply voltage > 21 V |
| Current | 4 ... 20 mA (linear transmission 1 ... 22 mA) |
| Load | ≤ 800 Ω (at 20 mA) |
| Voltage drop | see note |
| Deviation | Deviation |
| After calibration≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F) | After calibration≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F) |
| Influence of ambient temperature | < 0.5 µA/K |
| Damping | approx. 3 dB |
| Rise time | ≤ 20 µs at 0 Ω, ≤ 600 µs with 800 Ω load |
| After calibration | ≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F) |
| Input/Output | basic insulation according to IEC 62103, rated insulation voltage 300 Veff |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Galvanic isolation | IEC 62103:2003 |
| Electromagnetic compatibility | NE 21:2007 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 120 g |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2 |
| Height124 mmWidth20 mmDepth115 mm | Height124 mmWidth20 mmDepth115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 124 mm |
| Width | 20 mm |
| Depth | 115 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
