KFD0-SCS-Ex1.55

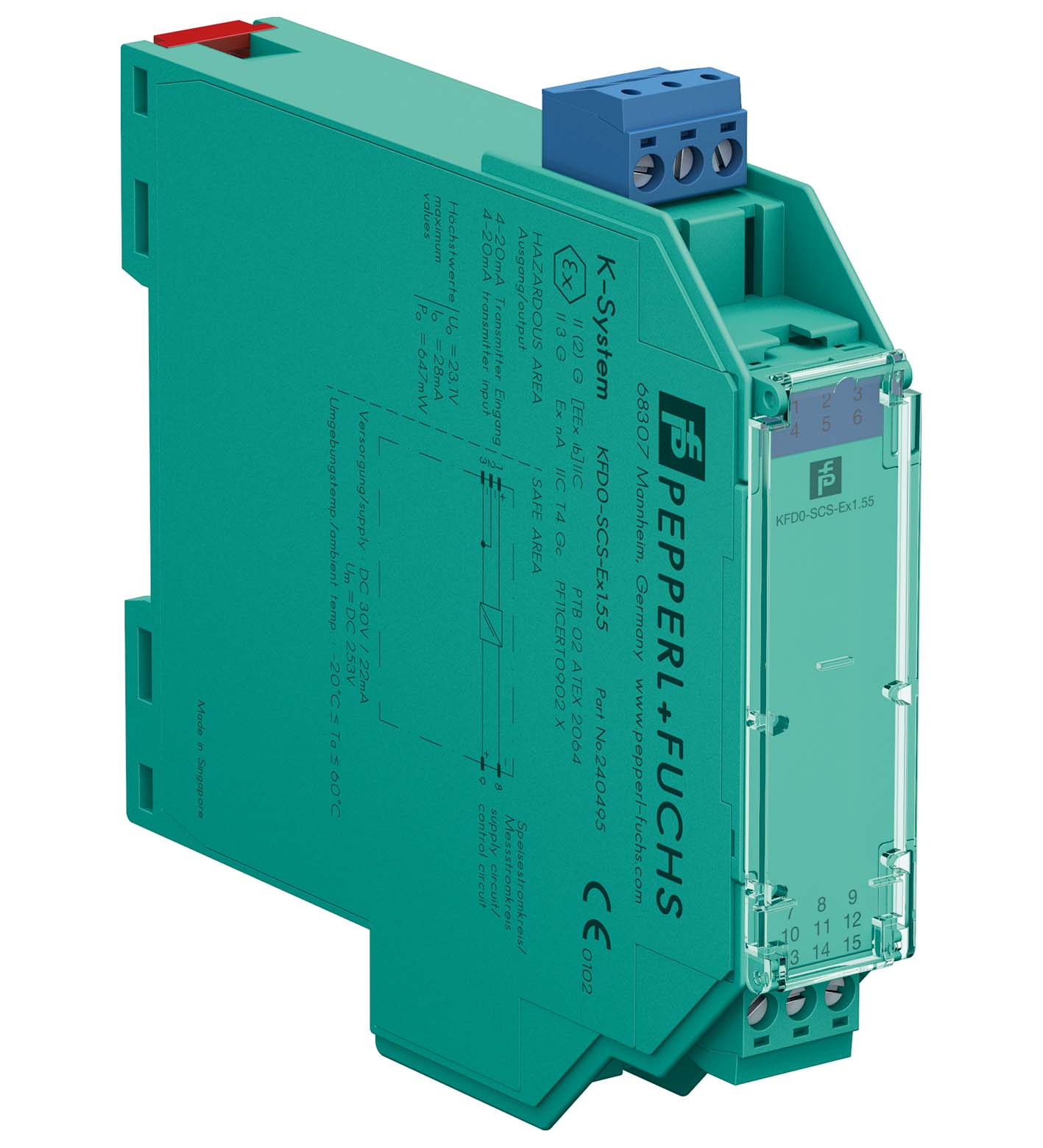

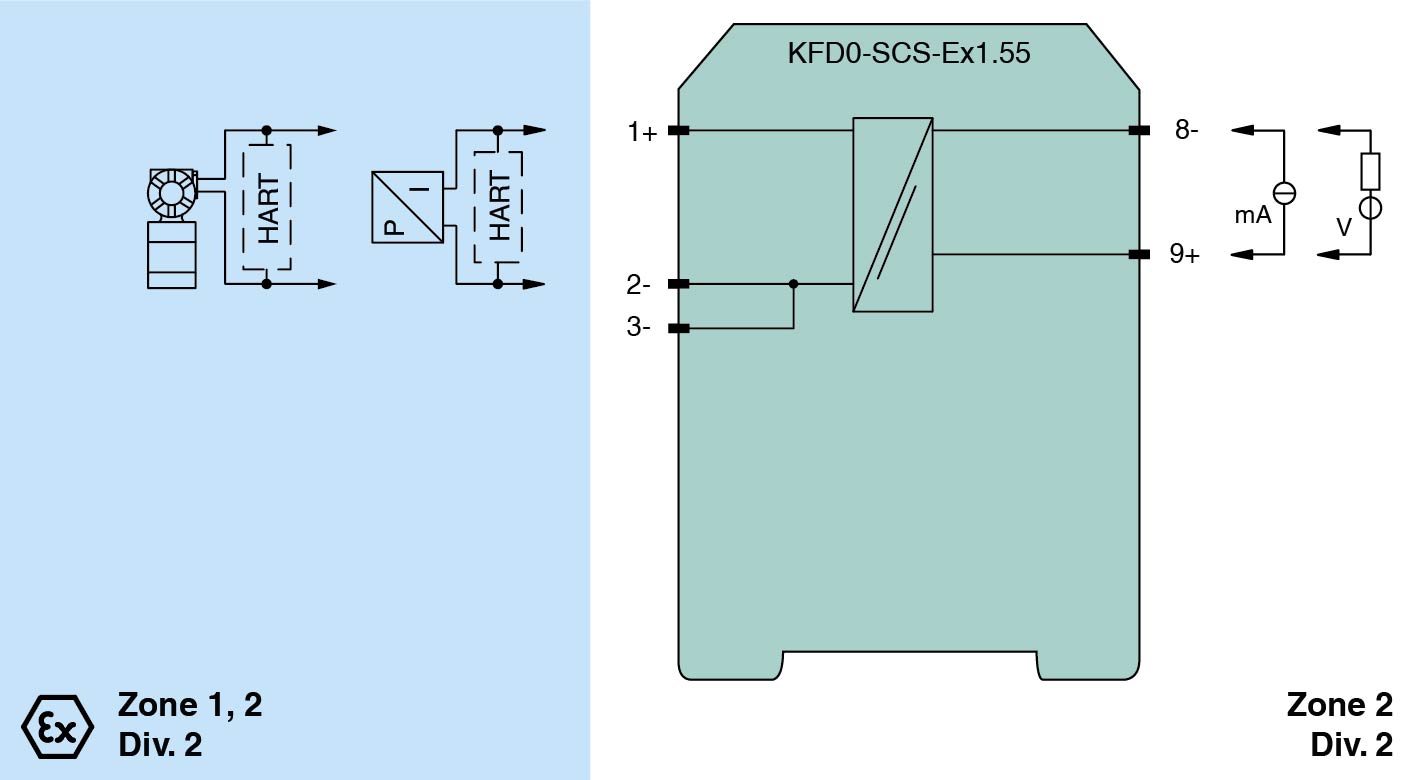

KFD0-SCS-Ex1.55 SMART Current Driver/Repeater

订货号: 240495
产品分类: K 系统（DIN 导轨安装）

SMART Current Driver/Repeater

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input/analog output
Safety Integrity Level (SIL)	SIL 2
Rated voltage	< 30 V DC , loop powered
Power dissipation	0.2 W
Connection	terminals 8-, 9+
Voltage	max. 30 V DC
Current	4 ... 20 mA (quiescent current < 0.5 mA)
Power dissipation	150 mW at 20 mA and Uin < 24 V
Connection	terminals 1+, 2 / 3-
Voltage	≥ 16 V for supply voltage > 21 V
Current	4 ... 20 mA (linear transmission 1 ... 22 mA)
Load	≤ 800 Ω (at 20 mA)
Voltage drop	see note
Deviation	Deviation
After calibration≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F)	After calibration≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F)
Influence of ambient temperature	< 0.5 µA/K
Damping	approx. 3 dB
Rise time	≤ 20 µs at 0 Ω, ≤ 600 µs with 800 Ω load
After calibration	≤ ± 80 µA linearity, load and voltage dependence at 20 °C (68 °F)
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2007
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Height112 mmWidth20 mmDepth115 mm	Height112 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	112 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	PTB 02 ATEX 2064
Marking II (2)G [Ex ib Gb] IICVoltageUo23.1 V DCCurrentIo28 mAPowerPo0.647 W	Marking II (2)G [Ex ib Gb] IICVoltageUo23.1 V DCCurrentIo28 mAPowerPo0.647 W
Supply	Supply
Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm253 V (Attention! The rated voltage can be lower.)
Certificate	PF 11 CERT 0902 X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (2)G [Ex ib Gb] IIC
Voltage	23.1 V DC
Current	28 mA
Power	0.647 W
Maximum safe voltage	253 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA IIC T4 Gc
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
