KFD0-SD2-Ex2.1245

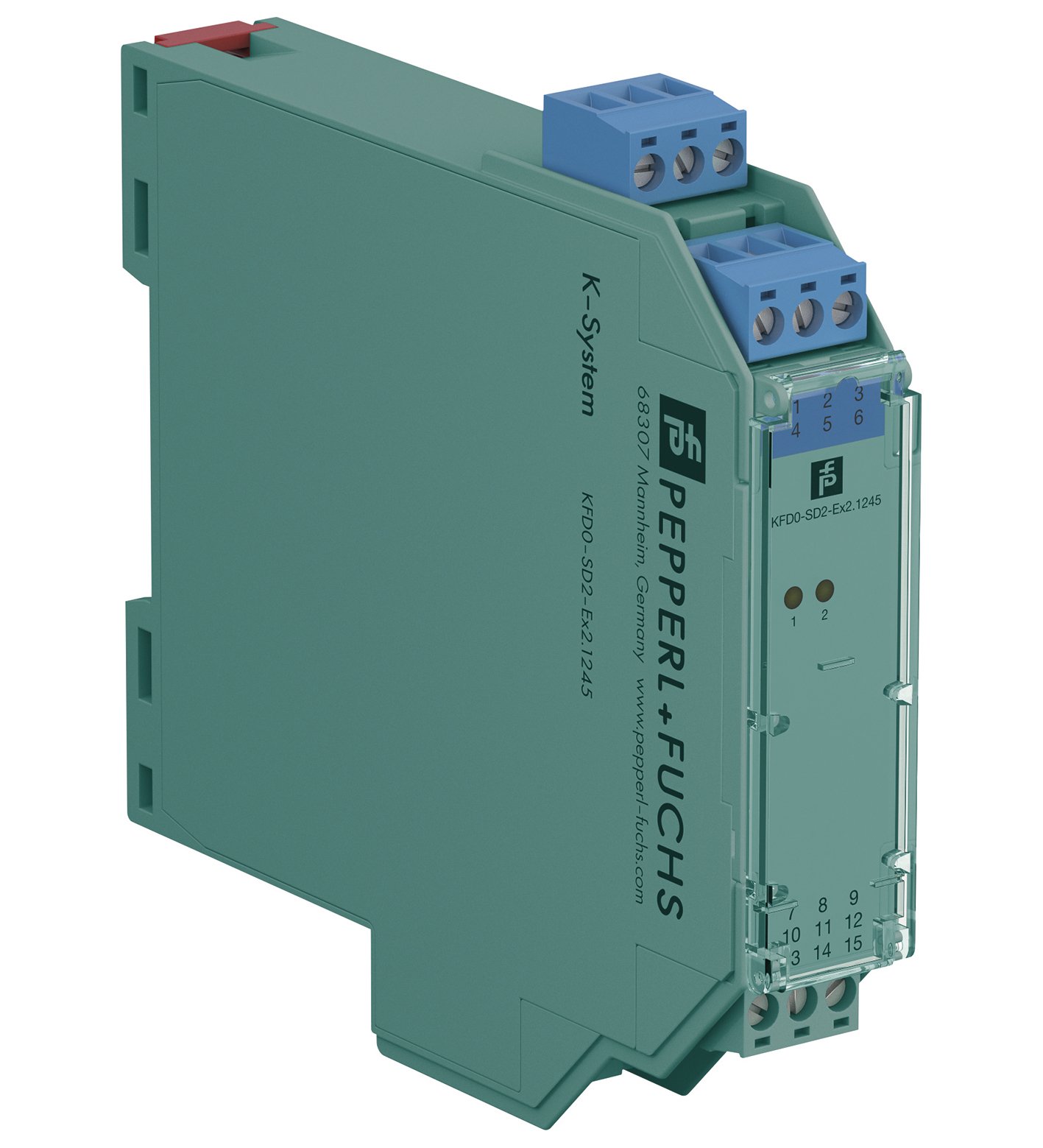

KFD0-SD2-Ex2.1245 Solenoid Driver

订货号: 242033
产品分类: K 系统（DIN 导轨安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Rated voltage	20 ... 35 V DC , loop powered
Power dissipation	< 1 W (≤ 30 V) per channel
Connection side	control side

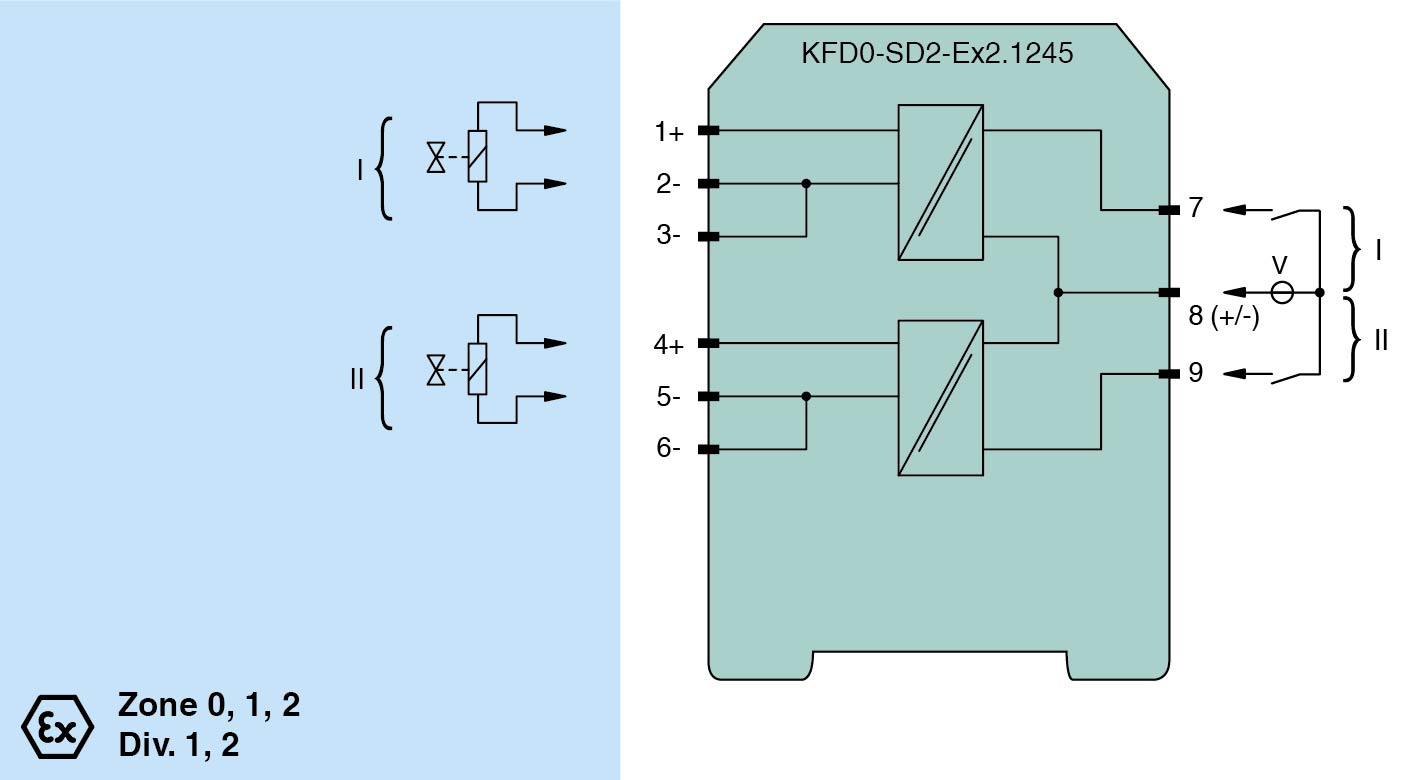

Connection	terminals 7, 8; 8, 9
Rated voltage	20 ... 35 V DC
Current	72 mA at 20 V input voltage, load = 265 Ω 50 mA at 35 V input voltage, load = 265 Ω
Inrush current	≤ 200 mA after 100 µs
Connection side	field side
Connection	terminals 1+, 2-; 4+, 5-
Internal resistor	max. 238 Ω
Current	≤ 45 mA
Voltage	≥ 12 V
Open loop voltage	min. 22.7 V
Output current	45 mA
Output signal	These values are valid for the rated operating voltage 20 ... 35 V DC.
Energized/De-energized delay	single operation: typ. 1.7 ms/50 µs; periodical: typ. 5 µs/50 µs
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1:2004
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height107 mmWidth20 mmDepth115 mm	Height107 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	107 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	BASEEFA 06 ATEX 0252
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo25.2 VCurrentIo110 mAPowerPo693 mW	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo25.2 VCurrentIo110 mAPowerPo693 mW
Input	Input
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Certificate	TÜV 99 ATEX 1499 X
Marking II 3G Ex nA II T4	Marking II 3G Ex nA II T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Voltage	25.2 V
Current	110 mA
Power	693 mW
Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA II T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing116-0309	Control drawing116-0309
UL approval	E106378
Control drawing116-0316 (cULus)	Control drawing116-0316 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 06.0058 IECEx CML 19.0093XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx BAS 06.0058 IECEx CML 19.0093XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0309
Control drawing	116-0316 (cULus)
IECEx certificate	IECEx BAS 06.0058 IECEx CML 19.0093X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
