KFD0-TR-1

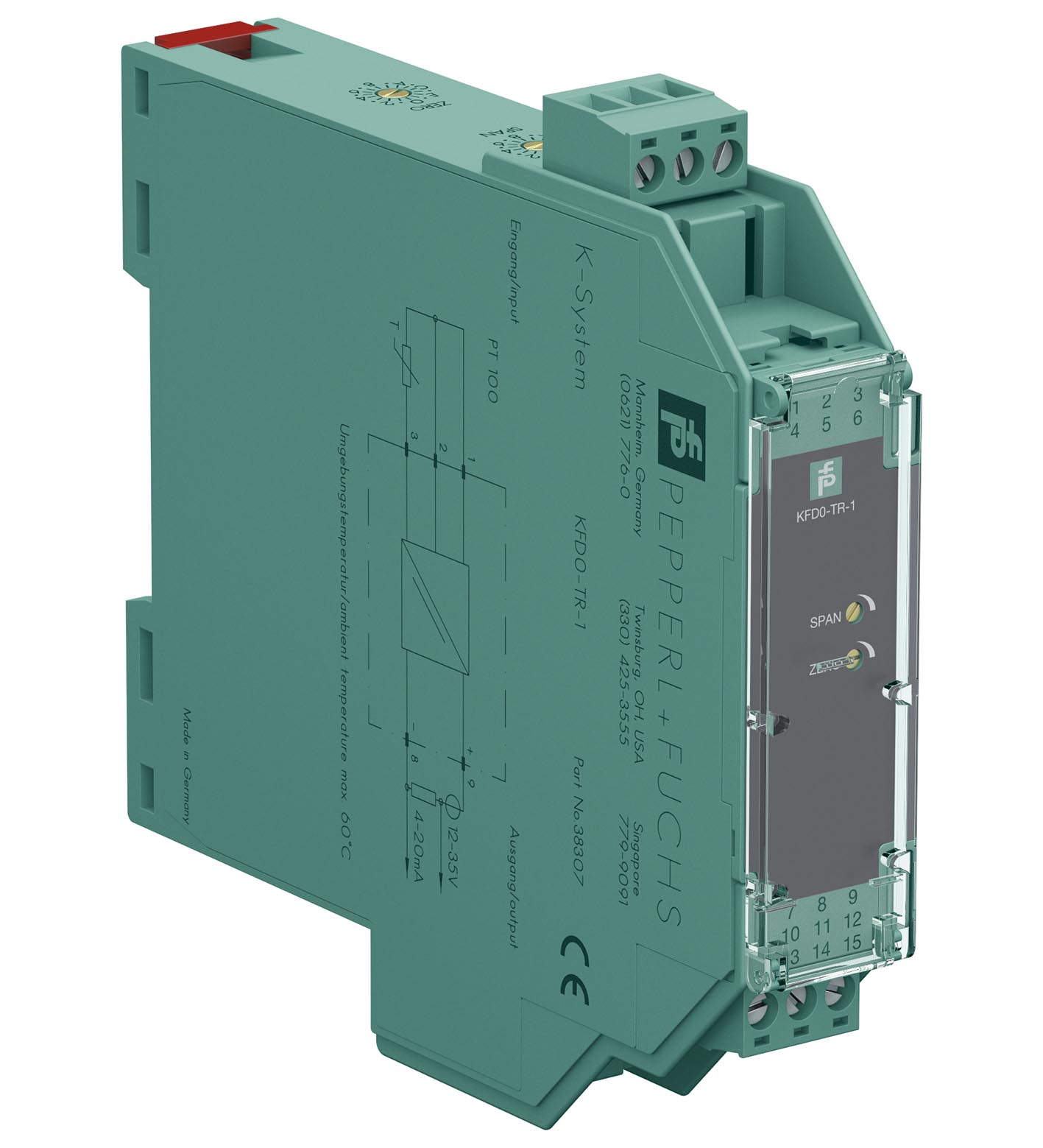

KFD0-TR-1 RTD Converter

订货号: 038307
产品分类: K 系统（DIN 导轨安装，功能强大）

RTD Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Rated voltage	12 ... 35 V DC loop powered
Power dissipation	0.4 W
Connection side	field side

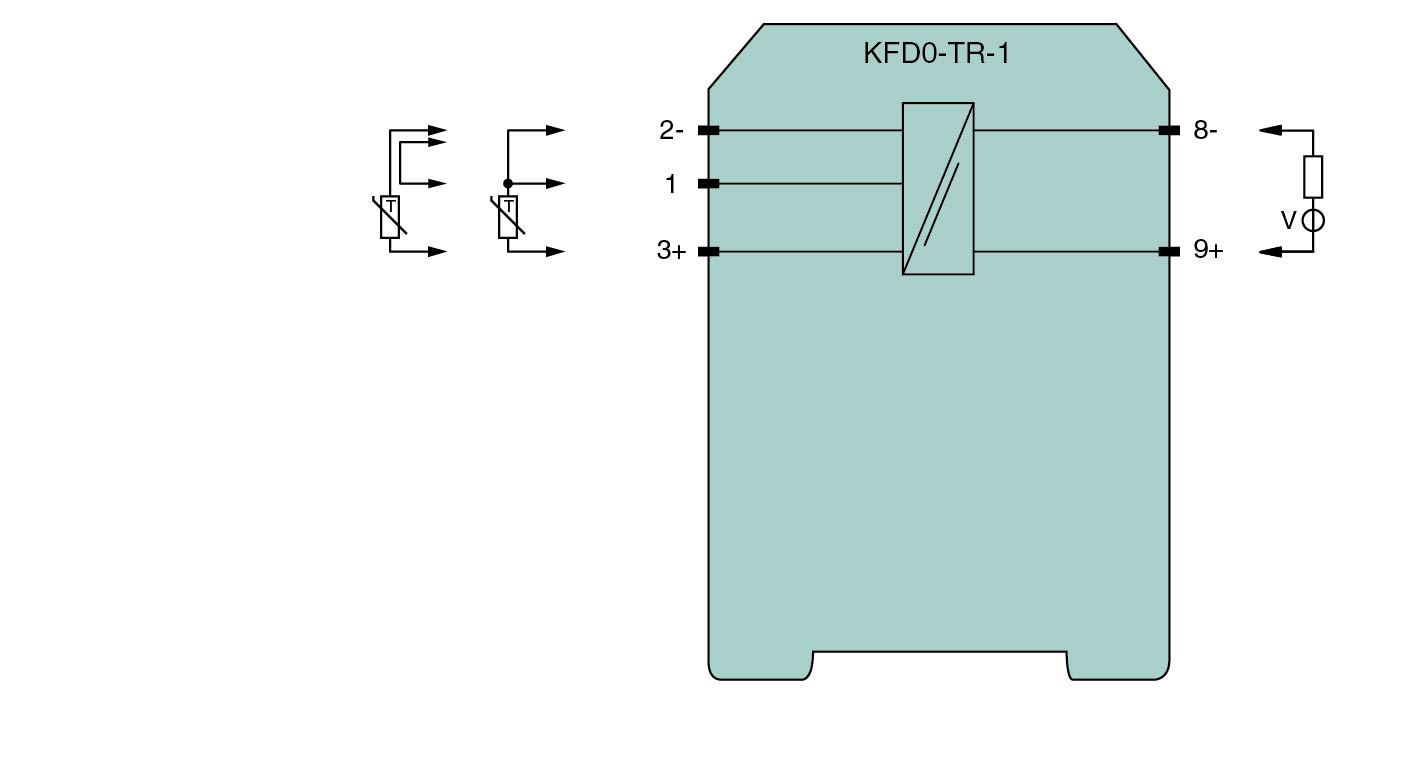

Connection	terminals 1, 2-, 3+ suitable for Pt100, 2- and 3-wire connection
Lead resistance	max. 100 Ω per line
Measuring current	approx. 1 mA
Connection side	control side
Connection	terminals 9+, 8-
Load	(U -12 V) / 0.02 A
Current output	4 ... 20 mA , limited to ≤ 35 mA
Fault signal	sensor burnout: upscaling ≥ 22 mA , limited to ≤ 35 mA
Measuring range	span without linearization 25 ... 800 °C (77 ... 1472 °F)/ with linearisation 25 ... 375 °C (77 ... 707 °F)zero point without linearization -200 ... 400 °C (-328 ... 752 °F)/ with linearisation -30 ... 375 °C (-22 ... 707 °F)span and zero point adjustable
Deviation	Deviation
After calibration0.1 % of full-scale valueInfluence of ambient temperaturespan and zero point 0.015 % / K or ± 10 mΩ / KInfluence of supply voltage6.5 ppm/V	After calibration0.1 % of full-scale valueInfluence of ambient temperaturespan and zero point 0.015 % / K or ± 10 mΩ / KInfluence of supply voltage6.5 ppm/V
Rise time	250 ms
After calibration	0.1 % of full-scale value
Influence of ambient temperature	span and zero point 0.015 % / K or ± 10 mΩ / K
Influence of supply voltage	6.5 ppm/V
Input/Output	safe isolation acc. to DIN VDE 0106, rated insulation voltage 253 Veff
Control elements	DIP switch rotary switch
Configuration	via DIP switches via rotary switch
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Insulation coordination	EN 50178
Galvanic isolation	EN 50178
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
