KFD0-TR-Ex1

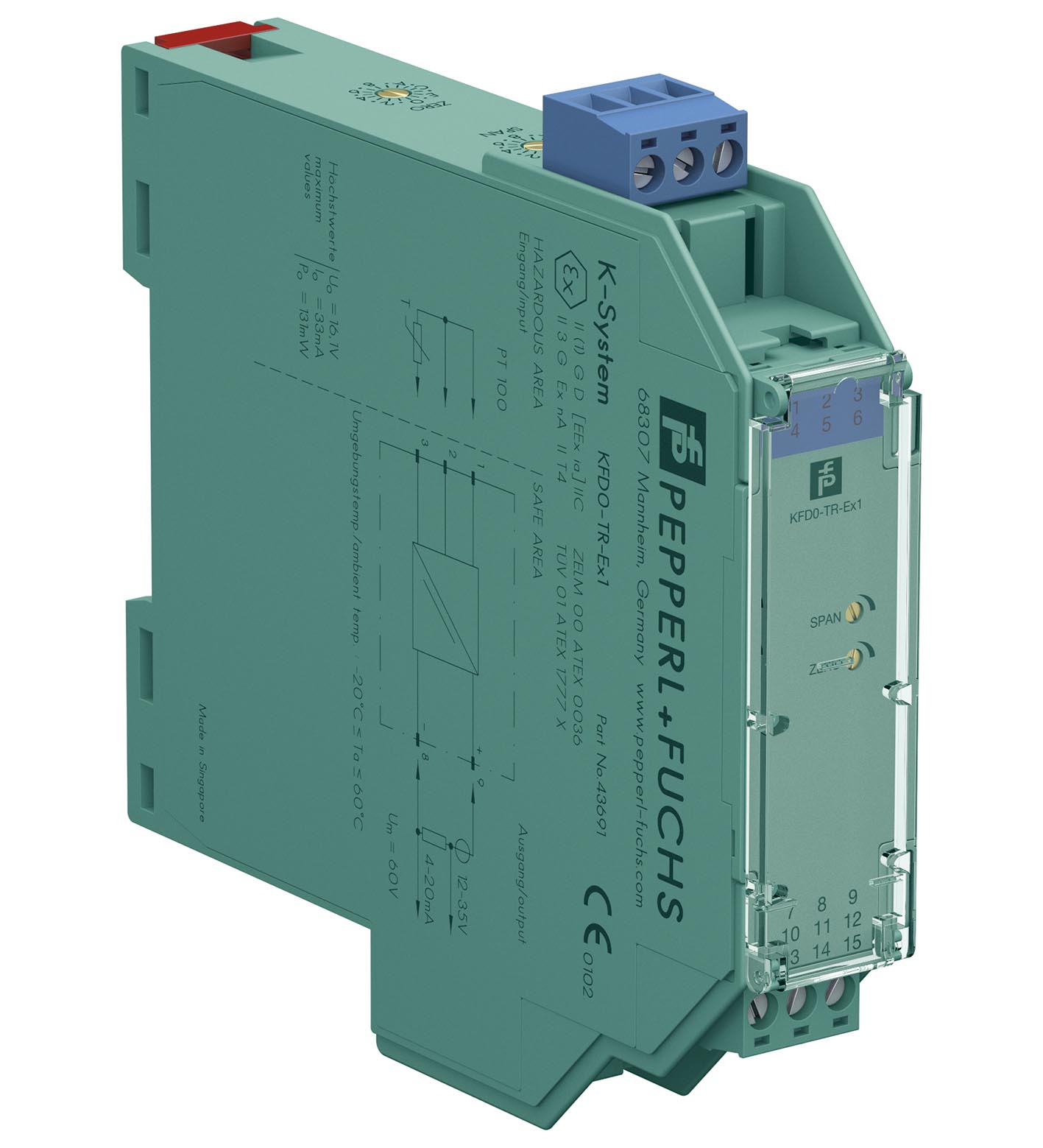

KFD0-TR-Ex1 RTD Converter

订货号: 043691
产品分类: K 系统（DIN 导轨安装）

RTD Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Rated voltage	12 ... 35 V DC loop powered
Power dissipation	0.4 W
Connection side	field side

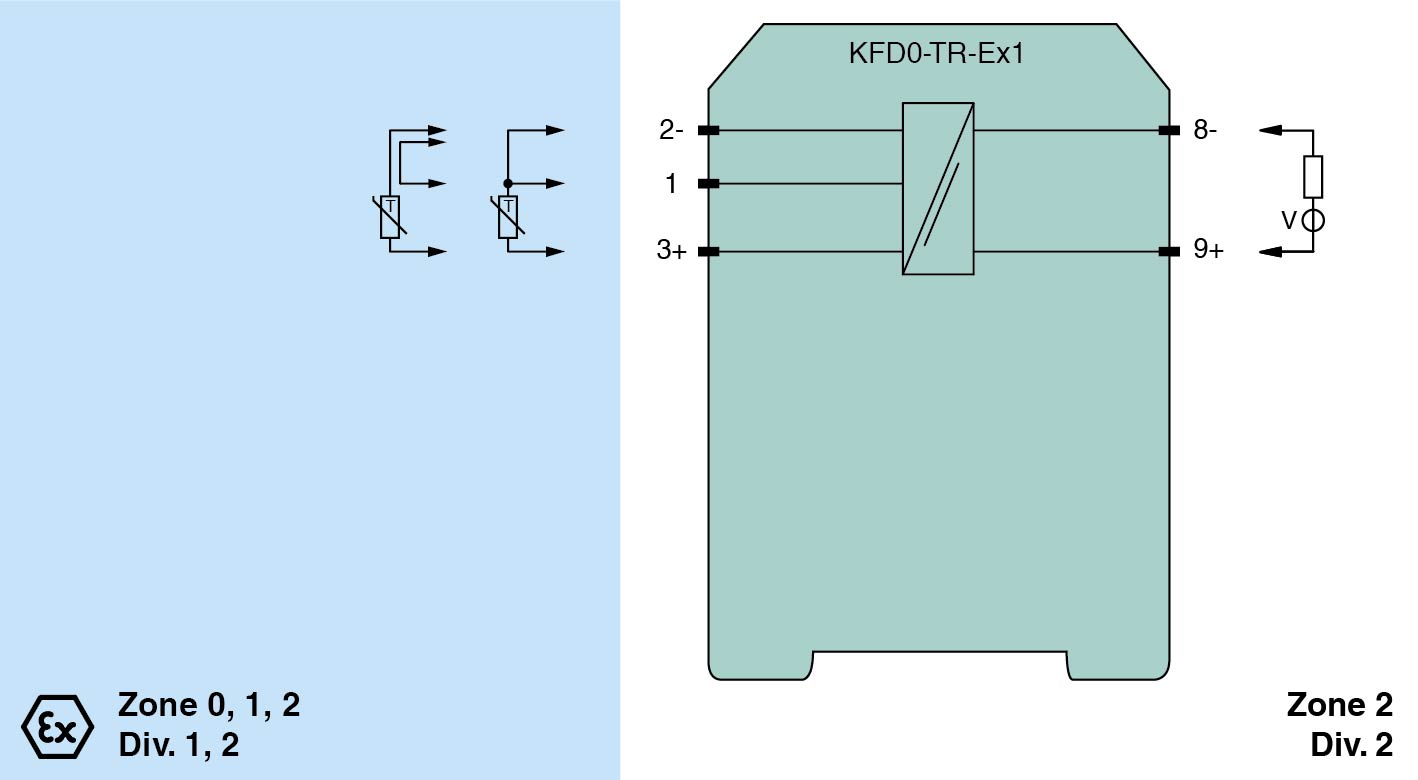

Connection	terminals 1, 2-, 3+ suitable for Pt100, 2- and 3-wire connection
Lead resistance	max. 100 Ω per line
Measuring current	approx. 1 mA
Connection side	control side
Connection	terminals 9+, 8-
Load	(U -12 V) / 0.02 A
Current output	4 ... 20 mA , limited to ≤ 35 mA
Fault signal	upscaling ≥ 22 mA (limited to 35 mA)
Measuring range	span without linearization 25 ... 800 °C (77 ... 1472 °F)/with linearization 25 ... 375 °C (77 ... 707 °F), both adjustable zero point without linearization -200 ... 400 °C (-328 ... 752 °F)/with linearization -30 ... 375 °C (-22 ... 707 °F), both adjustable
Deviation	Deviation
After calibration0.1 % of full-scale value incl. linearity and hysteresisInfluence of ambient temperaturespan and zero point 0.015 % / K or ± 10 mΩ / KInfluence of supply voltage6.5 ppm/V	After calibration0.1 % of full-scale value incl. linearity and hysteresisInfluence of ambient temperaturespan and zero point 0.015 % / K or ± 10 mΩ / KInfluence of supply voltage6.5 ppm/V
Rise time	250 ms
After calibration	0.1 % of full-scale value incl. linearity and hysteresis
Influence of ambient temperature	span and zero point 0.015 % / K or ± 10 mΩ / K
Influence of supply voltage	6.5 ppm/V
Input/Output	available
Control elements	DIP switch rotary switch
Configuration	via DIP switches via rotary switch
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Insulation coordination	EN 50178
Galvanic isolation	EN 50178
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	ZELM 00 ATEX 0036
Marking II (1)GD [EEx ia] IICVoltageUo16.1 VCurrentIo33 mAPowerPo131 mW	Marking II (1)GD [EEx ia] IICVoltageUo16.1 VCurrentIo33 mAPowerPo131 mW
Certificate	TÜV 01 ATEX 1777 X
Marking II 3G Ex nA II T4	Marking II 3G Ex nA II T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)GD [EEx ia] IIC
Voltage	16.1 V
Current	33 mA
Power	131 mW
Marking	II 3G Ex nA II T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
CSA approval	1029981
Control drawing116-0132	Control drawing116-0132
IECEx approval	IECEx approval
IECEx certificateIECEx TUN 06.0004IECEx marking[Zone 0] [Ex ia] IIC	IECEx certificateIECEx TUN 06.0004IECEx marking[Zone 0] [Ex ia] IIC
Control drawing	116-0132
IECEx certificate	IECEx TUN 06.0004
IECEx marking	[Zone 0] [Ex ia] IIC
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
