KFD2-BR-1.PA.1500

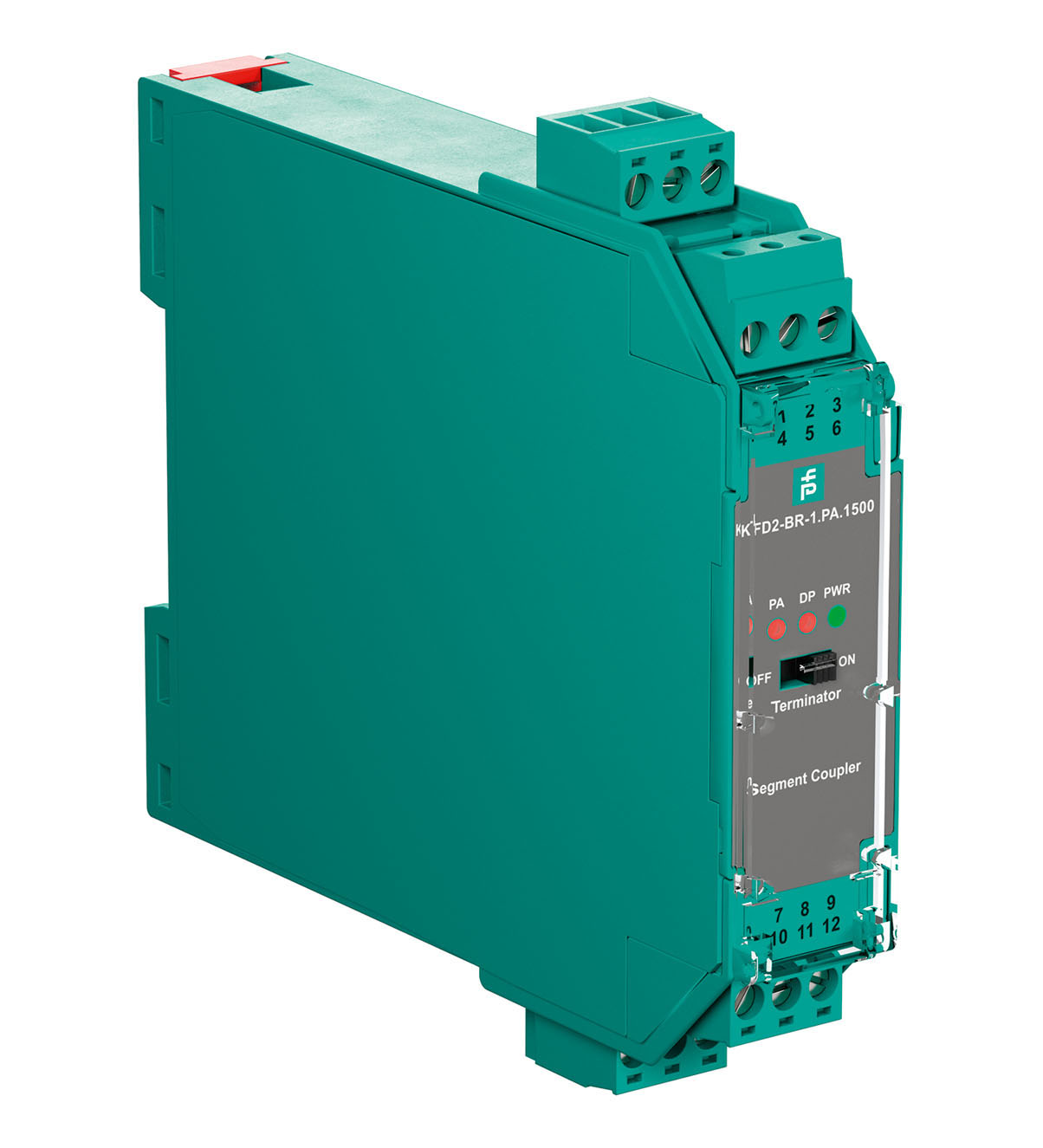

KFD2-BR-1.PA.1500 Segment CouplerFieldConnex® Fieldbus

订货号: 277830
产品分类: 用于 PROFIBUS PA 的网关

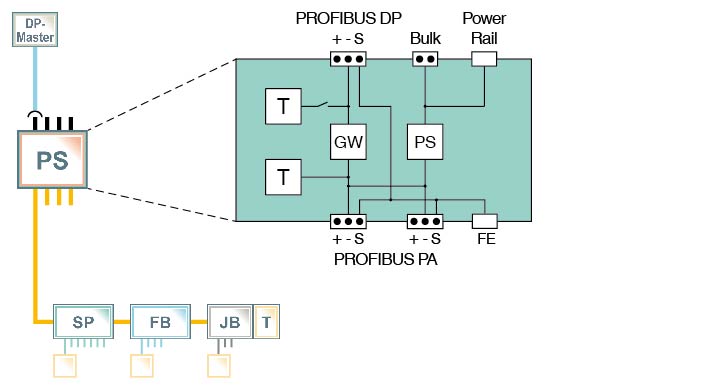

Segment coupler 1, power supply and gateway for PROFIBUS DP to PROFIBUS PA communication

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Installation in hazardous area	Zone 2 / Div. 2
Connection	Power Rail or terminals 11 (L+), 12 (L-)
Rated voltage	20 ... 30 V DC
Ripple	≤ 10 %
Rated current	640 mA ... 365 mA
Power dissipation	max 2.5 W
Number of segments	1
Rated voltage	12.6 ... 13.4 V
PROFIBUS PA	PROFIBUS PA
Connection3+, 6+, 2-, 5-, 1 shield, 4 shieldRated voltage24 ... 26 VRated currentmax. 400 mATerminating impedance100 Ω , integrated	Connection3+, 6+, 2-, 5-, 1 shield, 4 shieldRated voltage24 ... 26 VRated currentmax. 400 mATerminating impedance100 Ω , integrated
PROFIBUS DP	PROFIBUS with RS-485 transmission technology
Connectionterminals 7 RxD/TxD-P, 8 RxD/TxD-N, 9 shield, 10 FEBaud rate1.5 MBit/s max.	Connectionterminals 7 RxD/TxD-P, 8 RxD/TxD-N, 9 shield, 10 FEBaud rate1.5 MBit/s max.
Connection	3+, 6+, 2-, 5-, 1 shield, 4 shield
Rated voltage	24 ... 26 V
Rated current	max. 400 mA
Terminating impedance	100 Ω , integrated
Connection	terminals 7 RxD/TxD-P, 8 RxD/TxD-N, 9 shield, 10 FE
Baud rate	1.5 MBit/s max.
Switch	PROFIBUS DP terminator
LED PWR	green: Power on
LED DP/ERR	red 2 Hz flashing: DP error red on: Hardware error red off: DP communication detected
LED PA	red 2 Hz flashing: No PA communication or overload Off: PA communication OK
PROFIBUS DP/PROFIBUS PA	functional insulation acc. to IEC 62103, rated insulation voltage 50 V AC /70 V DC
PROFIBUS DP/Supply	basic insulation according to IEC/EN 61010, rated insulation voltage 253 V AC /357 V DC
PROFIBUS PA/Supply	basic insulation according to IEC/EN 61010, rated insulation voltage 253 V AC /357 V DC
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013	Directive 2014/30/EUEN 61326-1:2013
Directive 2014/30/EU	EN 61326-1:2013
Electromagnetic compatibility	NAMUR NE 21
Degree of protection	IEC/EN 60529
Fieldbus standard	EN 50170/2
Climatic conditions	DIN IEC 721
Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 85 °C (-40 ... 185 °F)
Relative humidity	< 95 % non-condensing
Shock resistance	15 g 11 ms
Vibration resistance	1 g 10 ... 150 Hz
Pollution degree	max. 2, according to IEC 60664
Corrosion resistance	acc. to ISA-S71.04-1985, severity level G3
Connection type	screw terminal , pluggable
Core cross section	up to 2.5 mm2
Housing material	Polycarbonate
Degree of protection	IP20
Mass	180 g
Mounting	DIN rail mounting
Certificate	TÜV 16 ATEX 7831 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018
Marking	II 3G Ex ec IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018
CSA approval	CSA 16.70064204
Approved forClass I, Division 2, Groups A, B, C, DClass I, Zone 2, Ex nA IIC T4 Gc	Approved forClass I, Division 2, Groups A, B, C, DClass I, Zone 2, Ex nA IIC T4 Gc
IECEx approval	IECEx TUR 16.0006X
Approved forEx ec IIC T4 Gc	Approved forEx ec IIC T4 Gc
Approved for	Class I, Division 2, Groups A, B, C, DClass I, Zone 2, Ex nA IIC T4 Gc
Approved for	Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
