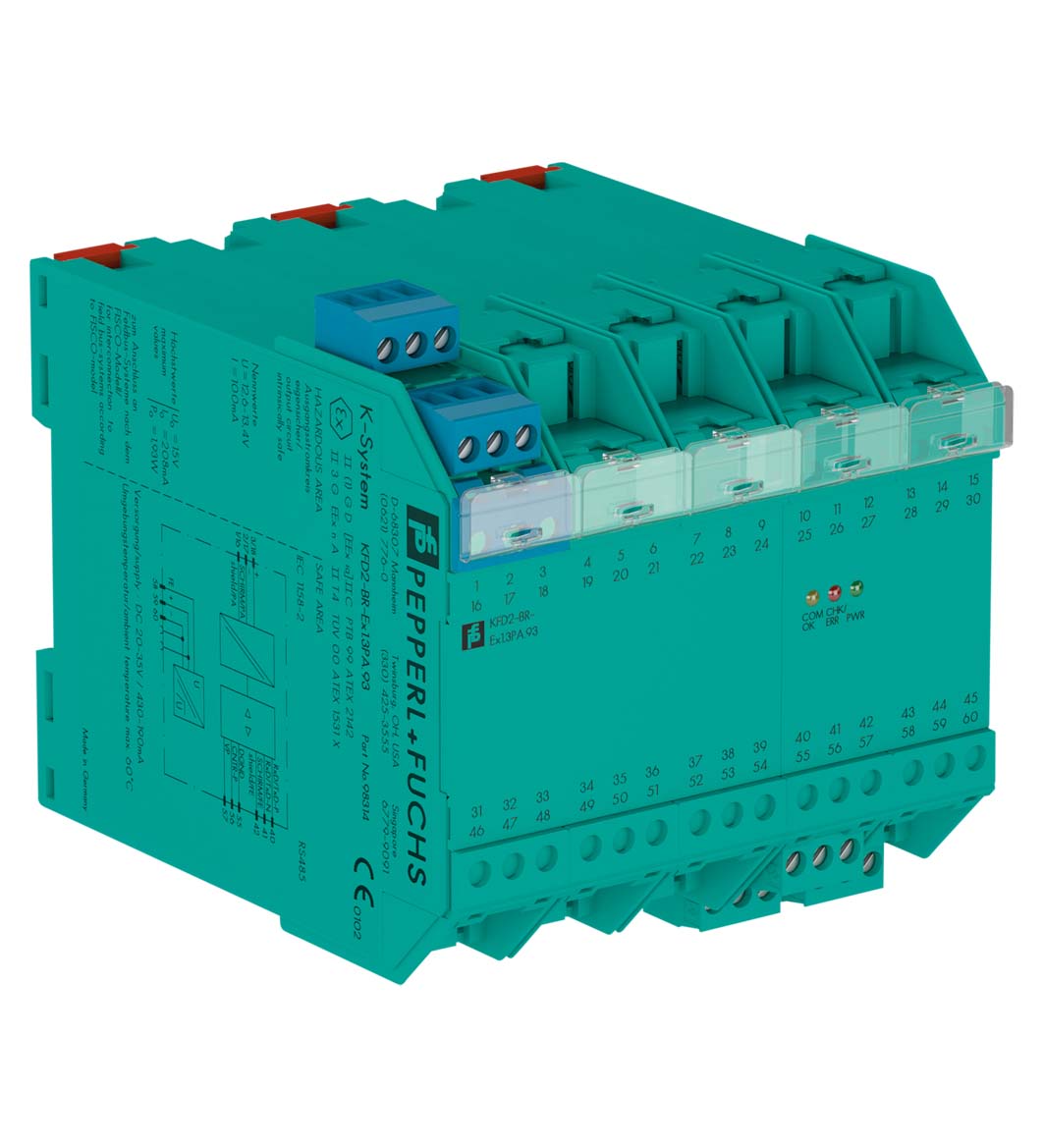

TECHNICAL DATA
规格参数

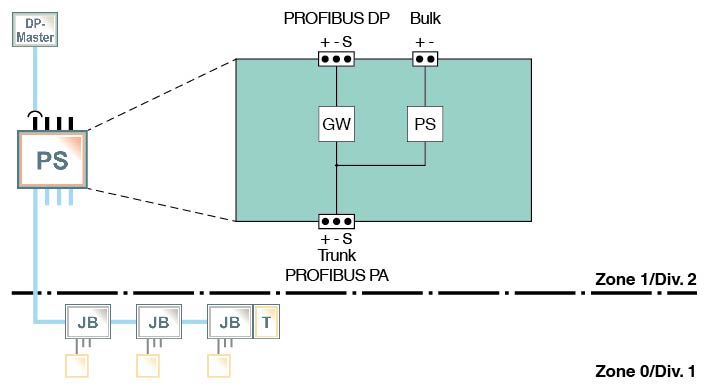

General specifications
| Installation in hazardous area | Zone 2 / Div. 2 |
|---|---|
| Connection | Power Rail or terminals 59+, 60-, 58 FE |
| Rated voltage | 20 ... 35 V DC |
| Ripple | ≤ 10 % |
| Rated current | 190 mA ... 430 mA |
| Number of segments | 1 |
| Rated voltage | 24 ... 26 V |
| PROFIBUS PA | PROFIBUS PA |
| Connectionterminals 3, 18+; 2, 17-Rated voltage12.6 ... 13.4 VRated currentmax. 100 mATerminating impedance100 Ω , integrated | Connectionterminals 3, 18+; 2, 17-Rated voltage12.6 ... 13.4 VRated currentmax. 100 mATerminating impedance100 Ω , integrated |
| PROFIBUS DP | PROFIBUS with RS-485 transmission technology |
| ConnectionTerminals 40 RxD/TxD-P, 41 RxD/TxD-N, 42 screen/FE, 55 DGND, 56 CNTR-P, 57 VPBaud rate93.75 kBit/sTerminating impedancewith rotary switch (S1) switchable: 1 = on; 0 = off | ConnectionTerminals 40 RxD/TxD-P, 41 RxD/TxD-N, 42 screen/FE, 55 DGND, 56 CNTR-P, 57 VPBaud rate93.75 kBit/sTerminating impedancewith rotary switch (S1) switchable: 1 = on; 0 = off |
| Connection | terminals 3, 18+; 2, 17- |
| Rated voltage | 12.6 ... 13.4 V |
| Rated current | max. 100 mA |
| Terminating impedance | 100 Ω , integrated |
| Connection | Terminals 40 RxD/TxD-P, 41 RxD/TxD-N, 42 screen/FE, 55 DGND, 56 CNTR-P, 57 VP |
| Baud rate | 93.75 kBit/s |
| Terminating impedance | with rotary switch (S1) switchable: 1 = on; 0 = off |
| PROFIBUS DP/PROFIBUS PA | safe galvanic isolation acc. to EN 50020, voltage peak value 375 V |
| PROFIBUS DP/Supply | functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff |
| PROFIBUS PA/Supply | safe galvanic isolation acc. to EN 50020, voltage peak value 375 V |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EUEN 61326-1:2013 |
| Directive 2014/30/EU | EN 61326-1:2013 |
| Galvanic isolation | EN 50178 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529 |
| Fieldbus standard | EN 50170/2 |
| Climatic conditions | IEC 60721 |
| Classification | 3K3 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Relative humidity | < 75 % |
| Pollution degree | max. 2, according to IEC 60664 |
| Connection type | screw terminal , pluggable |
| Core cross section | up to 2.5 mm2 |
| Housing | 100 mm x 115 mm x 107 mm |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 650 g |
| Mounting | DIN rail mounting |
| EU-type examination certificate | PTB 99 ATEX 2142 , for additional certificates see www.pepperl-fuchs.com |
| Marking II (1) G [Ex ia] IIC Ga , [exsign] II (1) D [Ex ia] IIIC Da | Marking II (1) G [Ex ia] IIC Ga , [exsign] II (1) D [Ex ia] IIIC Da |
| Supply | Supply |
| Maximum safe voltageUm253 V AC / 125 V DC (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V AC / 125 V DC (Attention! Um is no rated voltage.) |
| PROFIBUS PA | PROFIBUS PA |
| VoltageUo15 VCurrentIo207.2 mAPowerPo1.93 WMaximum safe voltageUm60 V | VoltageUo15 VCurrentIo207.2 mAPowerPo1.93 WMaximum safe voltageUm60 V |
| Certificate | PF 15 CERT 3527 X |
| Marking II 3G Ex ec II T4 Gc | Marking II 3G Ex ec II T4 Gc |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015 , EN 60079-11:2012 | Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015 , EN 60079-11:2012 |
| Marking | II (1) G [Ex ia] IIC Ga , [exsign] II (1) D [Ex ia] IIIC Da |
| Maximum safe voltage | 253 V AC / 125 V DC (Attention! Um is no rated voltage.) |
| Voltage | 15 V |
| Current | 207.2 mA |
| Power | 1.93 W |
| Maximum safe voltage | 60 V |
| Marking | II 3G Ex ec II T4 Gc |
| Directive 2014/34/EU | EN 60079-0:2012 , EN 60079-7:2015 , EN 60079-11:2012 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
