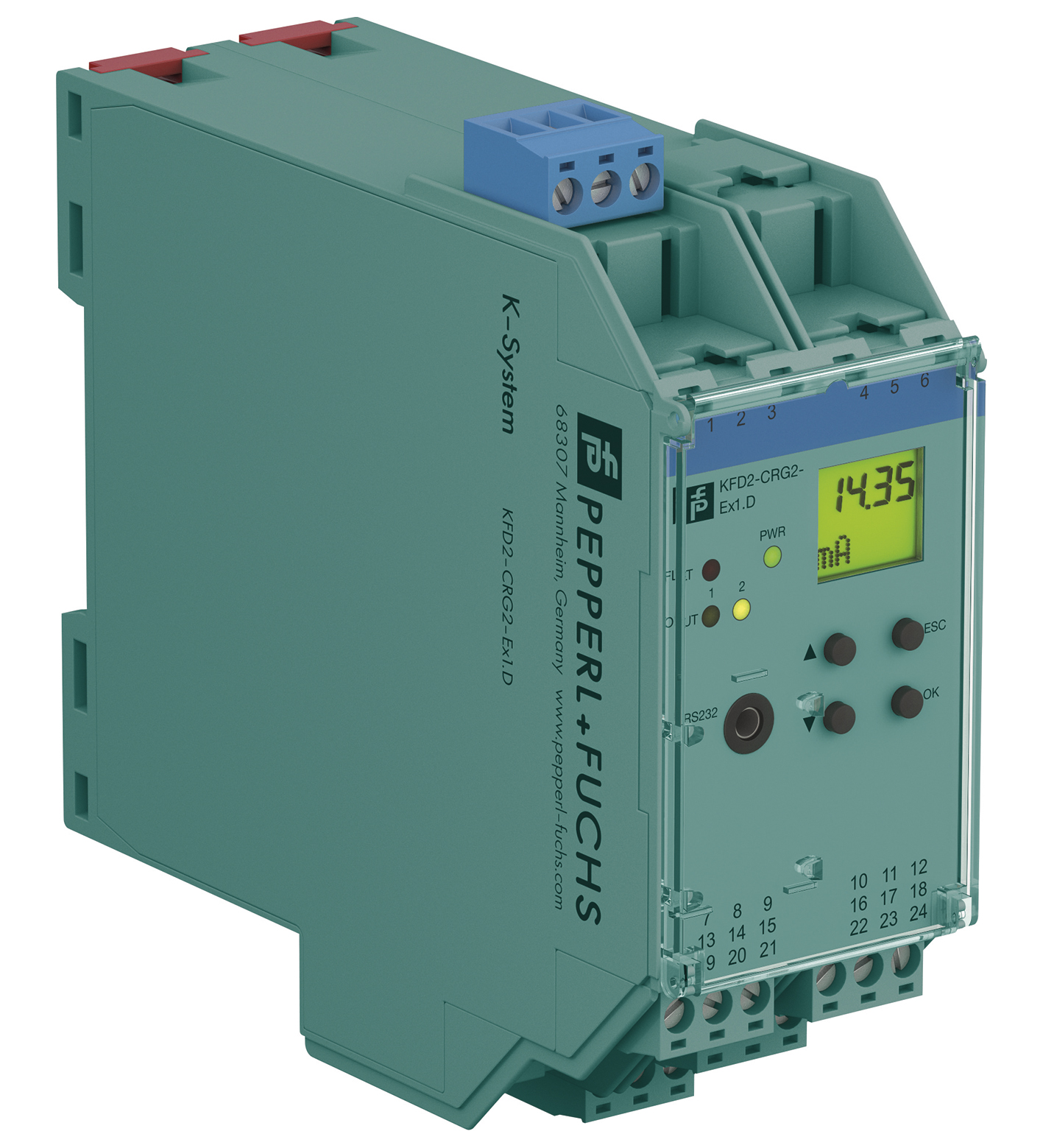

产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Connection | Power Rail or terminals 23+, 24- |
| Rated voltage | 20 ... 30 V DC |
| Rated current | approx. 130 mA |
| Power dissipation | 2 W |
| Power consumption | 2.5 W |
| Programming interface | programming socket |
| Connection side | field side |
| Connection | terminals 1, 2, 3 |
| Input I | Input I |
| Input signal0/4 ... 20 mAAvailable voltage≥ 15 V at 20 mAOpen circuit voltage/short-circuit current24 V / 33 mAInput resistance45 Ω (terminals 2, 3)Line fault detectionbreakage I < 0.2 mA; short-circuit I > 22 mA | Input signal0/4 ... 20 mAAvailable voltage≥ 15 V at 20 mAOpen circuit voltage/short-circuit current24 V / 33 mAInput resistance45 Ω (terminals 2, 3)Line fault detectionbreakage I < 0.2 mA; short-circuit I > 22 mA |
| Input signal | 0/4 ... 20 mA |
| Available voltage | ≥ 15 V at 20 mA |
| Open circuit voltage/short-circuit current | 24 V / 33 mA |
| Input resistance | 45 Ω (terminals 2, 3) |
| Line fault detection | breakage I < 0.2 mA; short-circuit I > 22 mA |
| Connection side | control side |

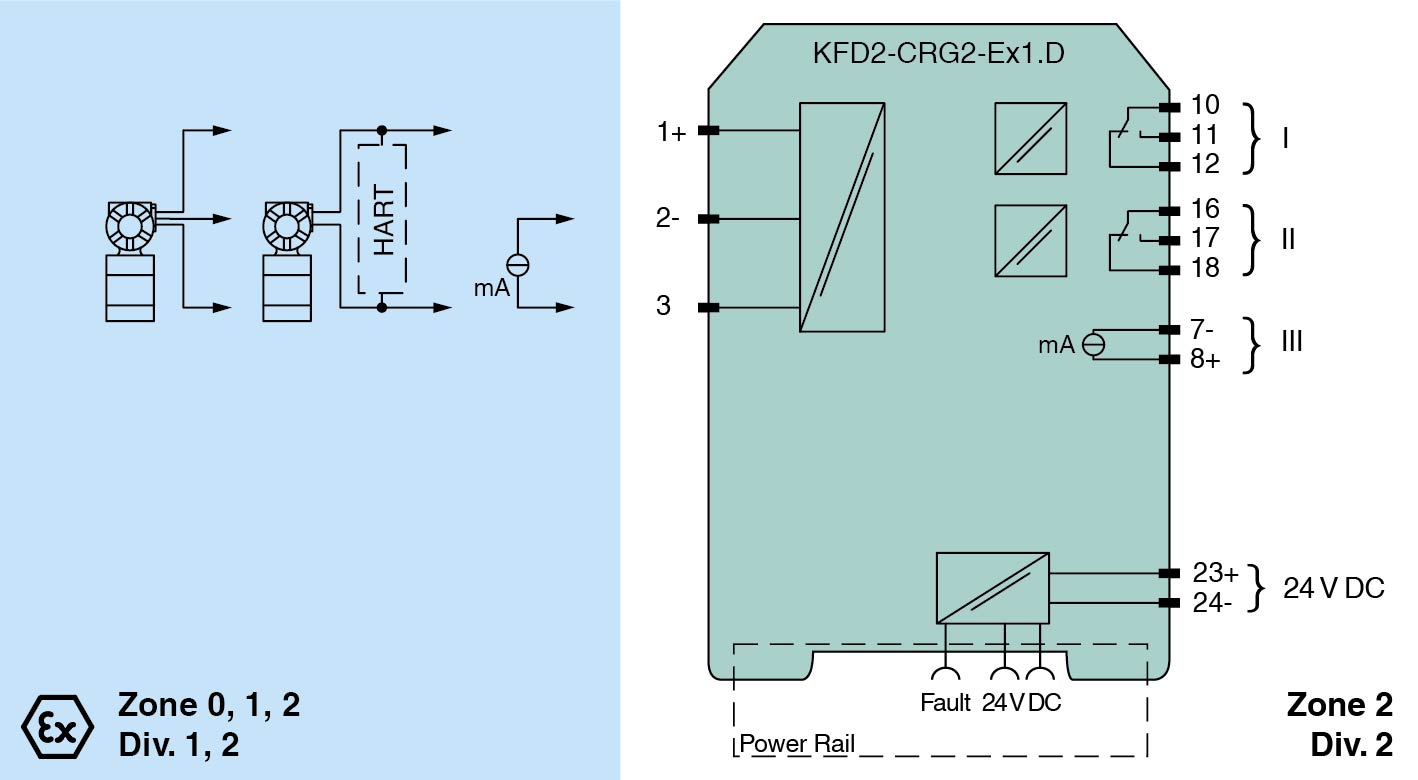

| Connection | output I: terminals 10, 11, 12 output II: terminals 16, 17, 18 output III: terminals 8+, 7- |
| Output signal | 0 ... 20 mA or 4 ... 20 mA |
| Output I, II | signal, relay |
| Contact loading253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 AMechanical life5 x 107 switching cycles | Contact loading253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 AMechanical life5 x 107 switching cycles |
| Output III | Signal, analog |
| Current range0 ... 20 mA or 4 ... 20 mAOpen loop voltagemax. 24 V DCLoadmax. 650 ΩFault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21 mA (acc. NAMUR NE43) | Current range0 ... 20 mA or 4 ... 20 mAOpen loop voltagemax. 24 V DCLoadmax. 650 ΩFault signaldownscale I ≤ 3.6 mA, upscale I ≥ 21 mA (acc. NAMUR NE43) |
| Energized/De-energized delay | 0 ... 250 s , adjustable |
| Contact loading | 253 V AC / 2 A / cos φ ≥ 0.7 ; 40 V DC / 2 A |
| Mechanical life | 5 x 107 switching cycles |
| Current range | 0 ... 20 mA or 4 ... 20 mA |
| Open loop voltage | max. 24 V DC |
| Load | max. 650 Ω |
| Fault signal | downscale I ≤ 3.6 mA, upscale I ≥ 21 mA (acc. NAMUR NE43) |
| Input I | Input I |
| Accuracy< 30 µAInfluence of ambient temperature0.003 %/K (30 ppm) | Accuracy< 30 µAInfluence of ambient temperature0.003 %/K (30 ppm) |
| Output I, II | Output I, II |
| Response delay≤ 200 ms at bounce from 0 ... 20 mA | Response delay≤ 200 ms at bounce from 0 ... 20 mA |
| Output III | Output III |
| Resolution≤ 10 µAAccuracy< 20 µAInfluence of ambient temperature0.005 %/K (50 ppm)Reaction time< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value | Resolution≤ 10 µAAccuracy< 20 µAInfluence of ambient temperature0.005 %/K (50 ppm)Reaction time< 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value |
| Accuracy | < 30 µA |
| Influence of ambient temperature | 0.003 %/K (30 ppm) |
| Response delay | ≤ 200 ms at bounce from 0 ... 20 mA |
| Resolution | ≤ 10 µA |
| Accuracy | < 20 µA |
| Influence of ambient temperature | 0.005 %/K (50 ppm) |
| Reaction time | < 650 ms at bounce from 0 ... 20 mA at the input, 90 % of output full-scale value |
| Input/Other circuits | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output I, II/other circuits | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Mutual output I, II, III | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Output III/power supply and collective error | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Interface/power supply and collective error | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Display elements | LEDs , display |
| Control elements | Control panel |
| Configuration | via operating buttons via PACTware |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | 300 g |
| Dimensions | 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D) , housing type C2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | TÜV 01 ATEX 1701 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx ia |
| Supply | Supply |
| Maximum safe voltageUm40 V DC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm40 V DC (Attention! The rated voltage can be lower.) |
| Equipment | terminals 1+, 3- |
| VoltageUo25.8 VCurrentIo93 mAPowerPo0.603 W | VoltageUo25.8 VCurrentIo93 mAPowerPo0.603 W |
| Equipment | terminals 2-, 3 |
| VoltageUi< 30 VCurrentIi115 mAVoltageUo5 VCurrentIo0.3 mAPowerPo0.3 mW | VoltageUi< 30 VCurrentIi115 mAVoltageUo5 VCurrentIo0.3 mAPowerPo0.3 mW |
| Equipment | terminals 1+, 2 / 3- |
| VoltageUo25.8 VCurrentIo112 mAPowerPo720 mW | VoltageUo25.8 VCurrentIo112 mAPowerPo720 mW |
| Output I, II | terminals 10, 11, 12; 16, 17, 18 non-intrinsically safe |
| Maximum safe voltageUm253 V AC / 40 V DC (Attention! Um is no rated voltage.)Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load | Maximum safe voltageUm253 V AC / 40 V DC (Attention! Um is no rated voltage.)Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load |
| Output III | terminals 8+, 7- non-intrinsically safe |
| Maximum safe voltage UmUm40 V (Attention! The rated voltage can be lower.) | Maximum safe voltage UmUm40 V (Attention! The rated voltage can be lower.) |
| Interface | RS 232 |
| Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) , RS 232 | Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) , RS 232 |
| Certificate | TÜV 02 ATEX 1885 X |
| Marking II 3G Ex nA nC IIC T4 | Marking II 3G Ex nA nC IIC T4 |
| Output I, II | Output I, II |
| Contact loading50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load | Contact loading50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load |
| Galvanic isolation | Galvanic isolation |
| Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | Ex ia |
| Maximum safe voltage | 40 V DC (Attention! The rated voltage can be lower.) |
| Voltage | 25.8 V |
| Current | 93 mA |
| Power | 0.603 W |
| Voltage | < 30 V |
| Current | 115 mA |
| Voltage | 5 V |
| Current | 0.3 mA |
| Power | 0.3 mW |
| Voltage | 25.8 V |
| Current | 112 mA |
| Power | 720 mW |
| Maximum safe voltage | 253 V AC / 40 V DC (Attention! Um is no rated voltage.) |
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load |
| Maximum safe voltage Um | 40 V (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 40 V (Attention! The rated voltage can be lower.) , RS 232 |
| Marking | II 3G Ex nA nC IIC T4 |
| Contact loading | 50 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load |
| Input/Other circuits | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-15:2010 |
| FM approval | FM approval |
| Control drawing16-554FM-12 (cFMus) | Control drawing16-554FM-12 (cFMus) |
| UL approval | E223772 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 09.0007 IECEx TSA 18.0007XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec nC IIC T4 Gc | IECEx certificateIECEx TUN 09.0007 IECEx TSA 18.0007XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec nC IIC T4 Gc |
| Control drawing | 16-554FM-12 (cFMus) |
| IECEx certificate | IECEx TUN 09.0007 IECEx TSA 18.0007X |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec nC IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
