KFD2-EB2.R4A.B

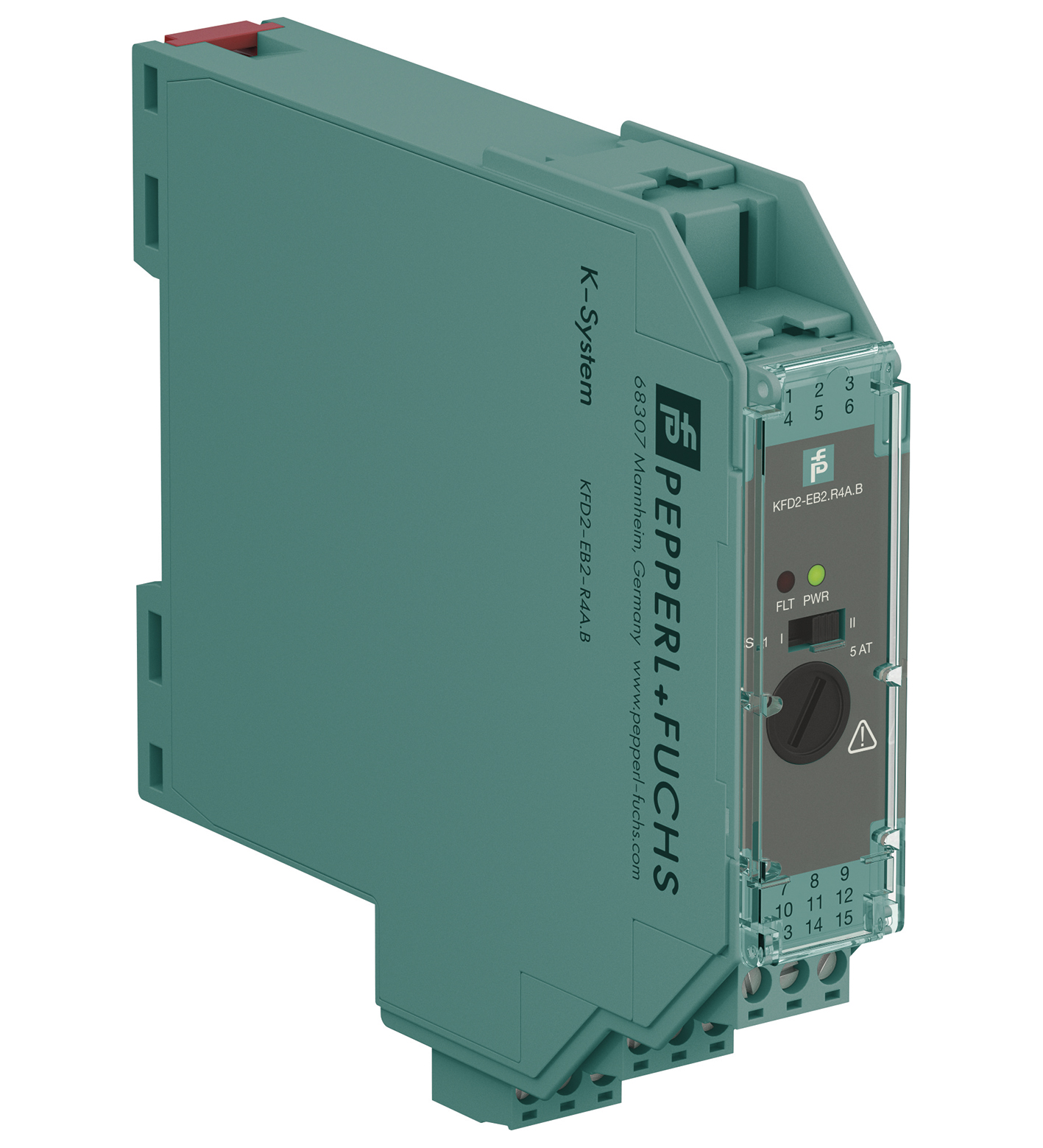

KFD2-EB2.R4A.B Redundant Power Feed Module

订货号: 189784
产品分类: K 系统（DIN 导轨安装，功能强大）

Power feed module, redundant supply

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Supply

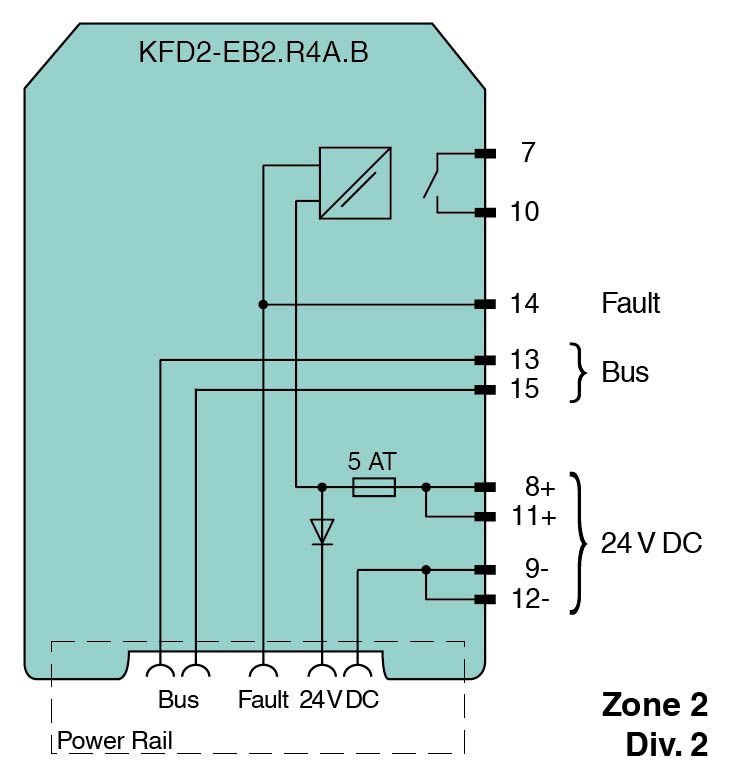

Connection	terminals 11+, 12- terminals 8+, 9-
Rated voltage	20 ... 30 V DC The maximum rated operating voltage of the devices plugged onto the Power Rail must not be exceeded.
Fusing	5 AT/250 V AC recommended maximum utilization of the fuse: 80 %
Power dissipation	≤ 2.4 W
Connection	Power Rail
Output current	max. 4 A
Output voltage	Ui ≥ rated voltage Ur = Ui - 0.6 V
Fault signal	relay output: NO contact
Contact loading	30 V AC/ 2 A / cos φ ≥ 0.7 ; 40 V DC/ 2 A
Energized/De-energized delay	approx. 20 ms / approx. 20 ms
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017
Degree of protection	IEC 60529:2001
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Certificate	UL 22 ATEX 2853 X
Marking II 3G Ex ec nC IIC T4 Gc	Marking II 3G Ex ec nC IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN IEC 60079-15:2019	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN IEC 60079-15:2019
Marking	II 3G Ex ec nC IIC T4 Gc
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-7:2015+A1:2018 , EN IEC 60079-15:2019
FM approval	FM 22 US 0031 X
Control drawing116-0160	Control drawing116-0160
UL approval	E106378
CSA approval	CoC 1051840
IECEx approval	IECEx approval
IECEx certificateIECEx UL 16.0051XIECEx markingEx ec nC IIC T4 Gc	IECEx certificateIECEx UL 16.0051XIECEx markingEx ec nC IIC T4 Gc
Control drawing	116-0160
IECEx certificate	IECEx UL 16.0051X
IECEx marking	Ex ec nC IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
