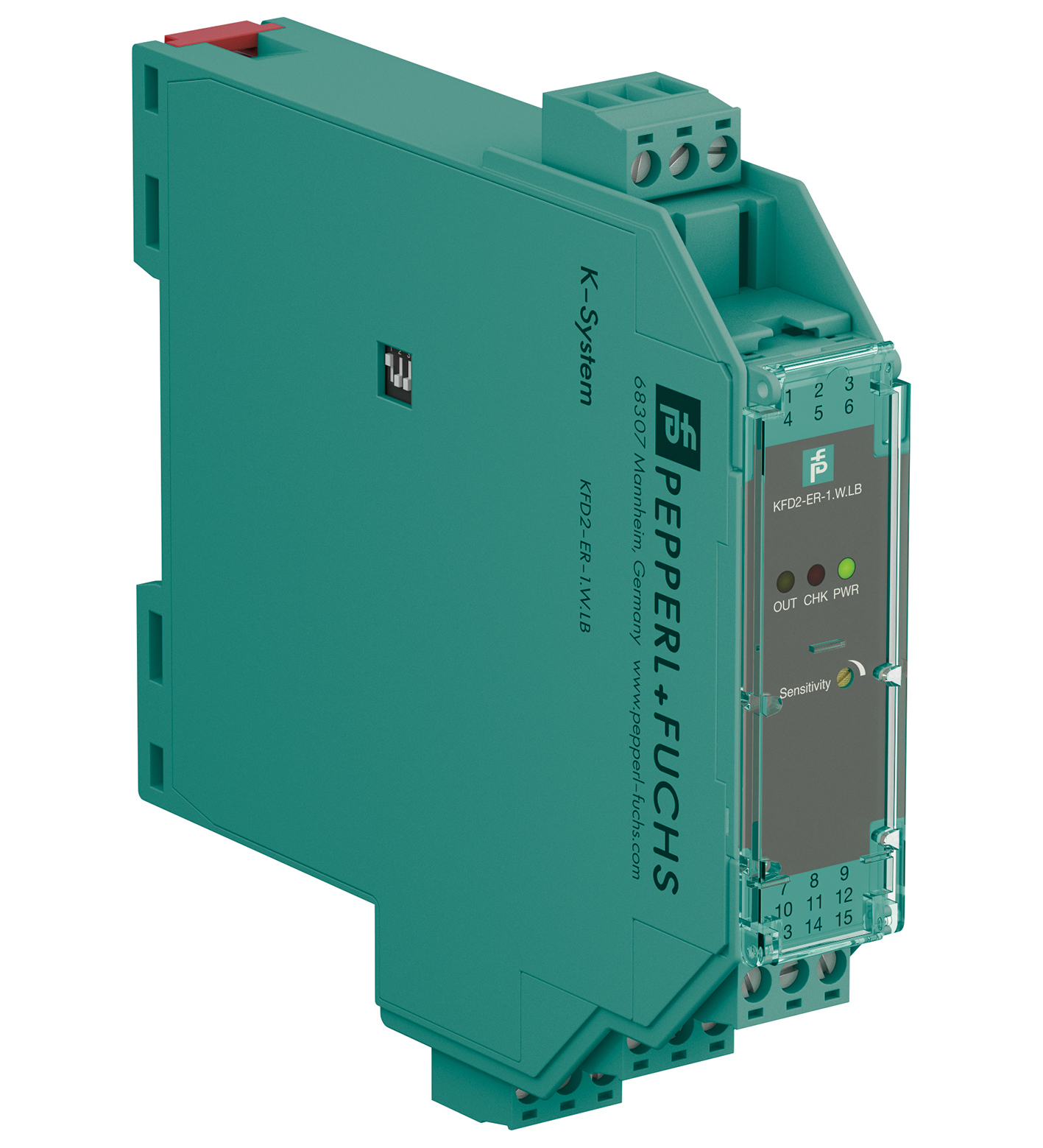

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 20 ... 30 V DC |
| Rated current | 30 ... 40 mA |
| Connection side | field side |

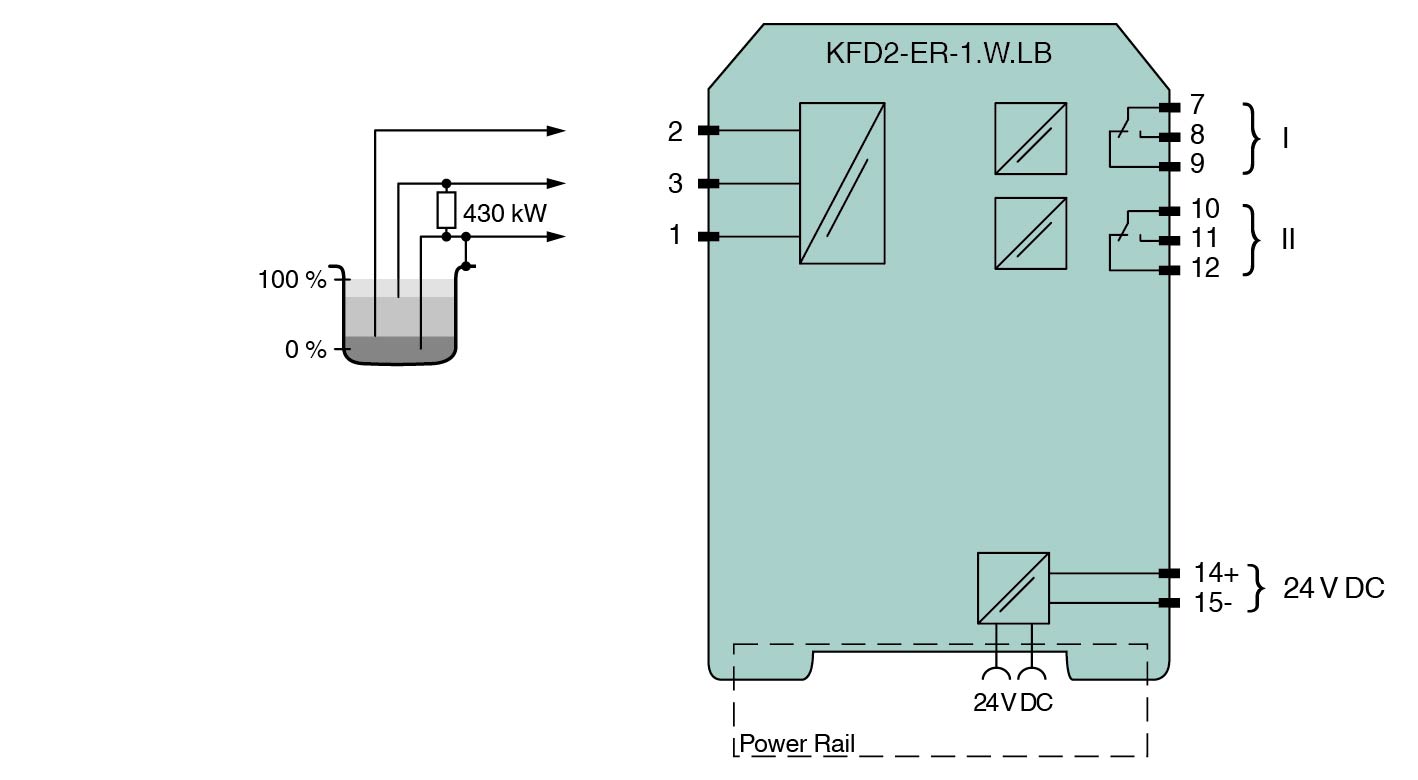

| Connection | terminals 1 (mass), 2 (min), 3 (max) |
| Control input | min./max. control system: terminals 1, 2, 3on/off control system: terminals 1, 3 |
| Response sensitivity | 1 ... 150 kΩ , adjustable via potentiometer |
| Connection side | control side |
| Connection | terminals 7, 8, 9; 10, 11, 12 |
| Switching power | max. 192 W , 2000 VA |
| Output | relay |
| Contact loading | 253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load |
| Time constant for signal damping | 0.5 s, 2 s, 5 s, 10 s |
| Input/Output | basic insulation according to EN 50178, rated insulation voltage 253 Veff |
| Input/power supply | basic insulation according to EN 50178, rated insulation voltage 253 Veff |
| Output/power supply | basic insulation according to EN 50178, rated insulation voltage 253 Veff |
| Display elements | LEDs |
| Control elements | DIP switch potentiometer |
| Configuration | via DIP switches via potentiometer |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2004/108/ECEN 61326-1:2006 | Directive 2004/108/ECEN 61326-1:2006 |
| Low voltage | Low voltage |
| Directive 2006/95/ECEN 50178:1997 | Directive 2006/95/ECEN 50178:1997 |
| Directive 2004/108/EC | EN 61326-1:2006 |
| Directive 2006/95/EC | EN 50178:1997 |
| Insulation coordination | EN 50178:1997 |
| Galvanic isolation | EN 50178:1997 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions |
| Degree of protection | IP20 |
| Connection | screw terminals , max. 2.5 mm2 |
| Mass | approx. 150 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Height119 mmWidth20 mmDepth115 mm | Height119 mmWidth20 mmDepth115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 119 mm |
| Width | 20 mm |
| Depth | 115 mm |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
