KFD2-ER-Ex1.W.LB

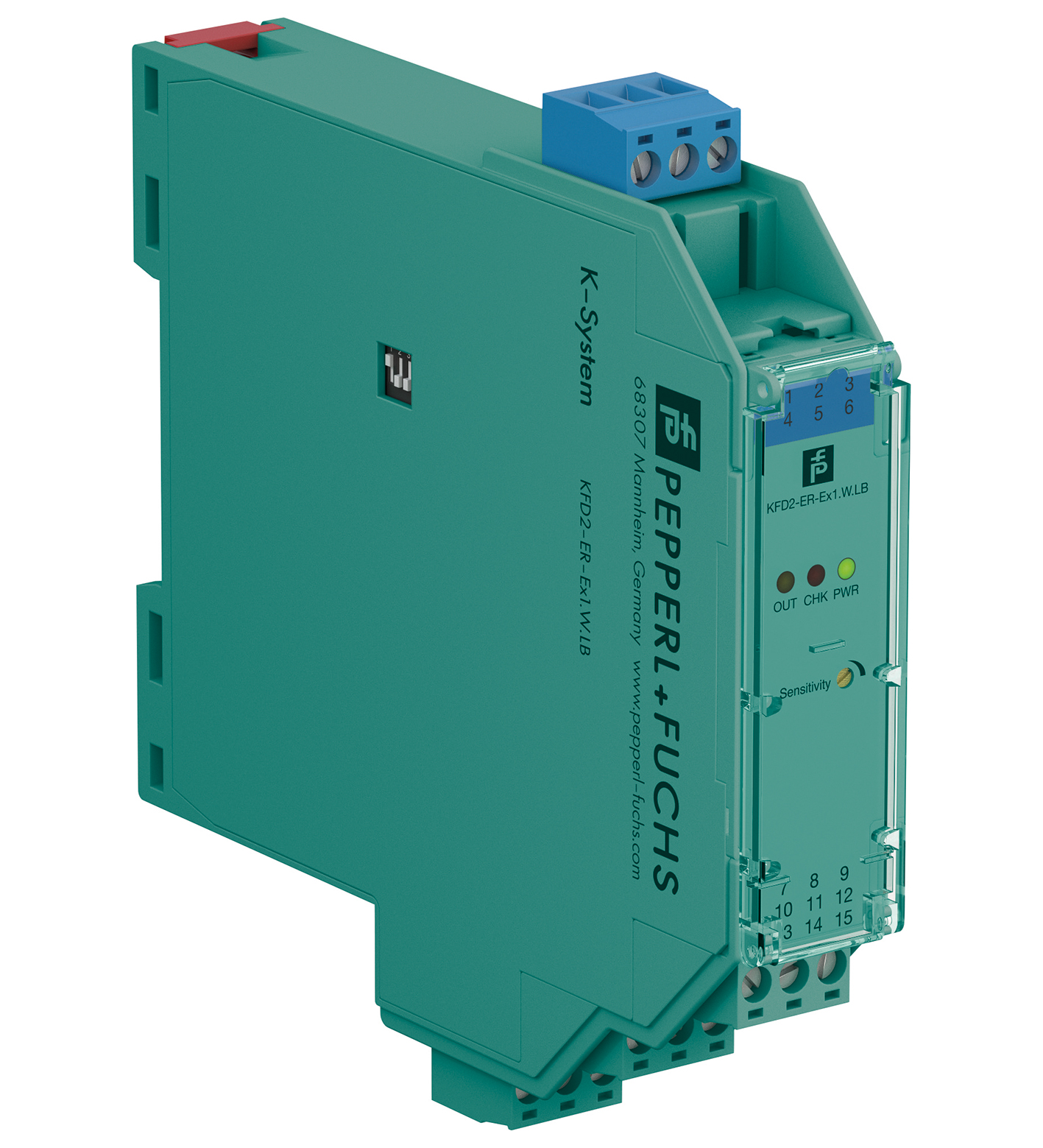

KFD2-ER-Ex1.W.LB Conductive Switch Amplifier

订货号: 217732
产品分类: K 系统（DIN 导轨安装）

Conductive Switch Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Connection	Power Rail or terminals 14+, 15-
Rated voltage	20 ... 30 V DC
Rated current	30 ... 40 mA
Connection side	field side

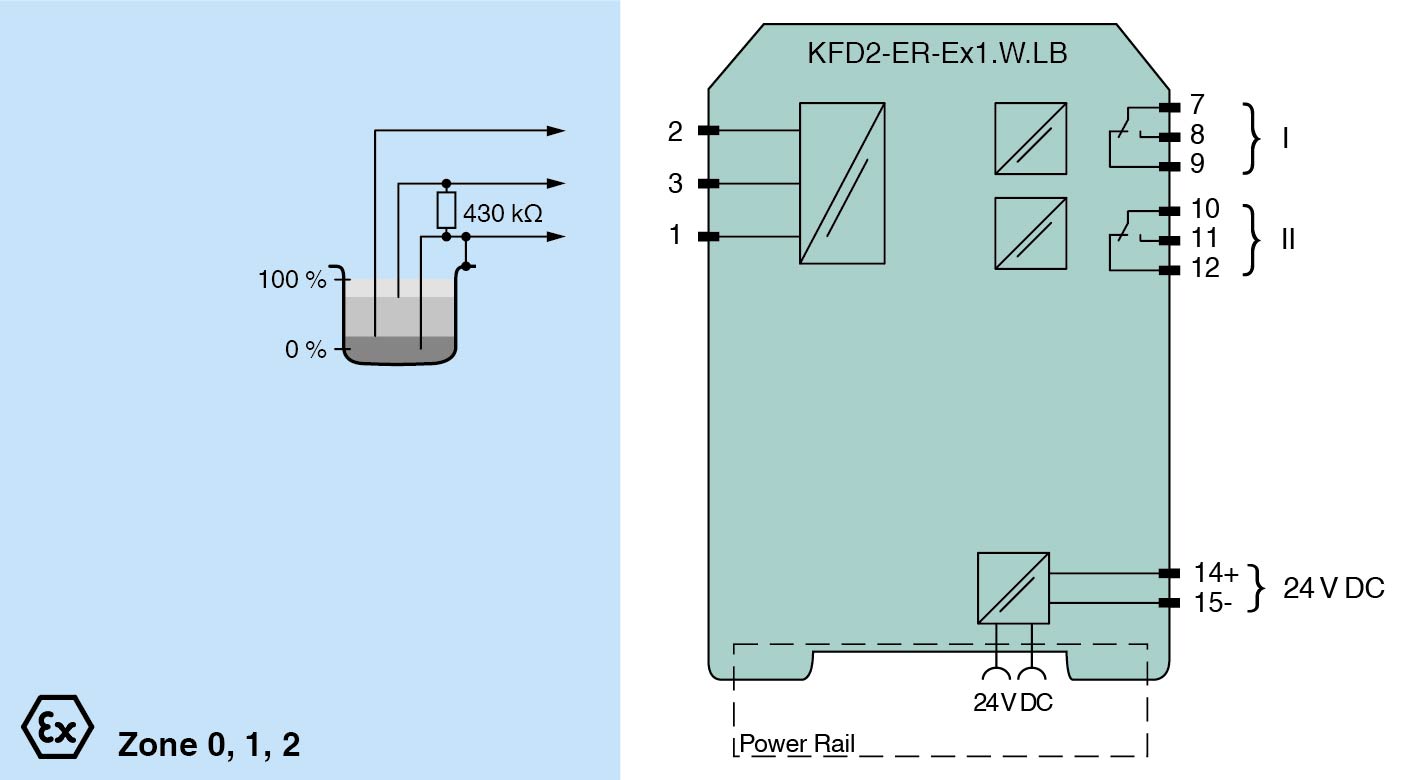

Connection	terminals 1 (mass), 2 (min), 3 (max)
Control input	min./max. control system: terminals 1, 2, 3on/off control system: terminals 1, 3
Response sensitivity	1 ... 150 kΩ , adjustable via potentiometer
Connection side	control side
Connection	terminals 7, 8, 9; 10, 11, 12
Switching power	max. 192 W , 2000 VA
Output	signal ; relay
Contact loading	253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load
Time constant for signal damping	0.5 s, 2 s, 5 s, 10 s
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Control elements	DIP switch potentiometer
Configuration	via DIP switches via potentiometer
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals , max. 2.5 mm2
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	DMT 00 ATEX E 033
Marking II (1)G [EEx ia] IIC [circuit(s) in zone 0/1/2]Input[EEx ia] IICVoltageUo10 VCurrentIo2.5 mAPowerPo6 mW	Marking II (1)G [EEx ia] IIC [circuit(s) in zone 0/1/2]Input[EEx ia] IICVoltageUo10 VCurrentIo2.5 mAPowerPo6 mW
Supply	Supply
Maximum safe voltageUm40 V DC (Attention! Um is no rated voltage.)	Maximum safe voltageUm40 V DC (Attention! Um is no rated voltage.)
Output	Output
Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load	Contact loading253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-11:2012	Directive 2014/34/EUEN 60079-0:2012+A11:2013, EN 60079-11:2012
Marking	II (1)G [EEx ia] IIC [circuit(s) in zone 0/1/2]
Input	[EEx ia] IIC
Voltage	10 V
Current	2.5 mA
Power	6 mW
Maximum safe voltage	40 V DC (Attention! Um is no rated voltage.)
Contact loading	253 V AC/2 A/cos φ > 0.7; 40 V DC/2 A resistive load
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN 60079-0:2012+A11:2013, EN 60079-11:2012
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
