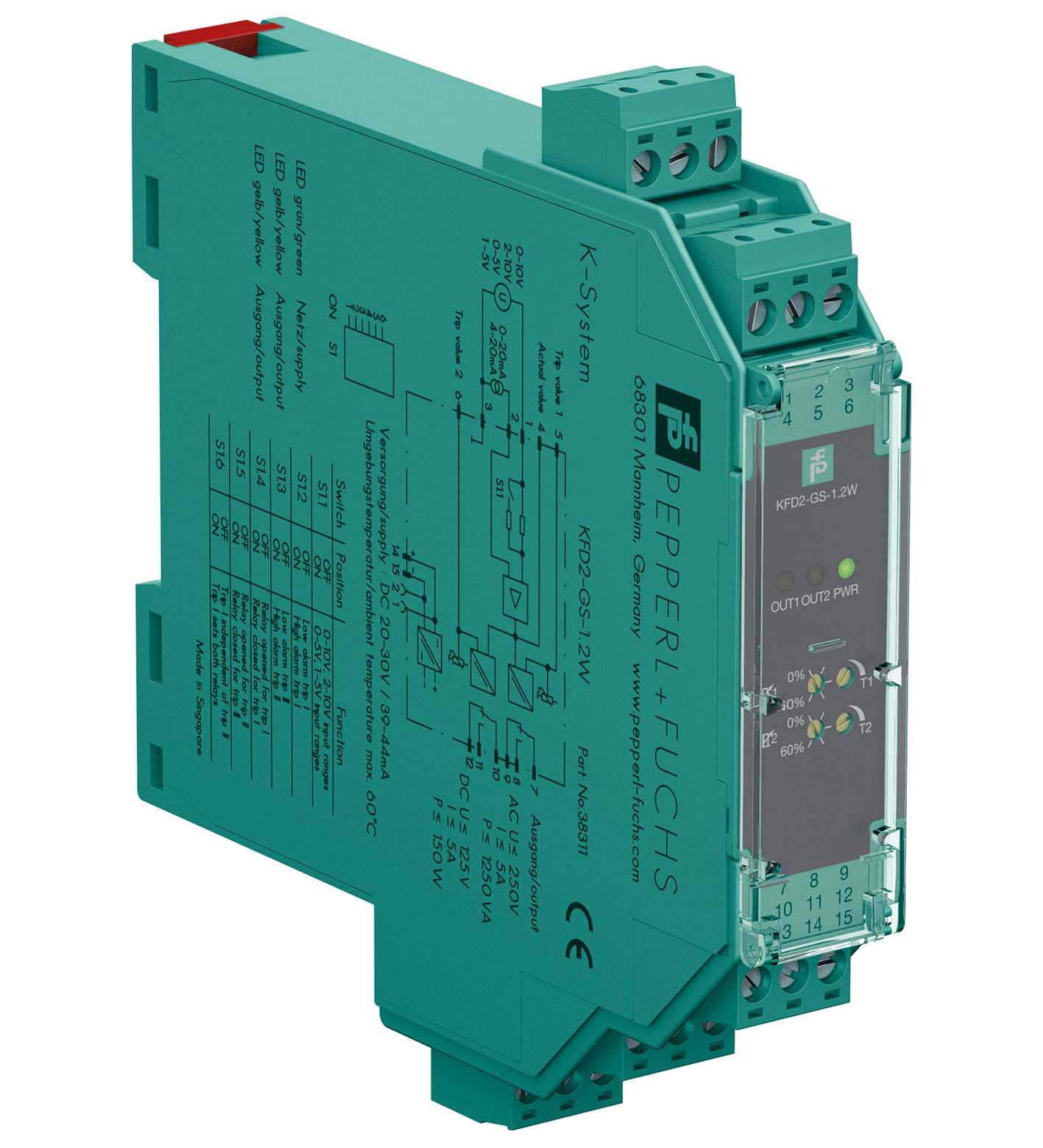

KFD2-GS-1.2W

KFD2-GS-1.2W Current/Voltage Trip Value

订货号: 292461
产品分类: K 系统（DIN 导轨安装，功能强大）

Current/Voltage Trip Value

查看规格参数资料与附件

TECHNICAL DATA

规格参数

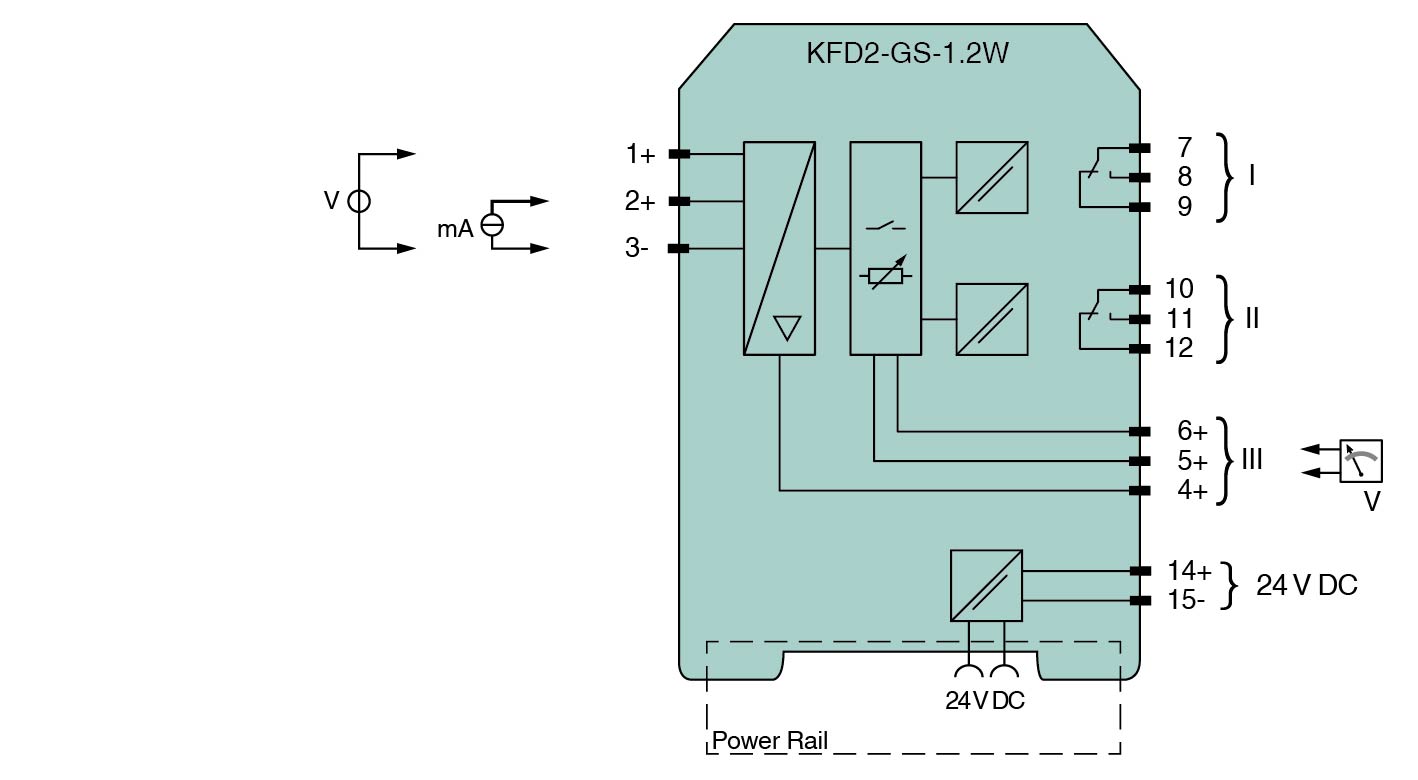

General specifications

Signal type	Analog input
Connection	Power Rail or terminals 14+, 15-
Rated voltage	20 ... 30 V DC
Rated current	< 50 mA
Power consumption	< 1.5 W
Connection side	field side
Measuring range	terminals 1+, 3-: voltage 0/1 ... 5 V, load ≥ 50 kΩ or voltage 0/2 ... 10 V, load ≥ 100 kΩterminals 2+, 3-: current 0/4 ... 20 mA ; load ≤ 50 Ω
Connection side	control side
Output I, II	terminals 7, 8, 9; 10, 11, 12
Contact loading250 V AC / 4 A / cos φ > 0.7; 40 V DC / 2 A resistive load	Contact loading250 V AC / 4 A / cos φ > 0.7; 40 V DC / 2 A resistive load
Output III	device configuration : terminals 4, 5, 6
Contact loading	250 V AC / 4 A / cos φ > 0.7; 40 V DC / 2 A resistive load
Deviation	≤ 1 %
Influence of ambient temperature0.01 % / K of adjusted trip value	Influence of ambient temperature0.01 % / K of adjusted trip value
Input delay	200 ms
Influence of ambient temperature	0.01 % / K of adjusted trip value
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/output I, II	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output I, II/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Control elements	DIP switch potentiometer
Configuration	via DIP switches via potentiometer
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Degree of protection	IEC 60529
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Height124 mmWidth20 mmDepth115 mm	Height124 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	124 mm
Width	20 mm
Depth	115 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
