KFD2-HLC-Ex1.D.2W

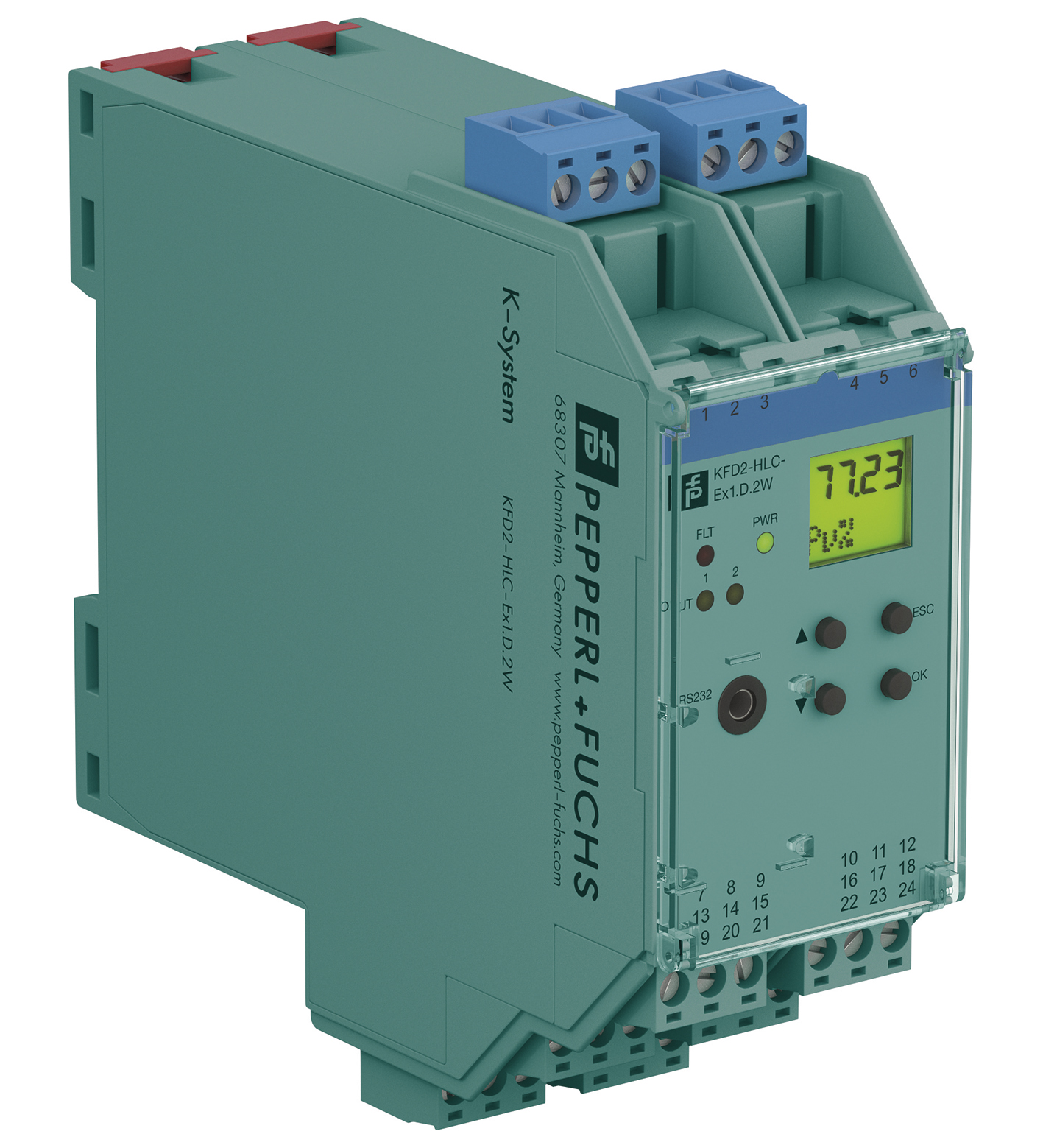

KFD2-HLC-Ex1.D.2W HART Loop Converter

订货号: 261918
产品分类: K系列（导轨式）

HART Loop Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Connection	Power Rail or terminals 23+, 24-
Rated voltage	19 ... 30 V DC
Rated current	approx. 130 mA at 24 V DC
Power dissipation	2.5 W
Power consumption	3.1 W
Conformity	HART field device input (revision 5 to 7)
Programming interface	programming socket
Connection side	field side
Connection	terminals 1, 2, 3, 4, 5, 6
Open circuit voltage/short-circuit current	typ. 24 V / 28 mA
Input resistance	250 Ω , 5 % (terminals 2, 3 and with jumper on 5, 6)
Available voltage	≥ 15.5 V at 20 mA, short-circuit protected
Connection side	control side
Connection	output I: terminals 10, 11, 12, output II: terminals 16, 17, 18output III: terminals 7, 8, 9, output IV: terminals 13, 14, 15, output V: terminals 19, 20, 21
Output I, II	Output I, II
Output signalrelay and LED yellowMechanical life107 switching cyclesEnergized/De-energized delayapprox. 20 ms / approx. 20 ms	Output signalrelay and LED yellowMechanical life107 switching cyclesEnergized/De-energized delayapprox. 20 ms / approx. 20 ms
Output III, IV, V	Output III, IV, V
Output signalanalogCurrent range4 ... 20 mA , (source or sink mode)Loadmax. 650 Ω , source modeVoltage range5 ... 30 V , sink mode from external supplyFault signaldownscale I ≤ 2 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) or hold measurement value	Output signalanalogCurrent range4 ... 20 mA , (source or sink mode)Loadmax. 650 Ω , source modeVoltage range5 ... 30 V , sink mode from external supplyFault signaldownscale I ≤ 2 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) or hold measurement value
Other outputs	HART communicator on terminals 22, 24
Collective error message	Power Rail and LED red
Output signal	relay and LED yellow
Mechanical life	107 switching cycles
Energized/De-energized delay	approx. 20 ms / approx. 20 ms
Output signal	analog
Current range	4 ... 20 mA , (source or sink mode)
Load	max. 650 Ω , source mode
Voltage range	5 ... 30 V , sink mode from external supply
Fault signal	downscale I ≤ 2 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) or hold measurement value
Output III, IV, V	Output III, IV, V
Resolutionmax. 2 µAAccuracy< 20 µA, 10 µA typ.Influence of ambient temperature< ± 2 µA/KDuration of measurement/Response delayHART message acquisition time plus 100 ms	Resolutionmax. 2 µAAccuracy< 20 µA, 10 µA typ.Influence of ambient temperature< ± 2 µA/KDuration of measurement/Response delayHART message acquisition time plus 100 ms
Relay	programmable either for fault or trip value (with direction, hysteresis and delay)
Resolution	max. 2 µA
Accuracy	< 20 µA, 10 µA typ.
Influence of ambient temperature	< ± 2 µA/K
Duration of measurement/Response delay	HART message acquisition time plus 100 ms
Output I/II	functional insulation acc. to IEC 62103, rated insulation voltage 250 Veff
Output I, II/other circuits	reinforced insulation acc. to IEC 62103, rated insulation voltage 300 Vrms
Output III/IV/V/power supply	functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff
Display elements	LEDs , display
Control elements	Control panel
Configuration	via operating buttons via PACTware
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21:2006
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	300 g
Dimensions	40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D) , housing type C2
Height119 mmWidth40 mmDepth115 mm	Height119 mmWidth40 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	40 mm
Depth	115 mm
EU-type examination certificate	BASEEFA 07 ATEX 0174
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC
Supply	Supply
Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.)	Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.)

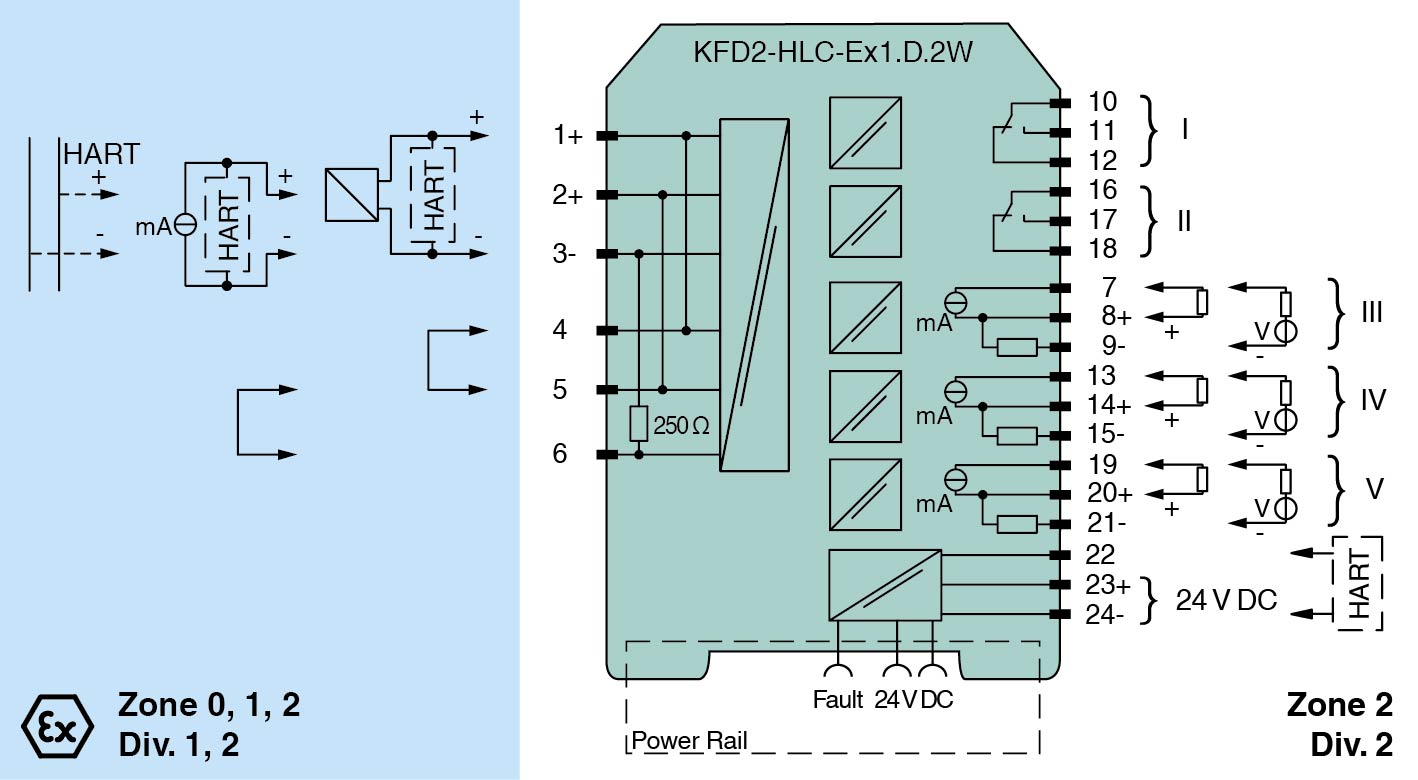

Equipment	terminals 1, 4/3 (with link between terminals 4 and 5)
VoltageUo25.2 VCurrentIo104.9 mAPowerPo0.661 WInternal capacitanceCi1.1 nFInternal inductanceLi0 mH	VoltageUo25.2 VCurrentIo104.9 mAPowerPo0.661 WInternal capacitanceCi1.1 nFInternal inductanceLi0 mH
Equipment	terminals 2, 5/3
VoltageUi< 28 VPowerPi< 1.33 WVoltageUo1.1 VCurrentIo11.9 mAPowerPo4 mWInternal capacitanceCi0 µFInternal inductanceLi0 mH	VoltageUi< 28 VPowerPi< 1.33 WVoltageUo1.1 VCurrentIo11.9 mAPowerPo4 mWInternal capacitanceCi0 µFInternal inductanceLi0 mH
Output I, II	terminals 10, 11, 12; 16, 17, 18 , non-intrinsically safe
Maximum safe voltageUm253 V (Attention! Um is no rated voltage.)Contact loading253 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (BASEEFA 07 ATEX 0174) 50 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (Pepperl+Fuchs self-declaration)	Maximum safe voltageUm253 V (Attention! Um is no rated voltage.)Contact loading253 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (BASEEFA 07 ATEX 0174) 50 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (Pepperl+Fuchs self-declaration)
Output III, IV, V	terminals 7, 8, 9; 13, 14, 15; 19, 20, 21 , non-intrinsically safe
Maximum safe voltageUm253 V (Attention! Um is no rated voltage.)	Maximum safe voltageUm253 V (Attention! Um is no rated voltage.)
Certificate	PF 07 CERT 1141 X
Marking II 3G Ex nA nC IIC T4 Gc	Marking II 3G Ex nA nC IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC
Maximum safe voltage	253 V AC (Attention! The rated voltage can be lower.)
Voltage	25.2 V
Current	104.9 mA
Power	0.661 W
Internal capacitance	1.1 nF
Internal inductance	0 mH
Voltage	< 28 V
Power	< 1.33 W
Voltage	1.1 V
Current	11.9 mA
Power	4 mW
Internal capacitance	0 µF
Internal inductance	0 mH
Maximum safe voltage	253 V (Attention! Um is no rated voltage.)
Contact loading	253 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (BASEEFA 07 ATEX 0174) 50 V AC/1 A/cos φ > 0.7; 30 V DC/1 A resistive load (Pepperl+Fuchs self-declaration)
Maximum safe voltage	253 V (Attention! Um is no rated voltage.)
Marking	II 3G Ex nA nC IIC T4 Gc
Input/Other circuits	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing116-0129	Control drawing116-0129
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 07.0047IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC	IECEx certificateIECEx BAS 07.0047IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC
Control drawing	116-0129
IECEx certificate	IECEx BAS 07.0047
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
