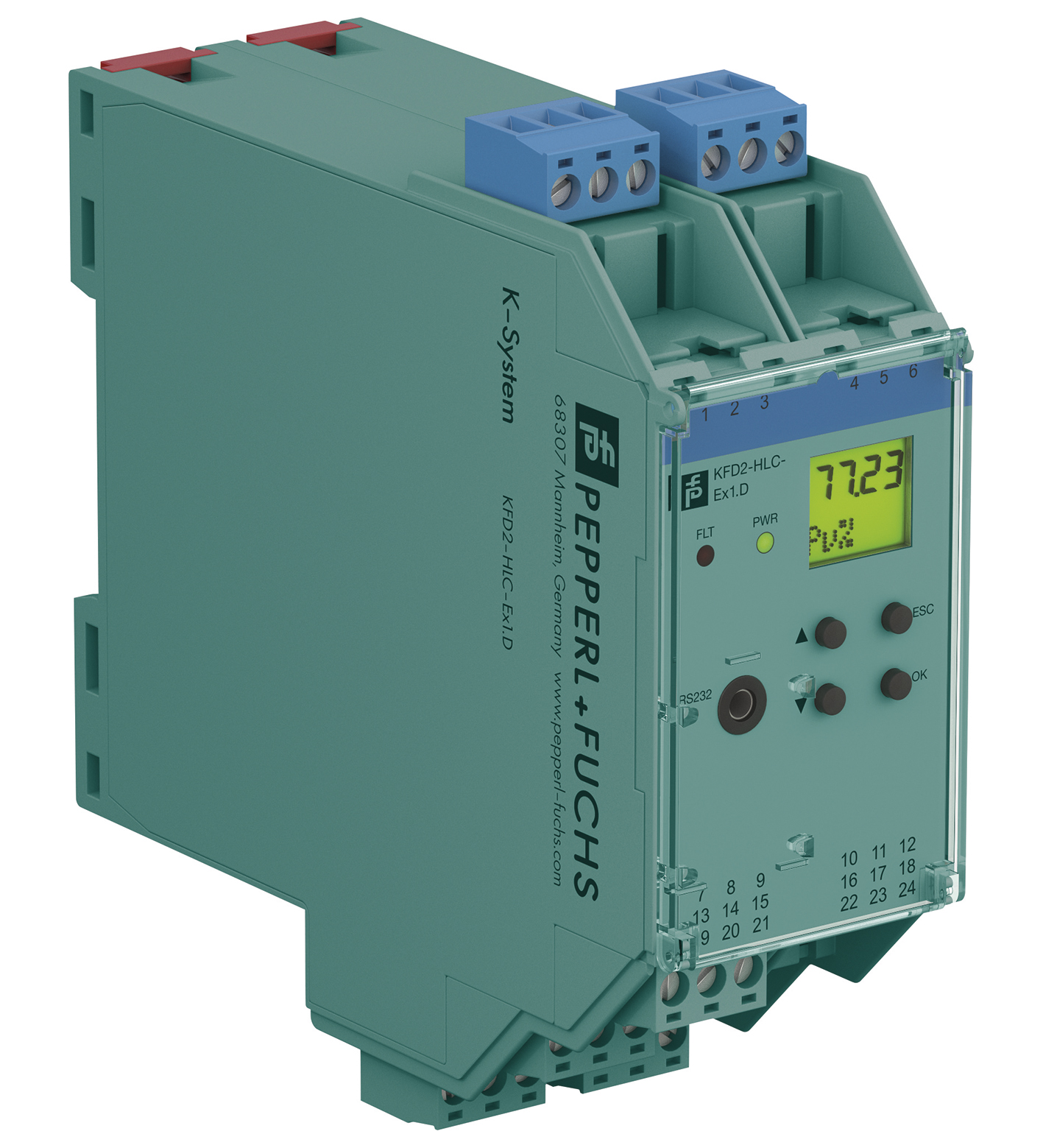

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input |
|---|---|
| Connection | Power Rail or terminals 23+, 24- |
| Rated voltage | 19 ... 30 V DC |
| Rated current | approx. 120 mA at 24 V DC |
| Power dissipation | 2.3 W |
| Power consumption | 2.9 W |
| Conformity | HART field device input (revision 5 to 7) |
| Programming interface | programming socket |
| Connection side | field side |

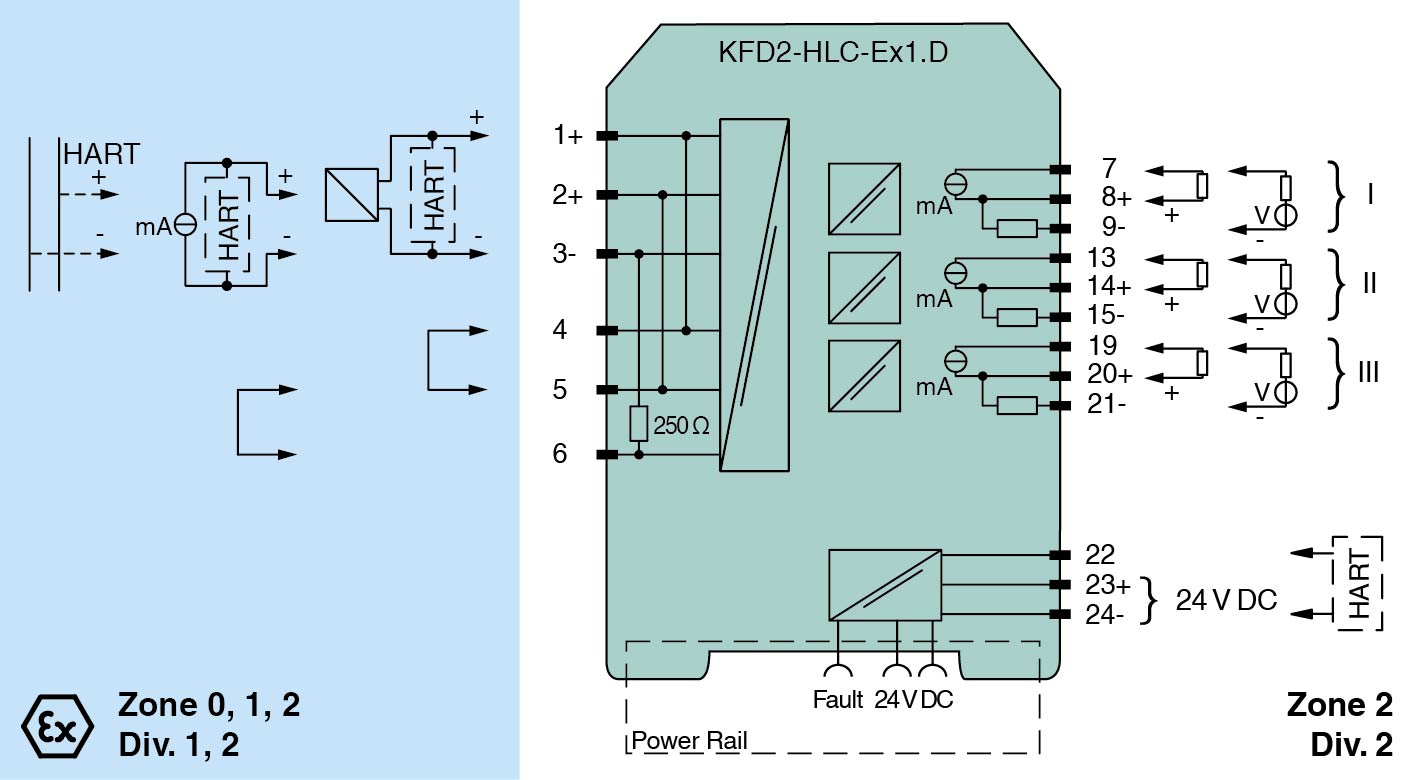

| Connection | terminals 1, 2, 3, 4, 5, 6 |
| Open circuit voltage/short-circuit current | typ. 24 V / 28 mA |
| Input resistance | 250 Ω , 5 % (terminals 2, 3 and with jumper on 5, 6) |
| Available voltage | ≥ 15.5 V at 20 mA, short-circuit protected |
| Connection side | control side |
| Connection | output I: terminals 7, 8, 9 , output II: terminals 13, 14, 15 , output III: terminals 19, 20, 21 |
| Output signal | analog |
| Voltage range | 5 ... 30 V , sink mode from external supply |
| Current range | 4 ... 20 mA , (source or sink mode) |
| Load | max. 650 Ω , source mode |
| Fault signal | downscale I ≤ 2 mA, upscale I ≥ 21.5 mA (acc. NAMUR NE43) or hold measurement value |
| Other outputs | HART communicator on terminals 22, 24 |
| Collective error message | Power Rail and LED red |
| Output I, II, III | Output I, II, III |
| Resolutionmax. 2 µAAccuracy< 20 µA, 10 µA typ.Influence of ambient temperature< ± 2 µA/KDuration of measurement/Response delayHART message acquisition time plus 100 ms | Resolutionmax. 2 µAAccuracy< 20 µA, 10 µA typ.Influence of ambient temperature< ± 2 µA/KDuration of measurement/Response delayHART message acquisition time plus 100 ms |
| Resolution | max. 2 µA |
| Accuracy | < 20 µA, 10 µA typ. |
| Influence of ambient temperature | < ± 2 µA/K |
| Duration of measurement/Response delay | HART message acquisition time plus 100 ms |
| Output I/II/III/power supply | functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff |
| Display elements | LEDs , display |
| Control elements | Control panel |
| Configuration | via operating buttons via PACTware |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | 300 g |
| Dimensions | 40 x 119 x 115 mm (1.6 x 4.7 x 4.5 inch) (W x H x D) , housing type C2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | BASEEFA 07 ATEX 0174 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC |
| Supply | Supply |
| Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.) |
| Equipment | terminals 1, 4/3 (with link between terminals 4 and 5) |
| VoltageUo25.2 VCurrentIo104.9 mAPowerPo0.661 WInternal capacitanceCi1.1 nFInternal inductanceLi0 mH | VoltageUo25.2 VCurrentIo104.9 mAPowerPo0.661 WInternal capacitanceCi1.1 nFInternal inductanceLi0 mH |
| Equipment | terminals 2, 5/3 |
| VoltageUi< 28 VPowerPi< 1.33 WVoltageUo1.1 VCurrentIo11.9 mAPowerPo4 mWInternal capacitanceCi0 µFInternal inductanceLi0 mH | VoltageUi< 28 VPowerPi< 1.33 WVoltageUo1.1 VCurrentIo11.9 mAPowerPo4 mWInternal capacitanceCi0 µFInternal inductanceLi0 mH |
| Output I, II, III | terminals 7, 8, 9; 13, 14, 15; 19, 20, 21 non-intrinsically safe |
| Maximum safe voltageUm253 V (Attention! Um is no rated voltage.) | Maximum safe voltageUm253 V (Attention! Um is no rated voltage.) |
| Certificate | PF 07 CERT 1142 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC |
| Maximum safe voltage | 253 V AC (Attention! The rated voltage can be lower.) |
| Voltage | 25.2 V |
| Current | 104.9 mA |
| Power | 0.661 W |
| Internal capacitance | 1.1 nF |
| Internal inductance | 0 mH |
| Voltage | < 28 V |
| Power | < 1.33 W |
| Voltage | 1.1 V |
| Current | 11.9 mA |
| Power | 4 mW |
| Internal capacitance | 0 µF |
| Internal inductance | 0 mH |
| Maximum safe voltage | 253 V (Attention! Um is no rated voltage.) |
| Marking | II 3G Ex nA IIC T4 Gc |
| Input/Other circuits | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 |
| FM approval | FM approval |
| Control drawing116-0129 | Control drawing116-0129 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx BAS 07.0047IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC | IECEx certificateIECEx BAS 07.0047IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC |
| Control drawing | 116-0129 |
| IECEx certificate | IECEx BAS 07.0047 |
| IECEx marking | [Ex ia Ga] IIC , [Ex ia Da] IIIC |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
