倍加福

KFD2-HMM-16

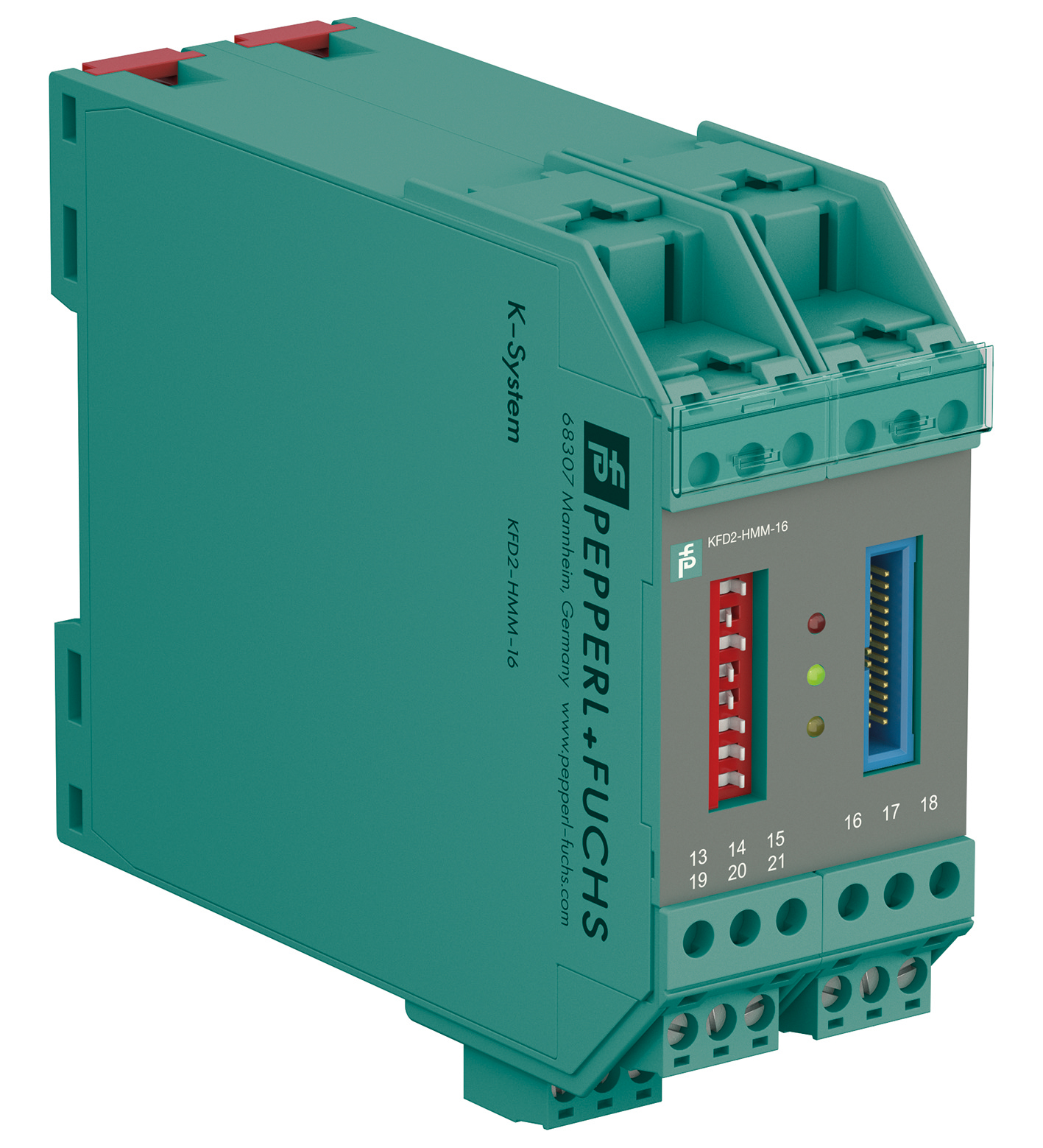

KFD2-HMM-16 HART MUX Primary Module

订货号: 231289
产品分类: K系列（导轨式）

HART MUX Primary Module

查看规格参数资料与附件

TECHNICAL DATA

规格参数

Functional safety related parameters

Safety Integrity Level (SIL)	SIL 3

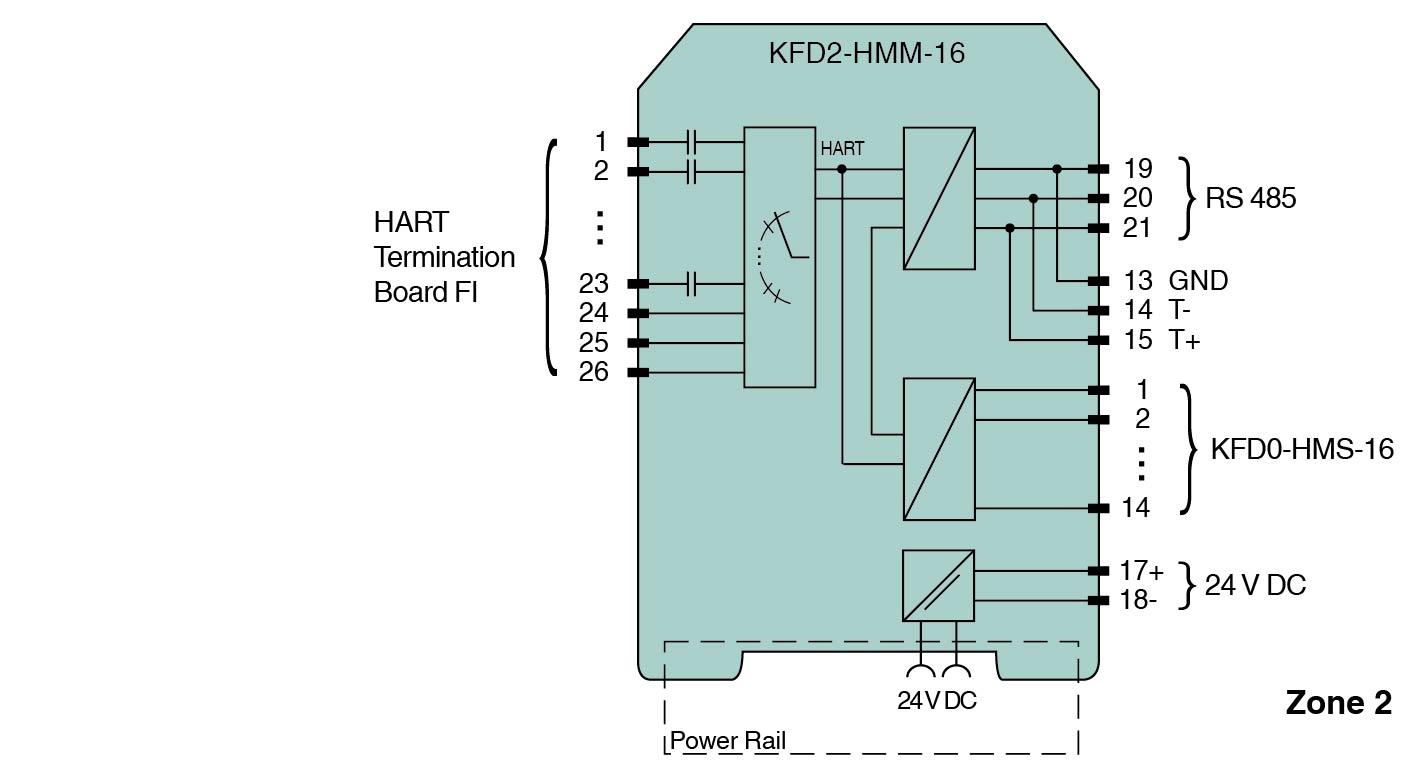

Connection	terminals 17+, 18-
Rated voltage	20 ... 32 V DC typical at 100 mA
Power consumption	max. 3 W
Conformity	HART field device input (revision 5 to 7)
Connection	26-pin flat cable for analog connections 14-pin flat cable for primary module/secondary module connection between KFD2-HMM-16 and KFD0-HMS-16
Leakage current	< 3 µA at -20 ... 85 °C (-4 ... 185 °F)
Terminating resistor	external 230 ... 500 Ω standard (up to 1000 Ω possible)
Output voltage	≥ 400 mV ss (with the terminator resistance specified above)
Output resistance	100 Ω or smaller, capacitive coupling
Input impedance	according to HART specification
Input voltage range	0.08 ... 4 V ss ; typ. ± 5.2 V as local reference
Transfer rate	9600, 19200, or 38400 Bit/s (selectable with DIL switch (2 and 3) by the user)
Type	RS-485 , 2-wire multidrop
Address selection	One of 31 possible addresses selectable per DIL switch (4 ... 8)
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 250 g
Dimensions	40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D) , housing type C1
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Certificate	PF 07 CERT 1143 X
Marking II 3G Ex nA IIC T4 Gc	Marking II 3G Ex nA IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
