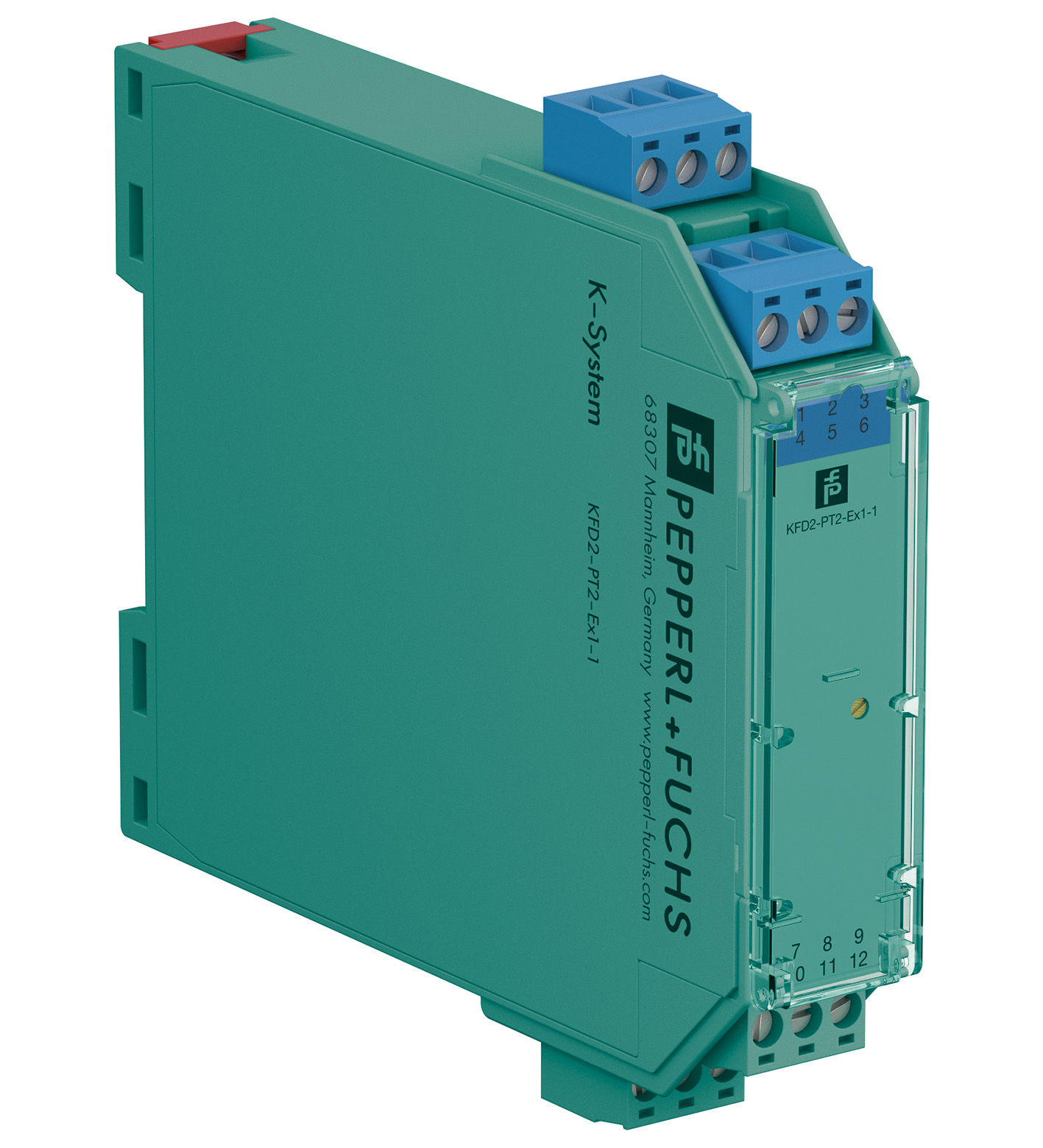

KFD2-PT2-Ex1-1 Potentiometer Converter

订货号: 70177760
产品分类: K 系统（DIN 导轨安装）

Potentiometer Converter

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Connection	Power Rail or terminals 11+, 12-
Rated voltage	20 ... 35 V DC
Ripple	within the supply tolerance
Power dissipation	0.5 W
Power consumption	0.6 W

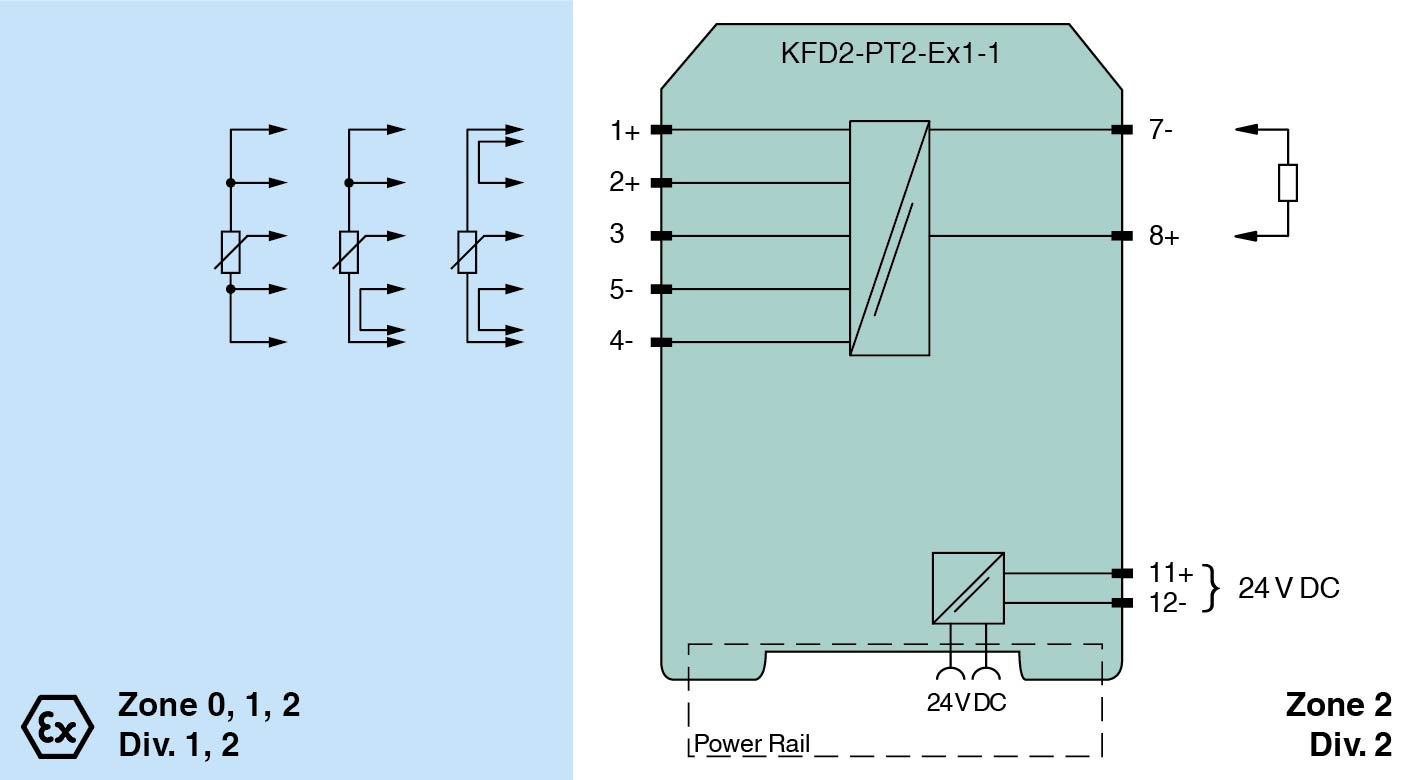

Connection side	field side
Connection	terminals 4-, 5-, 3+, 2+, 1+
Potentiometer	Potentiometer
Types of measuring3-, 4-, 5-wire technologyNominal resistance800 Ω to 100 kΩSupply voltageapprox. 4.7 V	Types of measuring3-, 4-, 5-wire technologyNominal resistance800 Ω to 100 kΩSupply voltageapprox. 4.7 V
Lead resistance	5 % of the potentiometer resistance (adjustable)
Types of measuring	3-, 4-, 5-wire technology
Nominal resistance	800 Ω to 100 kΩ
Supply voltage	approx. 4.7 V
Connection side	control side
Connection	terminals 7-, 8+
Voltage output	0 ... 5 V
Output resistance	max. 30 Ω
Accuracy	0.05 %
Deviation	Deviation
Linearity≤ ± 5 mVInfluence of ambient temperature≤ 0.5 mV/K	Linearity≤ ± 5 mVInfluence of ambient temperature≤ 0.5 mV/K
Rise time	10 to 90 % ≤ 8 ms; 10 to 90 % within 1 % of span ≤ 25 ms
Linearity	≤ ± 5 mV
Influence of ambient temperature	≤ 0.5 mV/K
Output/power supply	functional insulation, rated insulation voltage 50 V AC
Control elements	potentiometer
Configuration	via potentiometer
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012
Degree of protection	IEC 60529:2001
Protection against electrical shock	UL 61010-1
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	BAS 00 ATEX 7171
Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIIC , [exsign] I (M1) [Ex ia Ma] IVoltageUo10.4 V DCCurrentIo31.4 mAPowerPo82 mW	Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIIC , [exsign] I (M1) [Ex ia Ma] IVoltageUo10.4 V DCCurrentIo31.4 mAPowerPo82 mW
Supply	Supply
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Output	Output
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Certificate	TÜV 02 ATEX 1797 X
Marking II 3G Ex nA II T4	Marking II 3G Ex nA II T4
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
Marking	II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIIC , [exsign] I (M1) [Ex ia Ma] I
Voltage	10.4 V DC
Current	31.4 mA
Power	82 mW
Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Maximum safe voltage	250 V (Attention! The rated voltage can be lower.)
Marking	II 3G Ex nA II T4
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010
FM approval	FM approval
Control drawing116-0129	Control drawing116-0129
UL approval	UL approval
Control drawing116-0173 (cULus)	Control drawing116-0173 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 10.0060 IECEx BAS 10.0061XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx BAS 10.0060 IECEx BAS 10.0061XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0129
Control drawing	116-0173 (cULus)
IECEx certificate	IECEx BAS 10.0060 IECEx BAS 10.0061X
IECEx marking	[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
