KFD2-RCI-1

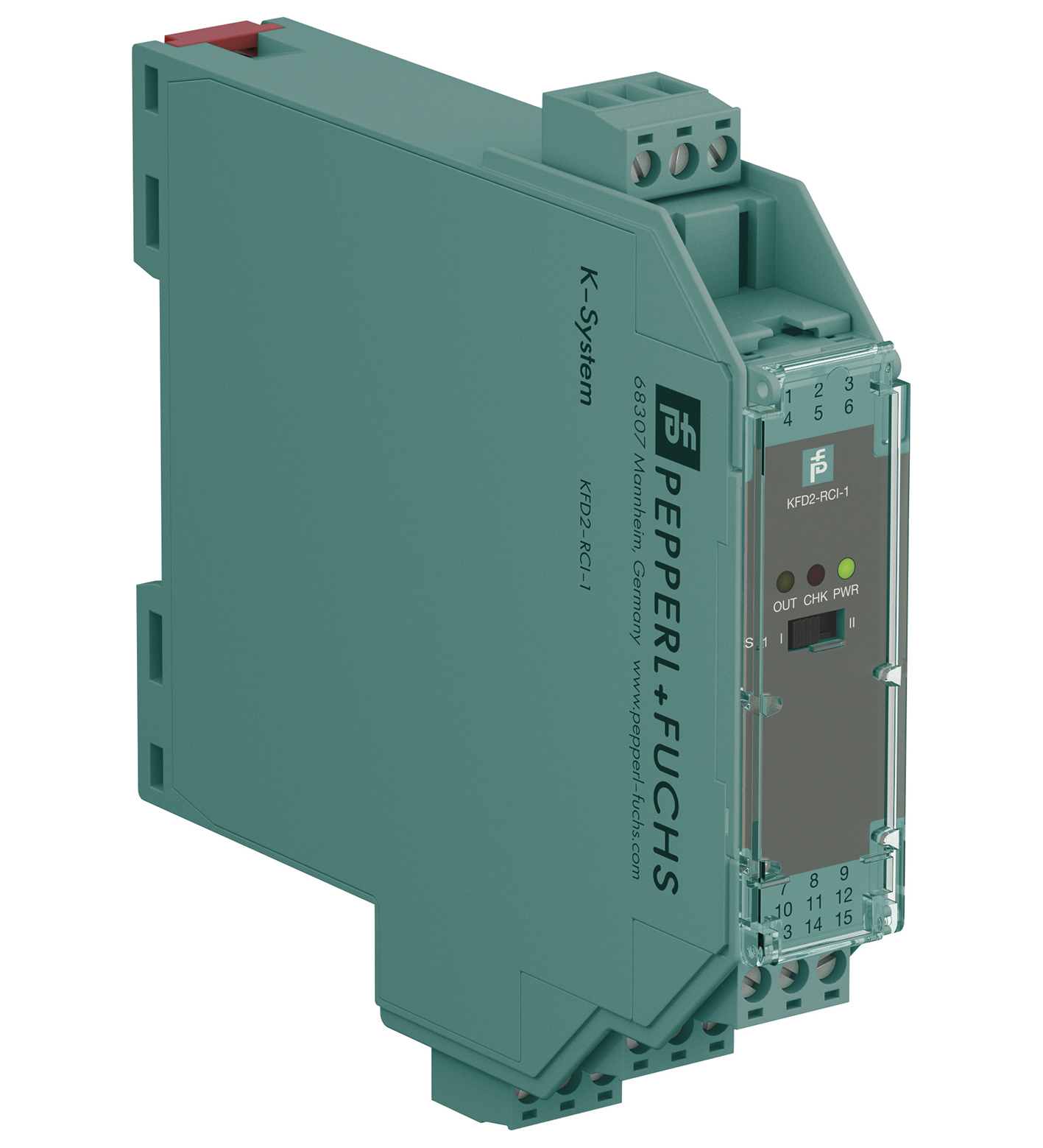

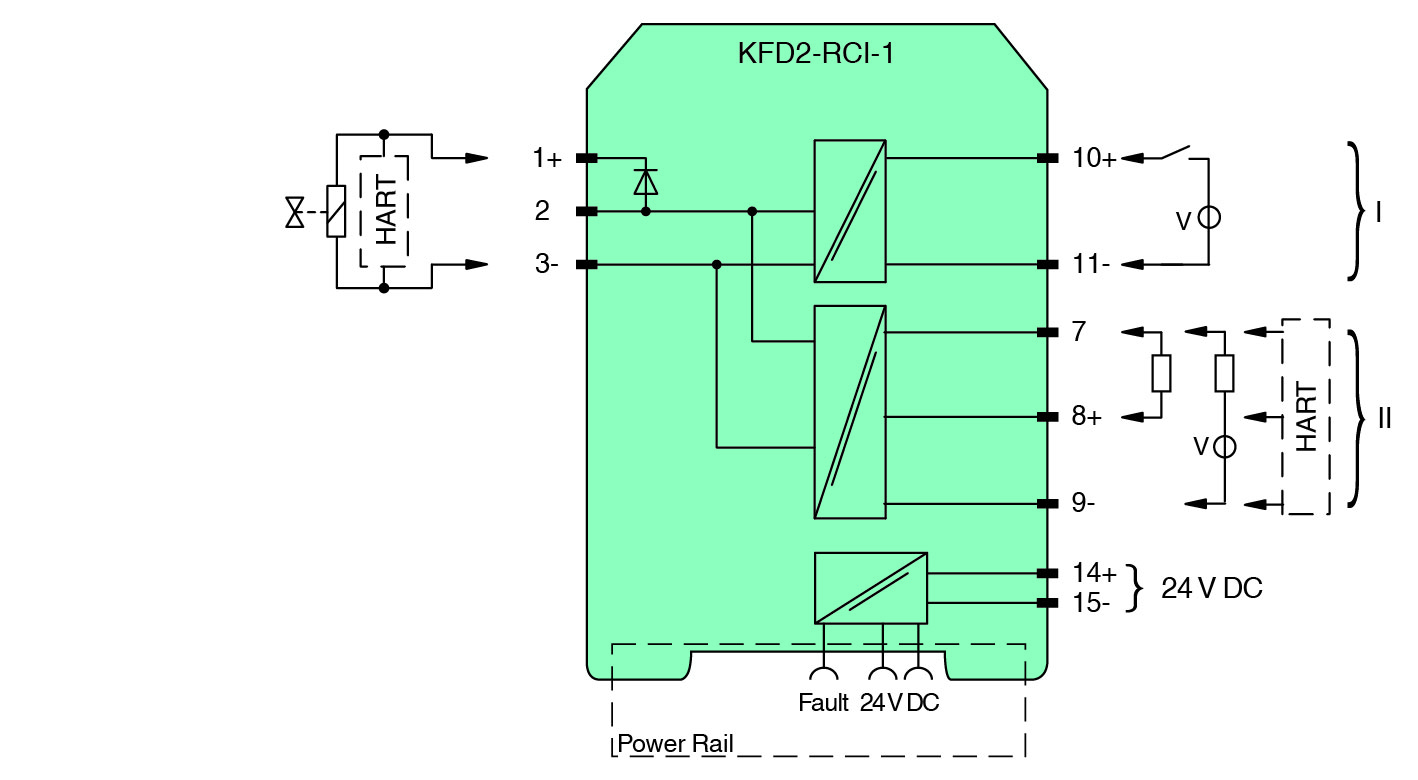

KFD2-RCI-1 Solenoid Driver

订货号: 70155717
产品分类: K 系统（DIN 导轨安装，功能强大）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Connection	Power Rail or terminals 14+, 15-
Rated voltage	19 ... 30 V DC
Rated current	< 35 mA
Power consumption	< 0.8 W
Connection side	control side
Connection	terminals 10+, 11-
Test pulse length	max. 2 ms from DO card
Input current	40 mA at 19 ... 30 V DC
Signal level	1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC
Power consumption	< 1.2 W
Operating mode	loop powered
Connection side	field side/control side
Connection	terminals 1+, 3- (terminals 1+, 2 for test loop)
Internal resistor	approx. 275 Ω
Current	≤ 20.4 mA
Voltage	≥ 13.5 V
Open loop voltage	> 16 V
Voltage	1-signal: > 13.5 V
Current	1-signal: 20.4 A 0-signal: 4.2 mA
Load	max. 650 Ω
Response time	< 40 ms input to output
Line fault detection	short circuit voltage < 1 V , open circuit voltage > 16 V
Output II	Output II
Connectionterminal 7: source (-) or sink (+), terminal 8: source (+), terminal 9: sink (-)Current11 mA (source or sink mode)Voltage9 ... 30 V sink mode from external supplyLoadmax. 650 Ω , source mode , for HART ≥ 230 ΩCommunicationpass-through of HART signal between input II and output	Connectionterminal 7: source (-) or sink (+), terminal 8: source (+), terminal 9: sink (-)Current11 mA (source or sink mode)Voltage9 ... 30 V sink mode from external supplyLoadmax. 650 Ω , source mode , for HART ≥ 230 ΩCommunicationpass-through of HART signal between input II and output
Connection	terminal 7: source (-) or sink (+), terminal 8: source (+), terminal 9: sink (-)
Current	11 mA (source or sink mode)
Voltage	9 ... 30 V sink mode from external supply
Load	max. 650 Ω , source mode , for HART ≥ 230 Ω
Communication	pass-through of HART signal between input II and output
Field circuit/control circuit	basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff
Input/power supply	functional insulation, rated insulation voltage 50 Veff
Output II/power supply	functional insulation, rated insulation voltage 50 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
