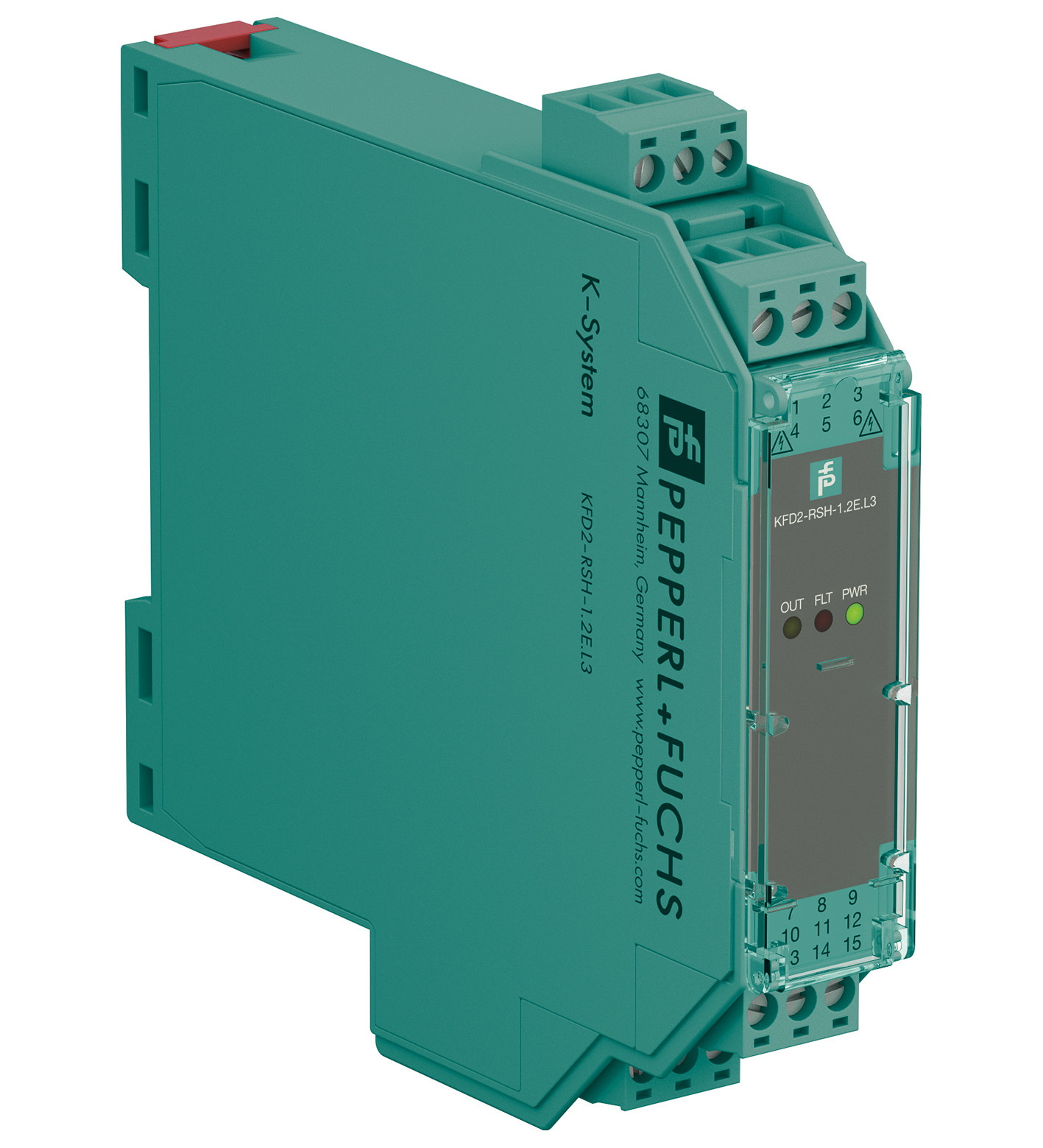

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Output |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |

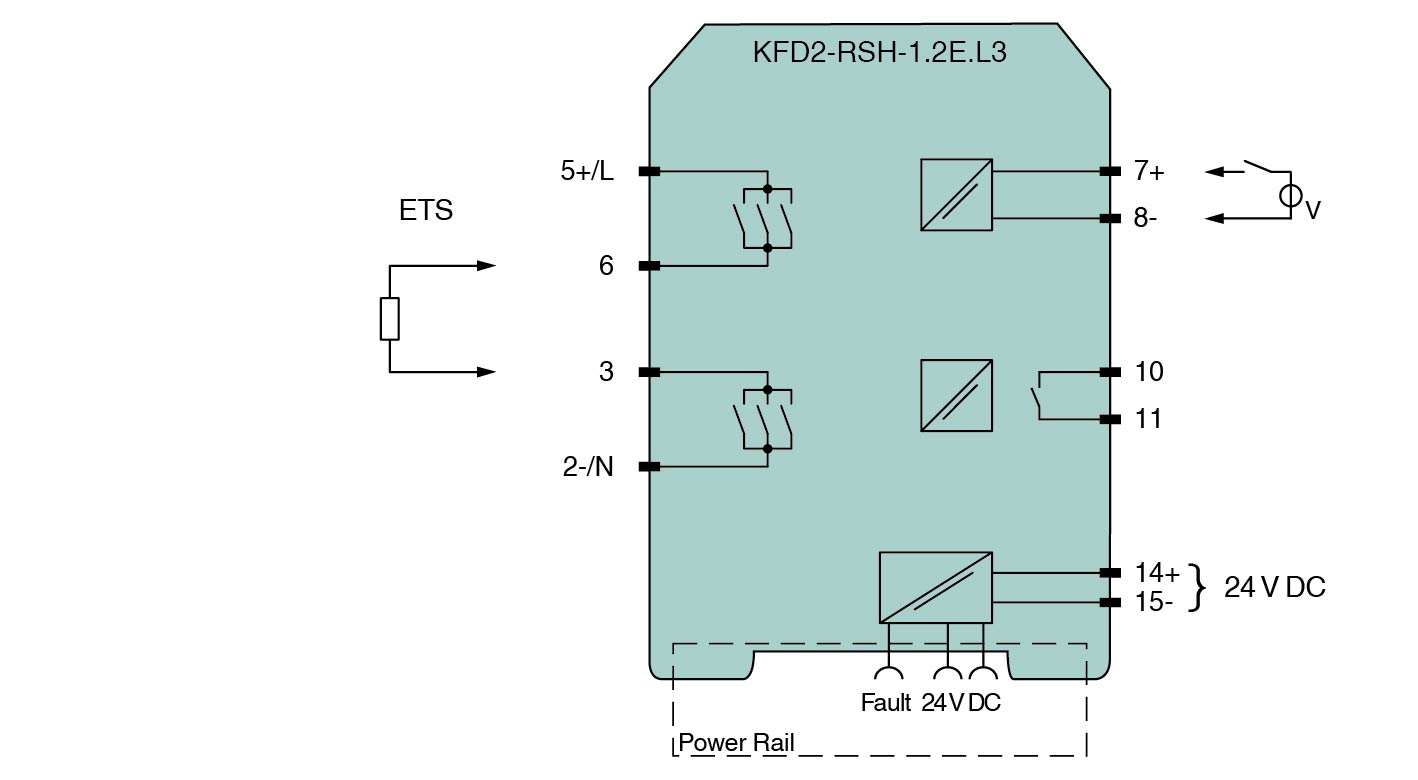

| Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 19 ... 26.4 V DC |
| Input current | max. 35 mA at 24 V DC , max. 44 mA at 19 V DC , with enabled internal fault detection |
| Power consumption | < 1.7 W , includes the power consumption of the digital input , see derating curves |
| Connection side | control side |
| Connection | terminals 7+, 8- |
| Pulse/Pause ratio | min. 150 ms / min. 150 ms with disabled internal fault detection min. 1 s / min. 1 s with enabled internal fault detection |
| Test pulse length | max. 2 ms from DO card |
| Signal level | 0-signal: -5 ... 5 V DC 1-signal: 19 ... 26.4 V DC |
| Rated current | 0-signal: typ. 1.6 mA at 1.5 V DC; typ. 8 mA at 3 V DC (maximum leakage current DO card) 1-signal: ≥ 36 mA (minimum load current DO card) |
| Inrush current | < 200 mA after 100 µs |
| Connection side | field side |
| Connection | external voltage : terminals 5+/L, 2-/N load : terminals 6, 3 |
| Connectable voltage | 50 ... 230 V AC 60 ... 110 V DC |
| Power dissipation | < 3.3 W at 5 A , see derating curves |
| Contact loading | 253 V AC/5 A/cos φ 0.7; 30 V DC/5 A resistive load , see derating curves |
| Minimum switch current | 10 mA |
| Mechanical life | 5 x 106 switching cycles |
| Line fault detection | low voltage < 35 V AC undercurrent: 10 mA AC; overcurrent: 5.5 A AC (relay energized) breakage: 48 kΩ; short-circuit: 29 Ω (load, relay de-energized) |
| Connection | terminals 10, 11 |
| Contact loading | 30 V DC/ 0.5 A resistive load |
| Reaction time | < 2 s |
| Mechanical life | 105 switching cycles |
| Switching frequency | < 3 Hz with disabled internal fault detection < 0.5 Hz with enabled internal fault detection |
| Input/power supply | basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff |
| Input/fault indication output | basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 Veff |
| Output/other circuits | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Display elements | LEDs |
| Control elements | DIP switch |
| Configuration | via DIP switches |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Low voltage | Low voltage |
| Directive 2014/35/EUEN 61010-1:2010 | Directive 2014/35/EUEN 61010-1:2010 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2014/35/EU | EN 61010-1:2010 |
| Electromagnetic compatibility | NE 21:2017 , IEC/EN 61326-3-2:2018 , EN 61326-3-1:2017 |
| Degree of protection | IEC 60529:2013 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) Observe the temperature range limited by derating, see section derating. |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 134 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
