倍加福

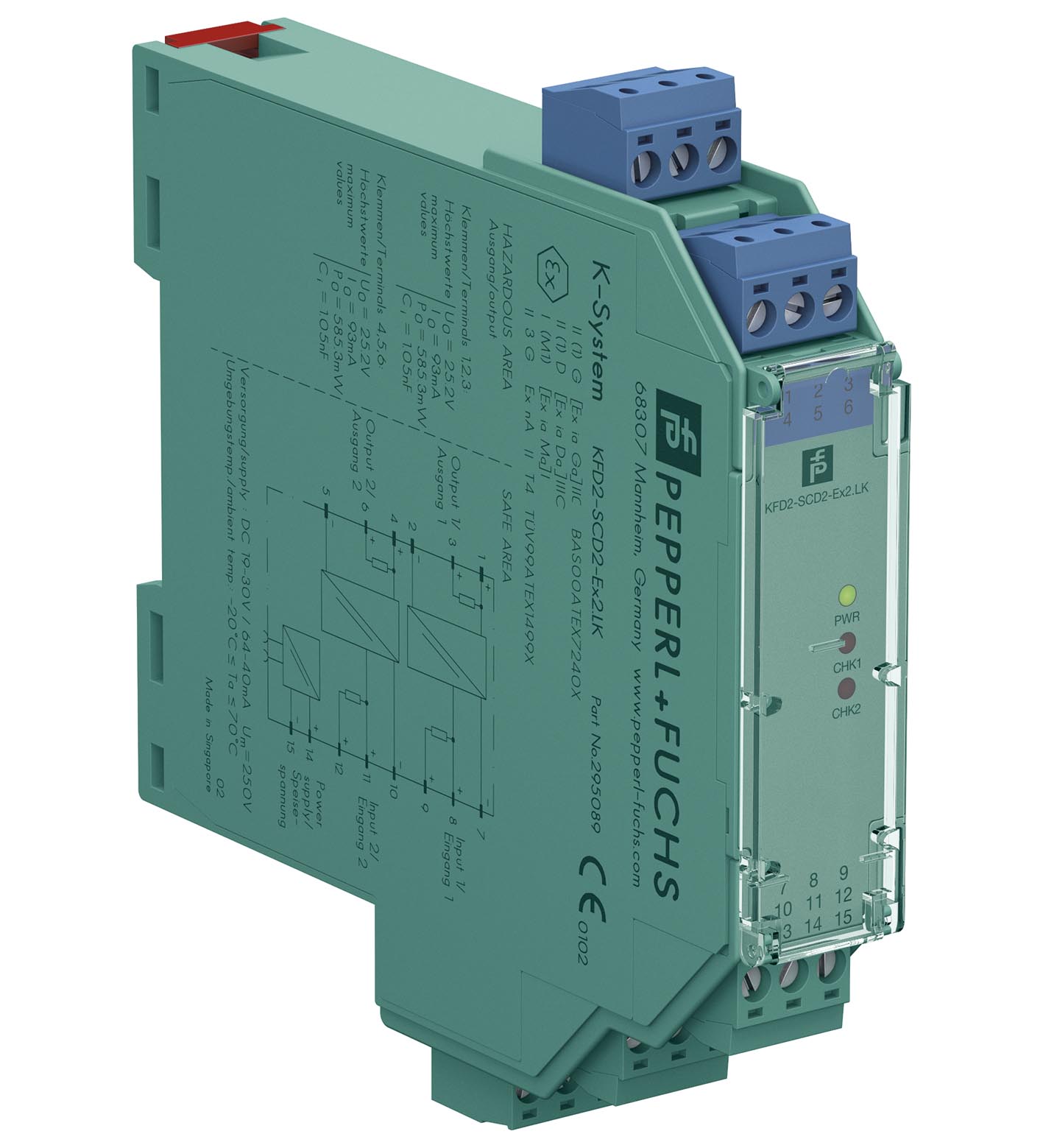

KFD2-SCD2-Ex2.LK

KFD2-SCD2-Ex2.LK SMART Current Driver

订货号: 295089
产品分类: K 系统（DIN 导轨安装）

SMART Current Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog output
Safety Integrity Level (SIL)	SIL 2
Systematic capability (SC)	SC 3
Connection	Power Rail or terminals 14+, 15-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	≤ 45 mA at 24 V
Power dissipation	≤ 1 W at 20 mA and 500 Ω load
Power consumption	≤ 1 W
Connection side	control side

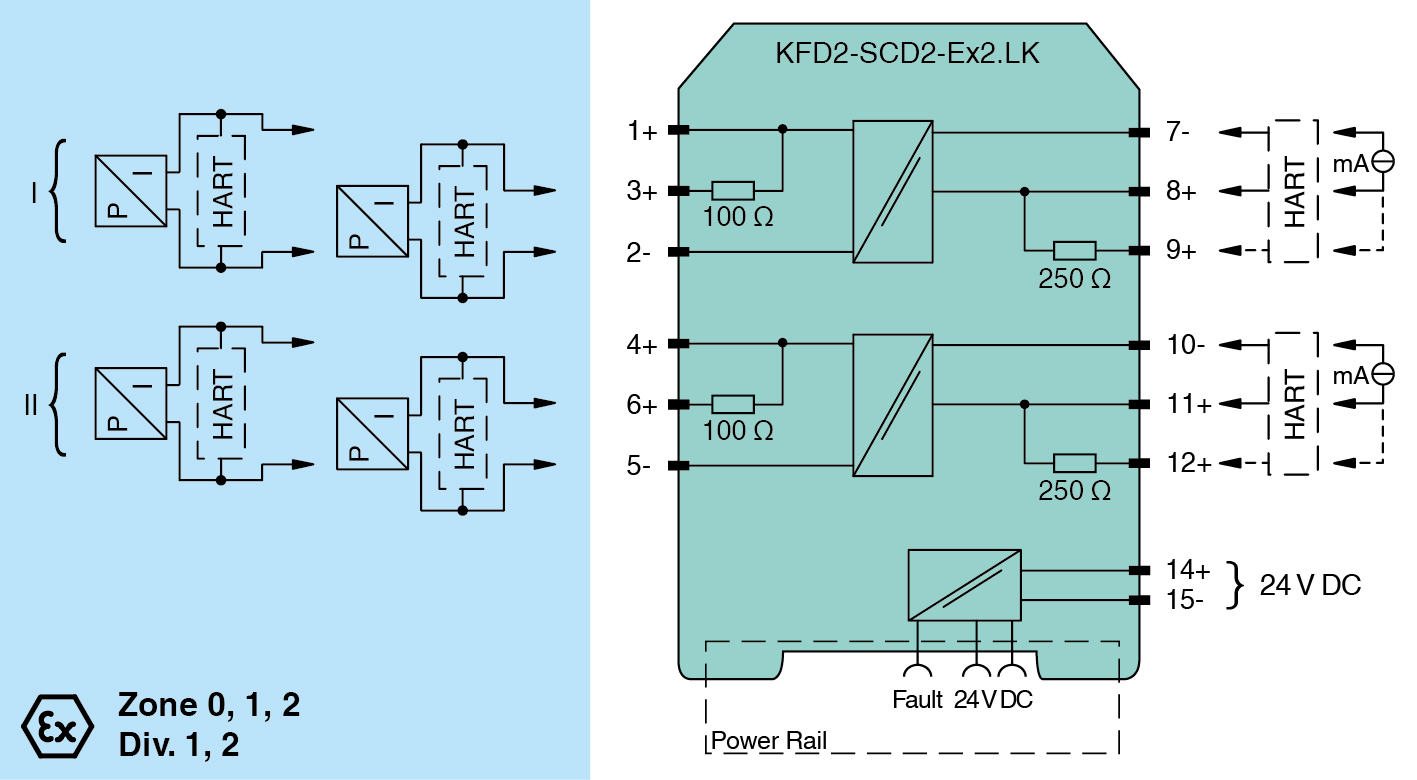

Connection	terminals 7-, 8+, (9+); 10-, 11+, (12+)
Input signal	4 ... 20 mA , limited to approx. 30 mA
Input voltage	open loop voltage of the control system ≤ 30 V
Voltage drop	approx. 6 V at 20 mA
Input resistance	field wiring open circuit : > 100 kΩ field wiring < 50 Ω : > 100 kΩ when using terminals 1, 2 and 4, 5
Connection side	field side
Connection	terminals 1+, 2-; 4+, 5- terminals 3+, 2-; 6+, 5- (no short circuit detection)
Voltage	≥ 13 V at 20 mA
Current	4 ... 20 mA
Load	100 ... 650 Ω , for terminals 1, 2; 4, 5 0 ... 550 Ω , for Terminals 2, 3; 5, 6
Ripple	20 mV rms
Line fault detection	breakage, load > 100 kΩ, short-circuit, load < 50 Ω
Output type	open collector transistor (internal fault bus)
Deviation	at 20 °C (68 °F), 4 ... 20 mA< 0.1 % of full scale, incl. non-linearity and hysteresis
Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))	Influence of ambient temperature< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Frequency range	field side into the control side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0 ... 3 kHz (-3 dB)
Rise time	10 to 90 % ≤ 10 ms
Influence of ambient temperature	< 2 µA/K (-20 ... 70 °C (-4 ... 158 °F)); < 4 µA/K (-40 ... -20 °C (-40 ... -4 °F))
Input/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/input	functional insulation, rated insulation voltage 50 V AC
Display elements	LEDs
Labeling	space for adhesive label at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2017 EN 61326-3-2:2018
Degree of protection	IEC 60529
Protection against electrical shock	UL 61010-1:2012
Ambient temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 135 g
Dimensions	20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	BAS 00 ATEX 7240 X
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia, Ex iaDVoltageUo25.2 VCurrentIo93 mAPowerPo585.3 mWInternal capacitanceCi1.05 nFInternal inductanceLi 0	Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia, Ex iaDVoltageUo25.2 VCurrentIo93 mAPowerPo585.3 mWInternal capacitanceCi1.05 nFInternal inductanceLi 0
Supply	Supply
Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.)
Input	Input
Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.)	Maximum safe voltageUm250 V rms (Attention! The rated voltage can be lower.)
Certificate	FIDI 22 ATEX 0002 X
Marking II 3G Ex ec IIC T4 Gc	Marking II 3G Ex ec IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015+A1:2018	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015+A1:2018
Marking	II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Output	Ex ia, Ex iaD
Voltage	25.2 V
Current	93 mA
Power	585.3 mW
Internal capacitance	1.05 nF
Internal inductance	0
Maximum safe voltage	250 V rms (Attention! The rated voltage can be lower.)
Maximum safe voltage	250 V rms (Attention! The rated voltage can be lower.)
Marking	II 3G Ex ec IIC T4 Gc
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN IEC 60079-11:2024 , EN IEC 60079-7:2015+A1:2018
UL approval	E106378
Control drawing116-0345 (cULus)	Control drawing116-0345 (cULus)
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 04.0014XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc	IECEx certificateIECEx BAS 04.0014XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing	116-0345 (cULus)
IECEx certificate	IECEx BAS 04.0014X
IECEx marking	[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
