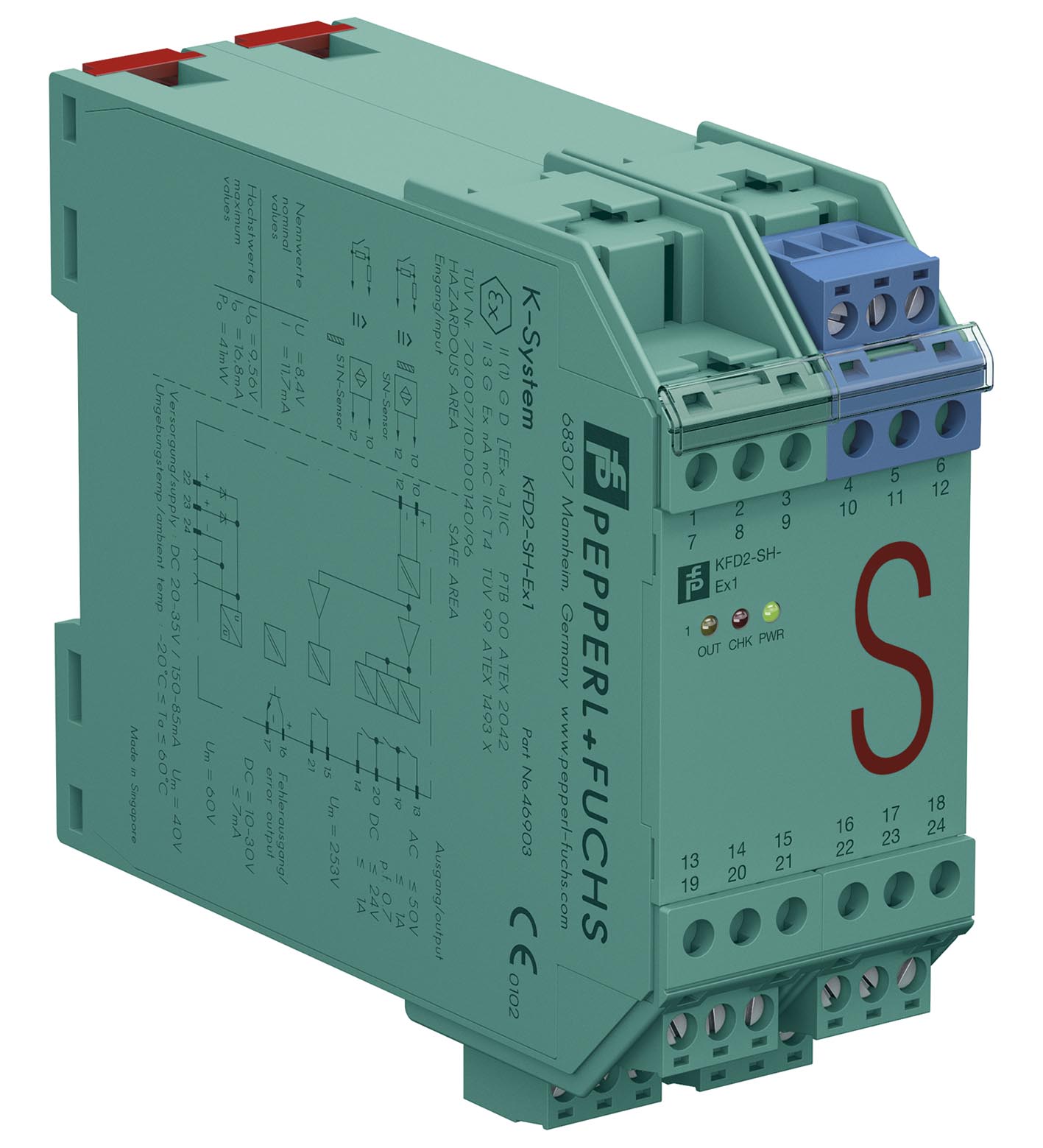

TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Input |
|---|---|
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
| Performance level (PL) | PL d |
| Connection | Power Rail or terminals 22+, 23+, 24- |
| Rated voltage | 20 ... 35 V DC |
| Ripple | ≤ 10 % |
| Rated current | ≤ 130 mA |
| Power dissipation | 2.1 W |
| Power consumption | max. 2.3 W |
| Connection side | field side |

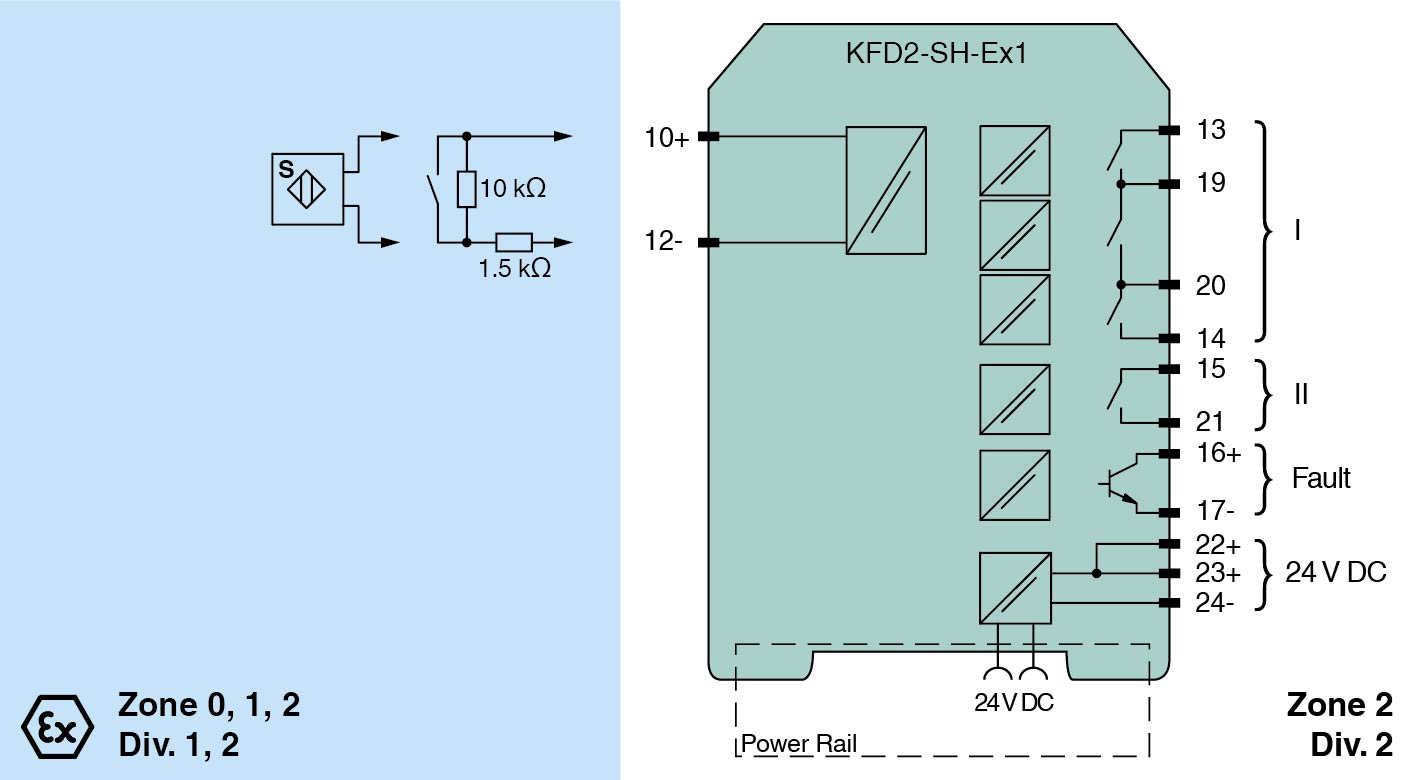

| Connection | terminals 10+, 12- |
| Open circuit voltage/short-circuit current | approx. 8.4 V DC / approx. 11.7 mA |
| Lead resistance | ≤ 50 Ω, in hazardous area cable capacitances and inductivities are to be taken into account |
| Switching point | Switching point |
| Relay de-energizedI < 2.1 mA and I > 5.9 mARelay energized2.8 mA < I < 5.3 mA | Relay de-energizedI < 2.1 mA and I > 5.9 mARelay energized2.8 mA < I < 5.3 mA |
| Response delay | ≤ 1 ms |
| Relay de-energized | I < 2.1 mA and I > 5.9 mA |
| Relay energized | 2.8 mA < I < 5.3 mA |
| Connection side | control side |
| Connection | output I: terminals 13, 14 ; output II: terminals 15, 21 ; output III: terminals 16+, 17- |
| Output I | relay , signal |
| Contact loading50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles | Contact loading50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles |
| Output II | relay , signal |
| Contact loading50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles | Contact loading50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive loadMechanical life50 x 106 switching cycles |
| Output III | electronic output, passive , fault signal |
| Rated voltage10 ... 30 V DCSignal level1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) | Rated voltage10 ... 30 V DCSignal level1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) |
| Contact loading | 50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive load |
| Mechanical life | 50 x 106 switching cycles |
| Contact loading | 50 V AC/1 A/cos φ > 0.7; 24 V DC/1 A resistive load |
| Mechanical life | 50 x 106 switching cycles |
| Rated voltage | 10 ... 30 V DC |
| Signal level | 1-signal: (L+) -2.5 V (7 mA, short-circuit proof) / 0-signal: blocked output (Leakage current ≤ 10 µA) |
| Switching frequency | 5 Hz |
| Output/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Mutual output I, II, III | basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff |
| Display elements | LEDs |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Machinery Directive | Machinery Directive |
| Directive 2006/42/ECEN/ISO 13849-1:2015 | Directive 2006/42/ECEN/ISO 13849-1:2015 |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Directive 2006/42/EC | EN/ISO 13849-1:2015 |
| Electromagnetic compatibility | NE 21:2017 , EN 61326-3-1:2017 |
| Degree of protection | IEC 60529:2001 |
| Safety | IEC/EN 61508:2010 |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 280 g |
| Dimensions | 40 x 107 x 115 mm (1.6 x 4.2 x 4.5 inch) (W x H x D) , housing type C1 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| EU-type examination certificate | PTB 00 ATEX 2042 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic) | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic) |
| Supply | Supply |
| Maximum safe voltageUm40 V AC/DC (Attention! The rated voltage can be lower.) | Maximum safe voltageUm40 V AC/DC (Attention! The rated voltage can be lower.) |
| Output | Output |
| Maximum safe voltageUmoutput I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) output III: 60 V AC/DC (Attention! Um is no rated voltage.) | Maximum safe voltageUmoutput I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) output III: 60 V AC/DC (Attention! Um is no rated voltage.) |
| Certificate | TÜV 99 ATEX 1493 X |
| Marking II 3G Ex ec nC IIC T4 Gc | Marking II 3G Ex ec nC IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Input | Ex ia |
| Voltage | 9.56 V |
| Current | 16.8 mA |
| Power | 41 mW (linear characteristic) |
| Maximum safe voltage | 40 V AC/DC (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | output I/output II: 253 V AC/DC (Attention! Um is no rated voltage.) output III: 60 V AC/DC (Attention! Um is no rated voltage.) |
| Marking | II 3G Ex ec nC IIC T4 Gc |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Input/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019 |
| FM approval | FM approval |
| Control drawing116-0158 | Control drawing116-0158 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 19.0013XIECEx markingEx ec nC IIC T4 Gc | IECEx certificateIECEx TUN 19.0013XIECEx markingEx ec nC IIC T4 Gc |
| Control drawing | 116-0158 |
| IECEx certificate | IECEx TUN 19.0013X |
| IECEx marking | Ex ec nC IIC T4 Gc |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
