KFD2-SH-Ex1.T.OP

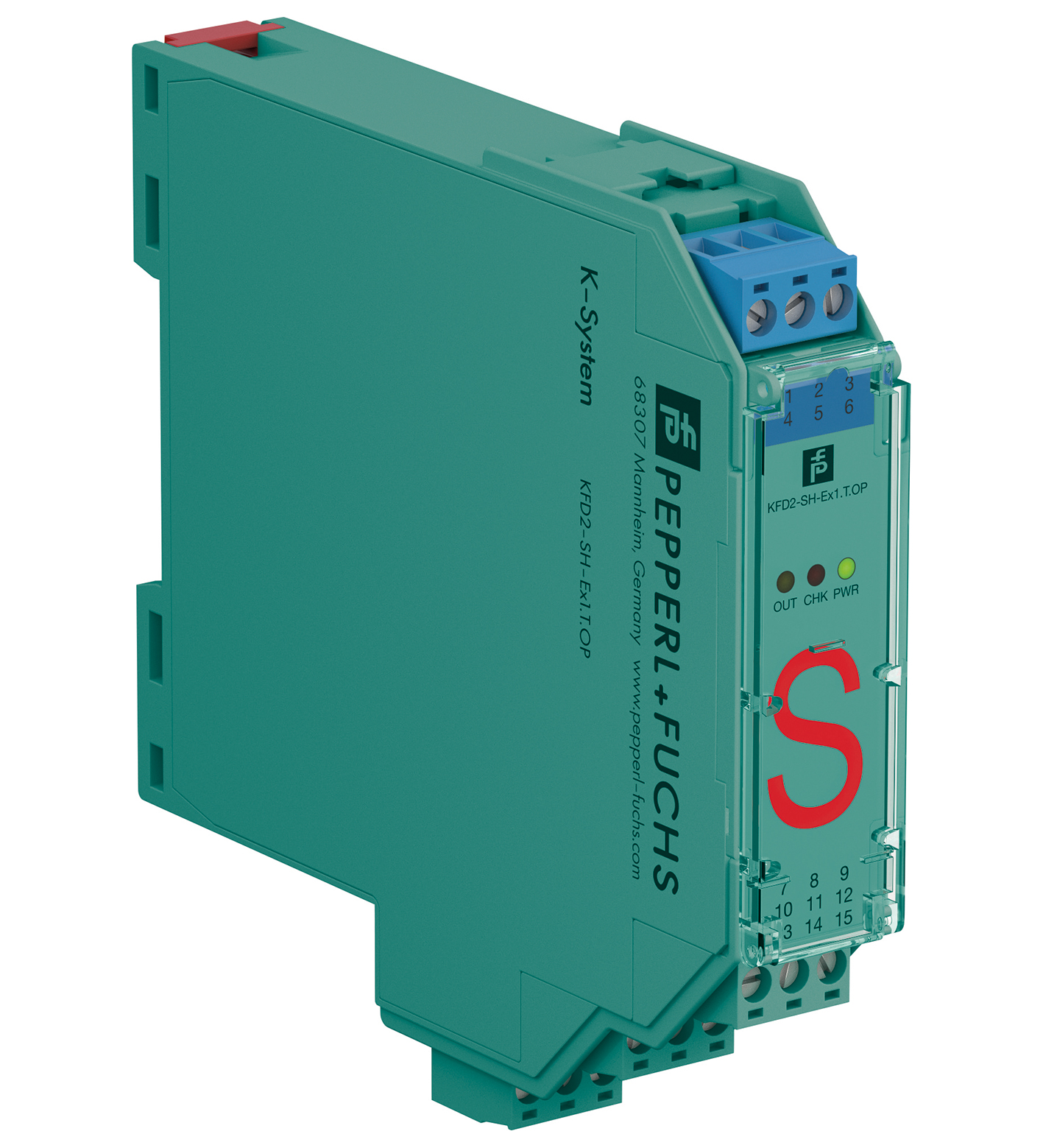

KFD2-SH-Ex1.T.OP Switch Amplifier

订货号: 70100833
产品分类: K 系统（DIN 导轨安装）

Switch Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3
Performance level (PL)	PL d
Connection	Power Rail or terminals 14+, 15-
Rated voltage	20 ... 30 V DC
Ripple	≤ 10 %
Rated current	≤ 100 mA
Power dissipation	1.5 W
Power consumption	max. 1.7 W
Connection side	field side
Connection	terminals 4+, 6-
Open circuit voltage/short-circuit current	approx. 8.4 V DC / approx. 11.7 mA
Lead resistance	max. 50 Ω , cable capacitances and inductances must be observed in hazardous areas
Switching point	Switching point
Relay de-energizedI < 2.1 mA and I > 5.9 mA , output switched offRelay energized2.8 mA < I < 5.3 mA , output switched on	Relay de-energizedI < 2.1 mA and I > 5.9 mA , output switched offRelay energized2.8 mA < I < 5.3 mA , output switched on
Response delay	≤ 1 ms
Relay de-energized	I < 2.1 mA and I > 5.9 mA , output switched off
Relay energized	2.8 mA < I < 5.3 mA , output switched on
Connection side	control side

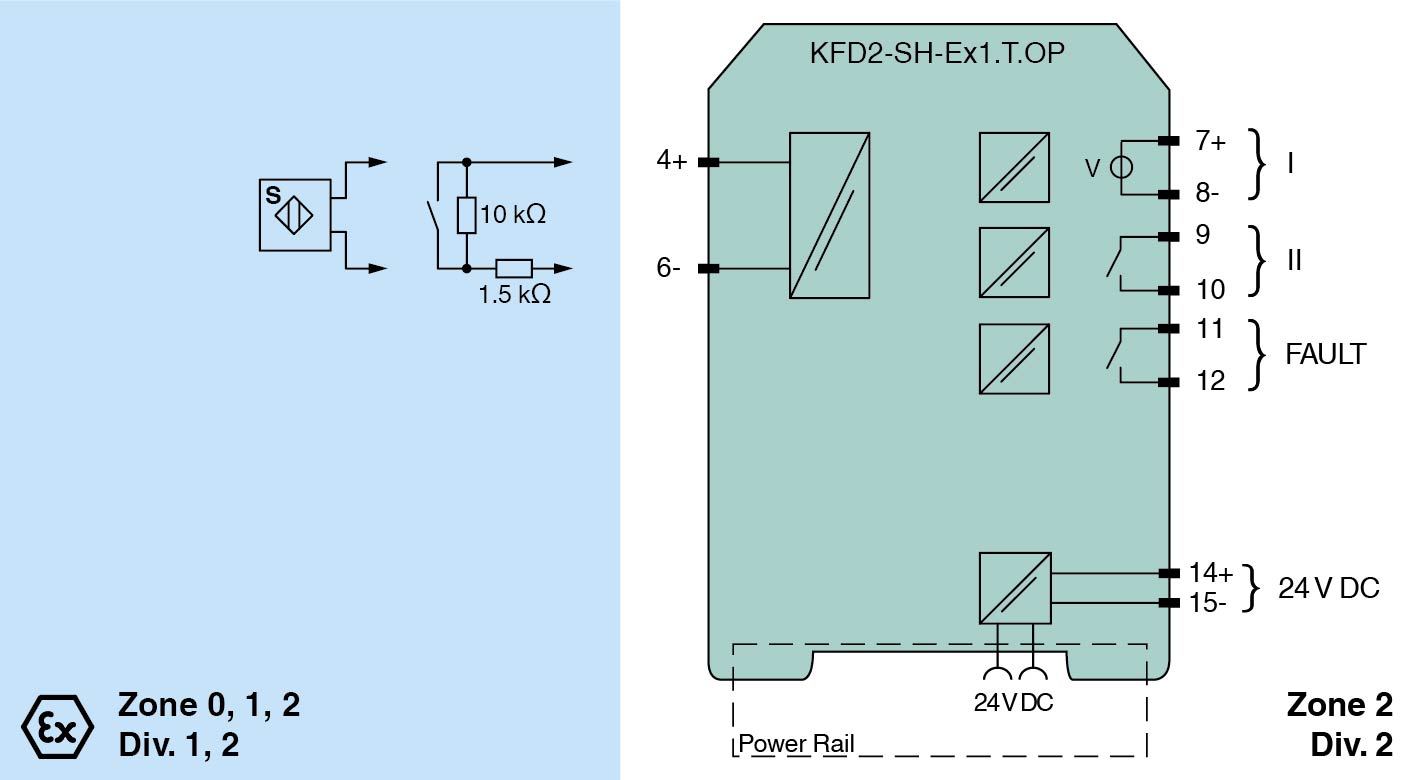

Connection	output I: terminals 7+, 8- ; output II: terminals 9, 10 ; output III: terminals 11, 12
Output I	active voltage output, short-circuit proof 0-signal: 0 V1-signal: 19 V DC at 15 mA ... 31 V DC at no-load fault: 0 V
Output II	relay
Contact loading48 V AC/DC 250 mAMechanical life≤ 20 x 106 switching cycles	Contact loading48 V AC/DC 250 mAMechanical life≤ 20 x 106 switching cycles
Output III	relay , fault signal
Contact loading48 V AC/DC 250 mAMechanical life≤ 20 x 106 switching cycles	Contact loading48 V AC/DC 250 mAMechanical life≤ 20 x 106 switching cycles
Contact loading	48 V AC/DC 250 mA
Mechanical life	≤ 20 x 106 switching cycles
Contact loading	48 V AC/DC 250 mA
Mechanical life	≤ 20 x 106 switching cycles
Switching frequency	Switching frequency
Output I≤ 50 HzOutput II≤ 5 HzOutput III≤ 5 Hz	Output I≤ 50 HzOutput II≤ 5 HzOutput III≤ 5 Hz
Output I	≤ 50 Hz
Output II	≤ 5 Hz
Output III	≤ 5 Hz
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Machinery Directive	Machinery Directive
Directive 2006/42/ECEN/ISO 13849-1:2015	Directive 2006/42/ECEN/ISO 13849-1:2015
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2006/42/EC	EN/ISO 13849-1:2015
Electromagnetic compatibility	NE 21:2017 , EN 61326-3-2:2008
Degree of protection	IEC 60529:2001
Safety	IEC/EN 61508:2010
Ambient temperature	-20 ... 70 °C (-4 ... 158 °F) extended ambient temperature range up to 70 °C (158 °F) , refer to manual and derating characteristics in the datasheet for necessary mounting conditions
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	PTB 00 ATEX 2041
Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIICInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic)	Marking II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIICInputEx iaVoltageUo9.56 VCurrentIo16.8 mAPowerPo41 mW (linear characteristic)
Supply	Supply
Maximum safe voltageUm40 V AC/DC (Attention! The rated voltage can be lower.)	Maximum safe voltageUm40 V AC/DC (Attention! The rated voltage can be lower.)
Output	Output
Contact loading48 V AC/DC 250 mAMaximum safe voltageUm60 V AC/DC (Attention! The rated voltage can be lower.)	Contact loading48 V AC/DC 250 mAMaximum safe voltageUm60 V AC/DC (Attention! The rated voltage can be lower.)
Certificate	TÜV 99 ATEX 1493 X
Marking II 3G Ex ec nC IIC T4 Gc	Marking II 3G Ex ec nC IIC T4 Gc
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
Marking	II (1)G [Ex ia Ga] IIC , [exsign] II (1)D [Ex ia Da] IIIC
Input	Ex ia
Voltage	9.56 V
Current	16.8 mA
Power	41 mW (linear characteristic)
Maximum safe voltage	40 V AC/DC (Attention! The rated voltage can be lower.)
Contact loading	48 V AC/DC 250 mA
Maximum safe voltage	60 V AC/DC (Attention! The rated voltage can be lower.)
Marking	II 3G Ex ec nC IIC T4 Gc
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
IECEx approval	IECEx approval
IECEx certificateIECEx PTB 21.0010 IECEx TUN 19.0013XIECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC Ex ec nC IIC T4 Gc	IECEx certificateIECEx PTB 21.0010 IECEx TUN 19.0013XIECEx marking[Ex ia Ga] IIC [Ex ia Da] IIIC Ex ec nC IIC T4 Gc
IECEx certificate	IECEx PTB 21.0010 IECEx TUN 19.0013X
IECEx marking	[Ex ia Ga] IIC [Ex ia Da] IIIC Ex ec nC IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
