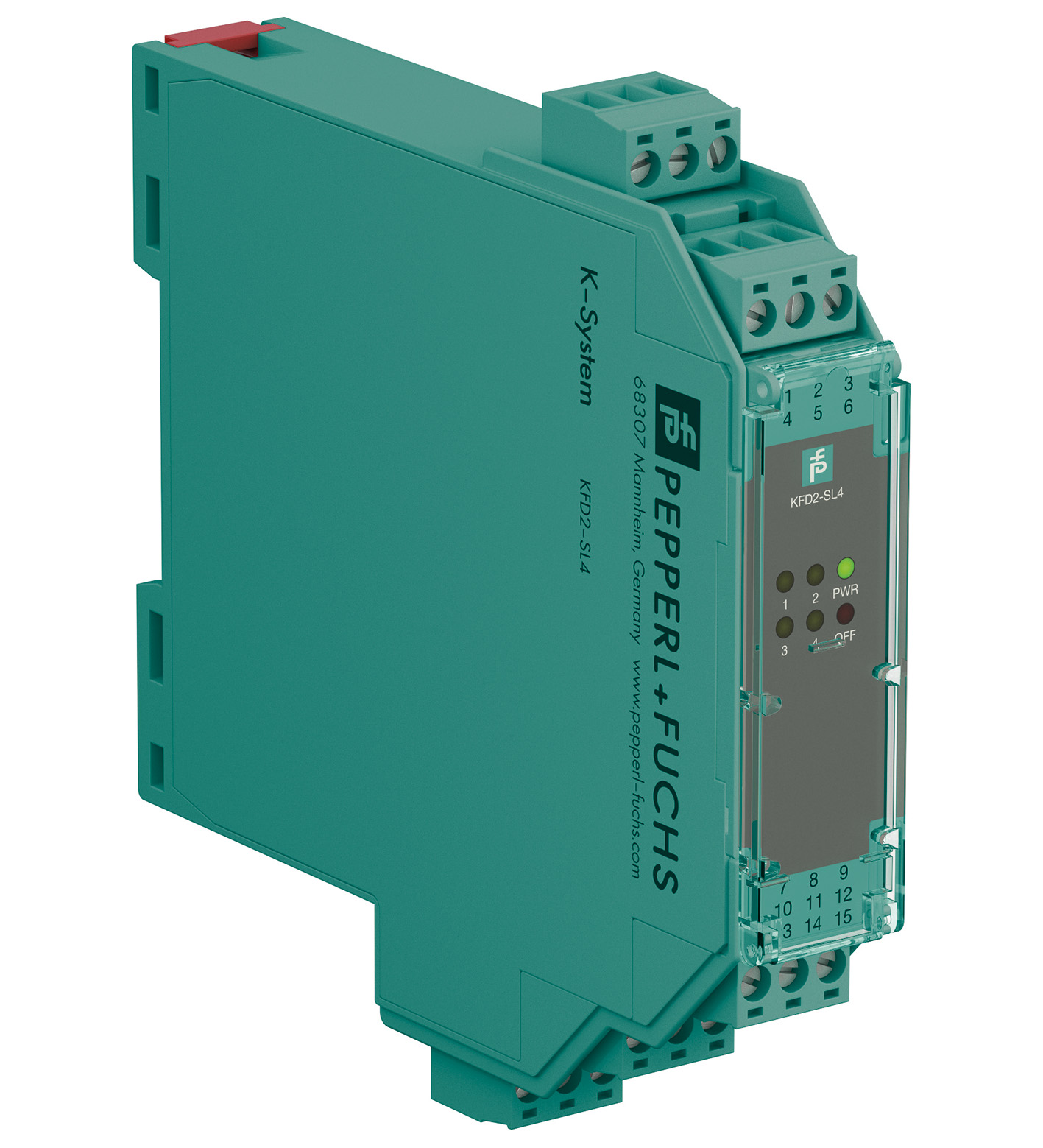

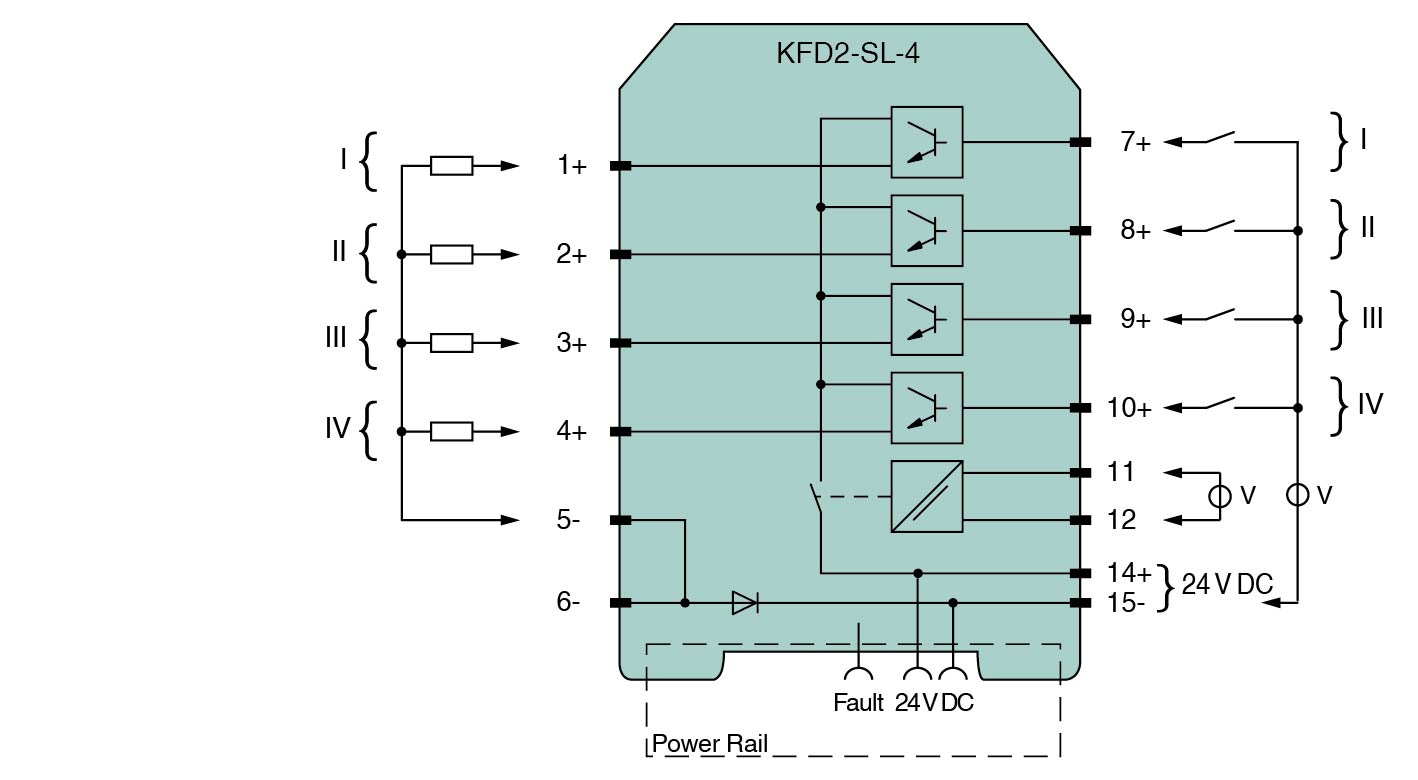

KFD2-SL-4 Solenoid Driver, Power Amplifier

订货号: 112730
产品分类: K 系统（DIN 导轨安装，功能强大）

Solenoid Driver, Power Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 2
Connection	Power Rail or terminals 14+, 15-
Rated voltage	20 ... 30 V DC
Undervoltage switching-off	≤ 18 V DC
Quiescent current indication	< 50 mA at 24 V DC
Power dissipation	< 2 W supply voltage 30 V, all outputs loaded with 600 mA
Connection side	control side
Connection	Terminals 7+, 8+, 9+, 10+, 15-
Input current	approx. 2 mA at 24 V DC
Signal level	0-signal: 0 ... 5 V DC 1-signal: 16 ... 30 V
Connection	terminals 11, 12
Input current	≤ 50 mA at 24 V, depolarized currentless state: downscale of the outputs
Switch on	min. 15 V
Switch off	max. 5 V
Connection side	field side
Current	≤ 600 mA
Voltage	typ. 23.8 V
Open loop voltage	24 V DC
Connection	terminals 1+, 2+, 3+, 4+, 5-, 6-
Switching frequency	1 kHz
Output current	600 mA per channel , sustained short-circuit proof and overload-proof
Off-state current	< 1 mA at 24 V DC
Line fault detection	lead breakage: ≤ 4 mA
Common disable/input and outputs	basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 Veff
Display elements	LEDs
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2011
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
