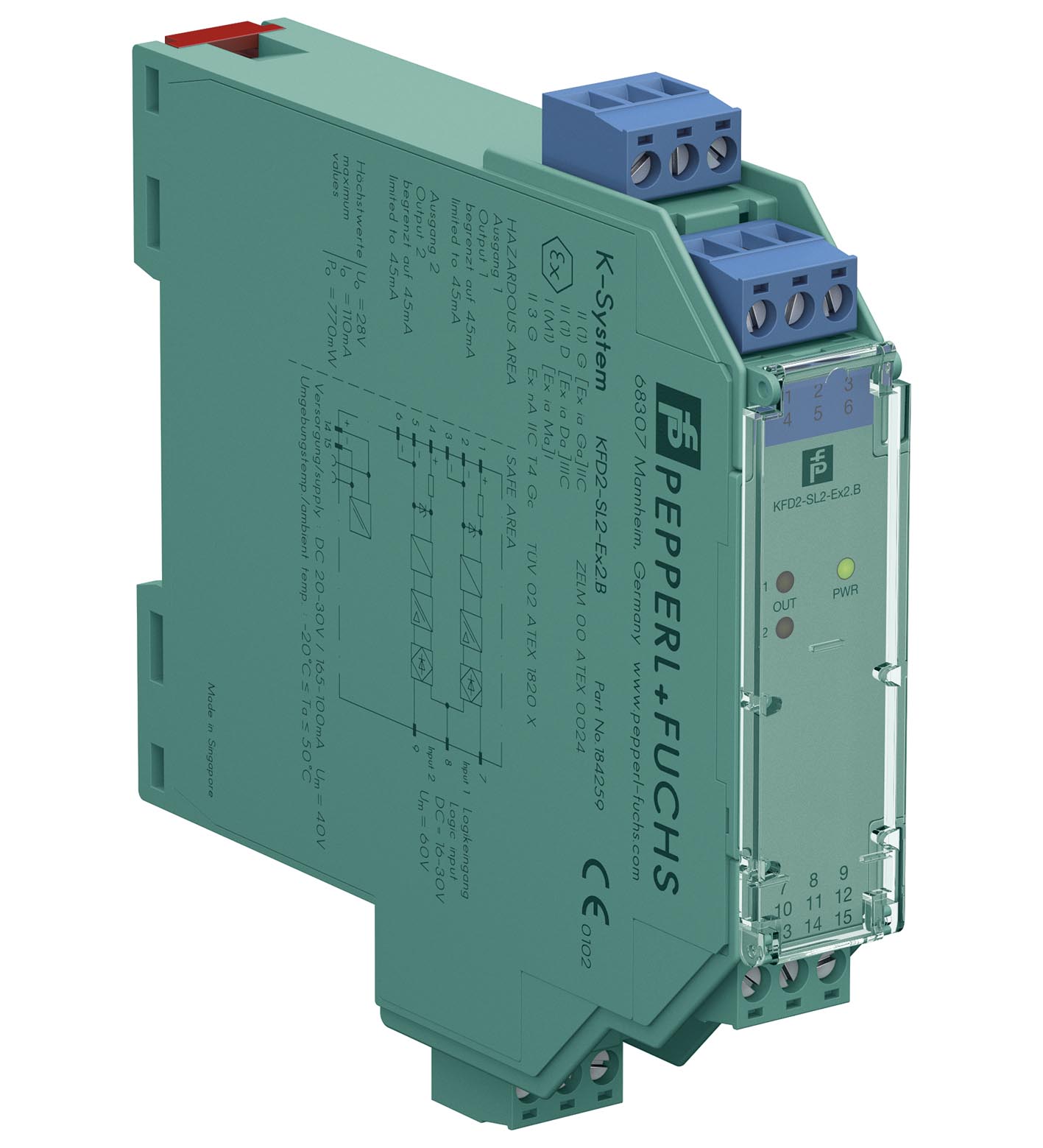

产品数据表
Datasheet
可下载打开资料
TECHNICAL DATA
规格参数
General specifications
| Signal type | Digital Output |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |
| Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 20 ... 30 V DC |
| Power consumption | max. 3.3 W at 45 mA output current |
| Connection side | control side |
| Connection | terminals 7, 8, 9 |
| Input current | approx. 3 mA at 24 V DC |
| Signal level | 1-signal: 16 ... 30 V DC 0-signal: 0 ... 5 V DC |
| Connection side | field side |
| Internal resistor | 272 Ω |
| Current | ≤ 45 mA |
| Voltage | ≥ 11.7 V |
| Open loop voltage | min. 24 V |

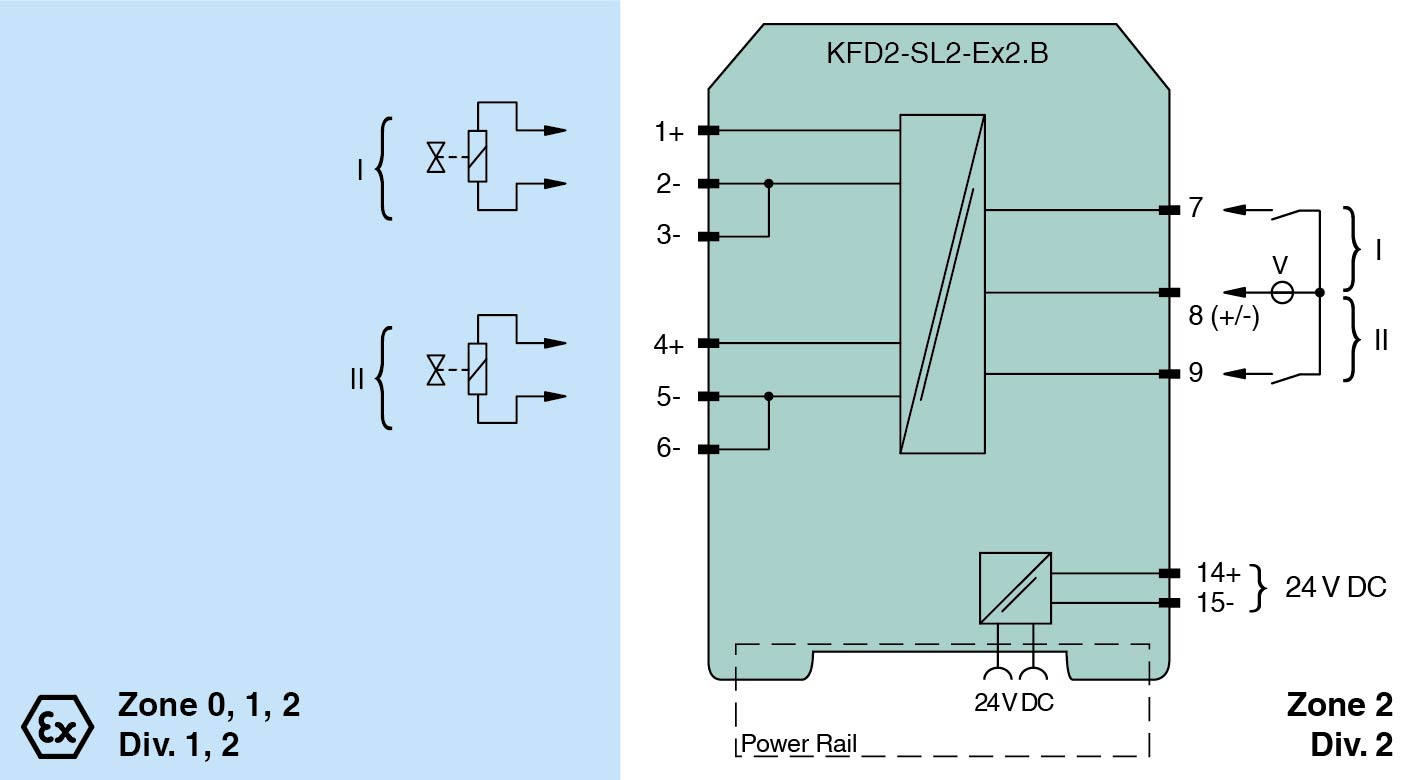

| Connection | terminals 1+, 2-, 3- channel 1 ,terminals 4+, 5-, 6- channel 2 |
| Output current | 45 mA |
| Output signal | These values are valid for the rated operating voltages from 20 ... 30 V DC. |
| Energized/De-energized delay | ≤ 20 ms / ≤ 20 ms |
| Input/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Input/power supply | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Power supply/Output | reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff |
| Display elements | LEDs |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | EN 61010-1:2010 |
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 150 g |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2 |
| Height119 mmWidth20 mmDepth115 mm | Height119 mmWidth20 mmDepth115 mm |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Height | 119 mm |
| Width | 20 mm |
| Depth | 115 mm |
| EU-type examination certificate | ZELM 00 ATEX 0024 |
| Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUo28 VCurrentIo110 mAPowerPo770 mW (linear characteristic) | Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx iaVoltageUo28 VCurrentIo110 mAPowerPo770 mW (linear characteristic) |
| Supply | Supply |
| Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) |
| Input | Input |
| Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.) |
| Collective error message | Collective error message |
| Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) | Maximum safe voltageUm40 V (Attention! The rated voltage can be lower.) |
| Certificate | TÜV 02 ATEX 1820 X |
| Marking II 3G Ex nA IIC T4 Gc | Marking II 3G Ex nA IIC T4 Gc |
| Galvanic isolation | Galvanic isolation |
| Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V | Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive conformity | Directive conformity |
| Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 | Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 |
| Marking | II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I |
| Output | Ex ia |
| Voltage | 28 V |
| Current | 110 mA |
| Power | 770 mW (linear characteristic) |
| Maximum safe voltage | 40 V (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 60 V (Attention! The rated voltage can be lower.) |
| Maximum safe voltage | 40 V (Attention! The rated voltage can be lower.) |
| Marking | II 3G Ex nA IIC T4 Gc |
| Input/Output | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Output/power supply | safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V |
| Directive 2014/34/EU | EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010 , EN 50303:2000 |
| CSA approval | CSA approval |
| Control drawing116-0304 | Control drawing116-0304 |
| IECEx approval | IECEx approval |
| IECEx certificateIECEx TUN 04.0001IECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I | IECEx certificateIECEx TUN 04.0001IECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
| Control drawing | 116-0304 |
| IECEx certificate | IECEx TUN 04.0001 |
| IECEx marking | [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
