KFD2-SLD-Ex1.13100

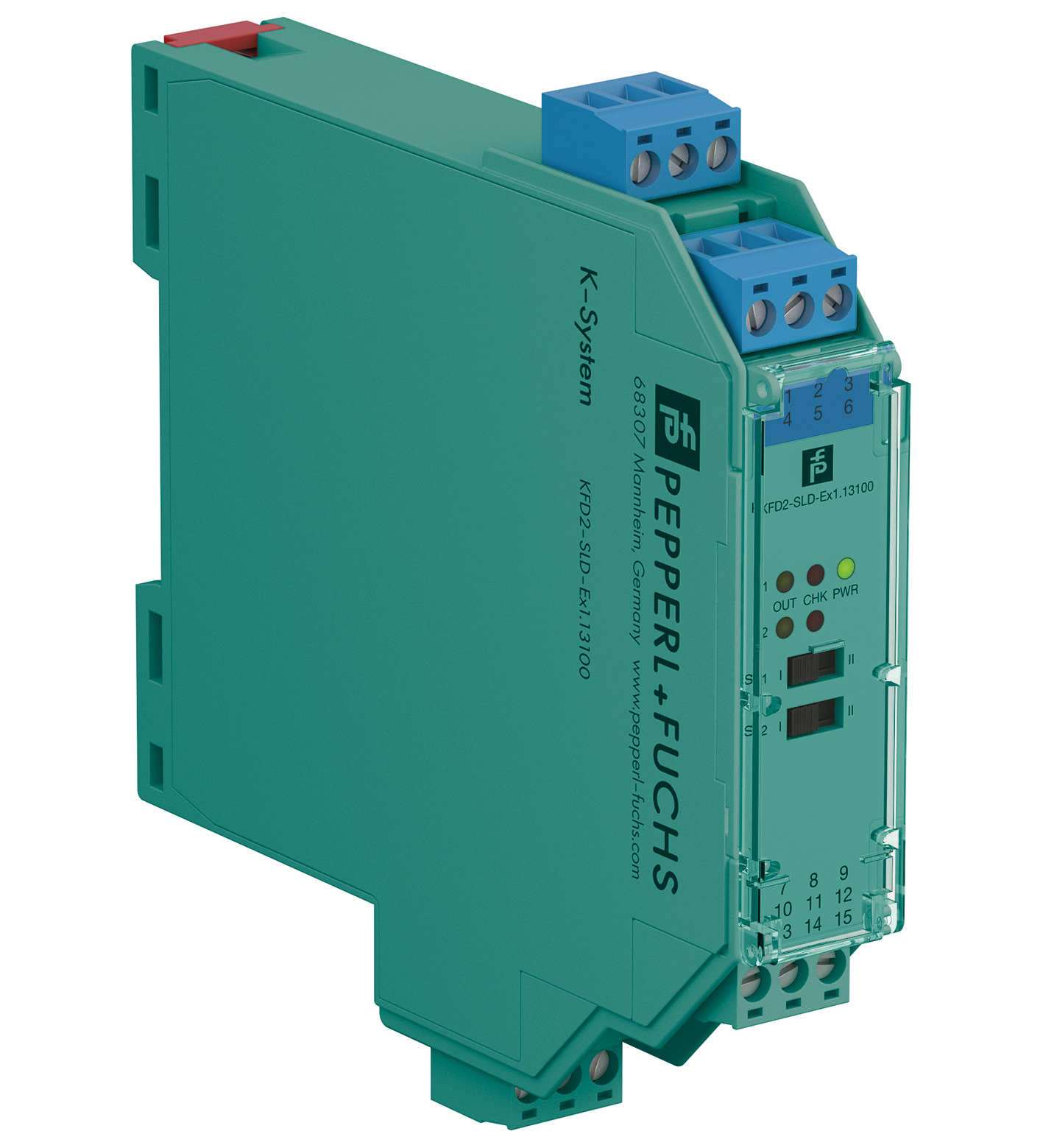

KFD2-SLD-Ex1.13100 Solenoid Driver

订货号: 243753
产品分类: K 系统（DIN 导轨安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Safety Integrity Level (SIL)	SIL 3
Systematic capability (SC)	SC 3
Connection	Power Rail or terminals 14+, 15-
Rated voltage	19 ... 30 V DC loop powered
Input current	115 mA at 24 V , 130 Ω load
Power dissipation	1.5 W at 24 V , 130 Ω load
Connection side	control side

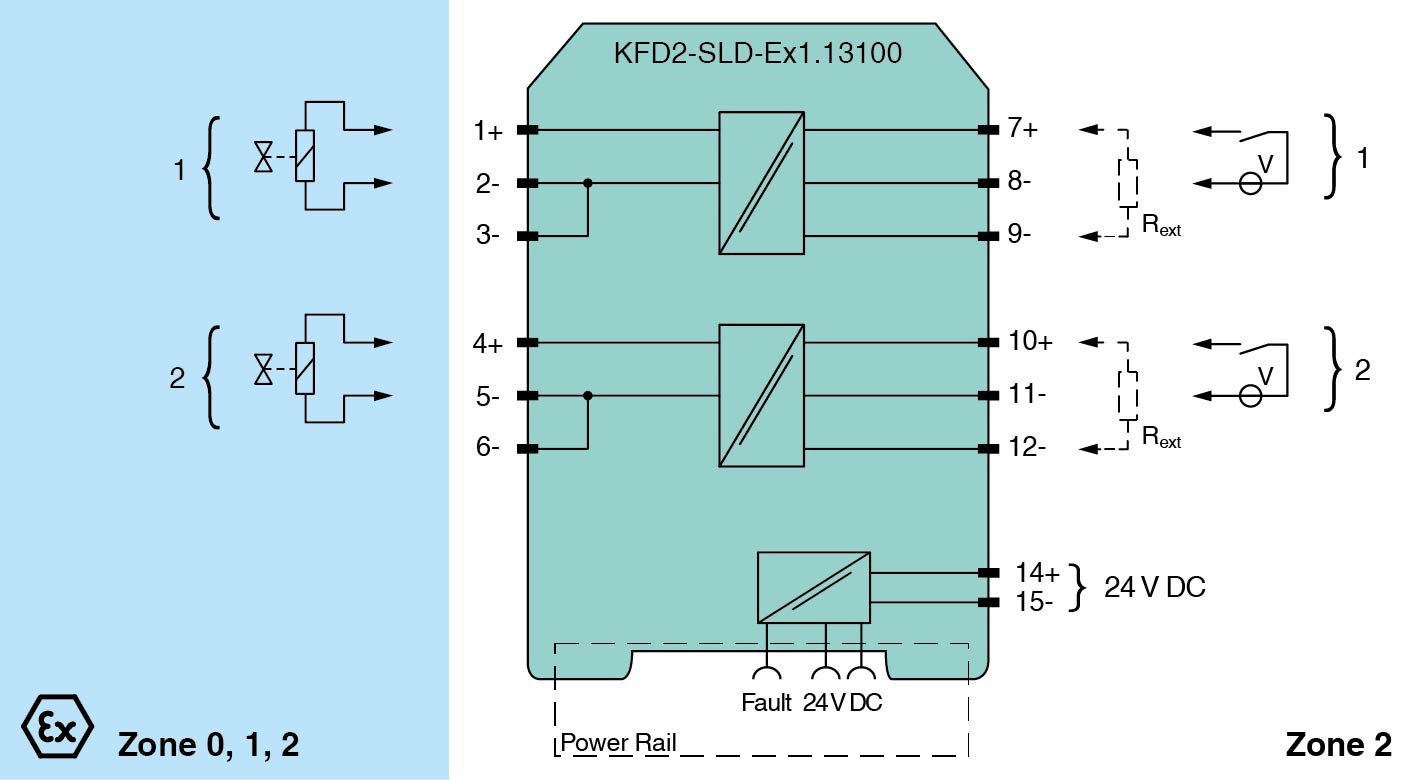

Connection	input 1: terminals 7+, 8- , optional Rext between terminals 7 and 9 input 2: terminals 10+, 11- , optional Rext between terminals 10 and 12
Test pulse length	max. 2 ms from DO card
Input current	approx. 6 mA at 24 V DC If necessary, the current value can be increased by resistor Rext.
Signal level	1-signal: 15 ... 30 V DC 0-signal: 0 ... 5 V DC
Connection side	field side
Connection	output 1: terminals 1+, 2-, 3 output 2: terminals 4+, 5-, 6-
Internal resistor	approx. 64 Ω
Current	typ. 100 mA
Voltage	≥ 13 V
Current limit	105 mA
Open loop voltage	typ. 19.2 V
Load	nominal 0.08 ... 1 kΩ
Switching frequency	max. 2 Hz
Energized/De-energized delay	30 ms / 30 ms
Input/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
Input/input	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
Output/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff
Output/other circuits	basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2011For further information see system description.
Degree of protection	IEC 60529:2001
Protection against electrical shock	EN 61010-1:2010
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 200 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	EXA 17 ATEX 0076X
Marking II 3(1)G Ex ec [ia IIB Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo22.2 VCurrentIo360 mAPowerPo1990 mW	Marking II 3(1)G Ex ec [ia IIB Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IVoltageUo22.2 VCurrentIo360 mAPowerPo1990 mW
Supply	Supply
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Input	Input
Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)	Maximum safe voltageUm60 V (Attention! The rated voltage can be lower.)
Galvanic isolation	Galvanic isolation
Output/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 VOutput/other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Output/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 VOutput/other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
Marking	II 3(1)G Ex ec [ia IIB Ga] IIC T4 Gc [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Voltage	22.2 V
Current	360 mA
Power	1990 mW
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Maximum safe voltage	60 V (Attention! The rated voltage can be lower.)
Output/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 60 V
Output/other circuits	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012
IECEx approval	IECEx approval
IECEx certificateIECEx EXA 17.0019XIECEx markingEx ec [ia IIB Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I	IECEx certificateIECEx EXA 17.0019XIECEx markingEx ec [ia IIB Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
IECEx certificate	IECEx EXA 17.0019X
IECEx marking	Ex ec [ia IIB Ga] IIC T4 Gc [Ex ia Da] IIIC [Ex ia Ma] I
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
