KFD2-SR2-Ex2.2S

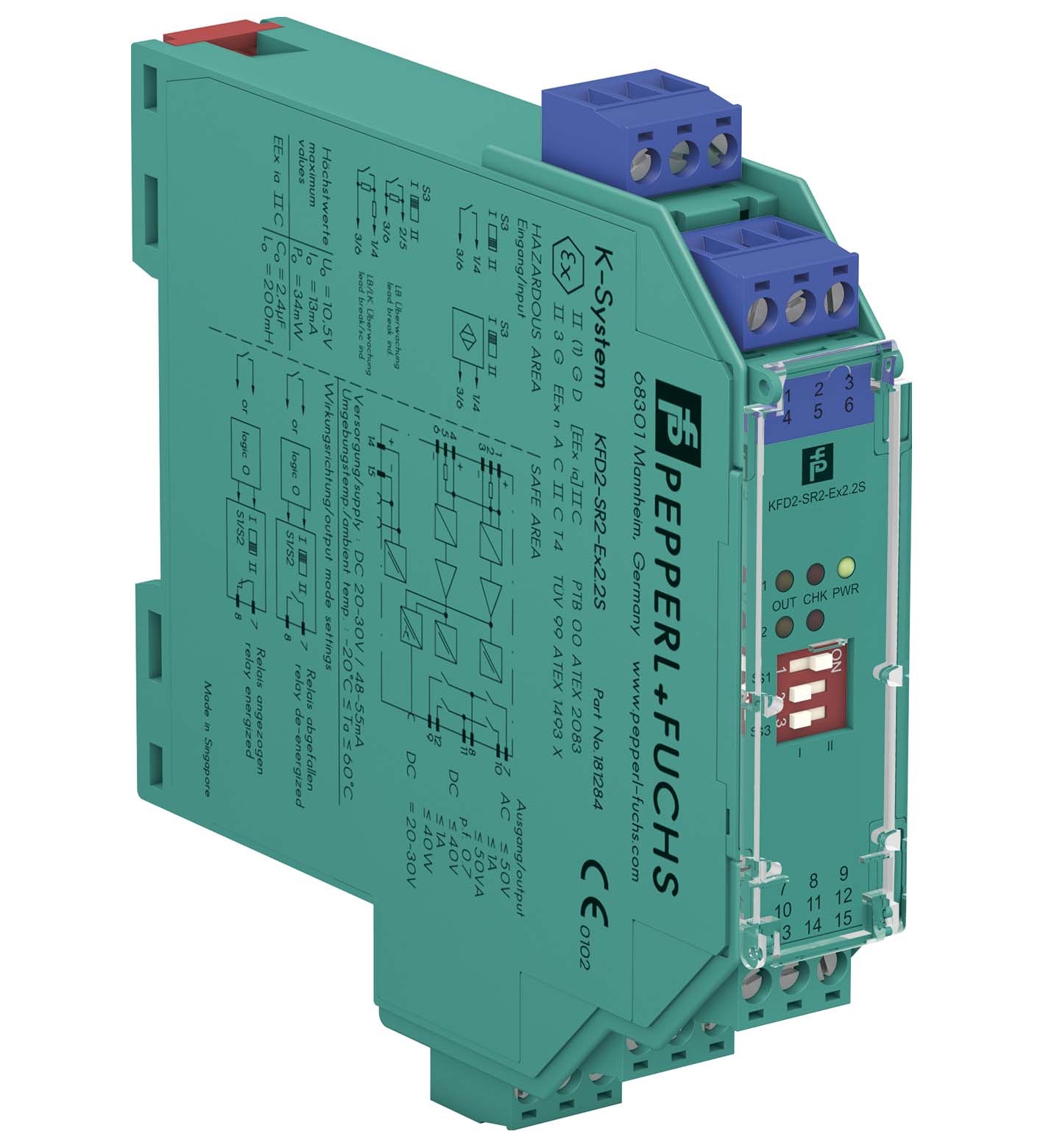

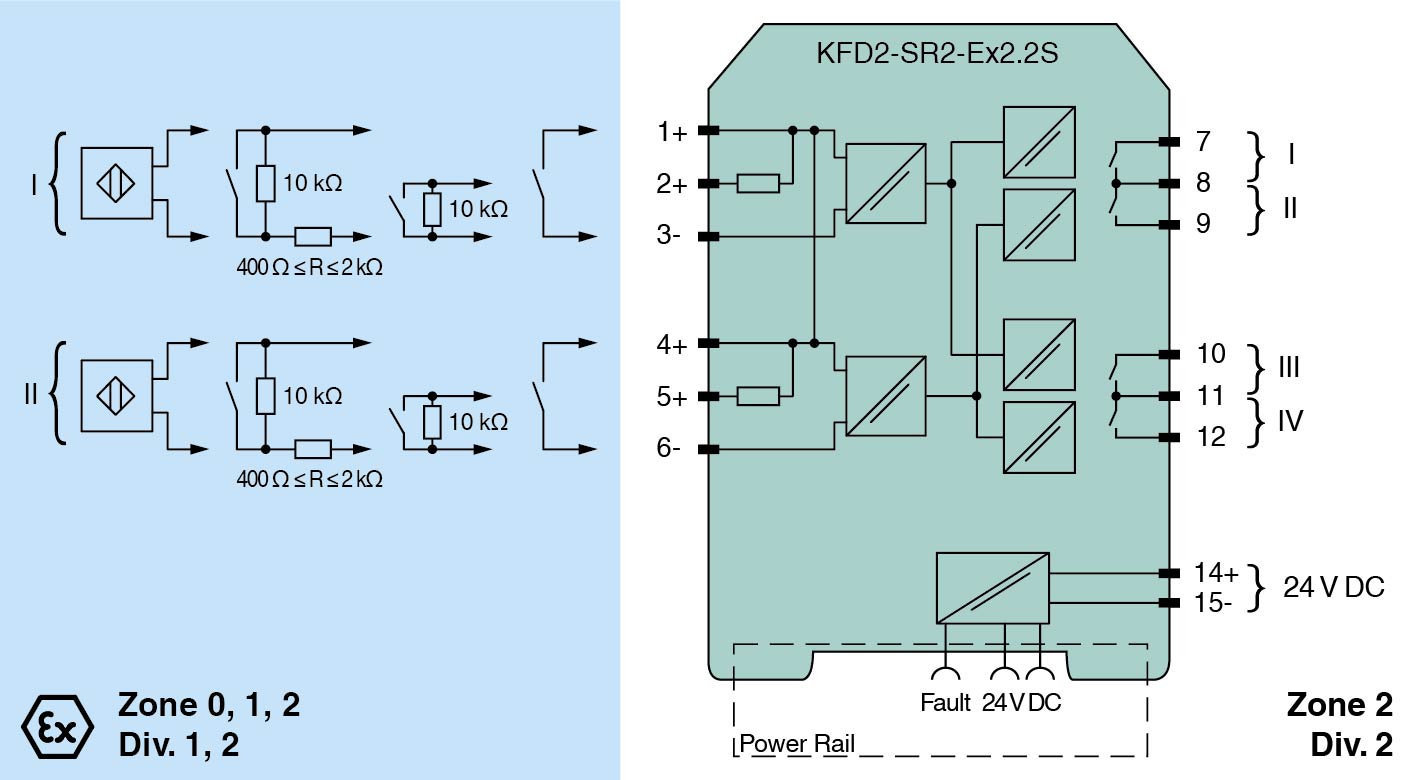

KFD2-SR2-Ex2.2S Switch Amplifier

订货号
181284
产品分类
K 系统（DIN 导轨安装）

Switch Amplifier

查看规格参数 资料与附件

TECHNICAL DATA

规格参数

General specifications
Signal typeDigital Input
Safety Integrity Level (SIL)SIL 2
ConnectionPower Rail or terminals 14+, 15-
Rated voltage20 ... 30 V DC
Ripple≤ 10 %
Rated current≤ 50 mA
Power dissipation1 W
Power consumption< 1.3 W
Connection sidefield side
Connectionterminals 1+, 2+, 3-; 4+, 5+, 6-
Rated valuesacc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit currentapprox. 8 V DC / approx. 8 mA
Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detectionbreakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratiomin. 20 ms / min. 20 ms
Connection sidecontrol side
Connectionoutput I: terminals 7, 8 ; output II: terminals 8, 9 ; output III: terminals 10, 11 ; output IV: terminals 11, 12
Output I, II, III, IVchannel 1, 2; relay
Contact loading50 V AC/1 A/cos φ > 0.7; 40 V DC/1 A resistive load
Minimum switch current1 mA / 24 V DC
Energized/De-energized delayapprox. 20 ms / approx. 20 ms
Mechanical life108 switching cycles
Collective error messagePower Rail
Switching frequency≤ 10 Hz
Input/Outputreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supplyreinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supplybasic insulation according to IEC/EN 61010-1, rated insulation voltage 32 Veff , functional insulation, rated insulation voltage 50 Veff
Output/Outputbasic insulation according to IEC/EN 61010-1, rated insulation voltage 32 Veff , functional insulation, rated insulation voltage 50 Veff
Display elementsLEDs
Control elementsDIP switch
Configurationvia DIP switches
Labelingspace for labeling at the front
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltageLow voltage
Directive 2014/35/EUEN 61010-1:2010Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/35/EUEN 61010-1:2010
Electromagnetic compatibilityNE 21:2004
Degree of protectionIEC 60529:2001
InputEN 60947-5-6:2000
Ambient temperature-20 ... 60 °C (-4 ... 140 °F)
Degree of protectionIP20
Connectionscrew terminals
Massapprox. 150 g
Dimensions20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mmHeight119 mmWidth20 mmDepth115 mm
Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
Height119 mm
Width20 mm
Depth115 mm
EU-type examination certificatePTB 00 ATEX 2083
Marking II (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2]InputEEx ia IICVoltageUo10.5 VCurrentIo13 mAPowerPo34 mW (linear characteristic)Marking II (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2]InputEEx ia IICVoltageUo10.5 VCurrentIo13 mAPowerPo34 mW (linear characteristic)
SupplySupply
Maximum safe voltageUm253 V AC / 125 V DC (Attention! Um is no rated voltage.)Maximum safe voltageUm253 V AC / 125 V DC (Attention! Um is no rated voltage.)
OutputOutput
Contact loading50 V AC/1 A/cos φ > 0.7; 40 V DC/1 A resistive loadMaximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.)Contact loading50 V AC/1 A/cos φ > 0.7; 40 V DC/1 A resistive loadMaximum safe voltageUm253 V AC (Attention! The rated voltage can be lower.)
CertificateTÜV 99 ATEX 1493 X
Marking II 3G Ex ec nC IIC T4 GcMarking II 3G Ex ec nC IIC T4 Gc
Galvanic isolationGalvanic isolation
Input/inputnot availableInput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/inputnot availableInput/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
MarkingII (1)GD [EEx ia] IIC [circuit(s) in zone 0/1/2]
InputEEx ia IIC
Voltage10.5 V
Current13 mA
Power34 mW (linear characteristic)
Maximum safe voltage253 V AC / 125 V DC (Attention! Um is no rated voltage.)
Contact loading50 V AC/1 A/cos φ > 0.7; 40 V DC/1 A resistive load
Maximum safe voltage253 V AC (Attention! The rated voltage can be lower.)
MarkingII 3G Ex ec nC IIC T4 Gc
Input/inputnot available
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EUEN IEC 60079-0:2018 , EN 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN IEC 60079-15:2019
FM approvalFM approval
FM certificateFM19US0207XControl drawing116-0035FM certificateFM19US0207XControl drawing116-0035
CSA approvalCSA approval
Control drawing116-0047Control drawing116-0047
IECEx approvalIECEx approval
IECEx certificateIECEx TUN 19.0013XIECEx markingEx ec nC IIC T4 GcIECEx certificateIECEx TUN 19.0013XIECEx markingEx ec nC IIC T4 Gc
FM certificateFM19US0207X
Control drawing116-0035
Control drawing116-0047
IECEx certificateIECEx TUN 19.0013X
IECEx markingEx ec nC IIC T4 Gc
Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
