倍加福

KFD2-SR3-2.2S

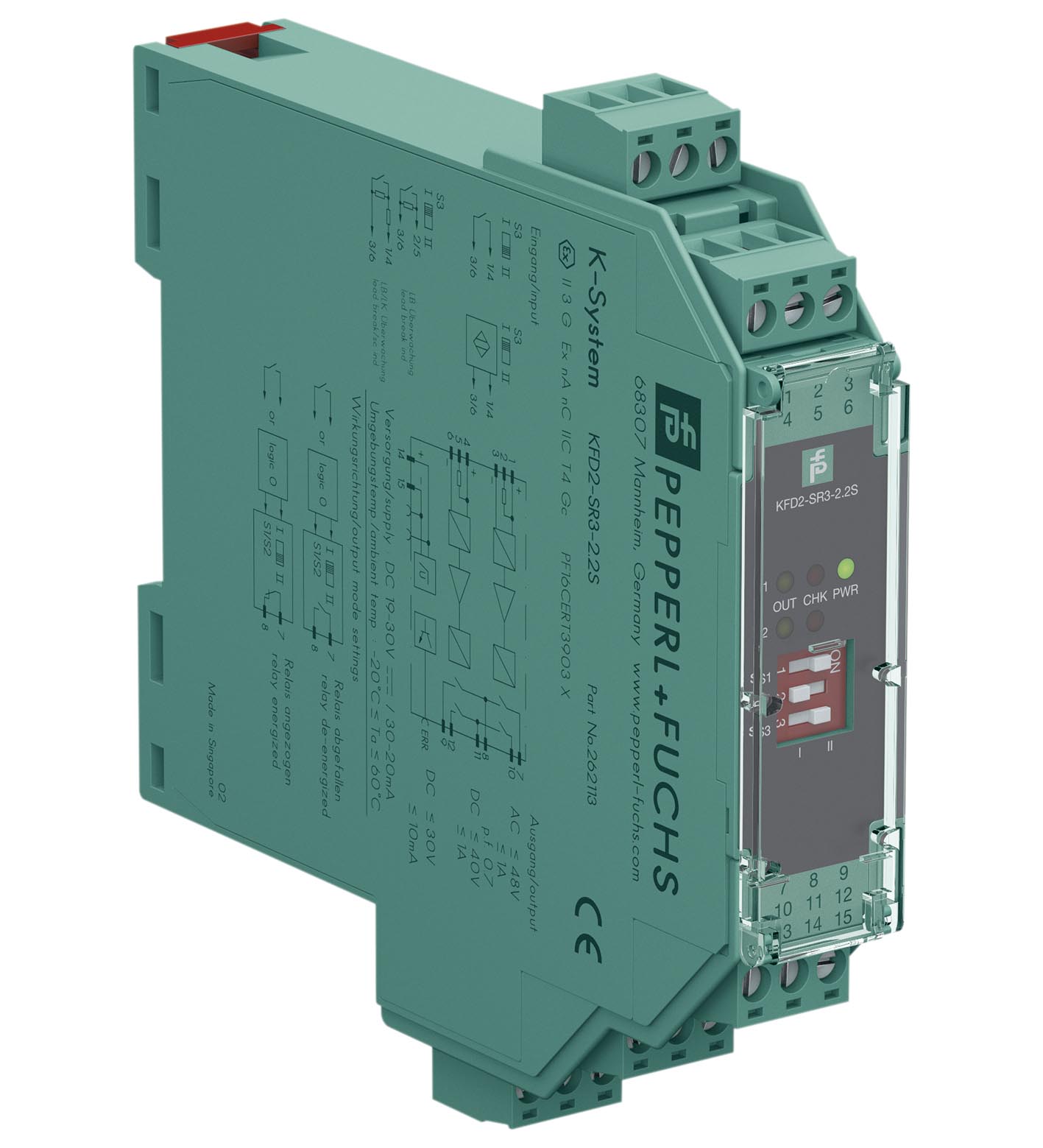

KFD2-SR3-2.2S Switch Amplifier

订货号: 262113
产品分类: K 系统（DIN 导轨安装，功能强大）

Switch Amplifier

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Input
Safety Integrity Level (SIL)	SIL 2
Connection	Power Rail or terminals 14+, 15-
Rated voltage	19 ... 30 V DC
Ripple	≤ 10 %
Rated current	30 ... 20 mA
Power consumption	< 600 mW
Connection side	field side

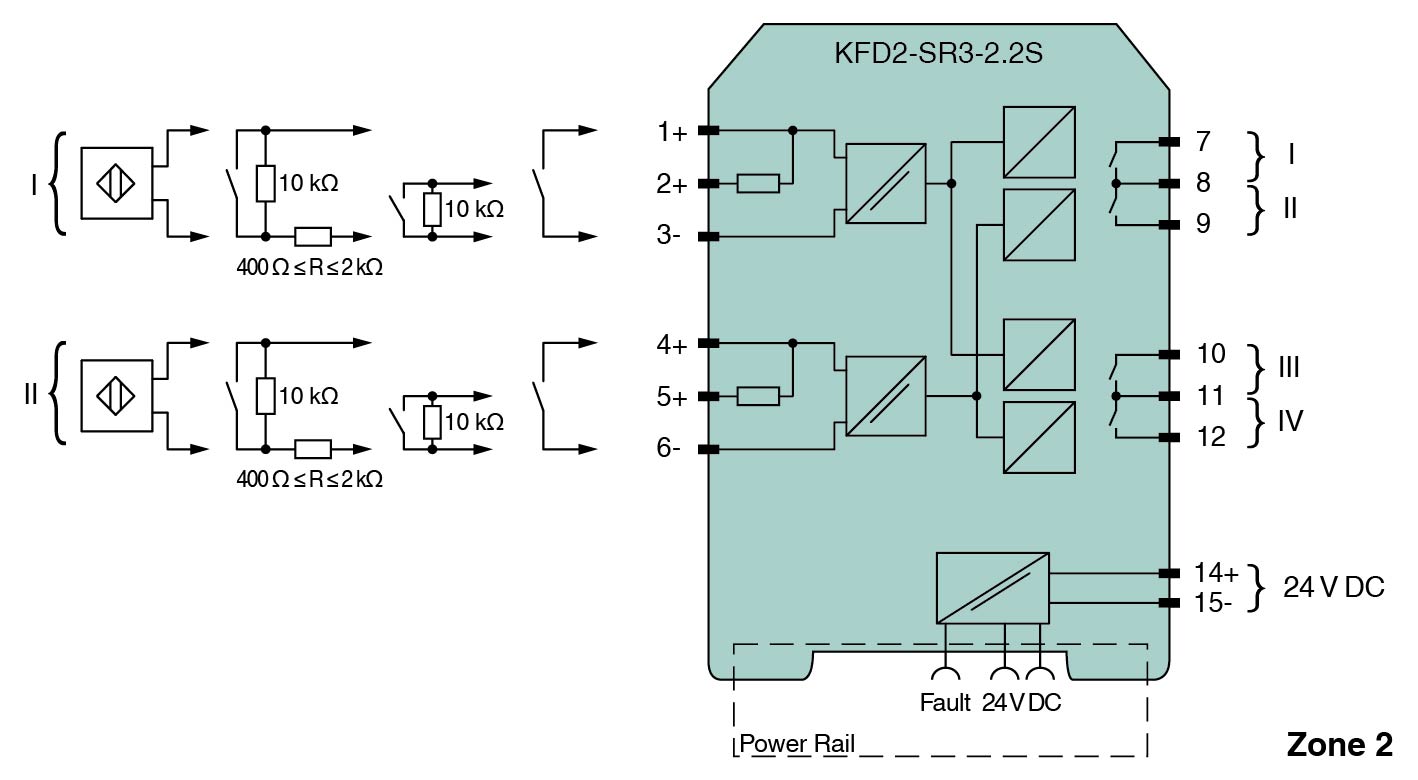

Connection	terminals 1+, 2+, 3-; 4+, 5+, 6-
Rated values	acc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit current	approx. 10 V DC / approx. 8 mA
Switching point/switching hysteresis	1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detection	breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA
Pulse/Pause ratio	min. 20 ms / min. 20 ms
Connection side	control side
Connection	output I: terminals 7, 8 ; output II: terminals 8, 9 ; output III: terminals 10, 11 ; output IV: terminals 11, 12
Output I, II, III, IV	channel 1, 2; relay
Contact loading	48 V AC/1 A/cos φ > 0.7; 40 V DC/1 A resistive load
Minimum switch current	1 mA / 24 V DC
Energized/De-energized delay	approx. 20 ms / approx. 20 ms
Mechanical life	108 switching cycles
Collective error message	Power Rail
Switching frequency	≤ 10 Hz
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	basic insulation according to IEC/EN 61010-1, rated insulation voltage 32 Veff , functional insulation, rated insulation voltage 50 Veff
Output/Output	basic insulation according to IEC/EN 61010-1, rated insulation voltage 32 Veff , functional insulation, rated insulation voltage 50 Veff
Display elements	LEDs
Control elements	DIP switch
Configuration	via DIP switches
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012 , EN 61326-3-2:2008
Degree of protection	IEC 60529:2001
Input	EN 60947-5-6:2000
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Certificate	PF 16 CERT 3903 X
Marking II 3G Ex nA nC IIC T4 Gc	Marking II 3G Ex nA nC IIC T4 Gc
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-15:2010
Marking	II 3G Ex nA nC IIC T4 Gc
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-15:2010
UL approval	E106378
IECEx approval	IECEx approval
IECEx certificateIECEx EXA 16.0001XIECEx markingEx nA nC IIC T4 Gc	IECEx certificateIECEx EXA 16.0001XIECEx markingEx nA nC IIC T4 Gc
IECEx certificate	IECEx EXA 16.0001X
IECEx marking	Ex nA nC IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
