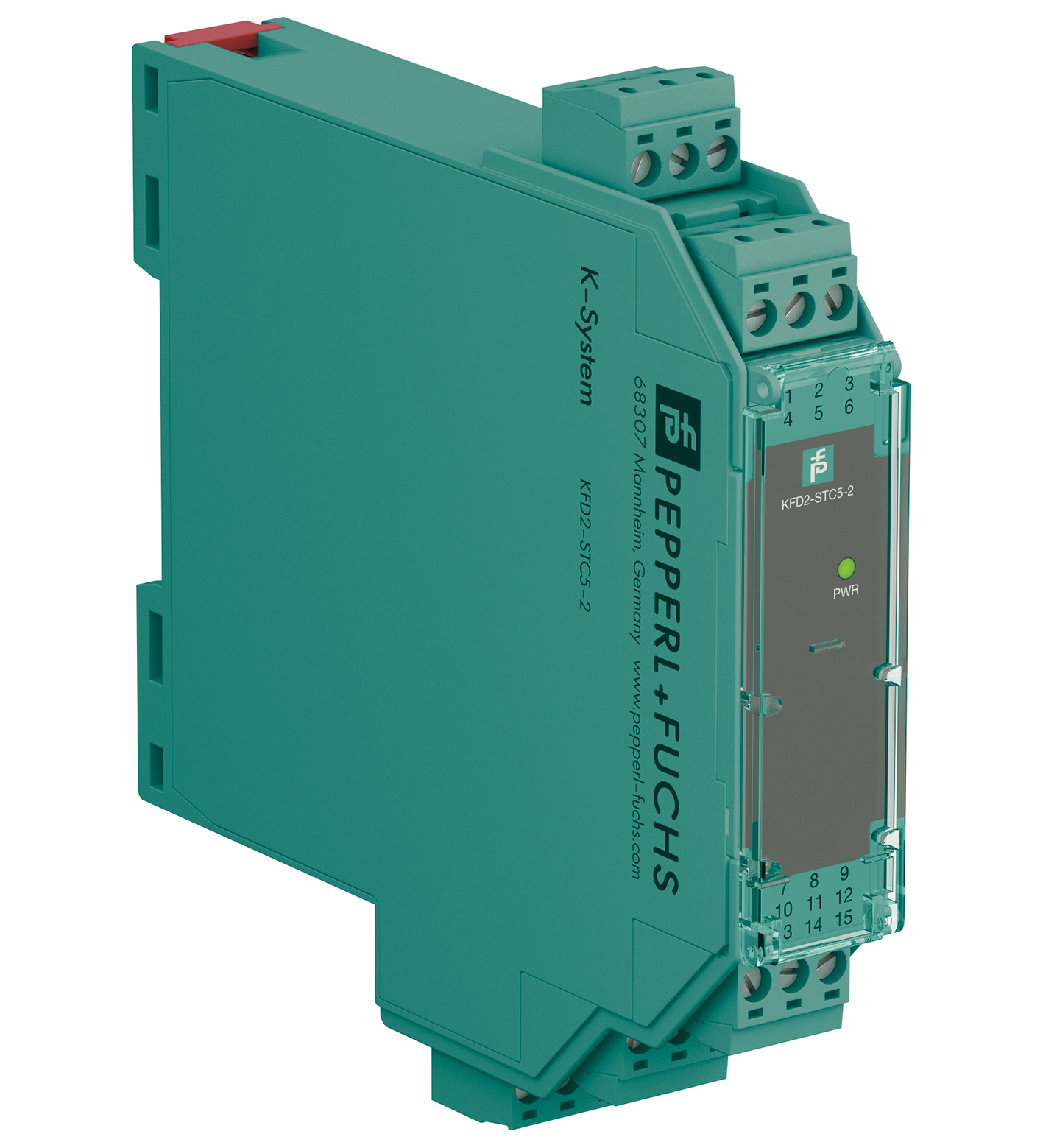

TECHNICAL DATA
规格参数
General specifications
| Signal type | Analog input |
|---|---|
| Safety Integrity Level (SIL) | SIL 2 |

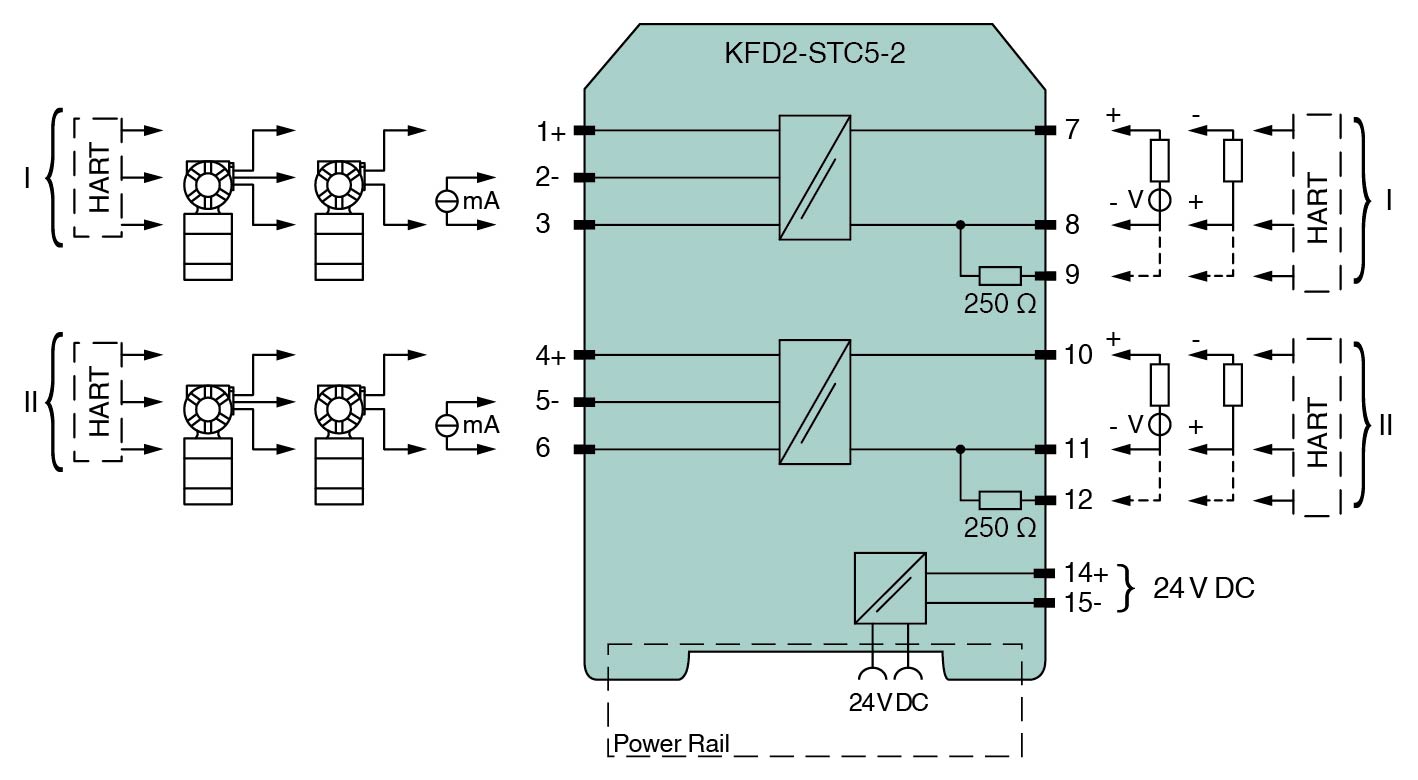

| Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 18 ... 30 V DC |
| Ripple | within the supply tolerance |
| Power dissipation | ≤ 1.4 W at maximum load |
| Power consumption | ≤ 2.6 W at maximum load |
| Connection side | field side |
| Connection | terminals 1+, 2-, 3; 4+, 5-, 6 |
| Input signal | 4 ... 20 mA |
| Open circuit voltage/short-circuit current | terminals 1+, 3; 4+, 6: 23 V / 25 mA |
| Input resistance | max. 265 Ω terminals 2-, 3; 5-, 6 , max. 330 Ω terminals 1+, 3; 4+, 6 |
| Available voltage | ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3; 4+, 6 |
| Connection side | control side |
| Connection | terminals 7+, 8-, 9-; 10+, 11-, 12- (sink)terminals 7-, 8+, 9+; 10-, 11+, 12+ (source) see additional information |
| Load | 0 ... 600 Ω |
| Output signal | 4 ... 20 mA (overload > 25 mA) |
| Ripple | max. 50 µA rms |
| External supply (loop) | 2 ... 30 V DC If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage. The internal 250 Ω resistor at terminals 9 and 12 can be used as a load. |
| Deviation | at 20 °C (68 °F), 4 ... 20 mA≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage |
| Influence of ambient temperature≤ 0.25 µA/K | Influence of ambient temperature≤ 0.25 µA/K |
| Frequency range | field side into the control side: band width with 1 Vpp signal 0 ... 7.5 kHz (-3 dB) safe area to hazardous area: band width with 1 VSS signal 0.3 ... 7.5 kHz (-3 dB) |
| Settling time | 500 µs |
| Rise time/fall time | 100 µs |
| Influence of ambient temperature | ≤ 0.25 µA/K |
| Input/Output | basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff |
| Input/power supply | basic insulation according to IEC 61010-1, rated insulation voltage 300 Veff |
| Output/power supply | functional insulation, rated insulation voltage 50 V AC |
| Output/Output | functional insulation, rated insulation voltage 50 V AC |
| Display elements | LED |
| Labeling | space for labeling at the front |
| Electromagnetic compatibility | Electromagnetic compatibility |
| Directive 2014/30/EUEN 61326-1:2013 (industrial locations) | Directive 2014/30/EUEN 61326-1:2013 (industrial locations) |
| Directive 2014/30/EU | EN 61326-1:2013 (industrial locations) |
| Electromagnetic compatibility | NE 21:2012 EN 61326-3-2:2008 |
| Degree of protection | IEC 60529:2001 |
| Protection against electrical shock | UL 61010-1:2012 |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 150 g |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2 |
| Mounting | on 35 mm DIN mounting rail acc. to EN 60715:2001 |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
