KFD2-STC5-Ex1.H

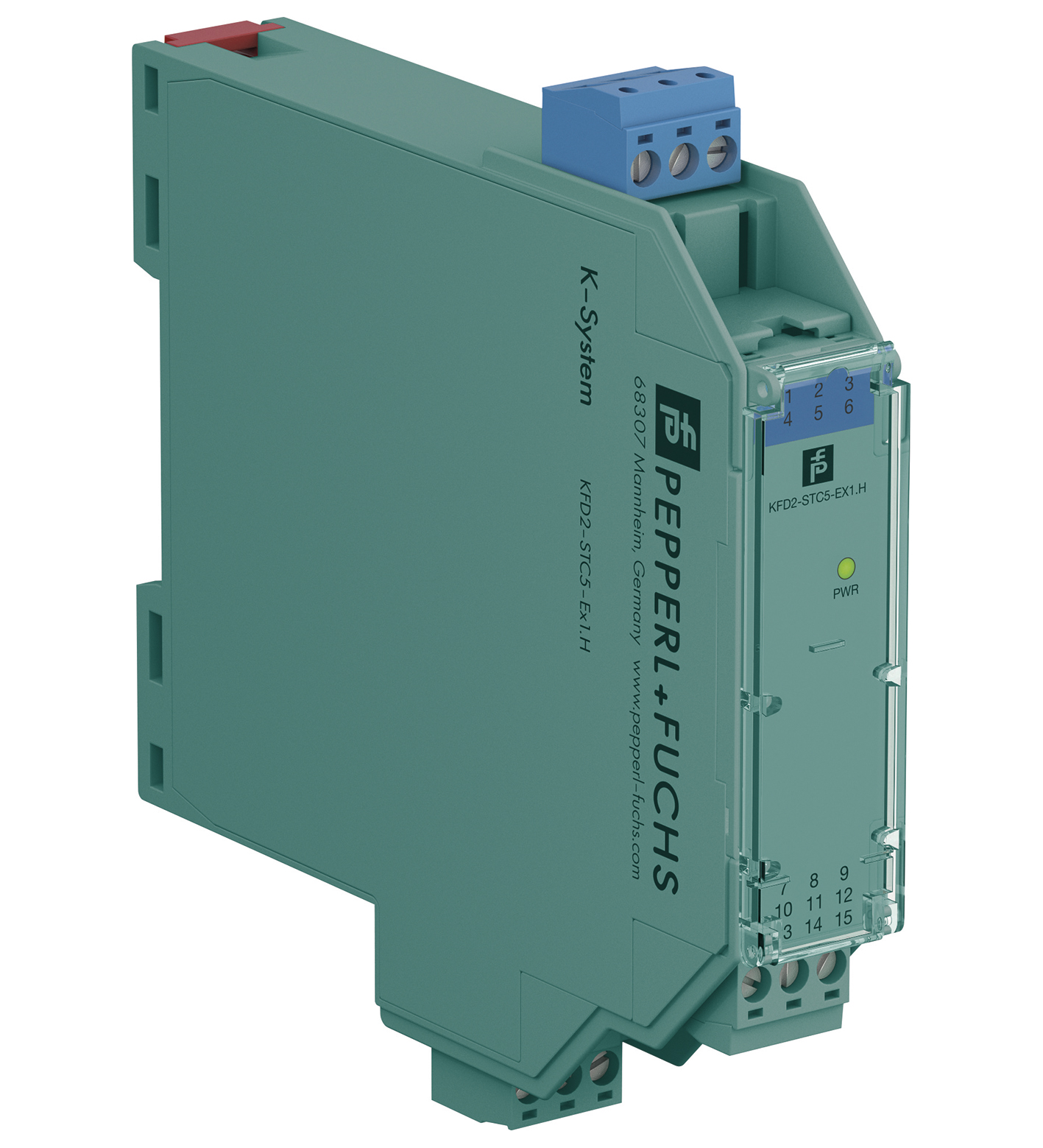

KFD2-STC5-Ex1.H SMART Transmitter Power Supply

订货号
239217
产品分类
K 系统（DIN 导轨安装）

SMART Transmitter Power Supply

查看规格参数 资料与附件

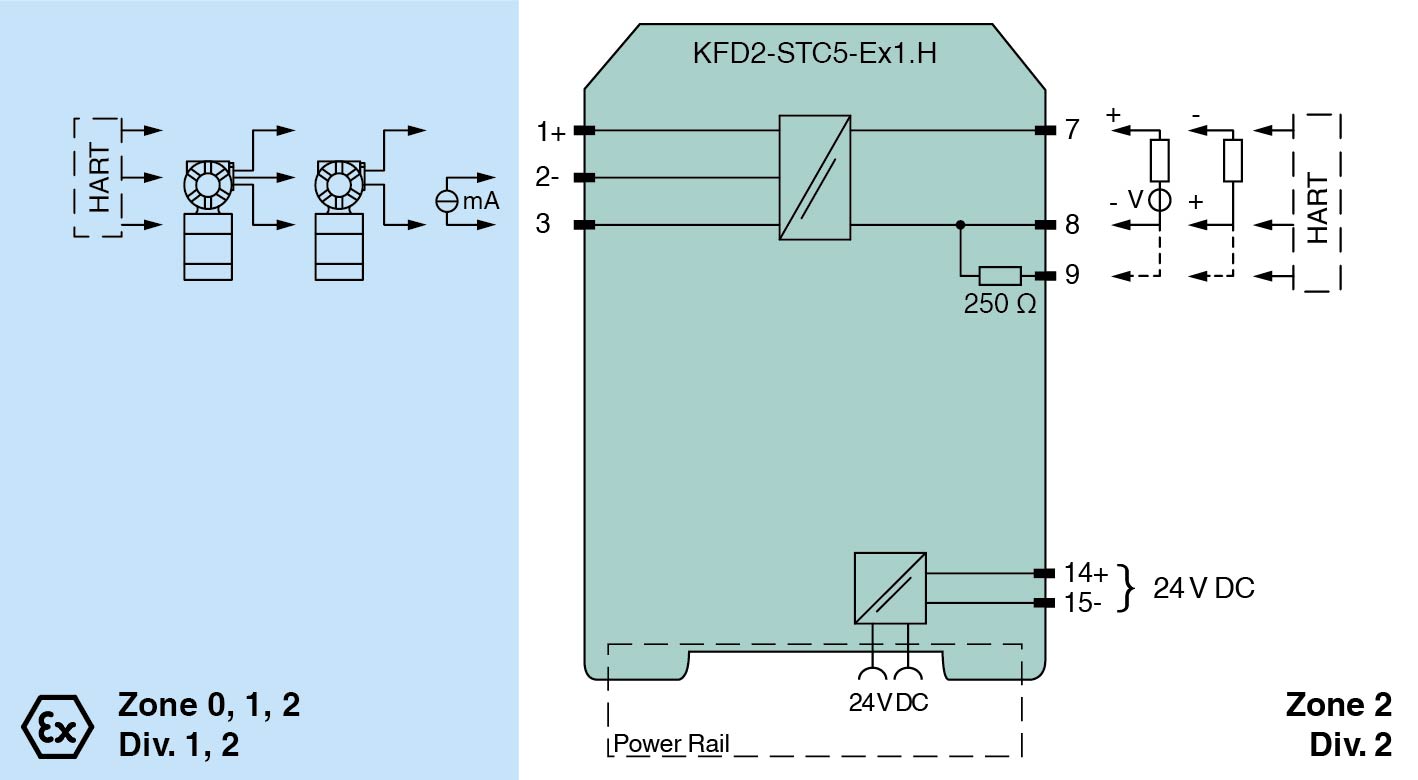

TECHNICAL DATA

规格参数

General specifications
Signal typeAnalog input
Safety Integrity Level (SIL)SIL 2
Systematic capability (SC)SC 3
ConnectionPower Rail or terminals 14+, 15-
Rated voltage18 ... 30 V DC
Ripplewithin the supply tolerance
Power dissipation≤ 1 W at maximum load
Power consumption≤ 1.6 W at maximum load
Connection sidefield side
Connectionterminals 1+, 2-, 3
Input signal4 ... 20 mA
Open circuit voltage/short-circuit currentterminals 1+, 3: 24 V / 25 mA
Input resistancemax. 265 Ω terminals 2-, 3 , max. 330 Ω terminals 1+, 3
Available voltage≥ 17 V at 20 mA ; ≥ 21 V at 4 mA , terminals 1+, 3
Connection sidecontrol side
Connectionterminals 7+, 8-, 9- (sink) terminals 7-, 8+, 9+ (source) see additional information
Load0 ... 800 Ω
Output signal4 ... 20 mA (overload > 25 mA)
Ripplemax. 50 µA rms
External supply (loop)2 ... 30 V DC If the external voltage is > 19 V, a load ≥ ((V - 19) / 0.02) Ω is required. V represents the value of the external voltage. The internal 250 Ω resistor at terminal 9 can be used as a load.
Deviationat 20 °C (68 °F), 4 ... 20 mA≤ 10 µA incl. calibration, linearity, hysteresis, loads and fluctuations of supply voltage
Influence of ambient temperature≤ 0.25 µA/KInfluence of ambient temperature≤ 0.25 µA/K
Frequency rangefield side into the control side: bandwidth with 0.5 Vpp signal 0 ... 7.5 kHz (-3 dB) control side into the field side: bandwidth with 0.5 Vpp signal 0.3 ... 7.5 kHz (-3 dB)
Settling time500 µs
Rise time/fall time100 µs
Influence of ambient temperature≤ 0.25 µA/K
Output/power supplyfunctional insulation, rated insulation voltage 50 V AC
Display elementsLED
Labelingspace for labeling at the front
Electromagnetic compatibilityElectromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Electromagnetic compatibilityNE 21:2012 EN 61326-3-2:2008
Degree of protectionIEC 60529:2001
Protection against electrical shockUL 61010-1:2012
Ambient temperature-20 ... 60 °C (-4 ... 140 °F) extended ambient temperature range up to 70 °C (158 °F), refer to manual for necessary mounting conditions
Degree of protectionIP20
Connectionscrew terminals
Massapprox. 200 g
Dimensions20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) (W x H x D) , housing type B2
Mountingon 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificateCML 17 ATEX 2029X
Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] IMarking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IInput[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
SupplySupply
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
Equipmentterminals 1+, 3-
VoltageUo27.2 VCurrentIo93 mAPowerPo633 mWInternal capacitanceCi5 nFInternal inductanceLi0 mHVoltageUo27.2 VCurrentIo93 mAPowerPo633 mWInternal capacitanceCi5 nFInternal inductanceLi0 mH
Equipmentterminals 2-, 3
VoltageUi30 VCurrentIi115 mAPowerPi1 WVoltageUo2 VCurrentIo8.5 mAPowerPo1.1 mWVoltageUi30 VCurrentIi115 mAPowerPi1 WVoltageUo2 VCurrentIo8.5 mAPowerPo1.1 mW
Equipmentterminals 1+, 2 / 3-
VoltageUo27.2 VCurrentIo115 mAPowerPo782 mWInternal capacitanceCi5 nFInternal inductanceLi0 mHVoltageUo27.2 VCurrentIo115 mAPowerPo782 mWInternal capacitanceCi5 nFInternal inductanceLi0 mH
OutputOutput
Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.)
CertificateCML 17 ATEX 3028X
Marking II 3G Ex ec IIC T4 GcMarking II 3G Ex ec IIC T4 Gc
Galvanic isolationGalvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 VInput/Outputsafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V
Directive conformityDirective conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN IEC 60079-11:2024Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN IEC 60079-11:2024
MarkingII (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I
Input[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I
Maximum safe voltage250 V (Attention! The rated voltage can be lower.)
Voltage27.2 V
Current93 mA
Power633 mW
Internal capacitance5 nF
Internal inductance0 mH
Voltage30 V
Current115 mA
Power1 W
Voltage2 V
Current8.5 mA
Power1.1 mW
Voltage27.2 V
Current115 mA
Power782 mW
Internal capacitance5 nF
Internal inductance0 mH
Maximum safe voltage250 V (Attention! The rated voltage can be lower.)
MarkingII 3G Ex ec IIC T4 Gc
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V
Input/power supplysafe electrical isolation acc. to IEC/EN 60079-11:2007, voltage peak value 375 V
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-7:2015+A1:2018 , EN IEC 60079-11:2024
UL approvalE106378
Control drawing116-0439 (cULus)Control drawing116-0439 (cULus)
IECEx approvalIECEx approval
IECEx certificateIECEx CML 17.0015XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 GcIECEx certificateIECEx CML 17.0015XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Control drawing116-0439 (cULus)
IECEx certificateIECEx CML 17.0015X
IECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc
Supplementary informationObserve the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
