KFD2-USC-1.D

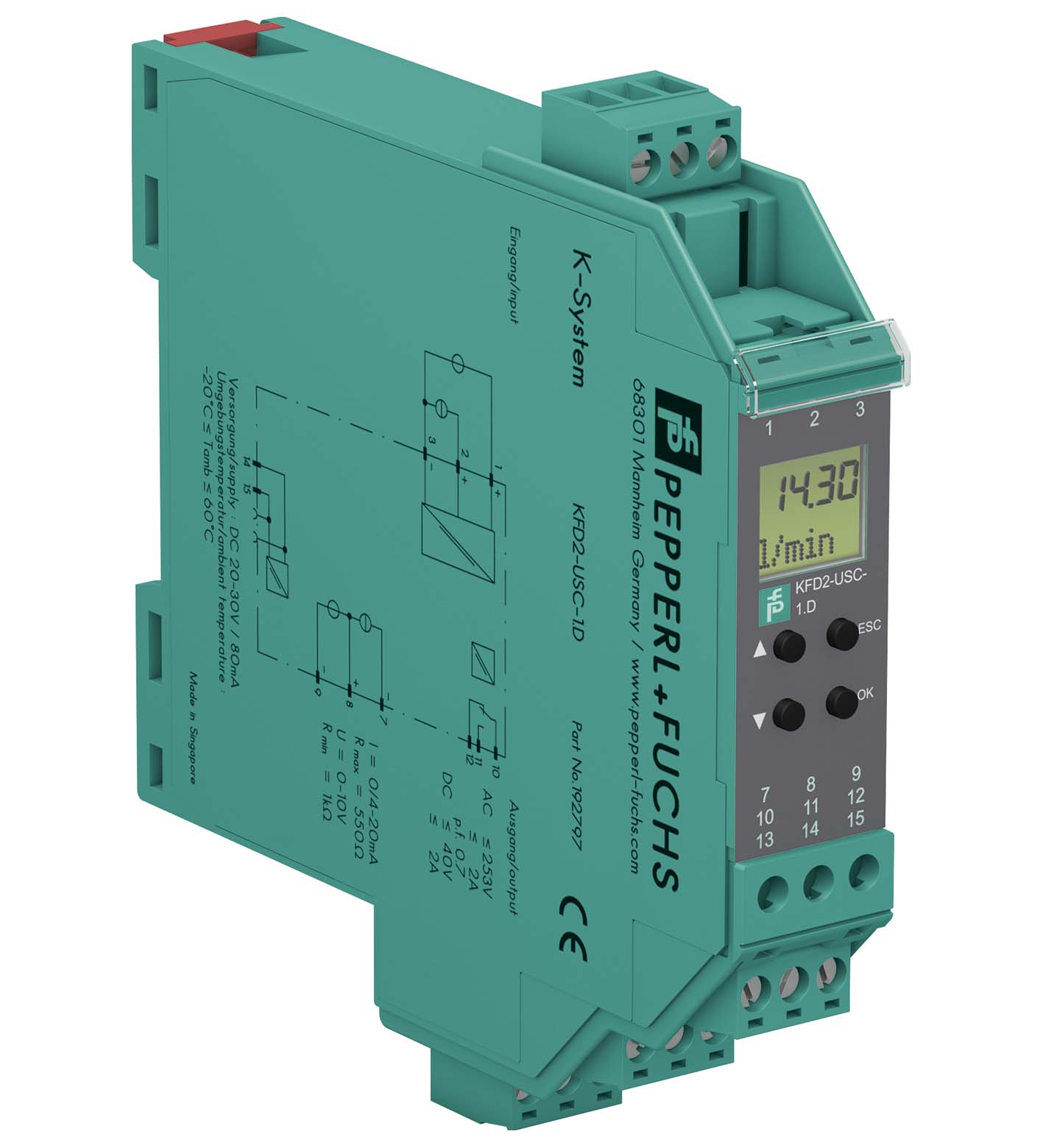

KFD2-USC-1.D Signal Converter with Trip Value

订货号: 192797
产品分类: K 系统（DIN 导轨安装，功能强大）

Signal Converter with Trip Value

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input
Connection	terminals 14+, 15- or Power Rail
Rated voltage	20 ... 30 V DC
Rated current	≤ 80 mA DC
Power consumption	≤ 1.6 W
Connection side	field side

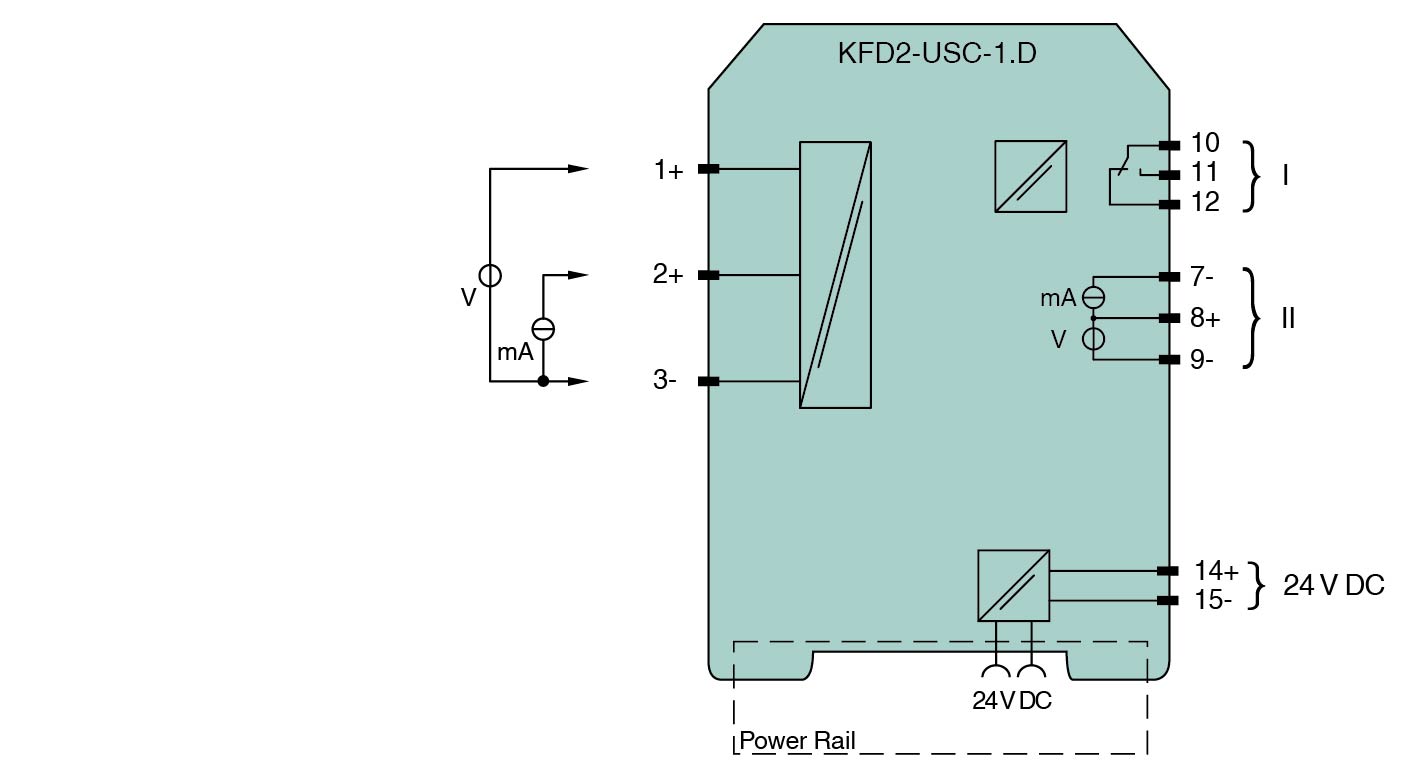

Connection	terminals 1+, 3- : mV, V ; terminals 2+, 3- : mA
Input resistance	voltage: 1 MΩ , current: max. 100 Ω
Limit	30 V
Current	0 ... 20 mA
Voltage	0 ... 10 V / 0 ... 60 mV
Resolution	15 Bit
Connection side	control side
Connection	output I: terminals 10, 11, 12 output II: terminals 7-, 8+, 9-
Output I	signal, relay
Contact loading250 V AC/2 A/cos φ 0.7; 40 V DC/2 AMechanical life2 x 107 switching cyclesEnergized/De-energized delayapprox. 10 ms / approx. 10 ms	Contact loading250 V AC/2 A/cos φ 0.7; 40 V DC/2 AMechanical life2 x 107 switching cyclesEnergized/De-energized delayapprox. 10 ms / approx. 10 ms
Output II	analog
Loadcurrent: max. 550 Ω , voltage: min. 1 kΩAnalog voltage output0/1 ... 5 V , 0/2 ... 10 VAnalog current output0/4 ... 20 mA	Loadcurrent: max. 550 Ω , voltage: min. 1 kΩAnalog voltage output0/1 ... 5 V , 0/2 ... 10 VAnalog current output0/4 ... 20 mA
Contact loading	250 V AC/2 A/cos φ 0.7; 40 V DC/2 A
Mechanical life	2 x 107 switching cycles
Energized/De-energized delay	approx. 10 ms / approx. 10 ms
Load	current: max. 550 Ω , voltage: min. 1 kΩ
Analog voltage output	0/1 ... 5 V , 0/2 ... 10 V
Analog current output	0/4 ... 20 mA
Deviation	0.1 % of full-scale value
Resolution/accuracycurrent: 1 µA/20 µAvoltage: 0.5 mV/10 mVmV: 3 µV/60 µVInfluence of ambient temperature0.003 %/K (30 ppm)	Resolution/accuracycurrent: 1 µA/20 µAvoltage: 0.5 mV/10 mVmV: 3 µV/60 µVInfluence of ambient temperature0.003 %/K (30 ppm)
Reaction time	≥ 150 ms/≤ 300 ms
Resolution/accuracy	current: 1 µA/20 µAvoltage: 0.5 mV/10 mVmV: 3 µV/60 µV
Influence of ambient temperature	0.003 %/K (30 ppm)
Input/Output	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Input/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Output/power supply	reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 Veff
Display elements	display
Control elements	Control panel
Configuration	via operating buttons
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Low voltage	Low voltage
Directive 2014/35/EUEN 61010-1:2010	Directive 2014/35/EUEN 61010-1:2010
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Directive 2014/35/EU	EN 61010-1:2010
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	150 g
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 inch) (W x H x D) , housing type B2
Height119 mmWidth20 mmDepth115 mm	Height119 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	119 mm
Width	20 mm
Depth	115 mm
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
