KFD2-VM-Ex1.35.L

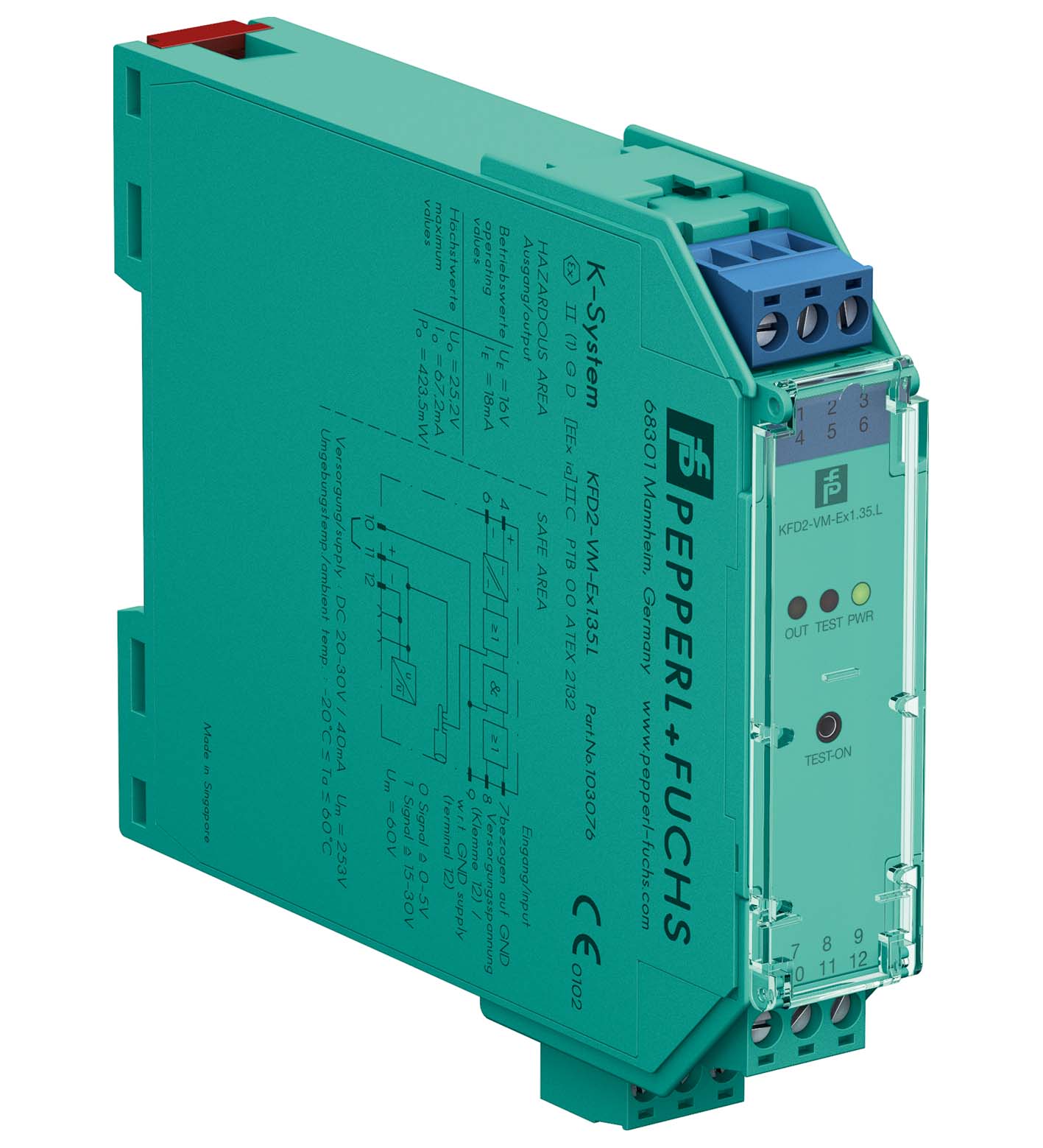

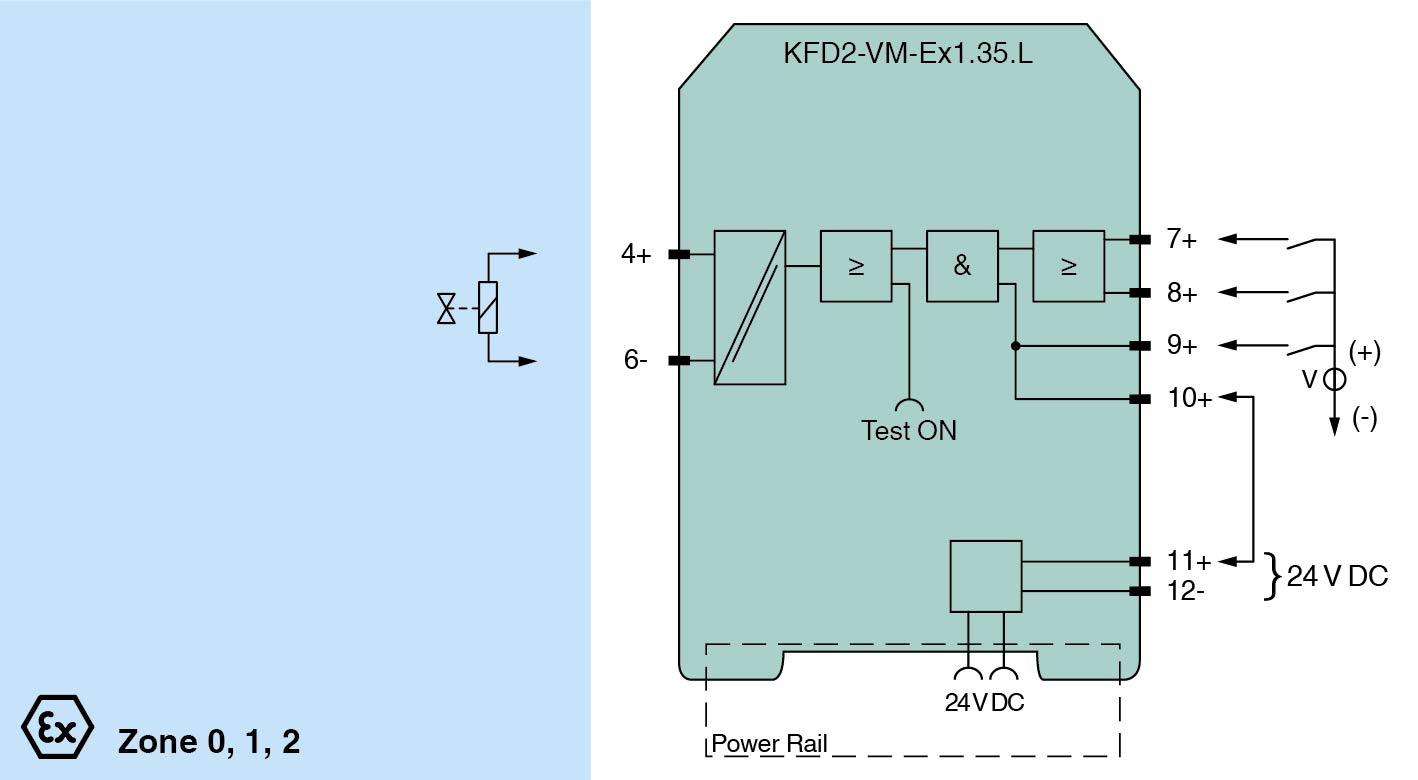

KFD2-VM-Ex1.35.L Solenoid Driver

订货号: 103076
产品分类: K 系统（DIN 导轨安装）

Solenoid Driver

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Digital Output
Connection	Power Rail or terminals 11+, 12-
Rated voltage	20 ... 30 V DC
Ripple	≤ 10 %
Rated current	≤ 52 mA
Power dissipation	typ. 1.2 W
Power consumption	< 1.5 W
Connection side	control side
Connection	terminals 7+, 8+, 9+
Signal level	1-signal: 15 ... 30 V DC ; input current: approx. 2.3 mA at 24 V DC 0-signal: 0 ... 5 V DC or open input
Response delay	5 ... 30 ms (typical 10 ms)
Connection side	field side
Internal resistor	max. 410 Ω
Current	typ. 18 mA
Voltage	typ. 16 V
Limit	current IE: ≥ 17 mA; typ. 18 mA voltage UE: ≥ 15.3 V; typ. 16 V
Open loop voltage	min. 22.3 V
Connection	terminals 4+, 6-
Output current	17 mA
Output signal	These values are valid for the rated operating voltages from 20 ... 30 V DC.
Switching frequency	15 Hz
Input/power supply	not available
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21:2012
Degree of protection	IEC 60529:2001
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 120 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
EU-type examination certificate	PTB 00 ATEX 2132
Marking II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]OutputEx iaVoltageUo25.2 V DCCurrentIo67.2 mAPowerPo423.5 mW (linear characteristic)	Marking II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]OutputEx iaVoltageUo25.2 V DCCurrentIo67.2 mAPowerPo423.5 mW (linear characteristic)
Supply	Supply
Maximum safe voltageUm253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.)	Maximum safe voltageUm253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.)
Input	Input
Maximum safe voltageUm60 V (Attention! Um is no rated voltage.)	Maximum safe voltageUm60 V (Attention! Um is no rated voltage.)
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VOutput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012	Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012
Marking	II (1)GD [Ex ia] IIC [circuit(s) in zone 0/1/2]
Output	Ex ia
Voltage	25.2 V DC
Current	67.2 mA
Power	423.5 mW (linear characteristic)
Maximum safe voltage	253 V AC/125 V DC without jumper 10-11, 60 V with jumper 10-11 (Attention! Um is no rated voltage.)
Maximum safe voltage	60 V (Attention! Um is no rated voltage.)
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Output/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
