KFD2-VR-Ex1.12

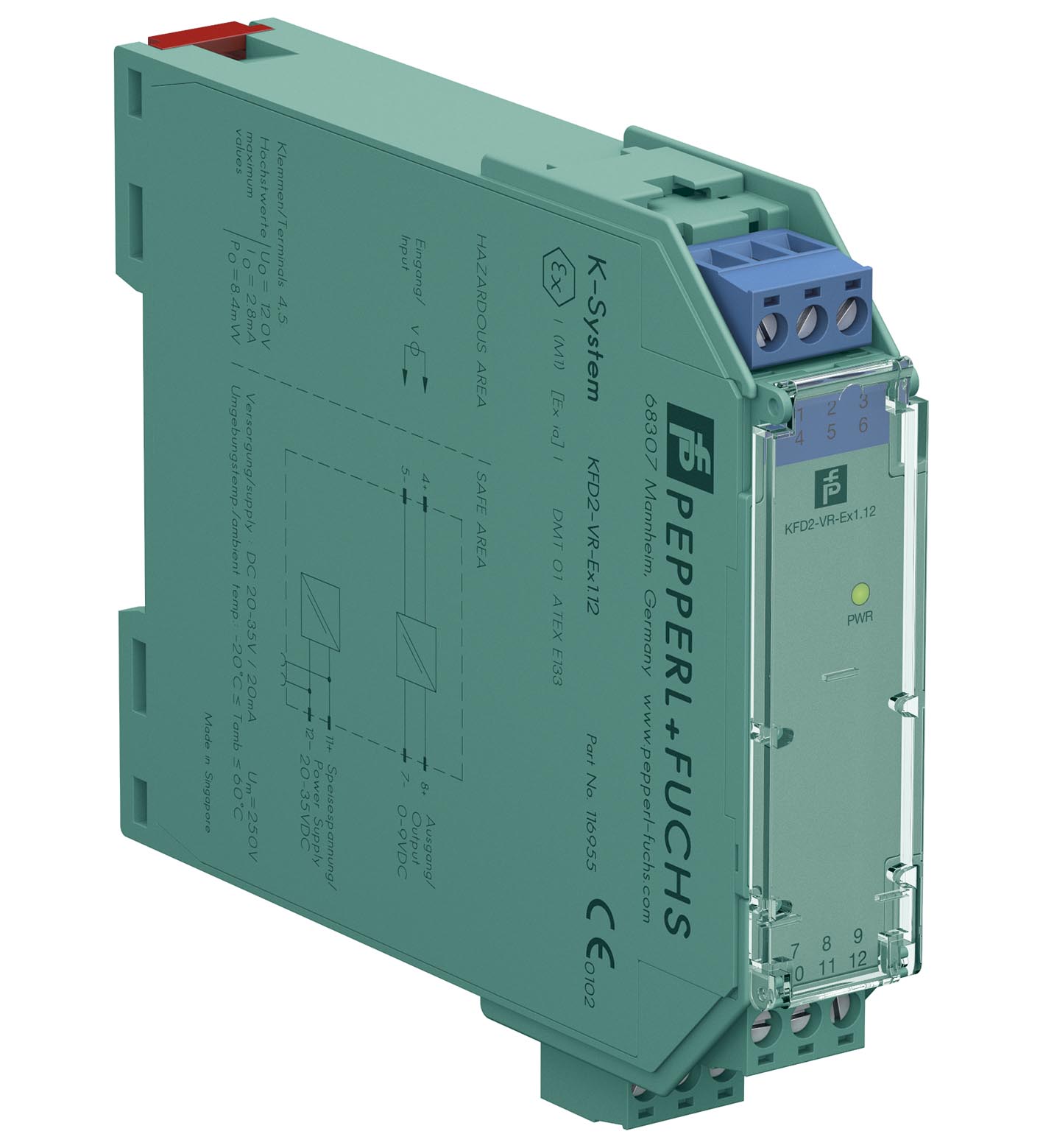

KFD2-VR-Ex1.12 Voltage Repeater

订货号: 116955
产品分类: K 系统（DIN 导轨安装）

Voltage Repeater

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input

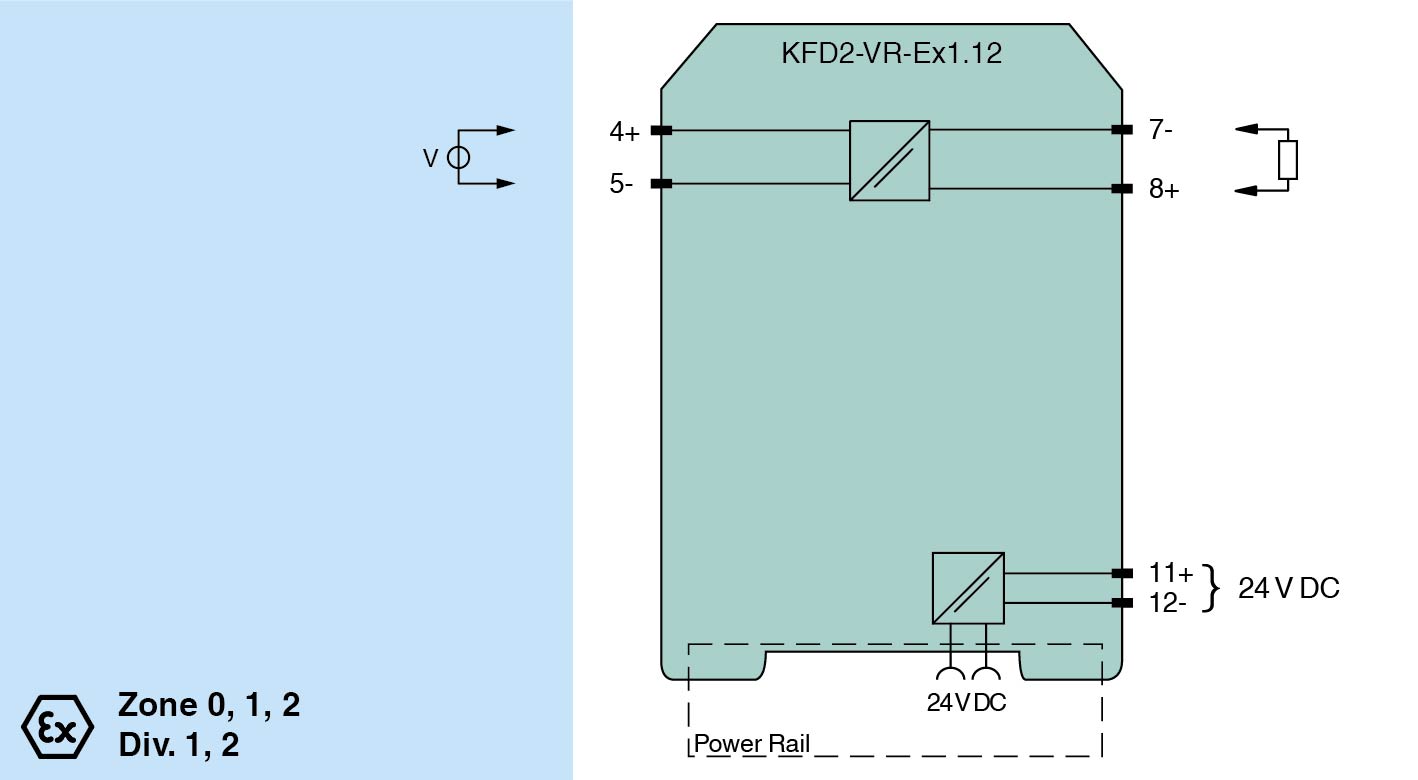

Connection	Power Rail or terminals 11+, 12-
Rated voltage	20 ... 35 V DC
Ripple	within the supply tolerance
Rated current	< 20 mA
Connection side	field side
Connection	terminals 4+, 5-
Input resistance	min. 10 MΩ
Transmission range	0 ... 9 V
Offset voltage/current	< 2 mV / < 7 nA
Connection side	control side
Connection	terminals 7-, 8+
Voltage	0 ... 9 V
Output resistance	≤ 20 Ω
Cut-off frequency	1.2 kHz (-3 dB)
Deviation	Deviation
After calibration± 5 mV at 20 °C (68 °F)Influence of ambient temperature≤ 0.005 % of range per K	After calibration± 5 mV at 20 °C (68 °F)Influence of ambient temperature≤ 0.005 % of range per K
Rise time	≤ 0.4 ms
After calibration	± 5 mV at 20 °C (68 °F)
Influence of ambient temperature	≤ 0.005 % of range per K
Output/power supply	Basic insulation according to DIN EN 50178, rated insulation voltage of AC 50 V
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Insulation coordination	EN 50178
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 100 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height107 mmWidth20 mmDepth115 mm	Height107 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	107 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	DMT 01 ATEX E 133
Marking I (M1) [Ex ia] IVoltageUo12 VCurrentIo2.8 mAPowerPo8.4 mW	Marking I (M1) [Ex ia] IVoltageUo12 VCurrentIo2.8 mAPowerPo8.4 mW
Supply	Supply
Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)
Output	Output
Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)
Galvanic isolation	Galvanic isolation
Input/Outputsafe galvanic isolation acc. to EN 60079-11, voltage peak value 375 VInput/power supplysafe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V	Input/Outputsafe galvanic isolation acc. to EN 60079-11, voltage peak value 375 VInput/power supplysafe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 50303:2000	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 50303:2000
Marking	I (M1) [Ex ia] I
Voltage	12 V
Current	2.8 mA
Power	8.4 mW
Maximum safe voltage	250 V (Attention! The rated voltage is lower.)
Maximum safe voltage	250 V (Attention! The rated voltage is lower.)
Input/Output	safe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V
Input/power supply	safe galvanic isolation acc. to EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 50303:2000
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
