倍加福

KFD2-VR-Ex1.19-Y109129

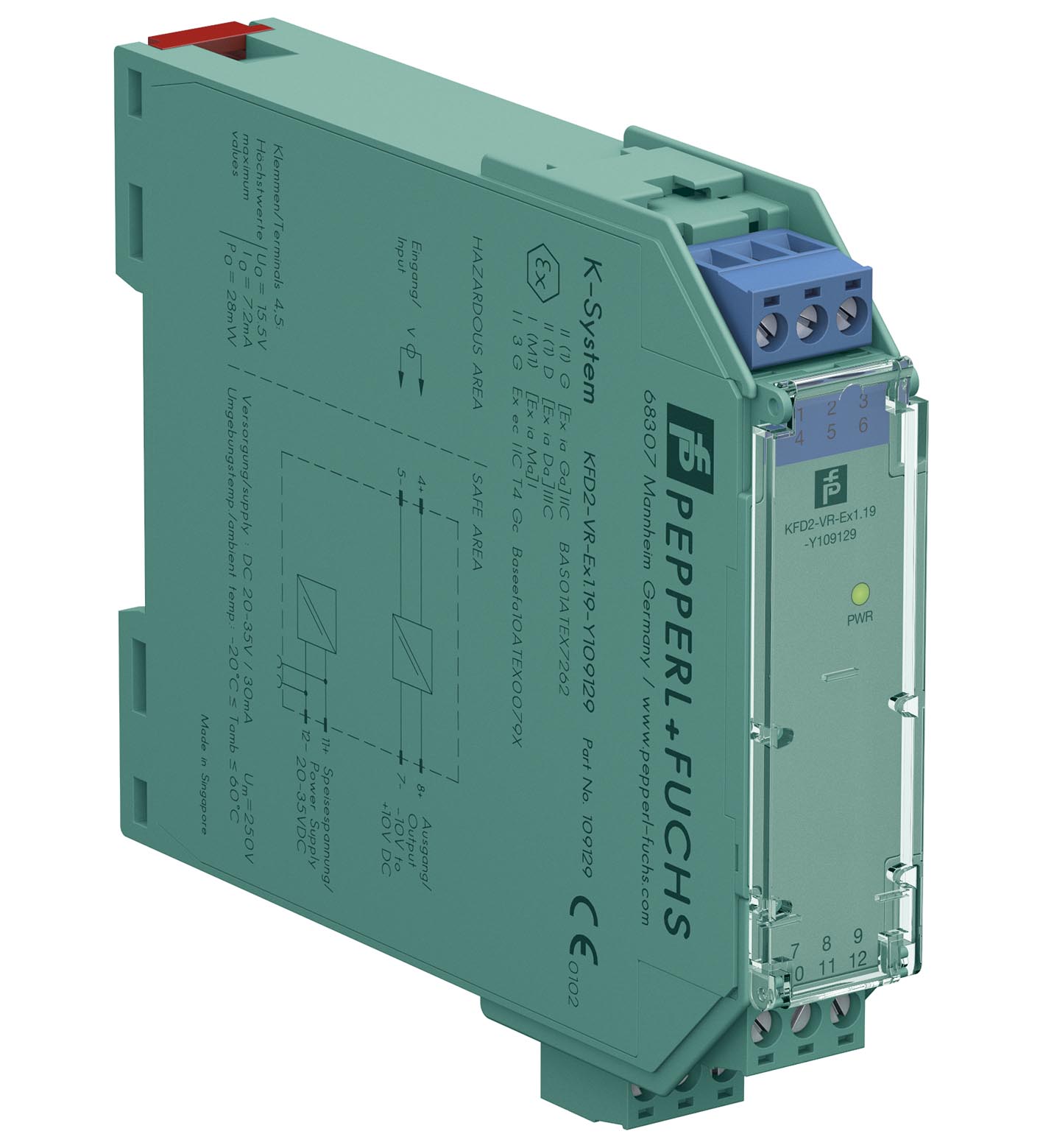

KFD2-VR-Ex1.19-Y109129 Voltage Repeater

订货号: 109129
产品分类: K 系统（DIN 导轨安装）

Voltage Repeater

查看规格参数资料与附件

TECHNICAL DATA

规格参数

General specifications

Signal type	Analog input

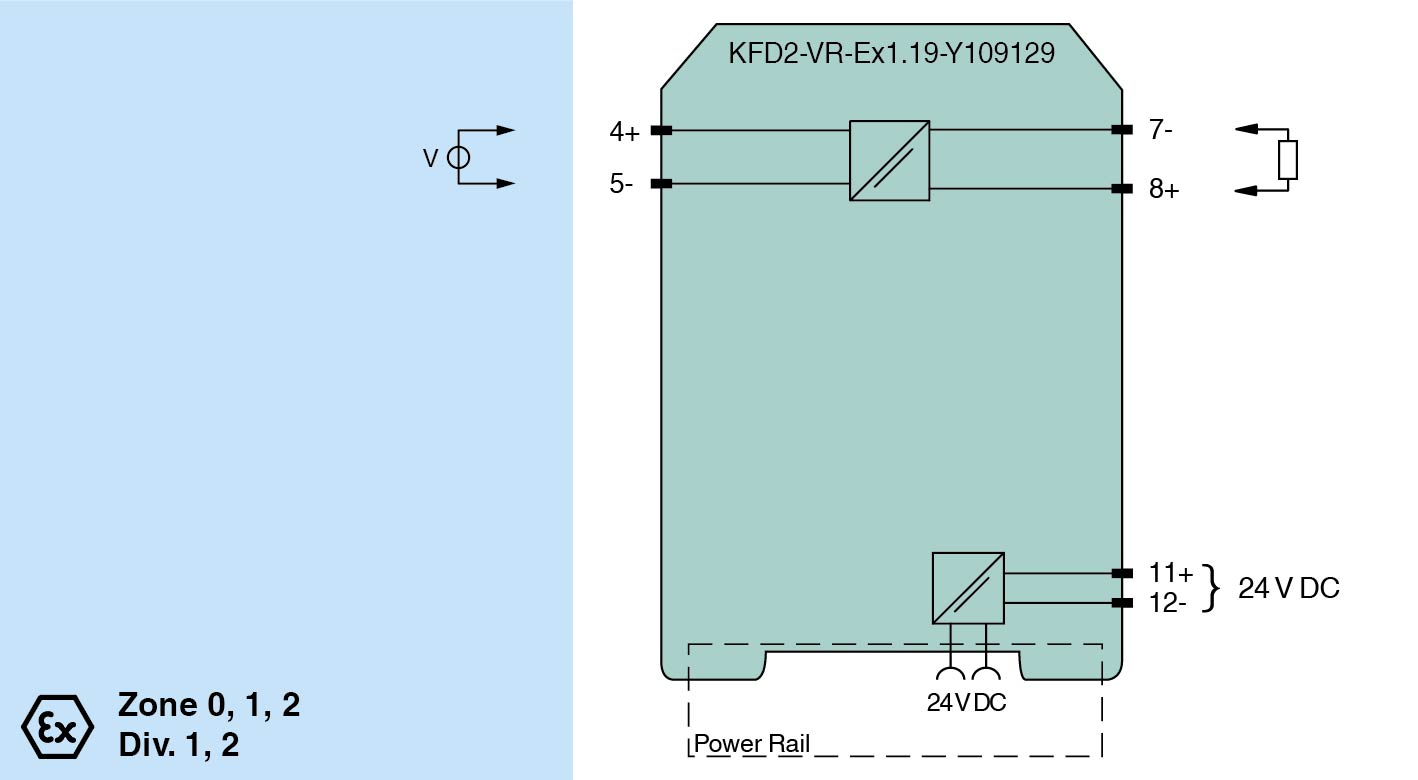

Connection	Power Rail or terminals 11+, 12-
Rated voltage	20 ... 35 V DC
Ripple	within the supply tolerance
Rated current	< 30 mA
Connection side	field side
Connection	terminals 4+, 5-
Input resistance	min. 10 MΩ
Transmission range	-10 ... 10 V
Offset voltage/current	< 10 mV / < 1 µA
Connection side	control side
Connection	terminals 7-, 8+
Voltage	-10 ... 10 V
Output resistance	max. 20 Ω
Cut-off frequency	50 kHz (-3 dB)
Deviation	Deviation
After calibration± 30 mV at 20 °C (68 °F)Influence of ambient temperature< 0.01 % of span per K	After calibration± 30 mV at 20 °C (68 °F)Influence of ambient temperature< 0.01 % of span per K
Rise time	≤ 10 µs
After calibration	± 30 mV at 20 °C (68 °F)
Influence of ambient temperature	< 0.01 % of span per K
Output/power supply	functional insulation, rated insulation voltage 50 V AC
Display elements	LED
Labeling	space for labeling at the front
Electromagnetic compatibility	Electromagnetic compatibility
Directive 2014/30/EUEN 61326-1:2013 (industrial locations)	Directive 2014/30/EUEN 61326-1:2013 (industrial locations)
Directive 2014/30/EU	EN 61326-1:2013 (industrial locations)
Electromagnetic compatibility	NE 21
Degree of protection	IEC 60529
Ambient temperature	-20 ... 60 °C (-4 ... 140 °F)
Degree of protection	IP20
Connection	screw terminals
Mass	approx. 110 g
Dimensions	20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1
Height100 mmWidth20 mmDepth115 mm	Height100 mmWidth20 mmDepth115 mm
Mounting	on 35 mm DIN mounting rail acc. to EN 60715:2001
Height	100 mm
Width	20 mm
Depth	115 mm
EU-type examination certificate	BAS 01 ATEX 7262
Marking II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) , [circuit(s) in zone 0/1/2]VoltageUo15.5 VCurrentIo7.2 mAPowerPo28 mW	Marking II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) , [circuit(s) in zone 0/1/2]VoltageUo15.5 VCurrentIo7.2 mAPowerPo28 mW
Supply	Supply
Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)
Output	Output
Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)	Maximum safe voltageUm250 V (Attention! The rated voltage is lower.)
Certificate	BASEEFA 10 ATEX 0079X
Marking II 3G Ex ec IIC T4 Gc [device in zone 2]	Marking II 3G Ex ec IIC T4 Gc [device in zone 2]
Galvanic isolation	Galvanic isolation
Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V	Input/Outputsafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 VInput/power supplysafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive conformity	Directive conformity
Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018	Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018
Marking	II (1)GD, I (M1) [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I (-20 °C ≤ Tamb ≤ 60 °C) , [circuit(s) in zone 0/1/2]
Voltage	15.5 V
Current	7.2 mA
Power	28 mW
Maximum safe voltage	250 V (Attention! The rated voltage is lower.)
Maximum safe voltage	250 V (Attention! The rated voltage is lower.)
Marking	II 3G Ex ec IIC T4 Gc [device in zone 2]
Input/Output	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Input/power supply	safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V
Directive 2014/34/EU	EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018
FM approval	FM approval
Control drawing116-0129	Control drawing116-0129
UL approval	UL approval
Control drawing116-0173 (cULus)	Control drawing116-0173 (cULus)
CSA approval	CSA approval
Control drawing116-0132	Control drawing116-0132
IECEx approval	IECEx approval
IECEx certificateIECEx BAS 10.0040XIECEx markingEx ec IIC T4 Gc	IECEx certificateIECEx BAS 10.0040XIECEx markingEx ec IIC T4 Gc
Control drawing	116-0129
Control drawing	116-0173 (cULus)
Control drawing	116-0132
IECEx certificate	IECEx BAS 10.0040X
IECEx marking	Ex ec IIC T4 Gc
Supplementary information	Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
